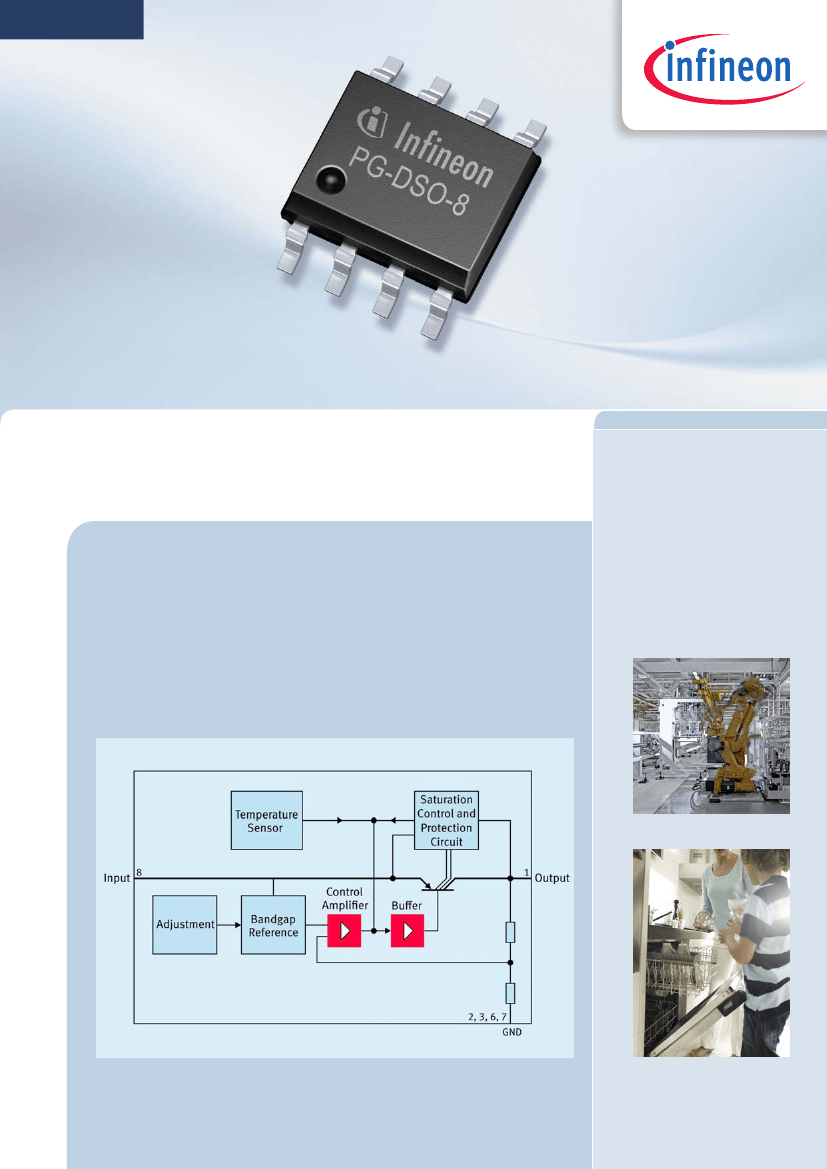

Product Brief
Applications
Voltage Regulators
Reliable Power Management Solutions
Did you Know...
an increase in energy efficiency...
Extends battery life
Extends operating time
Reduces cost
Industrial & consumer
Manufacturing & automation
HDTV & Flat panel monitors
Appliances / White goods
Battery chargers
Battery powered instrumentation
USB HUBs, routers, modems
Post regulator for DC/DC converts
Active SCSI terminators
Cordless phones
Metering systems
Motor drives
INFINEON TECHNOLOGIES offers a comprehensive portfolio of linear voltage
regulators fitting a broad range of consumer, computing, communications and
industrial applications. By leveraging our long standing and market leading
experience in automotive power supplies application, we are expanding our
portfolio to provide power supply solutions to our customer`s current and future
application needs.
IFX 2931 Block Diagram
www.infineon.com/industrial-voltage-regulators
Product Brief
Voltage Regulators
Reliable Power Management Solutions
Linear voltage Regulators for Industrial and Consumer Applications
Pin-to-pin compatible to industry standard parts
Reverse polarity protection
High input voltage rating: Up to 45V
Overtemperature protection
Very low dropout voltage
Temp. range: -40° to 125°C
Low current consuption
Product
IFX 20001
IFX 2931
IFX 24401
IFX 25001
Package
PG-SCT595-5
PG-DSO-8
PG-SSOP-14
PG-SOT-223,PG-
TO-252,PG-TO-
263,PG-TO-220
PG-TO252,PG-
TO-263
PG-SOT-223
PG-TO-252
Green
Yes
Yes
Yes
Yes
Overload protection
Overvoltage/Short-circuit protection
M ax Input v oltage
4 5
2 8
4 2
4 5
Output voltage
3.3,5.0
3.3,5.0
5.0
2.5,3.3,5.0
8.5,10.0
5.0,adj
3.3,5.0,adj
1.5,1.8,2.6
3.3,5.0,adj
Accuracy
4.0%
5.0%
2.0%
4.0%
Max Output
Current
30mA
100mA
300mA
400mA
IFX 25401
IFX 8117
IFX 27001
Yes
Yes
Yes
4 0
2 0
4 0
4.0%
2.0%
3.0%
400mA
1000mA
1000mA
ALL OUR DEVICES are especially designed for use in harsh environments. Our robust design approach ensures delami-
nation-free ICs and long-term reliability.
GREEN PRODUCTS (RoHS compliant) meet the world-wide customer requirements for being environmentally friendly
products and to be compliant with government regulations. Green products are RoHS-Compliant.
