SM5430/SM5470
Low Cost Packaged Pressure Sensors
Surface Mount and DIP Pressure Sensors Low-Cost Packaged Die
DESCRIPTION

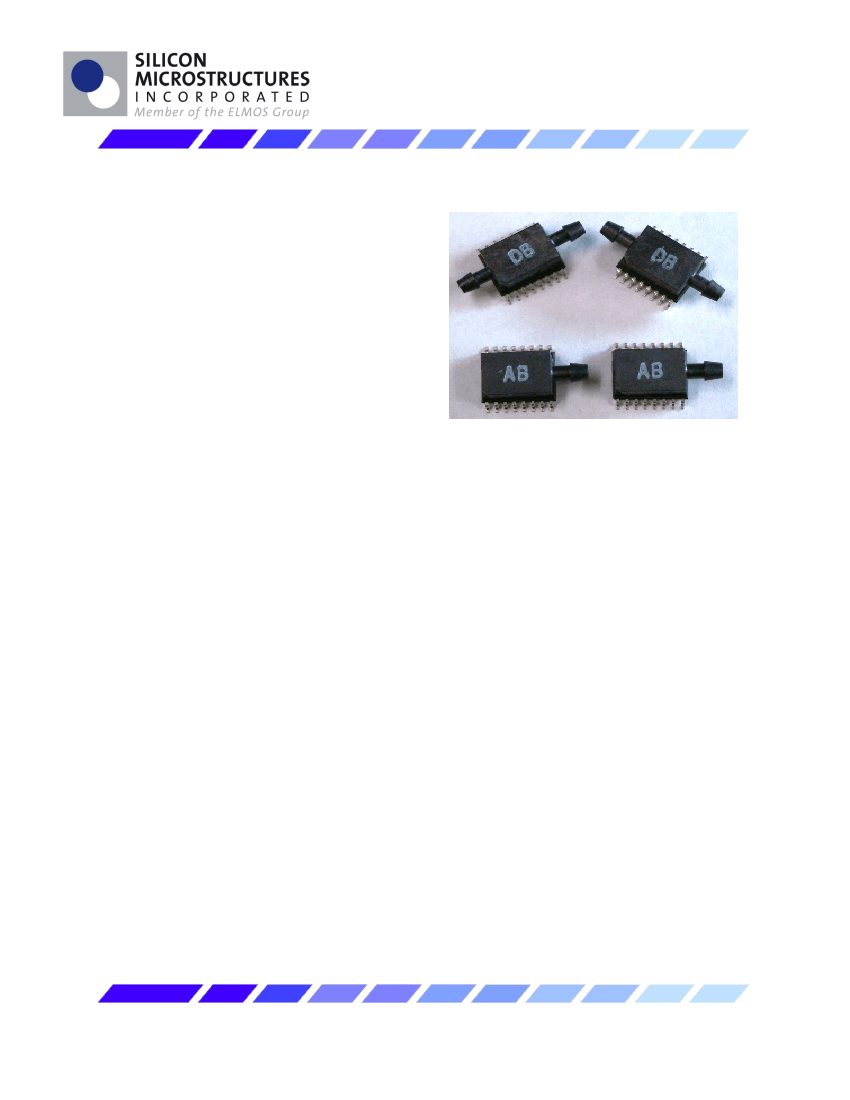

Silicon Microstructures provides its two most
popular pressure sensor die in surface
mount dual in-line package (SO16)
configuration. All parts in these series are
uncompensated high-performance die
mounted in an injection-molded package
designed for surface mounting.
These packaged sensor die provide a way
for OEM manufacturers to incorporate
pressure sensors at costs close to raw die
prices, without the need to handle, attach or
wire bond silicon sensor die.
Options include variety of pressure ranges,
absolute or gauge pressure types, and a
choice of cap configurations. The result is a
versatile product line suitable for a wide
range of applications.
The low-pressure series (model
SM5470)
incorporates Silicon Microstructure’s unique
low-pressure die to achieve high
performance in pressure ranges from 0.15
PSI to 3.0 PSI full-scale in gauge and
differential.
The model
SM5430
comes in gauge,
differential, and absolute for pressure
ranges from 5 PSI to 60 PSI full scale.
FEATURES
•
•
•
•
•
•
•
Low pressure (from 0-0.15 to 0-60 PSI
Full Scale)
Easy to Use
Compact and Light-weight
High-performance, Stable Silicon Chip
and Package
Easily Embedded in OEM Equipment
High-volume, Low Cost
Available in Tape and Reel or IC Sticks
APPLICATIONS
•
•
•
•
•
•
•
•
•
•
•
Altimeters
Barometric Correction
Tire Gauges
Digital Pressure Gauges
Environmental Monitoring
Appliances
Consumer and Sports
HVAC
Medical Instrumentation and Monitoring
Pressure Differential and Flow
Monitoring
Hand-held Gauges
40SP5012.01
06_11
Silicon Microstructures, Inc.
♦
1701 McCarthy Blvd.
♦
Milpitas, CA 95035 USA
Tel: 408-577-0100
♦
Fax: 408-577-0123
♦
sales@si-micro.com
♦
www.si-micro.com
SM5430/SM5470
Low Cost Packaged Pressure Sensors
ABSOLUTE MAXIMUM RATING TABLE FOR SM5430/5470 SENSOR
All parameters measure at 5 V excitation at room temperature, unless otherwise specified.
All Models
Parameter
Excitation Voltage
Excitation Current
Zero Offset
TC Span
TC Resistance
Bridge Impedance
Operating Temp
Storage Temp
Min.
0
0
-50
-50
-15
33
2.7
-40
-40
Typ.
5.0
1.5
-5
0
-19
28
3.3
Max.
10.0
3.0
+50
+50
-24
25
4.0
85
85
Units
V
mA
mV
mV
%FS/100°C
%/100°C
kΩ
°C
°C
Notes
SM5470
SM5430
1, 4
1, 4
4
4
SM5430 Standard Pressure Series
Span (FS Range), PSI (kPa)
5 (34)
15 (103)
30 (207)
60 (414)
Linearity
TC Offset
Burst Pressure
Min.
75
105
115
115
-0.2
-5
>5X
Typ.
100
145
165
180
+0.07
-1
Max.
125
175
195
220
+0.2
+5
Units
mV
mV
mV
mV
%FS
%FS/100°C
Rated FS Pressure
Notes
3, 4
1, 4
2, 4
SM5470 Low Pressure Series Only
Span (FS Range), PSI (kPa)
0.15 (1.03)
0.30 (2.07)
0.80 (5.52)
1.50 (10.3)
3.00 (20.7)
Linearity
TC Offset
Burst Pressure
Min.
25
25
25
25
25
-0.3
-12
15X
Typ.
50
50
50
50
50
+0.1
Max.
85
85
85
85
85
+0.3
+12
Units
mV
mV
mV
mV
mV
%FS
%FS/100°C
Rated FS Pressure
Notes
3, 4
1, 4
2, 4
Notes:
1. Measured from 0 to 70°C
2. Sensor die will survive pressure specified for all ranges. Maximum package pressure is 150 PSI.
3. Defined as best-fit straight line (BFSL); for 0.3 PSI full-scale, linearity is +0.5%FS. For 0.15 PSI full-scale, linearity is +2.5% Full-Scale.
4. Tested on a sample basis.
ORDERING INFORMATION
Pressure Type
A:
Absolute (except 5470)
G:
Gauge
D:
Differential
Available Cap Type
B:
Horizontal Barbed Port(s)
SM5470 - 008 - G - B
Std. Pressure
Ranges
PSI
5430
5
005
15
015
30
030
60
060
Low Pressure
Ranges
PSI
5470
0.15
001
0.30
003
0.80
008
1.50
015
3.00
030
40SP5012.01
06_11
Silicon Microstructures, Inc.
♦
1701 McCarthy Blvd.
♦
Milpitas, CA 95035 USA
Tel: 408-577-0100
♦
Fax: 408-577-0123
♦
sales@si-micro.com
♦
www.si-micro.com

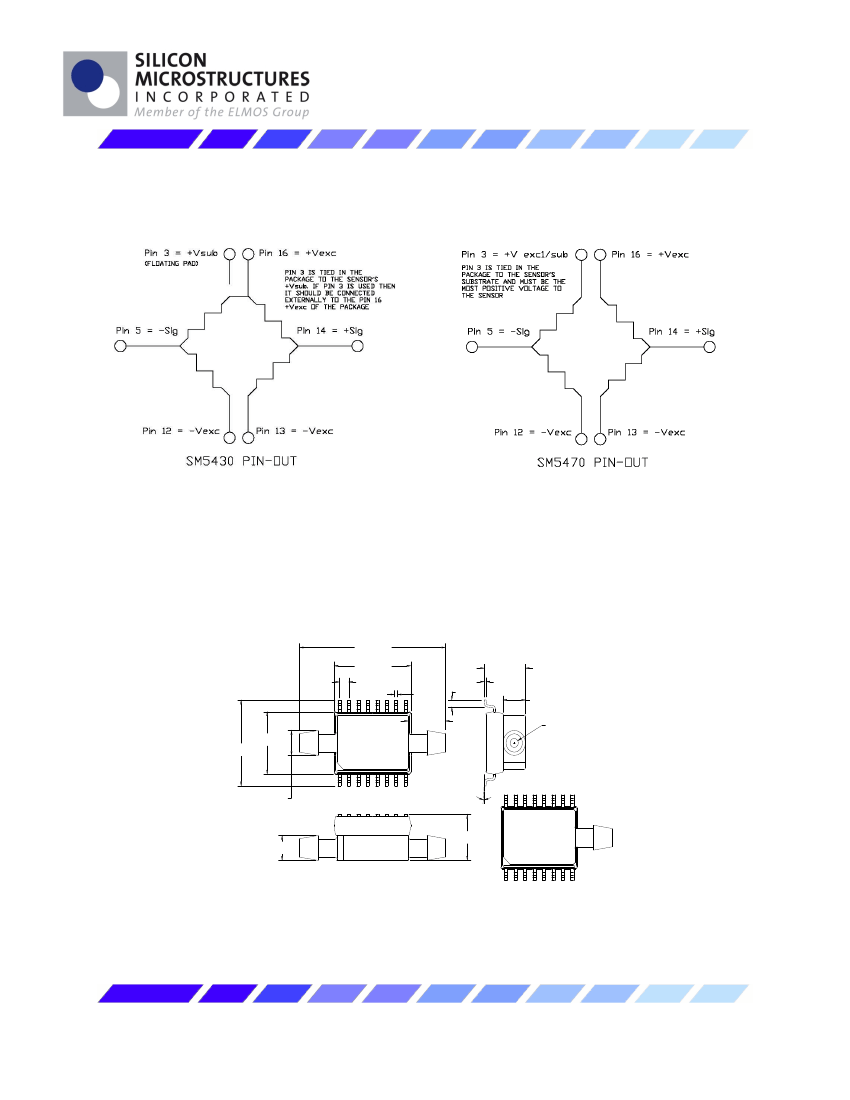

SM5430/SM5470
Low Cost Packaged Pressure Sensors
