EZ-BLE
™
PS
O
C
®
EVALUATION BOARD
CYBLE-224116-EVAL
The EZ-BLE
™
PSoC
®
Evaluation Board (CYBLE-224116-EVAL)
enables you to evaluate and develop applications on the
EZ-BLE PSoC Module (CYBLE-224116-01). The EZ-BLE
PSoC Module is a fully-integrated, fully-certi ed,
9.5 mm x 15.4 mm x 1.8 mm, programmable, Bluetooth
®
Smart module designed to reduce your time-to-market.
For more information visit:
www.cypress.com/EZ-BLEModule
- The EZ-BLE Module home page.
www.cypress.com/EZ-BLEEval
- EZ-BLE PSoC Evaluation Kits.
www.cypress.com/go/AN96841
- The getting started guide.
EZ-BLE PS
O
C Module
NC
NC
P0_5
NC
P1_2
P0_6
P0_7
XRES
GND
VDD
NC
NC
P0_4
VREF
P1_1
P1_4
P1_3
P1_5
NC
NC
GND
P3_6
P3_4
NC
P3_0
NC
NC
P2_6
P2_4
P2_2
P0_1
VDDR
VDD
P3_7
P3_5
NC
P3_1
P5_1
P5_0
P1_0
P2_5
P2_3
P2_1
GND
J4 MiniProg3 10-Pin
Programming Header
J3 Header
VDDR
VDD

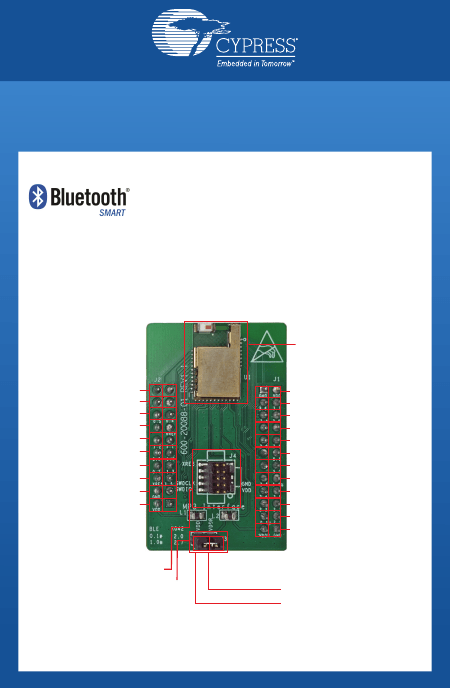

Fig 1: CYBLE-224116-EVAL Pinout Description
Note: To use the CYBLE-224116-EVAL you must separately purchase either the
CY8CKIT-002 MINIPROG3 or the CY8CKIT-042-BLE BLE PIONEER KIT.
EZ-BLE
TM
PS
O
C
®
EVALUATION BOARD

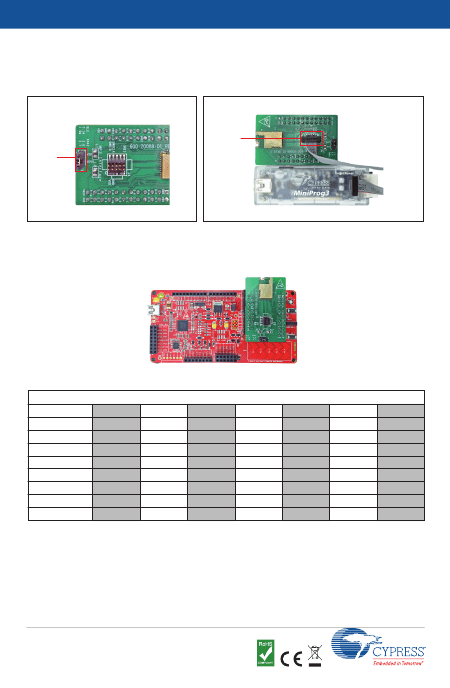

1: Connect the CYBLE-224116-EVAL to the CY8CKIT-002 (MiniProg3)
Connect a jumper on the
J3 header
Connect the MiniProg3 to the J4 10-pin header
J4
J3
Fig 2: J3 Header
Fig 3: Programming/Debugging with MiniProg3
OR
Plug the CYBLE-224116-EVAL on the CY8CKIT-042-BLE baseboard.
Note: The jumper on CYBLE-224116-EVAL’s J3 header can be connected or disconnected.
Fig 4: Programming and debugging with CY8CKIT-042-BLE BLE Pioneer Kit Baseboard
Pin Mapping between CY8CKIT-042-BLE (Base) and CYBLE-224116-EVAL (Eval)
(Base)
GND
VDDD, VDDA
VDDR
XRES
VREF
P0_4
P0_5
P0_6
(Eval)
GND
VDD
VDDR
XRES
VREF
P0_4
P0_5
P0_6
(Base)
P0_7
P1_1
P1_2
P1_3
P1_4
P1_5
P2_0
P2_1
(Eval)
P0_7
P1_1
P1_2
P1_3
P1_4
P1_5
P0_1
P2_1
(Base)
P2_2
P2_3
P2_4
P2_5
P2_6
P2_7
P3_0
P3_1
(Eval)
P2_2
P2_3
P2_4
P2_5
P2_6
P1_0
P3_0
P3_1
(Base)
P3_4
P3_5
P3_6
P3_7
P5_0
P5_1
(Eval)
P3_4
P3_5
P3_6
P3_7
P5_0
P5_1
2: Create a project using the CYBLE-224116-01 MPN and program/debug using
PSoC
®
Creator
™
3.3 DP1.
The EZ-BLE PSoC Module is quali ed for the Bluetooth 4.2 speci cation and is certi ed
for the 2.4 GHz unlicensed frequency range in USA (FCC), Canada (IC), Europe (CE),
Japan (TELEC) and Korea (KC).
Visit
www.cypress.com/go/support
for technical support
© 2016 Cypress Semiconductor Corporation. All rights
reserved. All trademarks or registered trademarks referenced herein
are the properties of their respective owners. 002-16395 Rev.**
