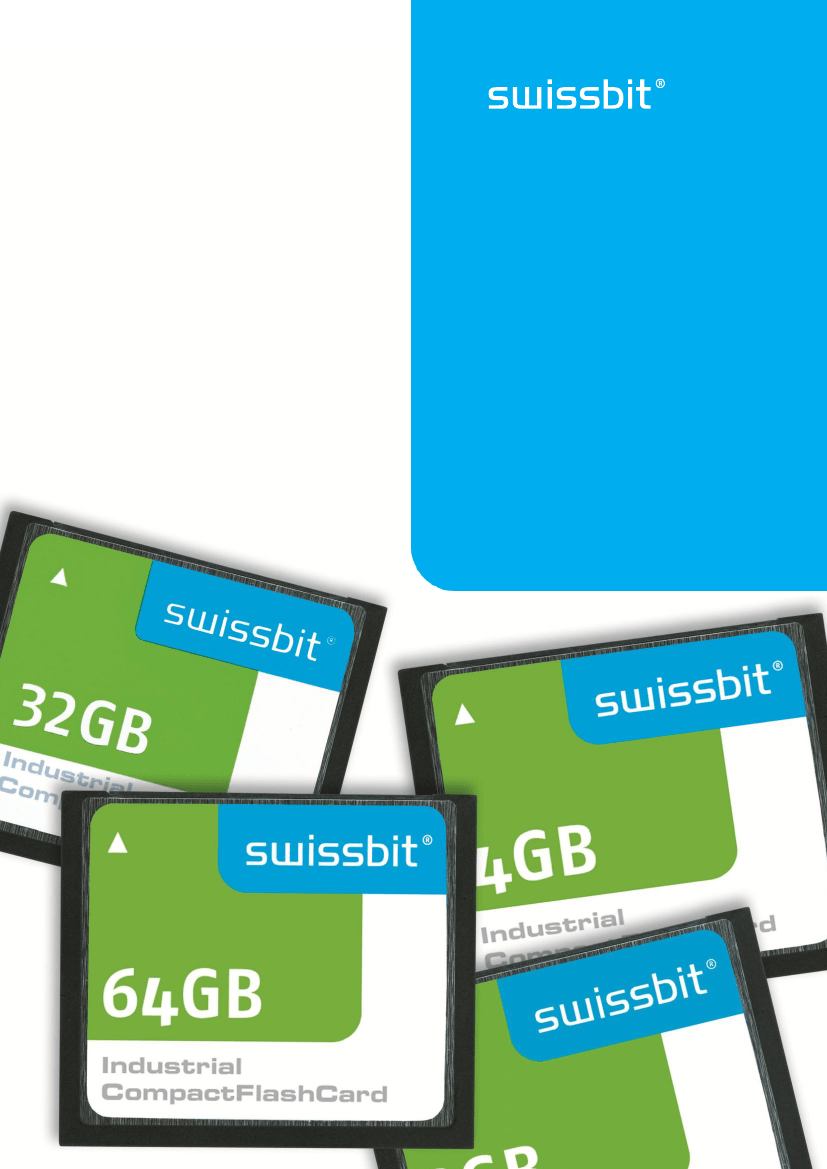

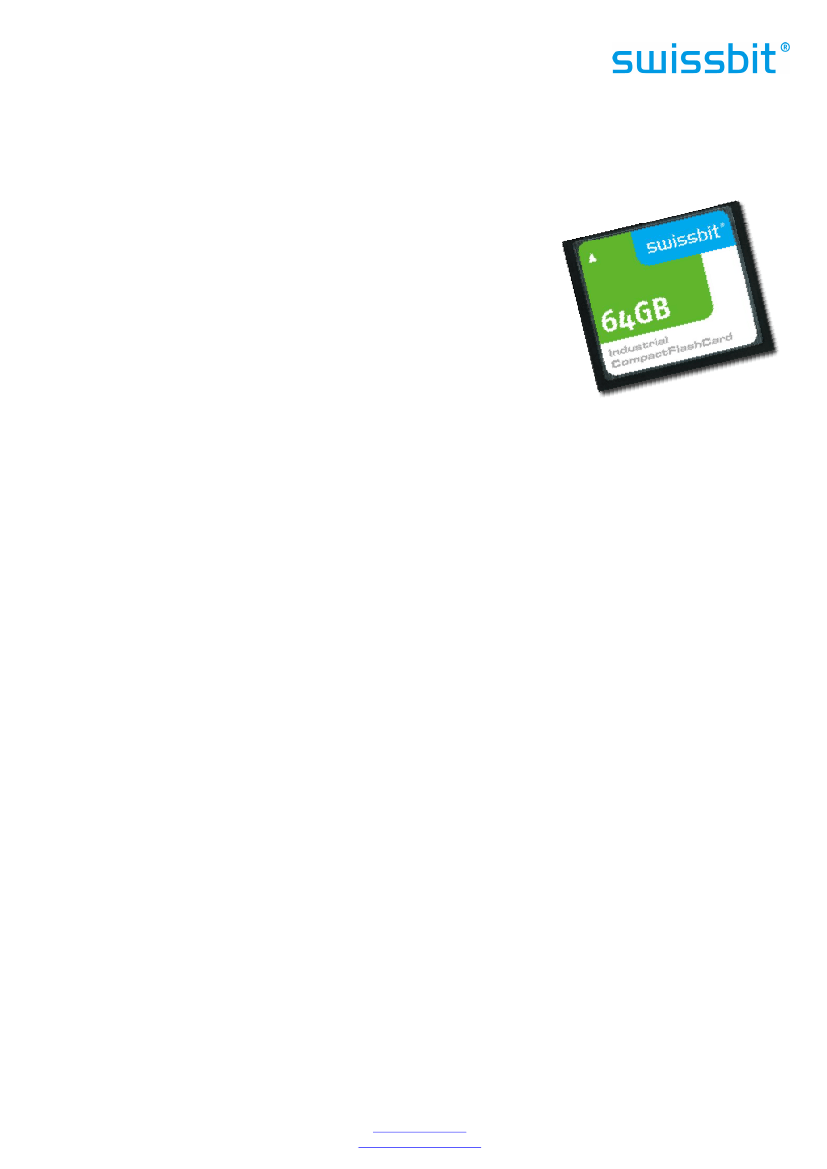

C-440 Series – Industrial UDMA CompactFlash™ Card,
2GByte up to 64GByte, 3.3/5V Supply
Main Features
Highly-integrated memory controller
o
CompactFlash
TM
specification 4.1,
compatible with specification 5.0
o
PCMCIA specification 2.1 &
PC Card ATA Interface Specification 8, 7, 6, and 5
o
True IDE mode compatible,
up to UDMA6 / MDMA4 / PIO6 supported
o
Fix drive (IDE mode) & removable drive (PC card mode)
as default in the same card
o
Hot swappable in PC card modes
o
Signal termination resistors to improve signal quality
o
LBA48 address support (LBA28 limitation on request)
o
Fix drive (IDE mode) &
removable drive (PC card mode) as default configuration
Small form factor
o
CFC Type I: 36.4mm x 42.8mm x 3.3mm
Low-power CMOS technology
3.3V or 5.0V power supply, card drives bus with 3.3V, inputs 5V compatible
Power saving mode (with automatic wake-up)
S.M.A.R.T. support and extended vendor information
Wear Leveling: equal wear leveling of static and dynamic data
The wear leveling assures that dynamic data as well as static data is balanced evenly across the
memory. With that the maximum write endurance of the device is guaranteed.
Data Retention: 10 year (JESD47)
Patented power-off reliability
o
No data loss of older sectors
o
Max. 32 sectors data loss (old data kept)
High reliability
o
MTBF >3,000,000 hours
o
Data reliability: < 1 non-recoverable error per 10
14
bits read
o
Number of connector insertions/removals: >10,000
o
24bit per double sector BCH ECC capability
o
Near Miss ECC handling at read (refresh and correct data, if multiple correctable errors detected)
o
Read Disturb Management (RDM, refresh and correct data after a certain number of read
commands per block)
High performance
o
Up to 133MB/s burst transfer rate in UDMA6
o
Sustained Write performance: up to 40MB/s (UDMA6 untrimmed)
o
Sustained Read Performance: up to 65MB/s (UDMA6)
o
Trim command supported to increase random write performance
o
Up to 300 IOPS with Trim Support (4k random write) and up to 32 IOPS untrimmed
Available densities
o
up to 64GBytes (SLC NAND Flash)
Operating System support
o
Standard Software Drivers operation CompactFlash
TM
2 Temperature ranges
o
Commercial Temperature range
0 … +70°C
o
Industrial Temperature range
-40 … +85°C
Life Cycle Management
Controlled BOM
RoHS compatible
Swissbit AG
Industriestrasse 4
CH-9552 Bronschhofen
Switzerland
Swissbit reserves the right to change products or specifications without notice.
www.swissbit.com
industrial@swissbit.com
Revision: 1.01
C-440_fact_sheet_CF-HxBU_Rev101
Page
2 of 3
System Performance
Parameter
Sleep to write
Sleep to read
Power up to Ready
Reset to Ready (IDE Master )
Data transfer Rate (UDMA6 burst)
Sustained Read (measured)
Sustained Write (measured)
Max.
Unit
5
5
ms
<500
1000
200
500
133
(1)
58
(1)(2)
65
(1)
MB/s
(1)(2)
(1)
31
40
Read
100
2500000
Command to DRQ
µs
Write
30
500
(1)
CFC in UDMA mode 6, cycle time 15ns, write/read file sequential transfer 256 sectors/command.
(2)
Sustained Speed depends on flash type and number, file size, and burst speed.
Current Consumption (typ)
3.3V
5V
Read (UDMA6/max)
110 / 140
110 / 140
Write (UDMA6/max)
90 / 110
85 / 110
Sleep/Idle Mode (typ/max)
3/5
3/5
(1)
All values are typical at 25° C and nominal supply voltage and refer to 32GByte CFC.
Unit
mA
Typ.
Physical Dimensions
Parameter
Width
Height
Thickness
Weight (typ.)
Value
36.4
42.8
3.3
10
Unit
mm
g
Environmental Specifications
Parameter
Temperature (commercial)
Temperature (industrial)
Humidity (non-condensing)
Vibration (peak -to-peak)
Shock
Operating
0 to 70°C
-40 to 85°C
Non Operating
-40 to 85°C
-50 to 100°C
85% RH 85°C, 1000 hrs (JEDEC JESD22, method A101-B)
20 G peak, 20-2000Hz, 4 per direction (JEDEC JESD22, method B103)
5.35G RMS, 15 min per plane (IEC 68-2-6)
1.5k G peak, 0.5ms 5 times (JEDEC JESD22, method B110)
30 G, 11ms 1 time (IEC 68-2-27)
Density specification
Capacity
2GB
4GB
8GB
16GB
32GB
64GB
(1)
cylinders
3,970
7,964
15,880
(1)
16,383
(1)
16,383
(1)
16,383
heads
16
16
16
16
16
16
Sectors/track
63
63
63
63
63
63
Sectors_drive
4,001,760
8,027,712
16,007,040
31,717,728
64,028,160
125,313,024
Total addressable capacity (Byte)
2,048,901,120
4,110,188,544
8,195,604,480
16,239,476,736
32,782,417,920
64,160,268,288
The CHS addressing is limited to about 8GB. Larger drives should be used in LBA mode.
System Reliability
MTBF (at 40°C)
Data Reliability
> 3,000,000 hours
< 1 Non-Recoverable Error per 10
14
bits Read
