BYS11-90HE3_A/I datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> BYS11-90HE3_A/I

BYS11-90HE3_A/I: DescriptionSchottky Diode and Rectifier 1.5A If 90V Vrrm AEC-Q101 Qualified; CategoryDiscrete semiconductor diode; File Size84KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

BYS11-90HE3_A/I Overview

Schottky Diode and Rectifier 1.5A If 90V Vrrm AEC-Q101 Qualified

BYS11-90HE3_A/I Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	SMA, 2 PIN
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	12 weeks
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	40 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	90 V
Maximum reverse current	100 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	C BEND
Terminal location	DUAL

Preview

Download Datasheet

View All

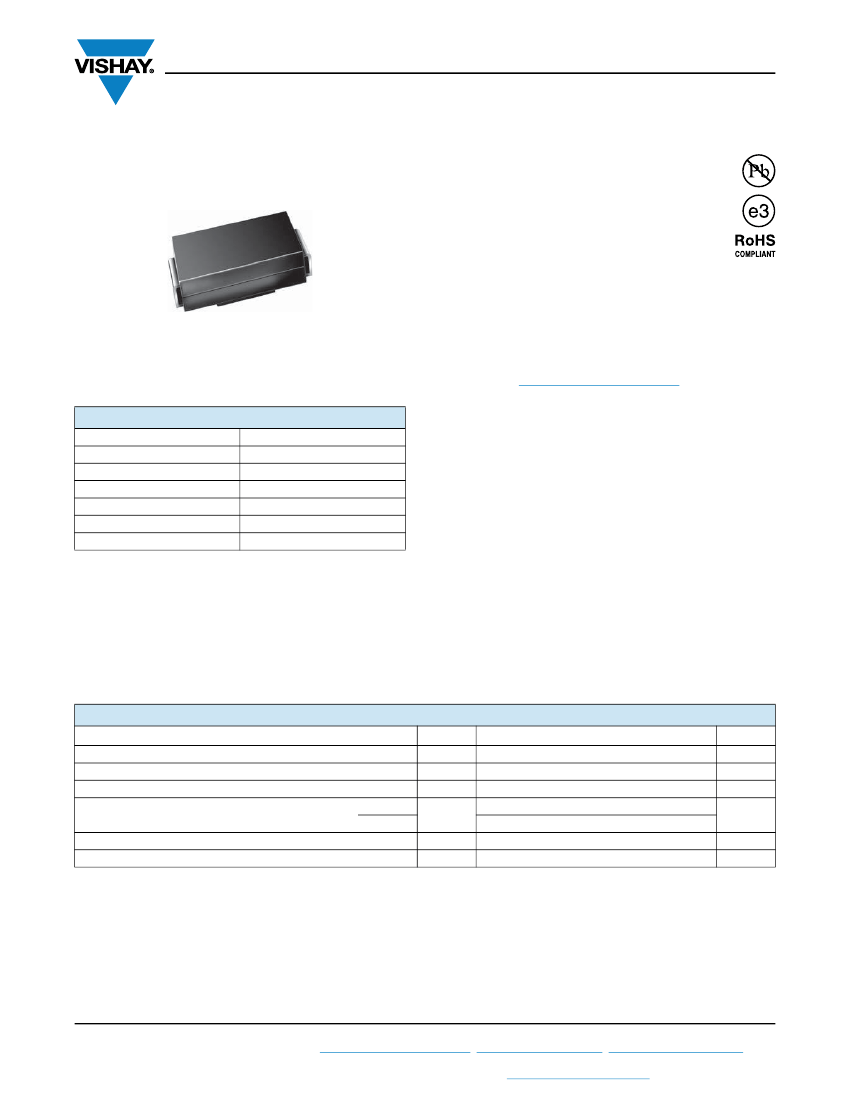

BYS11-90

www.vishay.com

Vishay General Semiconductor

Surface Mount Schottky Barrier Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Guardring for overvoltage protection

• Low power losses, high efficiency

• Very low switching losses

• High surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

DO-214AC (SMA)

• AEC-Q101 qualified available

- Automotive ordering code: base P/NHE3

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

Package

Diode variations

1.5 A

90 V

40 A

0.75 V

150 °C

DO-214AC (SMA)

Single

TYPICAL APPLICATIONS

For use in high frequency inverters, switching power

supplies, freewheeling diodes, oring diode, DC/DC

converters, and reverse battery protection.

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/NHE3 - RoHS-compliant and AEC-Q101 qualified

Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified

(“_X” denotes revision code e.g. A, B, .....)

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 2 whisker test, HE3 suffix

meets JESD 201 class 2 whisker test

Polarity:

Color band denotes cathode end

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Maximum average forward rectified current

Peak forward surge current single half sine-wave

superimposed on rated load

Voltage rate of change (rated V

)

Junction and storage temperature range

8.3 ms

10 ms

RRM

F(AV)

FSM

dV/dt

, T

STG

SYMBOL

BYS11-90

BYS109

1.5

10 000

-55 to +150

V/μs

°C

UNIT

Revision: 23-Dec-14

Document Number: 86014
