CR0201-FW-2001GAS datasheet, PDF

Datasheet> All Categories > CR0201-FW-2001GAS

CR0201-FW-2001GAS: DescriptionFixed Resistor, Thick Film, 0.05W, 2000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP; File Size370KB，3 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

CR0201-FW-2001GAS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CR0201-FW-2001GAS	-	-	View	Buy Now

CR0201-FW-2001GAS Overview

Fixed Resistor, Thick Film, 0.05W, 2000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP

CR0201-FW-2001GAS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145070047438
package instruction	CHIP
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Other features	ANTI-SULFUR
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.23 mm
Package length	0.6 mm
Package form	SMT
Package width	0.3 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.05 W
Rated temperature	70 °C
resistance	2000 Ω
Resistor type	FIXED RESISTOR
size code	0201
surface mount	YES
technology	THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	25 V

Preview

Download Datasheet

View All

Features

RoHS compliant*

Small package dimensions

Power rating at 70 °C = 1/20 W

Three layer termination process with nickel

barrier helps prevent leaching and provides

excellent solderability

processes

Standard packaging on paper tape and reel

Sulfur-resistant design

Suitable for most types of soldering

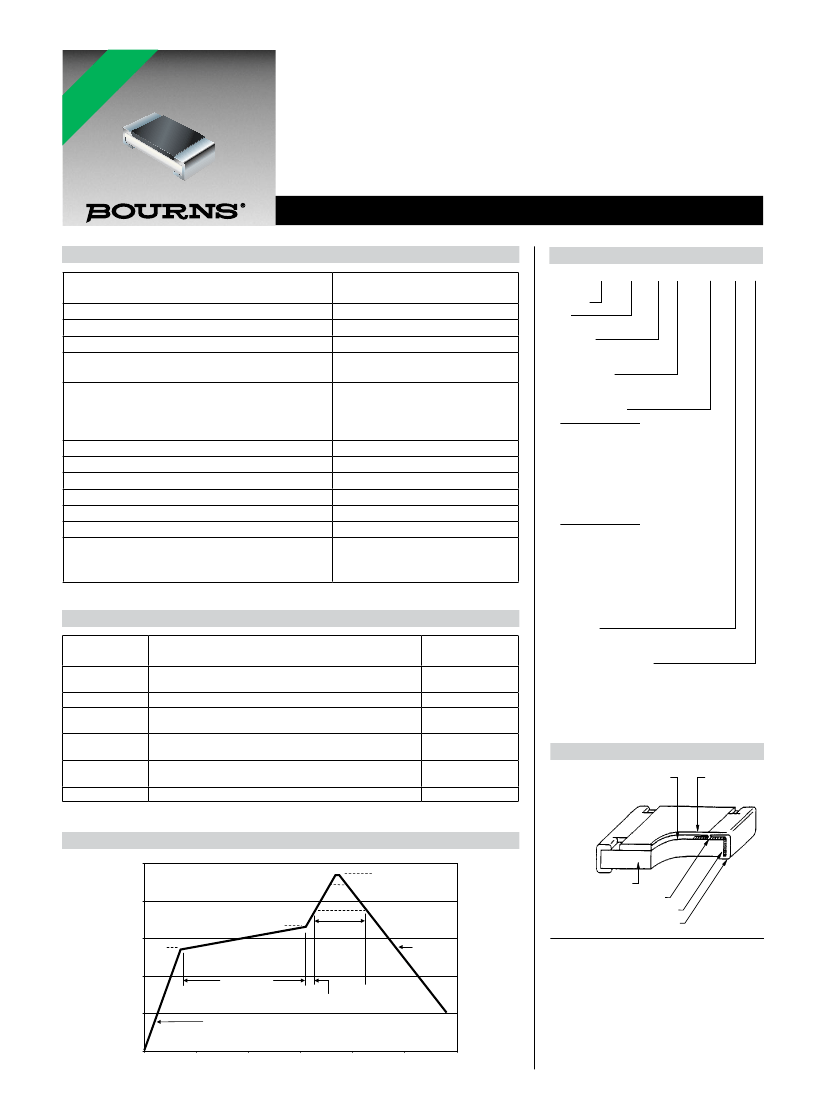

CR0201-AS Series -

Sulfur-Resistant Thick Film Chip Resistors

How To Order

General Characteristics

Characteristic

Ro VE LEA

HS RS D

C ION FRE

OM S E

PL AR

IA E

CR0201-AS

0.05 W

±1 %, ±5 %

10 ohms to 2 megohms

1 ohm to 10 megohms,

0 ohms

±200 ppm/°C

±200 ppm/°C**

N/A

50 V

25 V

-55 to +125 °C

Power Rating @ 70 °C per Resistor

Resistor Tolerance

Resistance Range - 1 % Tolerance (E24 + E96)

Resistance Range - 5 % Tolerance (E24),

Zero-ohm Jumper

Temperature Coefficient of Resistance (TCR)

1 % Tolerance

5 % Tolerance

Zero-ohm Jumper

Maximum Overload Voltage

Maximum Working Voltage

Operating Temperature Range

Storage Conditions

Derating Temperature

Packaging (Paper Tape)

Zero-ohm Jumper:

Current Rating

Maximum Resistance

+5 ~ +40 °C, 25~75 % RH, 1 year

+70 °C

15,000 pcs. per reel

1 A per element

100 milliohms

**TCR for 1 ohm to 9.1 ohm resistance range, 5 % tolerance is -600 to +100 ppm/°C.

Environmental Characteristics

Specification

Test Method

(JIS C 5201-1)

Characteristics

±(2 % +0.1 ohm)

±(5 % +0.05 ohm)

±(5 % +0.1 ohm)

Short Time

Overload

Soldering Heat

Temperature

Cycling

Moisture Load

Life

Load Life

Sulfur Test

Rated voltage x 2.5, 5 seconds

+260 °C ±5 °C, 10 ±1 seconds

-55 °C (30 minutes) - normal (2~3 minutes)

+125 °C (30 minutes) - normal (2~3 minutes), 5 cycles

+40 °C, 90~95 % RH, 1000 hours,

1.5 hours ON, 0.5 hours OFF

+70 °C, 1000 hours,

1.5 hours ON, 0.5 hours OFF

3 ppm H2S, +50 °C, 90~95 % RH, 100 hours

Chip

Resistor

Size

• 0201

Tolerance

• F=1%

• J=5%

TCR (ppm/°C)

• W = ±200

• / = N/A (for Jumper & R<10 ohms)

Resistance Code

• For 1 % Tolerance

<100 ohms:

“R” designates decimal point

(example: 24R3 = 24.3 ohms)

≥100 ohms:

First three digits are significant,

fourth digit represents number of

zeros to follow

(example: 8252 = 82.5K ohms)

• For 5 % Tolerance

<10 ohms:

“R” designates decimal point

(example: 4R7 = 4.7 ohms)

≥10 ohms:

First two digits are significant,

third digit represents number of

zeros to follow

(example: 474 = 470K ohms;

000 = Zero-ohm jumper)

Packaging

• G = Paper Tape

(15,000 pcs. on 7-inch plastic reel)

Special Characteristics

• AS = Sulfur-resistant, Tin-plated terminations

(RoHS compliant)

CR 0201 - F W - 1002 G AS

For Standard Values Used in Capacitors,

Inductors, and Resistors,

click here.

Construction

Resistor (Ru0

)

(Jumper chip is

a conductor)

Overcoat

NOTE: Zero-ohm jumper ≤100 milliohms.

Soldering Profile

275

<1>

Maximum of 20 seconds between

+255 °C and +260 °C

260 °C peak

<1>

255 °C

Alumina Substrate

Internal Electrode

Secondary Electrode (Nickel Plated)

60 - 90

seconds

Ramp Down

6 °C/second

225

220 °C

Temperature (°C)

190 °C

175

150 °C

External Electrode (Sn)

125

60 - 120 seconds

10 seconds minimum

* RoHS Directive 2002/95/EC Jan. 27, 2003 including

annex and RoHS Recast 2011/65/EU June 8, 2011.

Specifications are subject to change without notice.

The device characteristics and parameters in this data

sheet can and do vary in different applications and

actual device performance may vary over time.

150

Time (seconds)

200

250

300

Ramp Up

3 °C/second maximum

100

Users should verify actual device performance in their

specific applications.
