RV-2123-C2
Development Board
DATE:
April 2016
Headquarters:
Page 1/3
Micro Crystal AG
Mühlestrasse 14
CH-2540 Grenchen
Switzerland
Tel.
Fax
Internet
Email
Revision No.: 2
+41 32 655 82 82
+41 32 655 82 83
www.microcrystal.com
sales@microcrystal.com
Micro Crystal
Development Board
RV-2123-C2
RV-2123-C2

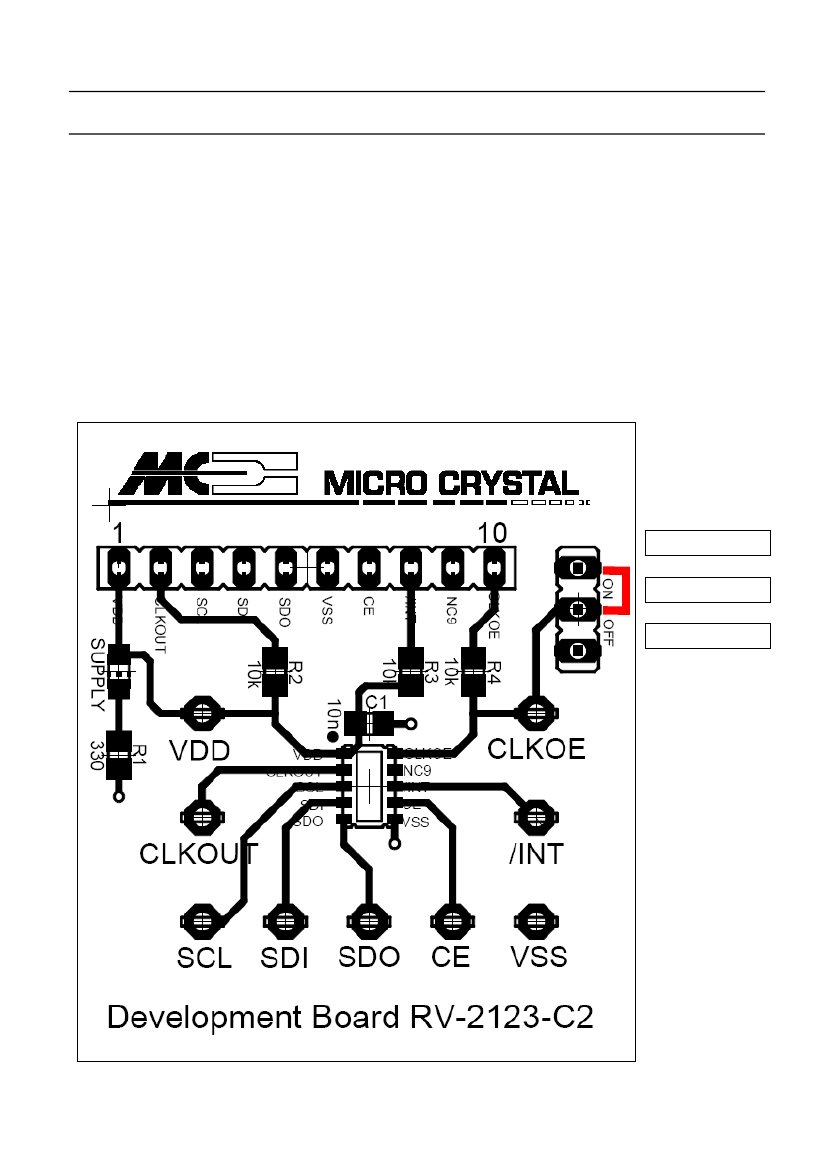

The RV-2123-C2 is soldered onto the Development Board.
Every pin is either accessible at test pins 1 – 10 or at the test vias situated around the device.
The following passive components are already soldered on the Board:
C1
10 nF
Decoupling capacitor between V
SS
and V
DD
R1
330 Ω
current limiting resistor for LED
LED1 green
Supply, current consumption of the LED has to be considered
R2
10 kΏ
Pull-up resistor CLKOUT to V
DD
R3
10 kΏ
Pull-up resistor INT to V
DD
R4
10 kΏ
Protection resistor to prevent short-circuit between external CLKOE signal and Jumper.
DEVELOPMENT BOARD
JUMPER
CLKOE = HIGH
CLKOE = LOW
2/3
Micro Crystal
Development Board

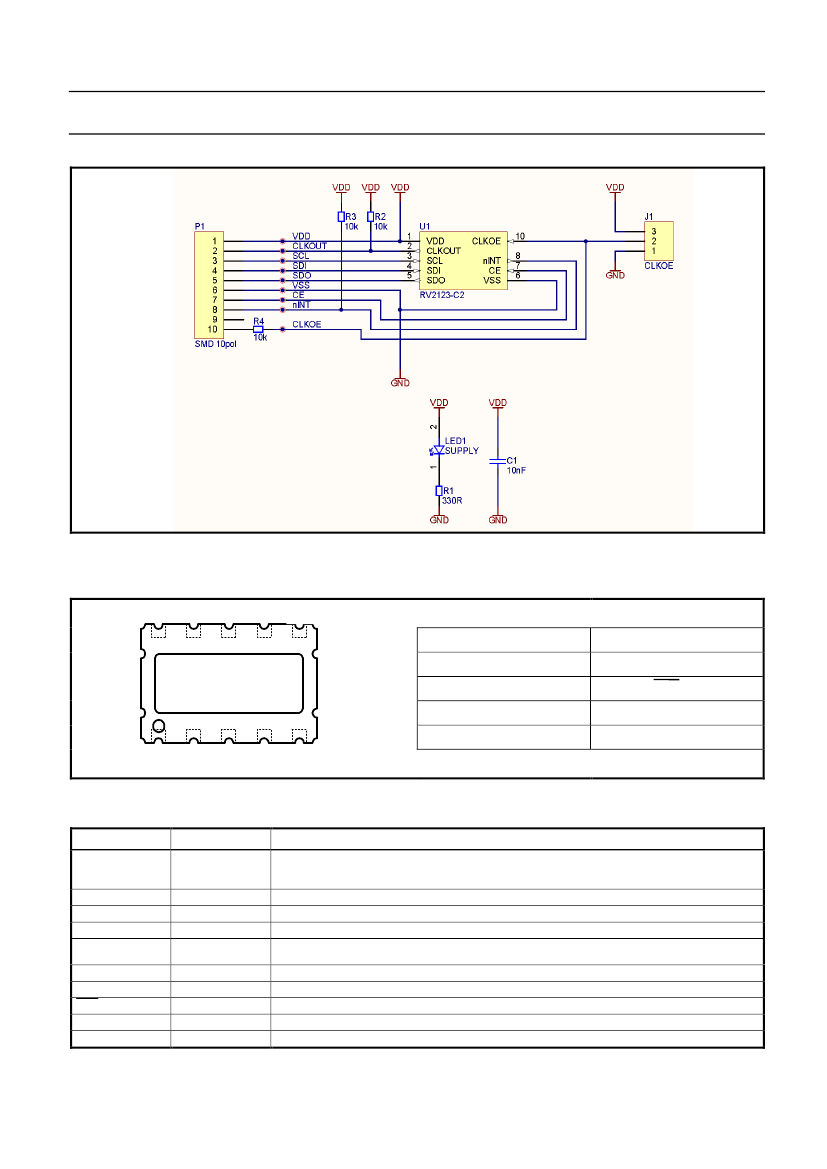

SCHEMATICS
RV-2123-C2
PINOUT RV-2123-C2
#10
#6
# 1
# 2
# 3
# 4
# 5
#1
#5
V
DD
CLKOUT
SCL
SDI
SDO
# 10
# 9
# 8
# 7
# 6
CLKOE
N.C.
INT
CE
V
SS
PIN DESCRIPTION
Symbol
V
DD
CLKOUT
SCL
SDI
SDO
V
SS
CE
INT
NC
CLKOE
Pin #
1
2
3
4
5
6
7
8
9
10
Description
Positive supply voltage;
positive or negative steps in supply voltage may affect oscillator performance,
recommend 10 nF decoupling capacitor close to device
Clock Output pin; open-drain
Serial Clock Input pin; may float when CE inactive
Serial Data Input pin; may float when CE inactive
Serial Data Output pin; push-pull; high-impedance when not driving; can be connected to SDI for
single-wire data line
Ground
Chip Enable input; active HIGH; with internal pull-down
Interrupt output pin; open-drain; active LOW
Not Connected
CLKOUT enable/disable pin; enable is active HIGH
Datasheet and Application-Manual are available for download under: www.microcrystal.com
