GRF2004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> And wireless radio frequency integrated circuits> Rf amplifier> GRF2004

GRF2004: DescriptionGRF2004 amplifier basic information: GRF2004 is a radio frequency amplifier (RF Amplifier) from Guerrilla RF. It belongs to the GRF2004 series of products. GRF2004 amplifier core information: The minimum operating temperature of GRF2004 is - 40 C and the maximum operating temperature is + 105 C. The corresponding working power supply current is 100 mA The amplifier gain of GRF2004 can reach: 14.5 dB (Amplifier gain is the logarithm of the ratio of amplifier output power to input power, which is used to express the degree of power amplification. It also refers to the amplification factor of voltage or current. Similarly, decibel is the unit of amplifier gain. ) The power supply range is: 2.7 V to 5 V. Related dimensions of GRF2004: Number of channels in total: 1 Channel. GRF2004 amplifier additional information: And its more detailed single package form is: DFN-6. When suppliers on the market sell GRF2004, they use the form: Reel.; Categorysemiconductor And wireless radio frequency integrated circuits Rf amplifier; File Size759KB，11 Pages; ManufacturerGuerrilla RF; Environmental Compliance; Alternative parts：GRF2004

Download Datasheet Parametric Compare View All

GRF2004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GRF2004	-	-	View	Buy Now

GRF2004 Overview

GRF2004 amplifier basic information:

GRF2004 is a radio frequency amplifier (RF Amplifier) from Guerrilla RF. It belongs to the GRF2004 series of products.

GRF2004 amplifier core information:

The minimum operating temperature of GRF2004 is - 40 C and the maximum operating temperature is + 105 C. The corresponding working power supply current is 100 mA

The amplifier gain of GRF2004 can reach: 14.5 dB (Amplifier gain is the logarithm of the ratio of amplifier output power to input power, which is used to express the degree of power amplification. It also refers to the amplification factor of voltage or current. Similarly, decibel is the unit of amplifier gain. )

The power supply range is: 2.7 V to 5 V.

Related dimensions of GRF2004:

Number of channels in total: 1 Channel.

GRF2004 amplifier additional information:

And its more detailed single package form is: DFN-6. When suppliers on the market sell GRF2004, they use the form: Reel.

GRF2004 Parametric

Parameter Name	Attribute value
Maker	Guerrilla RF
Product Category	RF amplifier
Installation style	SMD/SMT
Package/box	DFN-6
type	Broadband Gain Block
technology	GaAs
working frequency	100 MHz to 10 GHz
P1dB - compression point	16 dBm
Gain	14.5 dB
Working power voltage	2.7 V to 5 V
NF—noise figure	1.9 dB
Test frequency	5.5 GHz
OIP3 - Third order intercept point	29.8 dBm
Working power current	100 mA
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 105 C
series	GRF2004
Encapsulation	Cut Tape
Encapsulation	MouseReel
Encapsulation	Reel
Number of channels	1 Channel
Pd-power dissipation	600 mW
Factory packaging quantity	2500
unit weight	4 mg

Preview

Download Datasheet

View All

Released

GRF2004

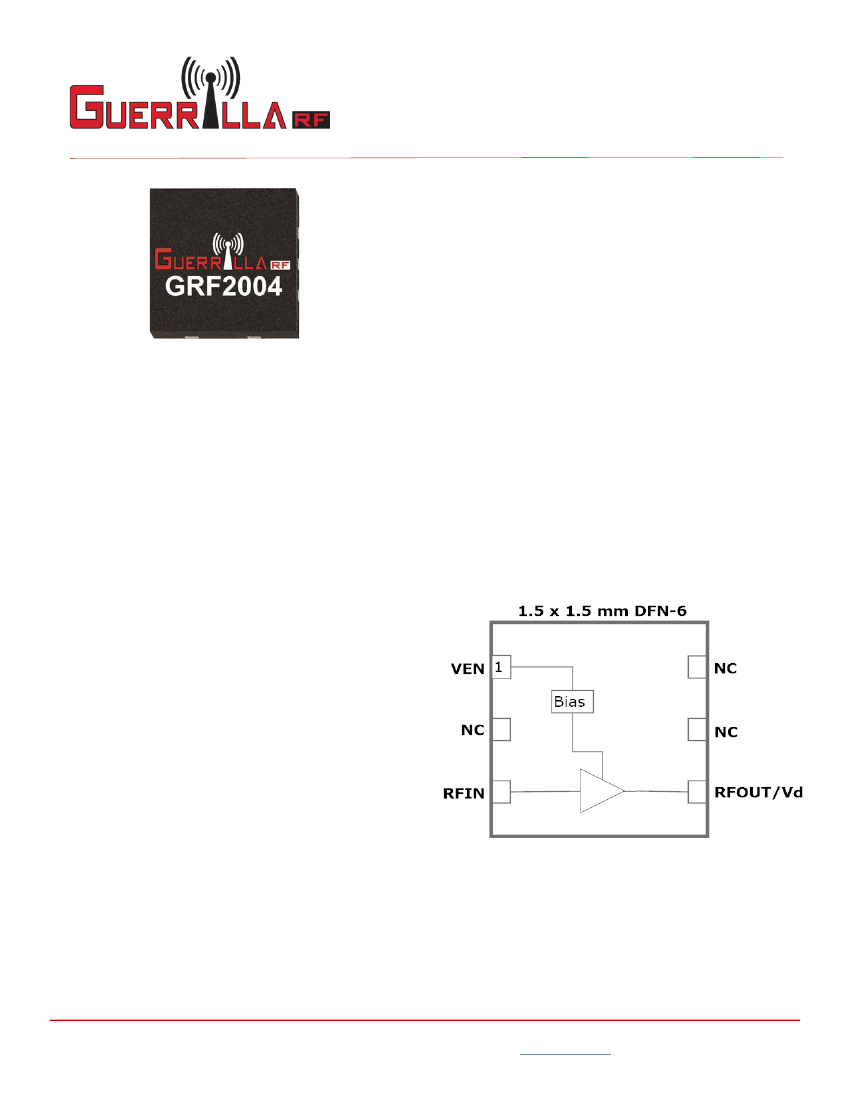

Broadband Gain Block

0.1 to 10.0 GHz

Product Description

GRF2004 is a broadband, low noise linear gain block

designed for small cell, wireless infrastructure and other

high performance RF applications. Due the extreme

broadband nature of the device, data is presented for

wideband RF measurements using network analyzer bi-

as Tees. Under these conditions, the device exhibits

good performance over 100 MHz to 10 GHz with mini-

mal external components.

The device can be operated over a range of supply volt-

ages from 1.8 to 5.0 V selectable Iddq for optimal effi-

ciency and linearity.

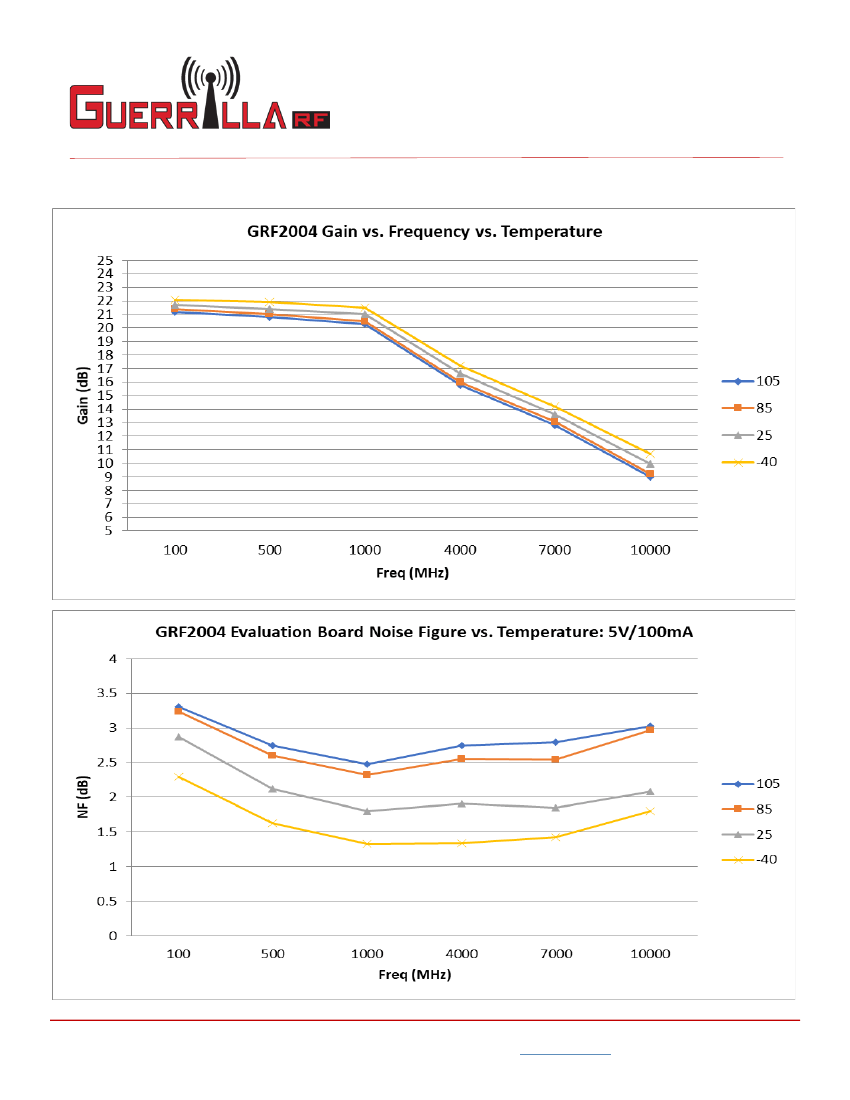

Features

Reference: 5V/100mA/4.0 GHz

•

Gain: 16.5 dB

OP1dB: 18.0 dBm

OIP3: 31.0 dBm

Eval Board NF: 1.9 dB

Consult with the GRF applications engineering team for

custom tuning/evaluation board data and device s-

parameters.

•

Flexible Bias Voltage and Current

Internally Matched to

50 Ω

•

Process: GaAs pHEMT

Applications

•

Microwave Backhaul

C/X-Band Amplifiers

General Purpose Amplifiers

Instrumentation

Guerrilla RF Proprietary Information. Guerrilla RF

and the composite logo of Guerrilla RF

Revision Date: 02/21/18

Please contact Guerrilla RF at (+1) 336-510-7840 or

sales@guerrilla-rf.com
