EM390823 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> connection terminal > Fixed terminal> EM390823

Preview

EM390823: DescriptionFixed terminal block 46P EM3908 Series; CategoryThe connector connection terminal Fixed terminal; File Size672KB，2 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric View All

EM390823 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EM390823	-	-	View	Buy Now

EM390823 Overview

Fixed terminal block 46P EM3908 Series

EM390823 Parametric

Parameter Name	Attribute value
Maker	Bussmann (Eaton)
Product Category	Fixed terminal block
Shipping restrictions	Mouser does not currently sell this product.
Number of locations	23 Position
Pitch	5.08 mm
connection method	Spring Cage
Current rating	25 A
Voltage rating	300 V
Wire gauge range	24 AWG to 10 AWG
series	EM3908
Encapsulation	Bulk
Contact plating	Tin
product	Fixed Terminal Blocks
Termination type	Through Hole
Contact material	Brass
Flammability rating	UL 94 V-0
Factory packaging quantity	100

Preview

Download Datasheet

View All

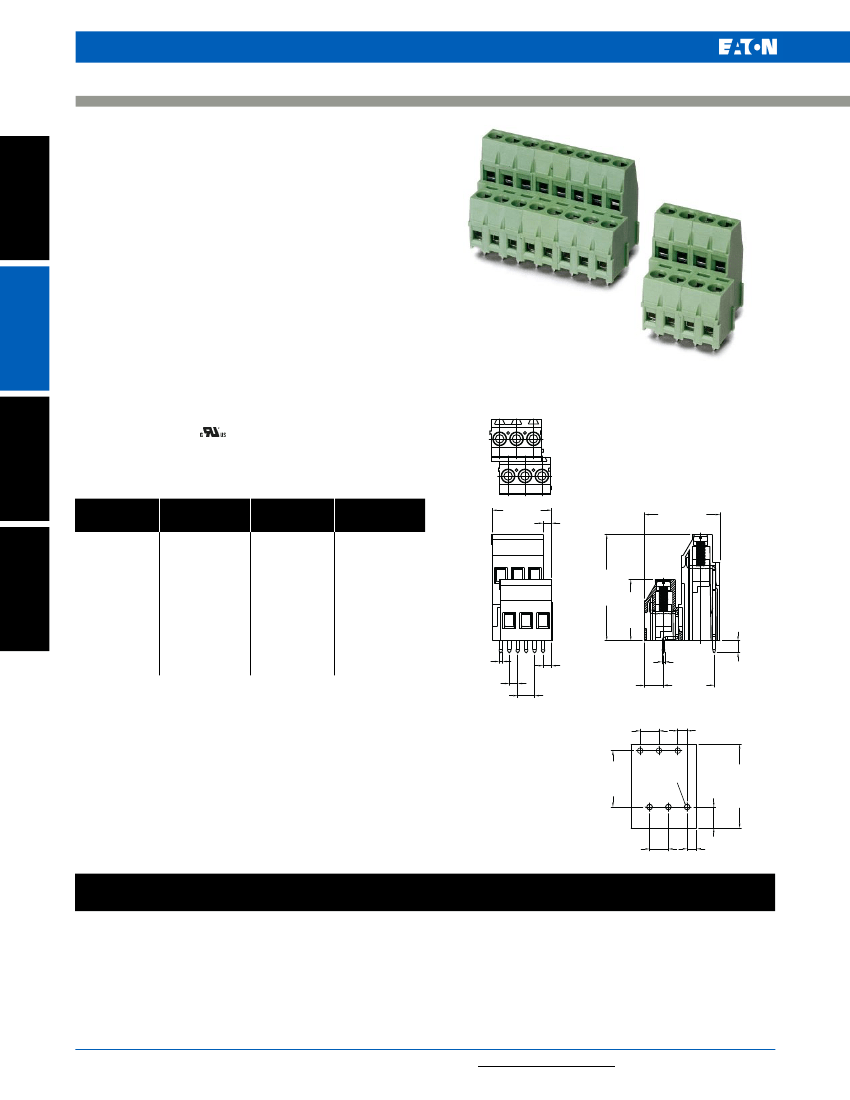

EuroMag Series PCB Mount Terminal Blocks

Terminal Blocks:

Single Row

EM3908 Series

EuroMag Terminal Blocks

High Current; Two-Tier; 5.08 Centers; Modular

SPECIFICATIONS

Rating:

25A,

300V

Center Spacing:

0.20” (5.08mm)

Wire Range:

#10-24 AWG

Housing Material:

UL rated 94V0 Thermoplastic

Contact Material:

Brass Tin-Plated

Cage Material:

Brass, Nickel-Plated

Screw Size:

M2.6

Zinc-Plated

Steel

Operating Temperature:

105°C (221°F) max., -40°C

(-40°F) min.

Torque Rating:

6.0

lb-in.

Recommended PCB Hole Diameters:

0.055" (1.40mm)

Construction:

Modular design features dovetails for

interlocking to achieve longer lengths

Agency Information:

File E62622; CE Certified

EuroMag Series

EM390808

High Current

EM390804

Dimensions - mm (in)

Edge Connectors,

One-Sided Boards

Poles

2

3

4

5

6

7

8

9

10

11

12

13

L (mm)

10.16

15.24

20.32

25.40

30.48

35.56

40.64

45.72

50.80

55.88

60.96

66.04

Poles

14

15

16

17

18

19

20

21

22

23

24

L (mm)

71.12

76.20

81.28

86.36

91.44

96.52

101.60

106.68

111.76

116.84

121.92

A±0.5

2.54±0.3

(0.100")

22.3±0.3

(0.878")

Compliance

References

31.4±0.1

(1.237")

18±0.3

(0.709")

1±0.1

(0.039")

2.54±0.3

(0.100")

2.54±0.3

(0.100")

5.08±0.1

(0.200")

0.8±0.1

(0.032")

5.6±0.3

(0.221")

15±0.3

(0.591")

2.54±0.2

(0.100")

Ø1.5

(Ø0.059")

5.6±0.3

(0.221")

To convert to inches, divide by 25.4

5.08±0.1

(0.200")

15±0.3

(0.591")

PCB Hole Layout

5.08±0.1

(0.200")

2.54±0.3

(0.100")

Part Numbering System

EM390 8

nnnnnn nn

Series

02

to

24

# of Poles

22.3±0.3

(0.878")

3.6±0.3

(0.142")

For additional product information, visit

www.eaton.com/connectors
