248005602100867+ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Header and line shell> 248005602100867+

Preview

248005602100867+: DescriptionHeader and Wire Housing 2 POS 1.25mm Pitch Receptacle HF; CategoryThe connector Header and line shell; File Size88KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

248005602100867+ Overview

Header and Wire Housing 2 POS 1.25mm Pitch Receptacle HF

248005602100867+ Parametric

Parameter Name	Attribute value
Maker	AVX
Product Category	Headers and wire housings
product	Headers
type	Socket
Number of locations	2 Position
Pitch	1.27 mm
Number of rows	1 Row
Installation style	SMD
Termination type	SMD/SMT
Installation angle	Right Angle
Contact type	Socket (Female)
Contact plating	Tin
series	8005
Encapsulation	Cut Tape
Encapsulation	Reel
Contact type	-
Current rating	1 A
Shell material	Thermoplastic
Voltage rating	30 V
Contact material	Copper Alloy
line spacing	-
Plastic shell interface type	-
Maximum operating temperature	+ 85 C
Minimum operating temperature	- 55 C
Factory packaging quantity	6000

Preview

Download Datasheet

View All

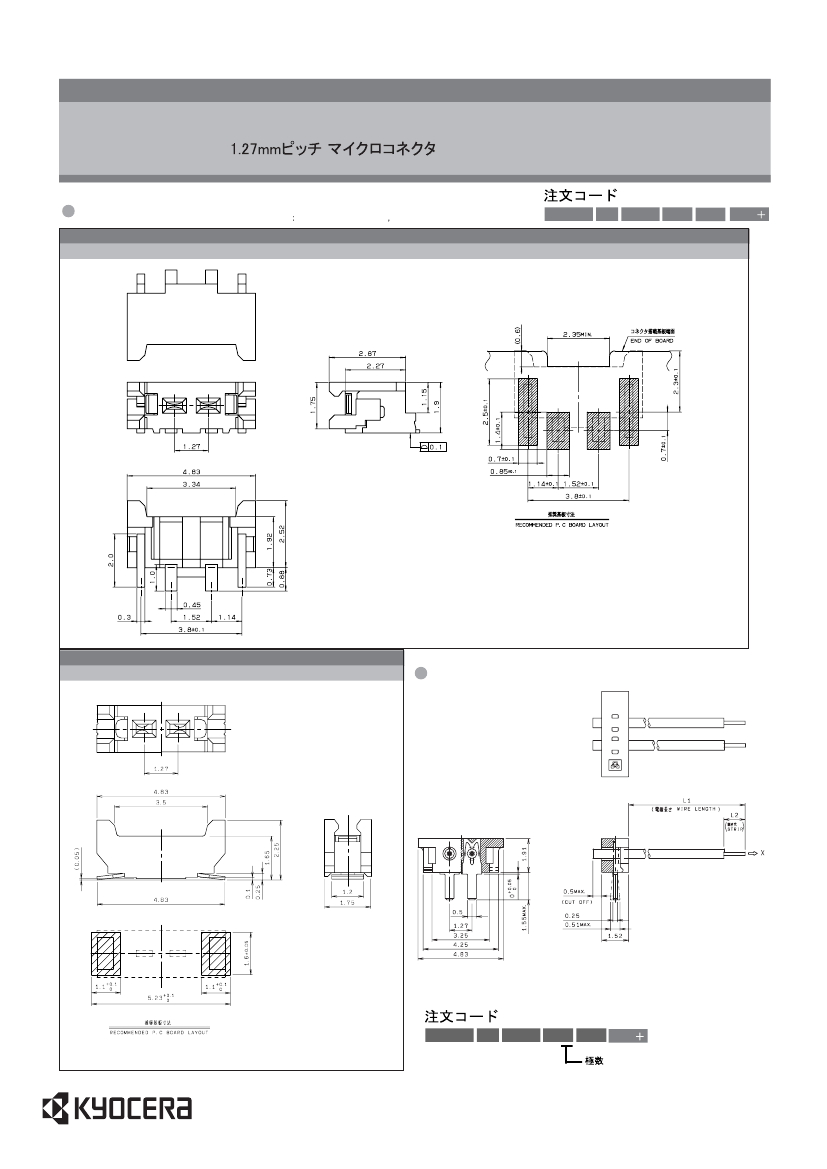

1.27mm Pitch

8005

SERIES

1.27mm-pitch Micro Connector

RECEPTACLE

梱包数量：ST. TYPE 6000個/リール，RA. TYPE 3000個/リール

PACKING QUANTITY ST. TYPE 6000ea/reel RA. TYPE 3000ea/reel

/ Ordering Code

Part No.

24 8005 YYY

X

100 867

YYY = 502

RA. TYPE

ST. TYPE

YYY = 002

PLUG IDC HEADER

/ Ordering Code

Part No.

97 8005 xx2

X

xxx 867

No. of pos.

※注文コードはハーネスの仕様により構成致します。

ご注文の際は弊社営業までお問合せ下さい。

The ordering code is different depending on the specification of the harness.

When ordering, please consult our sales representative.
