1
(PG9)
+0.1
0
2
(M16*1.5)
13.6
+0.1
0
3
B
4
REV.
B
C
5
ECN NO.
LEN1580035~036
LEN1690058~059
QC
6
DATE
2015/07/26
2016/09/05
2.5
10.0
QC
7
SIGN
Yulong_wang
Yulong_wang
Add 3, 4 Pin
DESCRIPTION
Change to Share Drawing.
& IP69K.
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F
13.6
#
0.1
23.0
2.0
20.6 (Ref.)
45.0 $
QC
PG9 or M16*1.5
18.0 (Hex.)
Liquid Glue
3
5
4
M12*1.0
2
Shield
1
Connector
Screw Nut
15.4
16.1
Recommended
Panel Cut-Out
Recommended
Panel Cut-Out
M 12B - XX P M M S - S H 8 XXX
E
12B:B-Code
D
001:PG9
002:M16*1.5
8:IP68/69K(防水等級68/69K)
C
Panel O-Ring
03:3Pin
04:4Pin
05:5Pin
C
P:Panel(板端)
M:Male Connector(公座)
H:Rear Fasten(后鎖式/Enclosure
Front Mount)
S:Screw(螺紋式)
S:Solder Type(焊接式)
Note:
* Important Dimension.
QC
C
* Waterproof Rate: IP68, IP69K.
* Housing: Nylon+GF, Black.
* Male Pin: Copper Alloy, Gold Plated.
* Shield: Zinc Alloy, Nickel Plated.
* Screw Nut: Zinc Alloy, Nickel Plated.
* Panel O-Ring: Viton, Black.
& 4Pin 250V dc. or ac.
C
* Rated Voltage: 3
5Pin 60V dc. or ac.
* Rated Current: 4A
* Operating Temperature: -40~+105 $ C
* For Panel Thickness Max 4.5mm.
* Recommended Nut Torque:4-6 Kgf.cm.
ITEM NO
DRAWN BY
DATE
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
C
M:Male Pin(公Pin)
T
A
L
W
2
2
1
4
4P
Pin Assignment Front View
3
5
4
5P
1
C
CONFIDENTIAL
2016-09-05
R&D DEPT.
B
3
4
3P
1
3
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $
TITLE

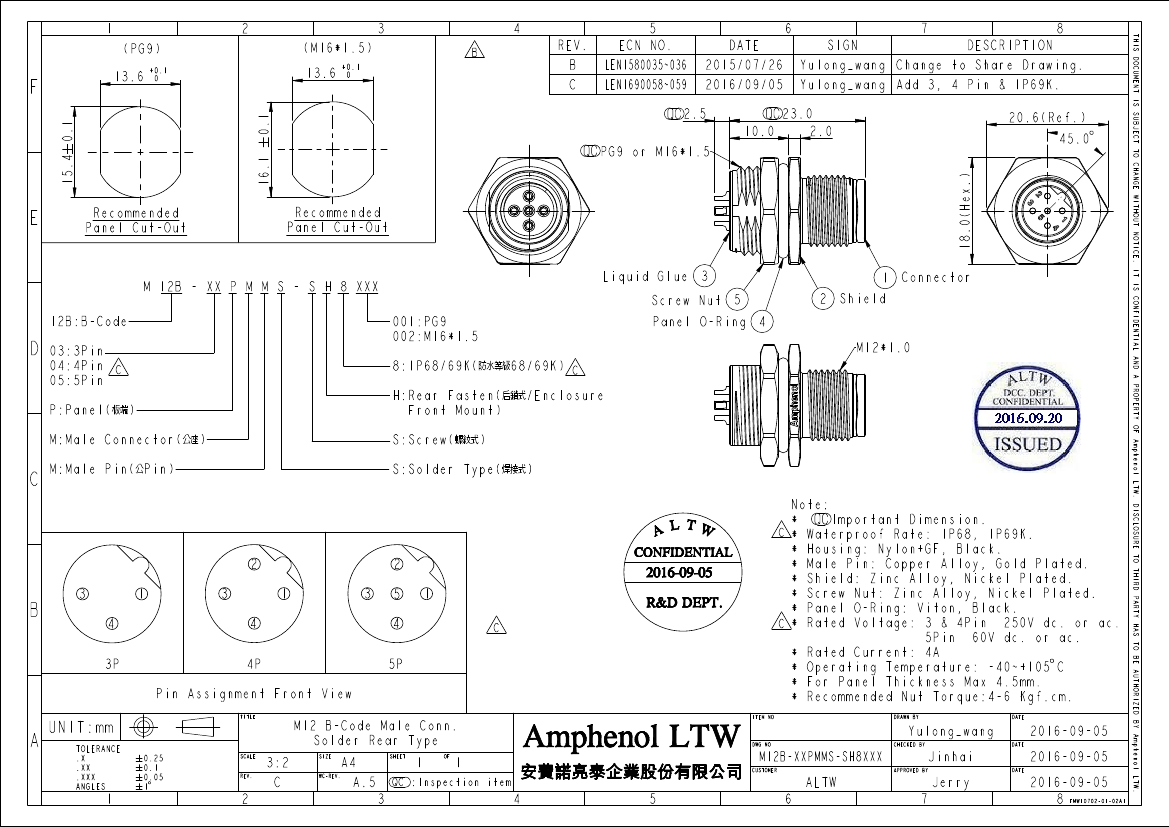

M12 B-Code Male Conn.
Solder Rear Type
3:2
C
SIZE
SCALE
A4
A.5
3
SHEET
1
OF
Amphenol LTW
1
4
5
Yulong_wang
DWG NO
CHECKED BY
DATE
2016-09-05
2016-09-05
DATE
Amphenol LTW.
M12B-XXPMMS-SH8XXX
CUSTOMER
APPROVED BY
Jinhai
Jerry
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
1
2
2016-09-05
8
FMW10702-01-02A1
