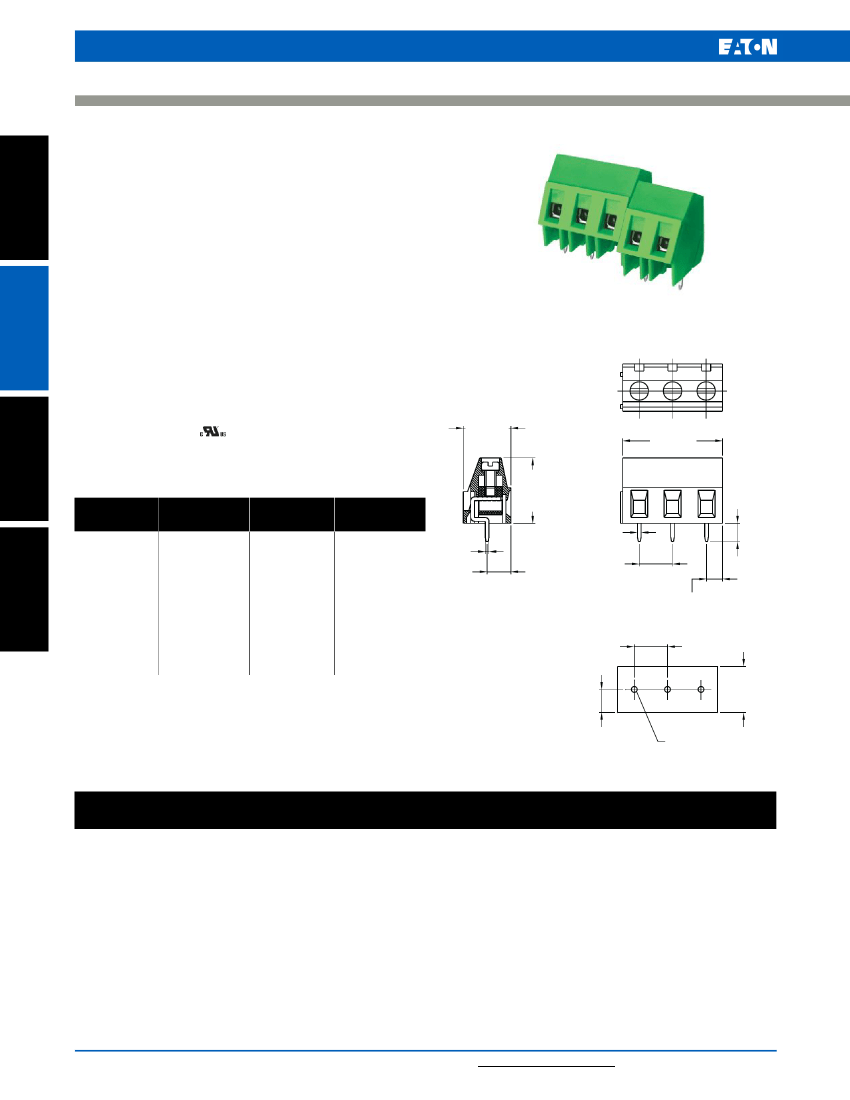

EuroMag Series PCB Mount Terminal Blocks
Terminal Blocks:
Single Row
EM3227 Series
EuroMag Terminal Blocks
35° Angle, 7.50 Centers; Modular
SPECIFICATIONS
Rating:
16A, 300V
Center Spacing:
0.295” (7.50mm)
Wire Range:
#12-26 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Brass Tin-Plated
Cage Material:
Brass, Nickel-Plated
Screw Size:
M2.6
Zinc-Plated
Steel
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating:
5.0 lb-in.
Recommended PCB Hole Diameters:
0.055" (1.40mm)
Construction:
Modular design features dovetails for
interlocking to achieve longer lengths
File E62622; CE Certified
Agency Information:
EuroMag Series
Cage
& Screw
EM322705
Dimensions - mm (in)
Edge Connectors,
One-Sided Boards
10.+0.3
_
(0.402")
L+0.5
_
14+0.3
_
(0.551")
3.5+0.3
_
(0.138")
1+0.1
_
(0.039")
5.4+0.3
_
(0.213")
7.5+0.1
_
(0.295")
2.5+0.3
_
(0.098")
7.5+0.1
_
(0.295")
PCB Hole Layout
Poles
2
3
4
5
6
7
8
9
10
11
12
13
L (mm)
15.0
22.5
33.0
37.5
45.0
52.5
60.0
67.5
75.0
82.5
90.0
97.5
Poles
14
15
16
17
18
19
20
21
22
23
24
L (mm)
105.0
112.5
120.0
127.5
133.0
142.5
150.0
157.5
165.0
172.5
180.0
0.8+0.1
_
(0.031")
Compliance
References
To convert to inches, divide by 25.4
Part Numbering System
EM 3227
nnnnnn nn
Series
02
to
24
# of Poles
5.4+0.3
_
(0.213")
ø1.4~1.5
(ø0.055"~0.059")
10.2
+
0.3
_
(0.402")
For additional product information, visit
www.eaton.com/connectors
46
