93463-5205 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Modular connectors/Ethernet connector> 93463-5205

93463-5205: DescriptionModular Connector/Ethernet Connector MXMAG IND VER 4 CORE FE 1' W/LEDs; CategoryThe connector Modular connectors/Ethernet connector; File Size41KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

93463-5205 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	93463-5205	-	-	View	Buy Now

93463-5205 Overview

Modular Connector/Ethernet Connector MXMAG IND VER 4 CORE FE 1' W/LEDs

93463-5205 Parametric

Parameter Name	Attribute value
Maker	Molex
Product Category	Modular Connector/Ethernet Connector
Shipping restrictions	Mouser does not currently sell this product.
product	Modular Jacks
USOC code	RJ45
Number of locations	8 Position
Number of ports	1 Port
performance category	Cat 5
Installation style	Mounting Peg
Termination type	Through Hole
shield	Shielded
Current rating	500 mA
Voltage rating	125 V
color	Black
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
Contact plating	Gold
Type	Female
Shell material	Liquid Crystal Polymer (LCP)
Installation angle	Right Angle
Number of contacts	8 Contact
Contact material	Tin
Flammability rating	UL 94 V-0
Operation cycle	2500 Cycle
Factory packaging quantity	48

Preview

Download Datasheet

View All

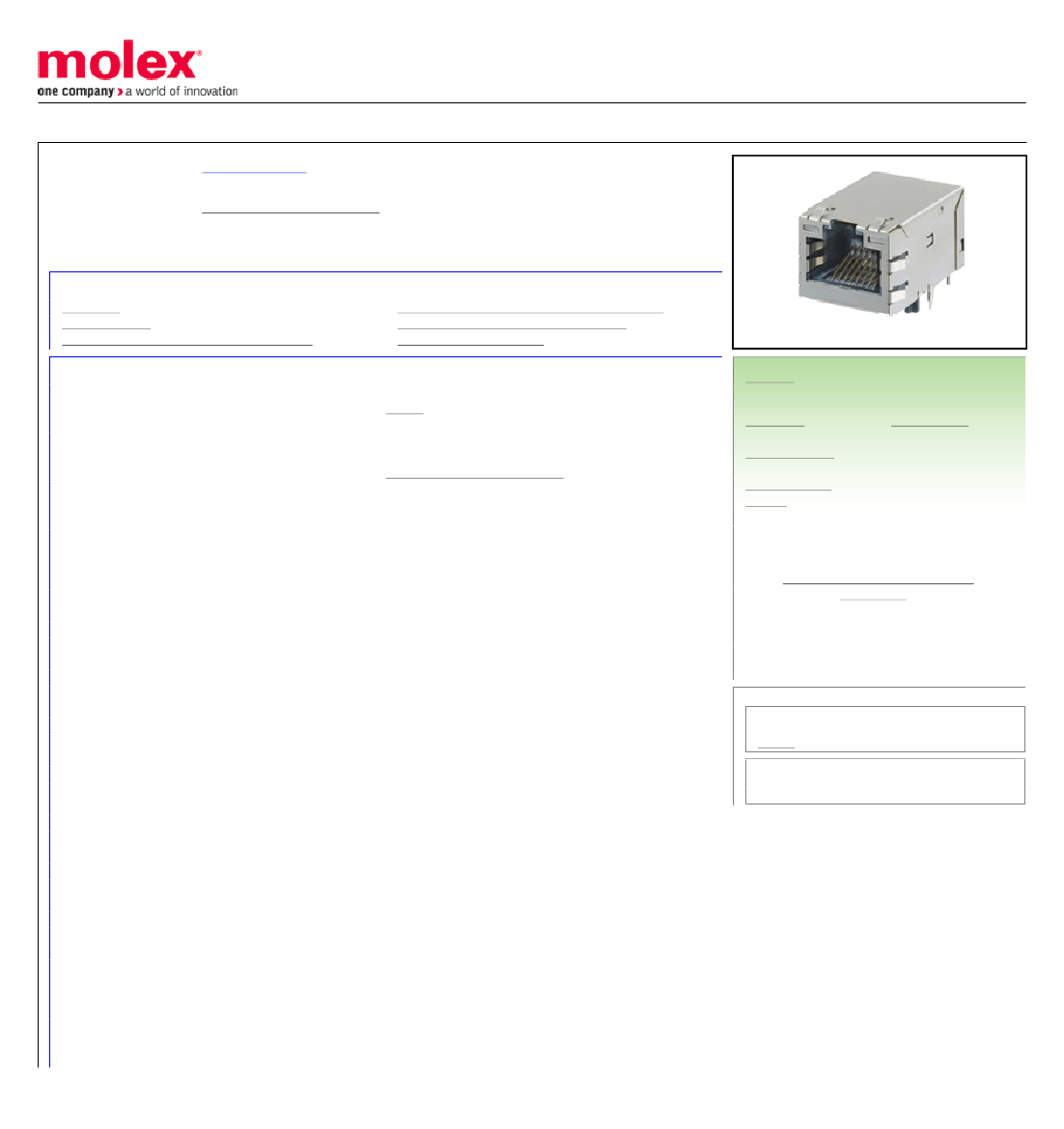

This document was generated on 05/18/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0934635205

Active

MXMag RJ45 Magnetic Jacks

MXMag Fast Ethernet 4 Core Single-Port RJ45 Connector, 25.40mm Depth, 3.30mm

Phy Pin Length, Right Angle, Inverted Profile, without Shield Tabs, with Green-Green/

Yellow LEDs, Industrial Temperature, Tray

Documents:

3D Model

Drawing (PDF)

Product Specification 934620001-N (PDF)

General

Product Family

Series

Component Type

Depth

Magnetic

Overview

Performance Category

Power over Ethernet (PoE)

Product Literature Order No

Product Name

UPC

Physical

Color - Resin

Durability (mating cycles max)

Inverted / Top Latch

Jack Height

Keying to Mating Part

Lightpipes/LEDs

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Panel Mount

Plating min - Mating

Ports

Positions / Loaded Contacts

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Grounding to PCB

Grounding to Panel

Shielded

Voltage - Maximum

Packaging Specification 934620001-K (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

EU ELV

Not Reviewed

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Reviewed

Modular Jacks/Plugs

93463

PCB Jack

25.40mm

Yes

MXMag RJ45 Magnetic Jacks

100Mb

Non-PoE

987651-2501

Magnetic Jack, Modular Jack 8/8, MXMag, RJ45

191128233606

Black

2500

Yes

14.10mm

None

LEDs

Phosphor Bronze

Gold over Palladium Nickel

Tin

Liquid Crystal Polymer

Right Angle (Side Entry)

Yes

None

1.57mm

Tray

Spring

0.051µm (Au), 1.016µm (PdNi)

8/8

-40°C to +85°C

Through Hole

N/A

0.5A

Yes

125V

Search Parts in this Series

93463 Series

Mates With

IEC 60603 / TIA-1096-A
