BTM-2412 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The power supply> Battery holder, card buckle, and connectors> A battery pack> BTM-2412

BTM-2412: DescriptionBattery box Batt hold 24V/12Ah B Pnl mnt w/o batt; CategoryThe power supply Battery holder, card buckle, and connectors A battery pack; File Size385KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/; Environmental Compliance

Download Datasheet Parametric View All

BTM-2412 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BTM-2412	-	-	View	Buy Now

BTM-2412 Overview

Battery box Batt hold 24V/12Ah B Pnl mnt w/o batt

BTM-2412 Parametric

Parameter Name	Attribute value
Maker	Altech
Product Category	Battery case
Shipping restrictions	Mouser does not currently sell this product.
series	BTM
Factory packaging quantity	1

Preview

Download Datasheet

View All

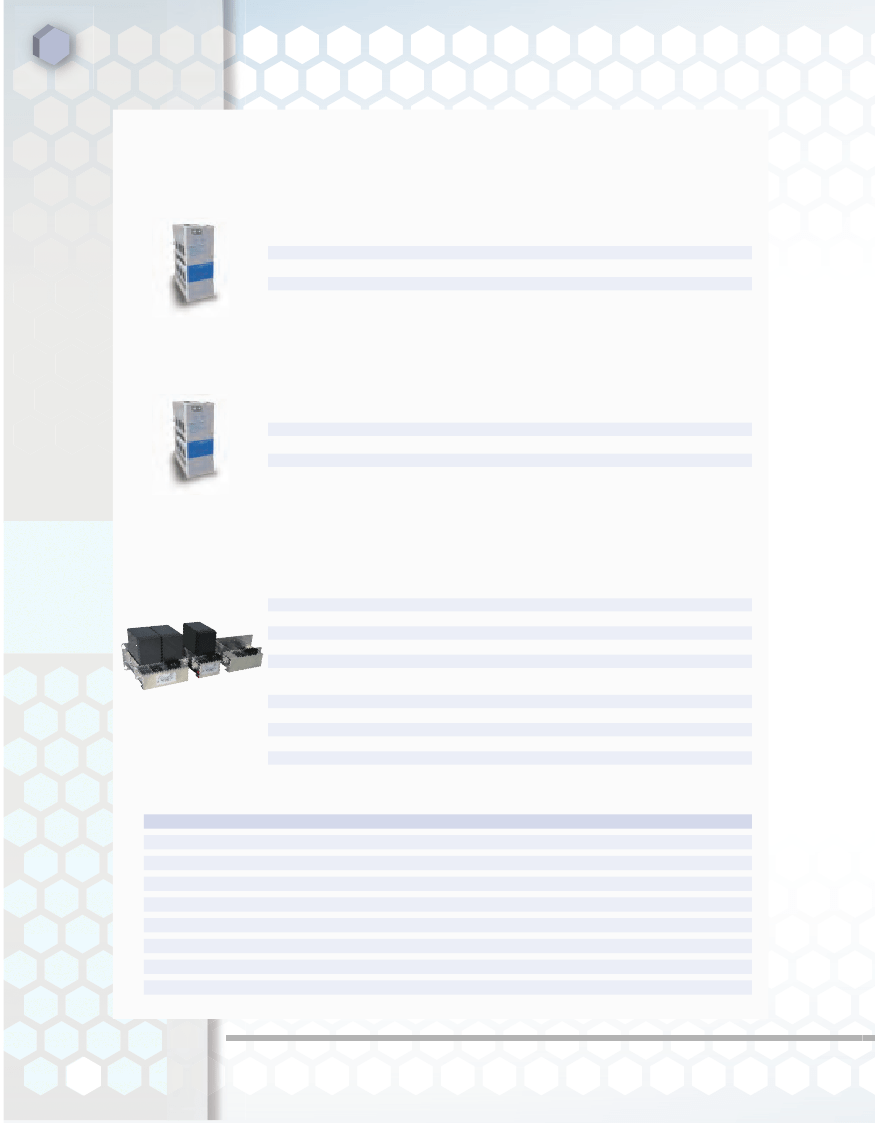

Battery Backup Enclosures with VRLA Batteries

Compact and fully enclosed improve safety and maintenance, transmit information on the temperature and type of included valve-reg-

ulated acid batteries. They save space and improve the efﬁciency of the DC UPS.

Cat. No.

BAT-1.2VRLA

BAT-3.4VRLA

BAT-7.2VRLA

BAT-12VRLA

Output

24V - 1.2Ah

24V - 3.2Ah

24V - 7.2Ah

24V - 12Ah

Protection

Current

25 A fuse

Dimensions

h x w x d (mm)

62 x 175 x 120

82 x 200 x 160

145 x 210 x130

210 x 210x210

Weight

kg (approx.)

1.5

5.5

Battery Housing Without Batteries

Compact and fully enclosed improve safety and maintenance, transmit information on the temperature and type of batteries. They save

space and improve the efﬁciency of the DC UPS. Size for 24 VDC: 1.2 Ah, 3 Ah, 7.2 Ah and 12 Ah, batteries are not included.

Cat. No.

BTH-1.2

BTH-3.4

BTH-7.2

BTH-12

Battery

Type

2x 12V/1.2AH

2x 12V/3.4AH

2x 12V/7.2AH

2x 12V/12AH

Protection

Current

25 A fuse

Dimensions

h x w x d (mm)

62 x 175 x 120

82 x 200 x 160

145 x 210 x130

210 x 210x210

Weight

kg (approx.)

0.5

0.9

1.5

1.9

Battery Holders

Battery holders for DC UPS system is used in conjunction with a 12 or 24V CBI system. They are designed for maintenance free lead

acid batteries (batteries are not included) and protected with a fuse. Units can be installed on a standard 35 mm din rail or wall

mounted with a M4 type screw (screws not included).

Cat. No.

BTM-123

BTM-123D

BTM-127

BTM-127D

BTM-1212

BTM-241

BTM-241D

BTM-243

BTM-243D

BTM-247

BTM-247D

BTM-2412

Battery Size

12V/3.2Ah

12V/7.2Ah

12V/12Ah

2 x 12V/1.2Ah

2 x 12V/3.2Ah

2 x 12V/7.2Ah

2 x 12V/12Ah

Protection

25A fuse

Dimensions

WxHxD (mm)

105x136x90

105x153x123

170x153x123

170x102x80

170x136x90

170x153x123

235x153x123

Weight

KG (with battery)

1.6

2.4

3.5

1.4

3.1

4.7

7.9

Mounting

M4 SCREW

DIN RAIL

M4 SCREW

DIN RAIL

M4 SCREW

DIN RAIL

M4 SCREW

DIN RAIL

M4 SCREW

DIN RAIL

M4 SCREW

Photo shown with batteries.

Please consult Altech for

units with battery options.

Battery Selection Chart

Battery Type

BUFFERING (MINUTE) TIME

1.2 Ah

3 Ah

7.2 Ah

200

120

12 Ah

400

240

100

Load 1.5 A

Load 3 A

Load 5 A

Load 7.5 A

Load 10 A

Load 12 A

Load 15 A

Load 20 A

For the latest on Altech Power Supply specifications please visit www.altechcorp.com/power.
