INTEGRATED CIRCUITS

DATA SHEET

TDA5140A

Brushless DC motor drive circuit

Product speciﬁcation

Supersedes data of March 1992

File under Integrated Circuits, IC02

April 1994

Philips Semiconductors

Philips Semiconductors

Product speciﬁcation

Brushless DC motor drive circuit

FEATURES

•

Full-wave commutation (using push/pull drivers at the

output stages) without position sensors

•

Built-in start-up circuitry

•

Three push-pull outputs:

– 0.8 A output current (typ.)

– low saturation voltage

– built-in current limiter

•

Thermal protection

•

Flyback diodes

•

Tacho output without extra sensor

•

Position pulse stage for phase-locked-loop control

•

Transconductance amplifier for an external control

transistor.

QUICK REFERENCE DATA

Measured over full voltage and temperature range.

SYMBOL

VMOT

LIM

Notes

1. An unstabilized supply can be used.

2. V

VMOT

= V

; +AMP IN =

−AMP

IN = 0 V; all outputs I

= 0 mA.

ORDERING INFORMATION

PACKAGE

EXTENDED TYPE NUMBER

PINS

TDA5140A

TDA5140AT

PIN POSITION

DIL

SOL

MATERIAL

plastic

PARAMETER

supply voltage

input voltage to the output

driver stages

drop-out output voltage

current limiting

note 1

note 2

= 100 mA

VMOT

= 10 V; R

= 3.9

Ω

CONDITIONS

1.7

−

0.7

MIN.

−

0.93

0.8

TYP.

GENERAL DESCRIPTION

APPLICATIONS

•

VCR

•

Laser beam printer

•

Fax machine

•

Blower

•

Automotive.

TDA5140A

The TDA5140A is a bipolar integrated circuit used to drive

3-phase brushless DC motors in full-wave mode. The

device is sensorless (saving of 3 hall-sensors) using the

back-EMF sensing technique to sense the rotor position.

MAX.

1.05

UNIT

CODE

SOT102

SOT163A

April 1994

BBBBBBBBBBBBBBBBBBBB

B B B B B B B

BBBBBBBBBBBBBBBBBBBB

BBB BB B BB BB BB B

BBBBBBBBBBBBBBBBBBBBBBB

BBBBBBBBBBB

BBBBBBBBB

BBBBBBBBBBBBBBBBBBBBBB

BBBBBBBBBBBBBBBBBBBBBBB

BBBBBBBBBBBBBBBBBBBBBB

BBBBBBBBBBBBBBBBBBBBBBB

BBBBBBBBB

BBBBBBBBBBBBB

BBBBBBBBBBBB

BBBBBBBBBBBBBBBBBBBBBBBBBBB

BBBBBBBBBBBBBB

BBBBBBBBBBBBB

BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB

April 1994

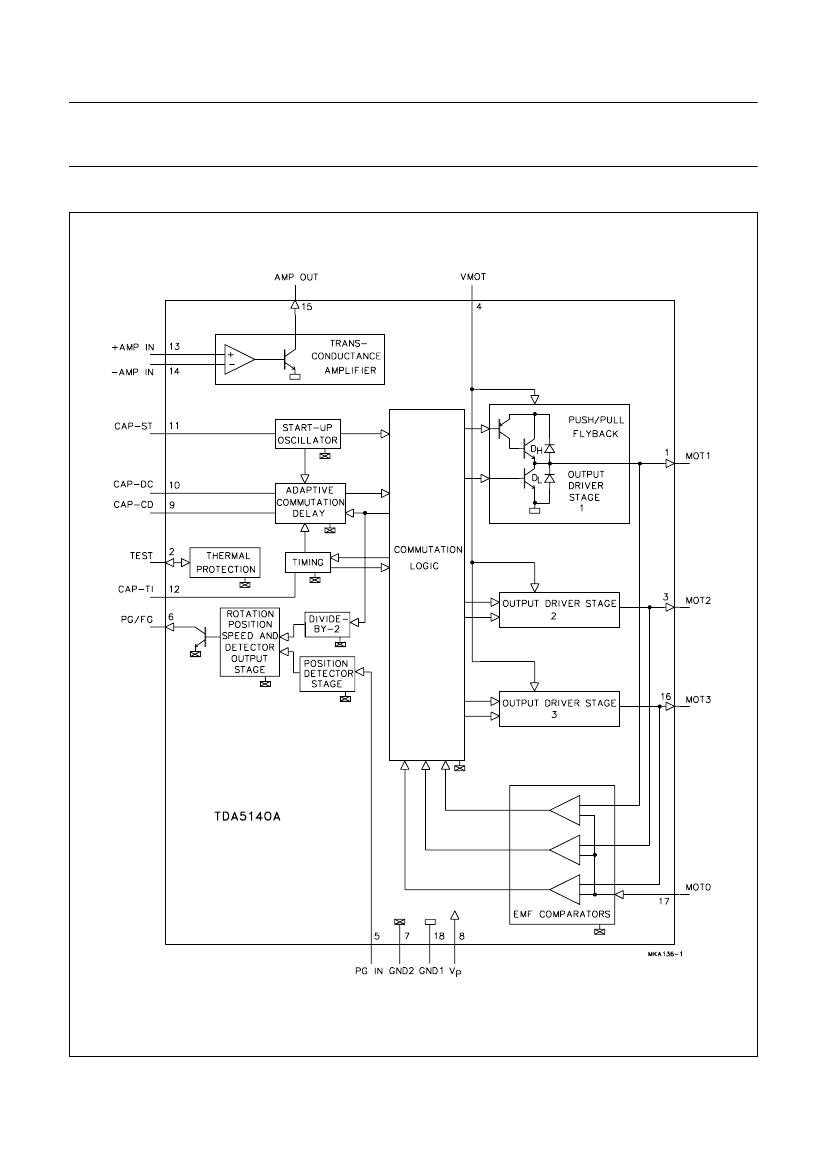

BLOCK DIAGRAM

Philips Semiconductors

Brushless DC motor drive circuit

Fig.1 Block diagram (SOT102; DIL18).

Product speciﬁcation

TDA5140A

Philips Semiconductors

Product speciﬁcation

Brushless DC motor drive circuit

PINNING

SYMBOL

MOT1

TEST

n.c.

MOT2

VMOT

PG IN

PG/FG

GND2

CAP-CD

CAP-DC

CAP-ST

CAP-TI

+AMP IN

−AMP

AMP OUT

MOT3

n.c.

MOT0

GND1

−

DIL18

SO20

driver output 1

test input/output

not connected

driver output 2

input voltage for the output driver stages

DESCRIPTION

TDA5140A

position generator: input from the position detector sensor to the position

detector stage (optional); only if an external position coil is used

position generator/frequency generator: output of the rotation speed and position

detector stages (open collector digital output, negative-going edge is valid)

ground supply return for control circuits

positive supply voltage

external capacitor connection for adaptive communication delay timing

external capacitor connection for adaptive communication delay timing copy

external capacitor connection for start-up oscillator

external capacitor connection for timing

non-inverting input of the transconductance ampliﬁer

inverting input of the transconductance ampliﬁer

transconductance ampliﬁer output (open collector)

driver output 3

not connected

input from the star point of the motor coils

ground (0 V) motor supply return for output stages

April 1994

Philips Semiconductors

Product speciﬁcation

Brushless DC motor drive circuit

TDA5140A

Fig.2 Pin configuration (SOT102; DIL18).

Fig.3 Pin configuration (SOT163A; SO20L).

•

Suitable for use with a wide tolerance, external PG

sensor.

•

Built-in multiplexer that combines the internal FG and

external PG signals on one pin for easy use with a

controlling microprocessor.

•

Uncommitted operational transconductance amplifier

(OTA), with a high output current, for use as a control

amplifier.

FUNCTIONAL DESCRIPTION

The TDA5140A offers a sensorless three phase motor

drive function. It is unique in its combination of sensorless

motor drive and full-wave drive. The TDA5140A offers

protected outputs capable of handling high currents and

can be used with star or delta connected motors. It can

easily be adapted for different motors and applications.

The TDA5140A offers the following features:

•

Sensorless commutation by using the motor EMF.

•

Built-in start-up circuit.

•

Optimum commutation, independent of motor type or

motor loading.

•

Built-in flyback diodes.

•

Three phase full-wave drive.

•

High output current (0.8 A).

•

Outputs protected by current limiting and thermal

protection of each output transistor.

•

Low current consumption by adaptive base-drive.

•

Accurate frequency generator (FG) by using the

motor EMF.

•

Amplifier for external position generator (PG) signal.

April 1994
