TRH150A180-12E12-Level-VI datasheet, PDF

Datasheet> All Categories > Power/power management> Plug in ac adapter> Desktop type AC adapter> TRH150A180-12E12-Level-VI

Preview

TRH150A180-12E12-Level-VI: Description桌面式AC适配器 Switching Adapter with PFC, Level VI, Desktop, ITE & Industrial, 150 Watt, 90-264VAC Input, 18VDC Output, 8.34A, 89% Efficiency, 5.5x2.5x12mm, Straight, DC Cable 1220mm with Ferrite Core; CategoryPower/power management Plug in ac adapter Desktop type AC adapter; File Size733KB，4 Pages; ManufacturerCincon; Environmental Compliance

Download Datasheet Parametric View All

TRH150A180-12E12-Level-VI Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TRH150A180-12E12-Level-VI	-	-	View	Buy Now

TRH150A180-12E12-Level-VI Overview

桌面式AC适配器 Switching Adapter with PFC, Level VI, Desktop, ITE & Industrial, 150 Watt, 90-264VAC Input, 18VDC Output, 8.34A, 89% Efficiency, 5.5x2.5x12mm, Straight, DC Cable 1220mm with Ferrite Core

TRH150A180-12E12-Level-VI Parametric

Parameter Name	Attribute value
Maker	Cincon
Product Category	Desktop AC Adapter
Shipping restrictions	Mouser does not currently sell this product.
AC plug included/required	Required
area	Universal
Input voltage	90 VAC to 264 VAC
Number of outputs	1 Output
Output Power	150 W
Output voltage—channel 1	18 V
Output current—channel 1	8.34 A
industry	Commercial
DC output connector	Barrel Plug
DC output wire length	1220 mm
efficiency	Level VI, CoC Tier 2
series	TRH150A
Certification	EN60950-1, IEC60950-1, UL60950-1

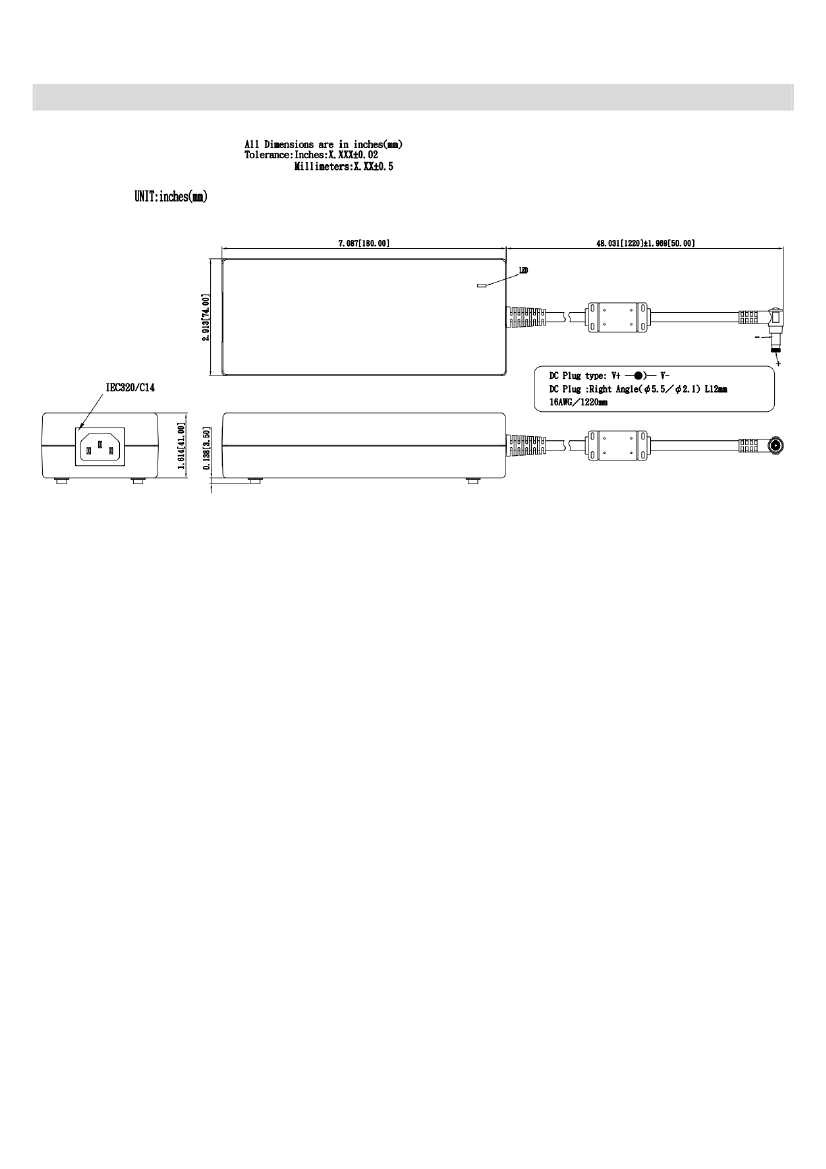

high	41 mm
length	180 mm
width	74 mm
Installation style	Desktop
load regulation	Regulated
Maximum operating temperature	+ 65 C
Minimum operating temperature	- 30 C
Factory packaging quantity	1

Preview

Download Datasheet

View All

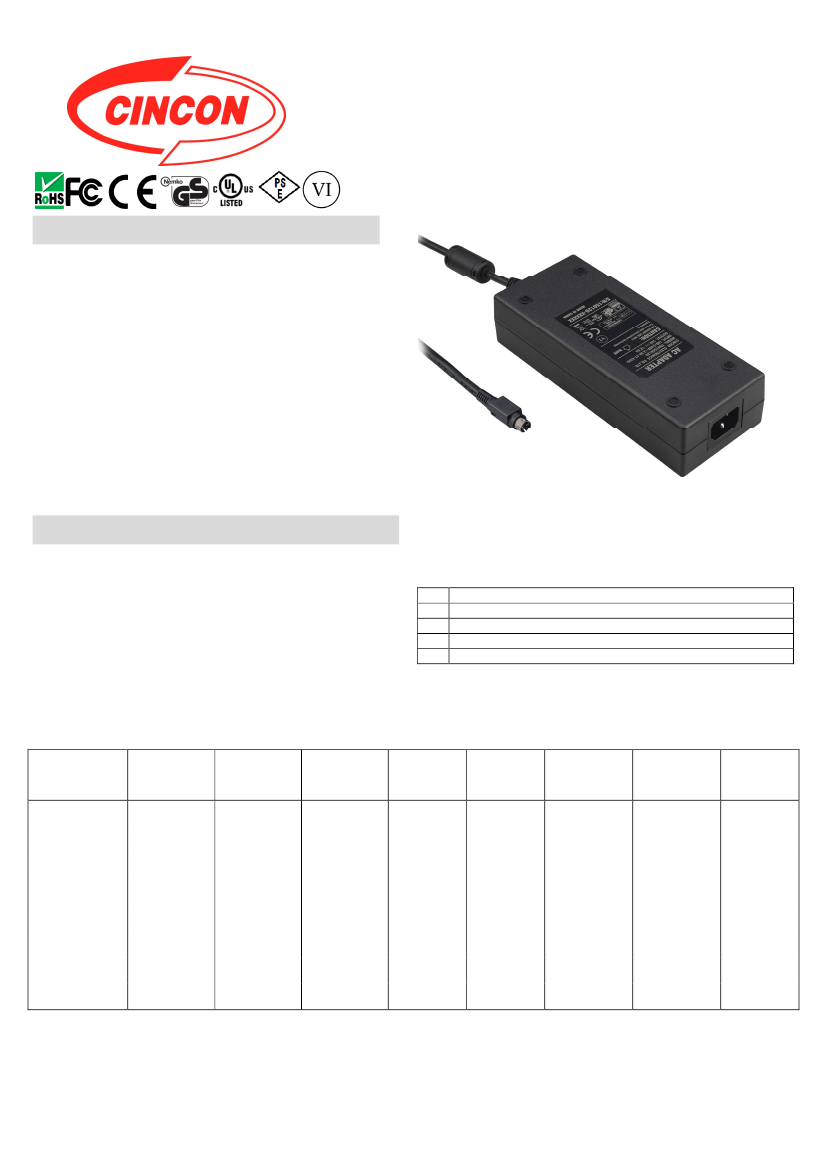

V14

TRH150A SERIES

150W SWITCHING

ADAPTER WITH PFC

Features

* Universal Input Range: 90-264VAC

* Active PFC Meets EN61000-3-2

* Conductive EMI Meets CISPR/FCC Class B

* No Load power consumption< 150mW

* Continuous Short Circuit Protection

* Over Voltage Protection

Meet CoC Tier 2 & DoE Level VI

(TRH150A120~150: Output Cable Length≦950mm)

(TRH150A180~480: Output Cable Length≦1220mm)

Ordering information

TRH150AXXX- XX

Model No.

DC Plug Type

OVP

E: WITH OVP

DC Cable Length and Type

471:950mm with Ferrite Core

12:1220mm with Ferrite Core

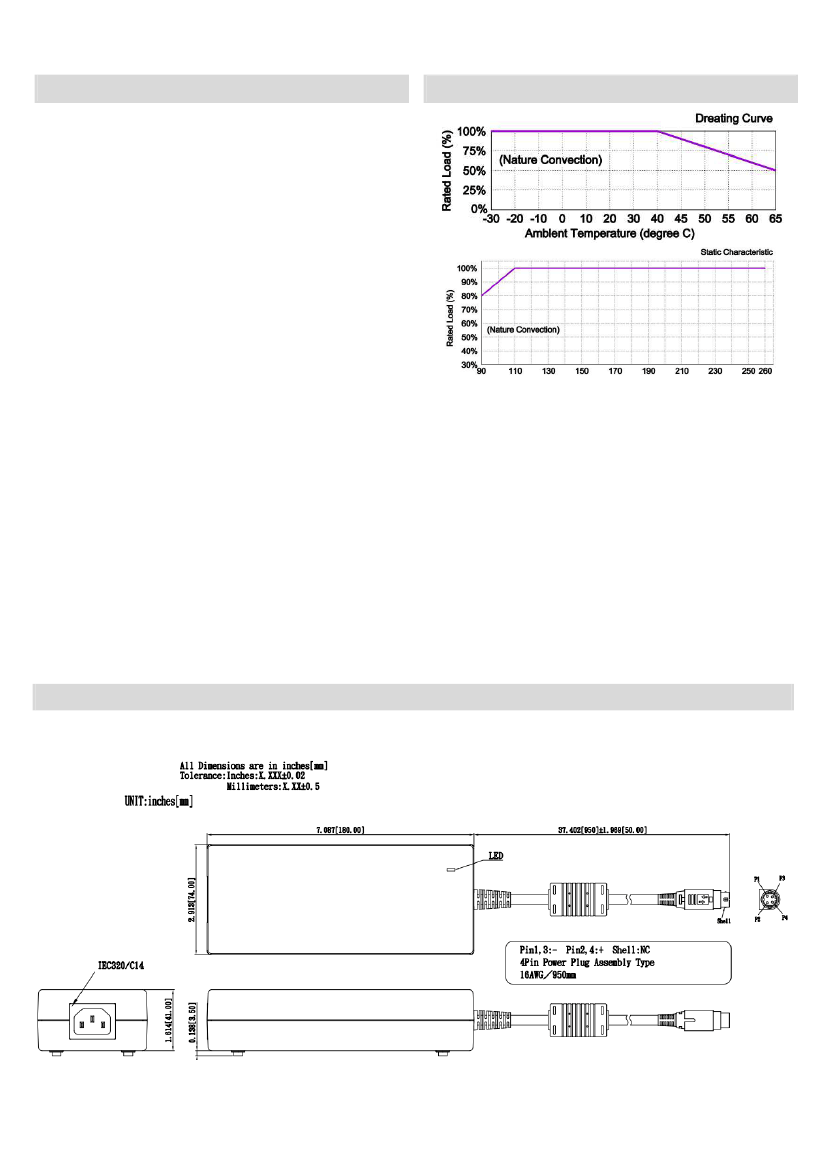

KPPX-4P DC Plug Type for 12V model and 15V model:

1424

1442

1446

1467

KPPX-4P, 4Pin Power Plug Assembly Type with Lock Mechanism Pin1,2:+，Pin3,4,shell:"-"

KPPX-4P,4Pin Power Plug Assembly Type with Lock Mechanism ,Pin1,3:"+",Pin2,4,Shell:"-"

KPPX-4P, 4Pin Power Plug Assembly Type with Lock Mechanism, Pin1,3:"-",Pin2,4:"+"

KPPX-4P, Power Plug Assembly Type with Lock Mechanism Pin1,3:-, Pin2,4:+, shell: GND

KPPX-4P, 4Pin Power Plug Molded Type without Lock Mechanism Pin1,2:+，Pin3,4:-

Please see catalogue

page71, only KPPX-4P

for 12V model and

15V model

1538

*UL2464 Cable For all models

MODEL

TRH150A120

TRH150A150

TRH150A180

TRH150A190

TRH150A240

TRH150A280

TRH150A360

TRH150A480

OUTPUT

VOLTAGE

12V

15V

18V

19V

24V

28V

36V

48V

MIN

LOAD

OUTPUT

CURRENT

12.50A

10.00A

8.34A

7.90A

6.25A

5.36A

4.17A

3.13A

RIPPLE &

NOISE

(NOTE1)

VOLTAGE

SETPOINT

(NOTE2)

±2.5%

LINE

REGULATION

(NOTE3)

±1%

LOAD

REGULATION

(NOTE4)

±5%

% EFF

(Typ.)

(NOTE5)

91%

92%

93%

94%

93%

94%
