PA1005.040NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> PA1005.040NLT

PA1005.040NLT: DescriptionBoard Mount Current Sensor SMD Current Sense 1:40 Xfmr; CategoryPower management transformer; File Size238KB，3 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

PA1005.040NLT Overview

Board Mount Current Sensor SMD Current Sense 1:40 Xfmr

PA1005.040NLT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	LENGTH AND BREADTH DIMENSION INCLUDES TERMINAL ALSO
high	4.83 mm
length	8.38 mm
Installation features	SURFACE MOUNT
Maximum operating frequency	1000 kHz
Minimum operating frequency	50 kHz
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
Peak primary current	20 A
physical size	L8.38XB7.21XH4.83 (mm)
primary type	WOUND PRIMARY
secondary inductance	320 µH
surface mount	YES
Transformer type	CURRENT SENSE TRANSFORMER
Turns ratio (Np:Ns)	1:40
width	7.21 mm
Base Number Matches	1

Preview

Download Datasheet

View All

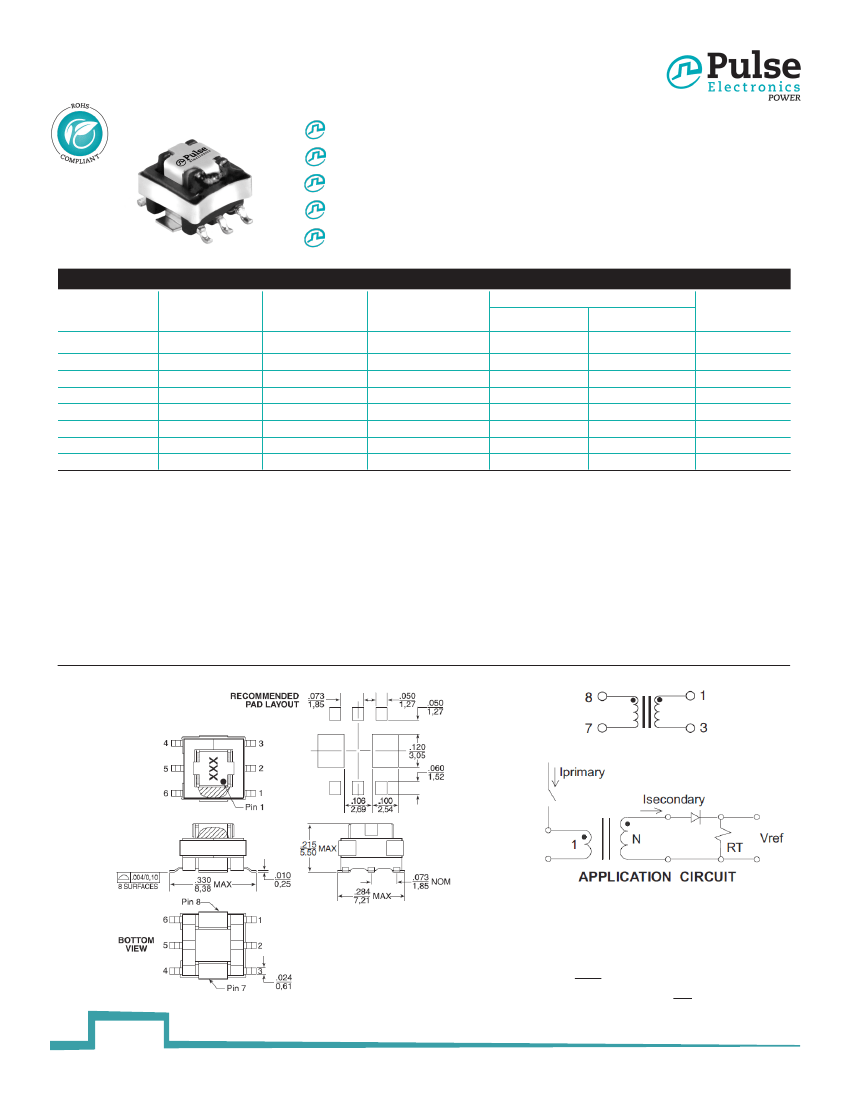

SMT Current Sense Transformers

PA1005.XXXNL

Height:

5.5mm Max

Footprint:

8.4mm x 7.2mm Max

Current Rating:

up to 20A

Frequency Range:

20kHz to 1MHz

Low Primary DCR version of P820X

Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C

Part

5,6

Number

PA1005.020NL

PA1005.030NL

PA1005.040NL

PA1005.050NL

PA1005.060NL

PA1005.070NL

PA1005.100NL

PA1005.125NL

Turns

Ratio

1:20

1:30

1:40

1:50

1:60

1:70

1:100

1:125

Current

Rating

(A)

Secondary

Inductance

(mH MIN)

0.08

0.18

0.32

0.50

0.72

0.98

2.00

3.00

DCR (mW MAX)

Primary

(8-7)

0.75

Secondary

(1-3)

550

870

1140

1500

2250

4750

5500

6500

Hipot

RMS

)

1000

500

NOTES:

5. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (i.e.

PA1005.020NL becomes PA1005.020NLT). Pulse complies to industry standard tape and reel specification

1. The temperature of component (ambient temperature plus temper-ature rise) must be within the speci-

EIA481.

fied operating temperature range.

6. The “NL” suffix indicates an RoHS-compliant part number. Non-NL suffixed parts are not necessarily RoHS

2. The maximum current rating is based upon temperature rise of the component and represents the DC

current which will cause a typical temperature rise of 40°C with no airflow.

compliant, but are electrically and mechanically equivalent to NL versions. If a part number does not have

the “NL” suffix, but an RoHS compliant version is required, please contact Pulse for availability.

3. To calculate value of terminating resistor (Rt) use the following formula: Rt (W) = V

ref

* N /

(Ipeak_primary)

4. The peak flux density of the device must remain below 2000 Gauss. To calculate the peak flux density for

uni-polar current use following formula: Bpk = 37.59 * V

ref

* (Duty_Cycle_Max) * 10

/ (N * Freq_kHz)

* for bi-polar current applications divide Bpk (as calculated above) by 2.

Mechanical

Schematic

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 .34 grams

Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120/tray

Tape & Reel . . . . . . . . . . . . . . . . . . . . . . . . . .900/reel

Coplanarity . . . . . . . . . . . . . . . . . . . . . . 0 .004 inches

Dimensions: Inches

Unless otherwise specified, all tolerances are ± .010

0,25

power.pulseelectronics.com

SPM2007 (02/18)

http://www.power.pulseelectronics.com/contact

PA1005.040NLT Related Products

	PA1005.040NLT	PA1005.020NLT	PA1005.060NLT	PA1005.030NLT
Description	Board Mount Current Sensor SMD Current Sense 1:40 Xfmr	Board Mount Current Sensor SMD Current Sense 1:20 Xfmr	Board Mount Current Sensor SMD Current Sense 1:60 Xfmr	Board Mount Current Sensor SMD Current Sense 1:30 Xfmr
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	LENGTH AND BREADTH DIMENSION INCLUDES TERMINAL ALSO	LENGTH AND BREADTH DIMENSION INCLUDES TERMINAL ALSO	LENGTH AND BREADTH DIMENSION INCLUDES TERMINAL ALSO	LENGTH AND BREADTH DIMENSION INCLUDES TERMINAL ALSO
high	4.83 mm	4.83 mm	4.83 mm	4.83 mm
length	8.38 mm	8.38 mm	8.38 mm	8.38 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	1000 kHz	1000 kHz	1000 kHz	1000 kHz
Minimum operating frequency	50 kHz	50 kHz	50 kHz	50 kHz
Maximum operating temperature	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL
Peak primary current	20 A	20 A	20 A	20 A
physical size	L8.38XB7.21XH4.83 (mm)	L8.38XB7.21XH4.83 (mm)	L8.38XB7.21XH4.83 (mm)	L8.38XB7.21XH4.83 (mm)
primary type	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY
secondary inductance	320 µH	80 µH	720 µH	180 µH
surface mount	YES	YES	YES	YES
Transformer type	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER
Turns ratio (Np:Ns)	1:40	1:20	1:60	1:30
width	7.21 mm	7.21 mm	7.21 mm	7.21 mm
