TRH25240-S-12E03-Level-VI datasheet, PDF

Datasheet> All Categories > Power/power management> Plug in ac adapter> Wall mounted AC adapter> TRH25240-S-12E03-Level-VI

Preview

TRH25240-S-12E03-Level-VI: DescriptionSwitching Adapter, Level VI, Wallmount, 25 Watt, 90-264VAC Input, 24VDC Output, AU, 5.5x2.5x12mm, Straight, DC Cable 1800mm; CategoryPower/power management Plug in ac adapter Wall mounted AC adapter; File Size250KB，3 Pages; ManufacturerCincon; Environmental Compliance

Download Datasheet Parametric View All

TRH25240-S-12E03-Level-VI Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TRH25240-S-12E03-Level-VI	-	-	View	Buy Now

TRH25240-S-12E03-Level-VI Overview

Switching Adapter, Level VI, Wallmount, 25 Watt, 90-264VAC Input, 24VDC Output, AU, 5.5x2.5x12mm, Straight, DC Cable 1800mm

TRH25240-S-12E03-Level-VI Parametric

Parameter Name	Attribute value
Maker	Cincon
Product Category	Wall Mount AC Adapter
AC plug included/required	Included
Number of outputs	1 Output
Output Power	25 W
Output current—channel 1	1.05 A
efficiency	Level VI
series	TRH25
high	35 mm
Insulation voltage	4.24 kVDC
length	72 mm
range of working temperature	- 20 C to + 60 C
width	52 mm
Installation style	Wall Mount
cooling method	Convection
Input voltage (maximum)	264 VAC
Input voltage (minimum value)	90 VAC
mechanical form	External
Output voltage V1 (nominal value)	24 VDC
Factory packaging quantity	1

Preview

Download Datasheet

View All

︳

* Not CE certified for the EU"

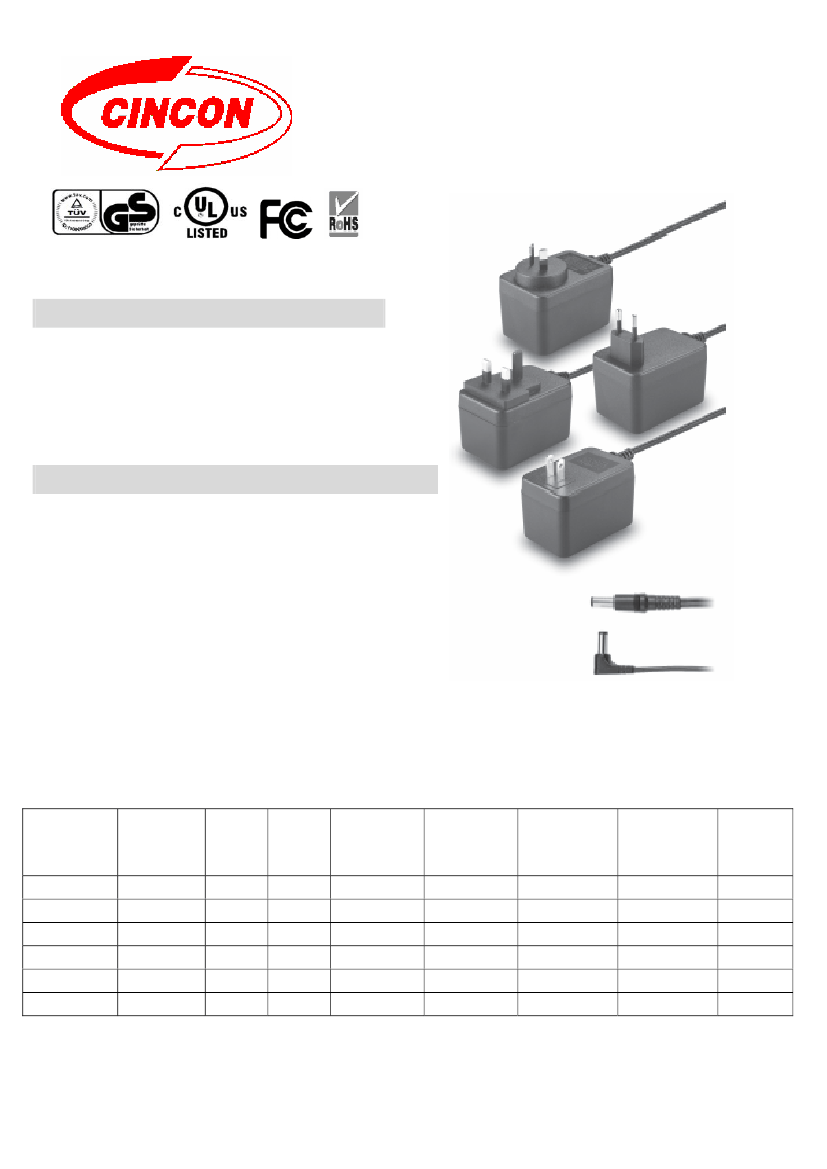

TR25 SERIES

25W SWITCHING

ADAPTER

Features

* Universal Input: 90-264Vac

* Meets EMI Meets EN55022 Class “B” and

CISPR/FCC Class B

* Continuous Short Circuit Protection

* Over Voltage Protection (Option)

Ordering information

TRG25XXX - X

Model No.

AC Plug Type

A: USA 2 Pin

E: Europe 2 Pin

U: British 3 Pin

S: Australia 2 Pin

A: without OVP Option

With OVP Option

DC Cable Length and Type

01: 720mm

02: 1200mm

03: 1800mm

11: 7200mm with Ferrite Core

12: 1200mm with Ferrite Core

13: 1800mm with Ferrite Core

* 18AWG / SPT1

DC Plug Type OVP

* Please see

Page 213 for

more detailed

descriptions

MODEL

TR25033

TR25050

TR25120

TR25150

TR25180

TR25240

OUTPUT

VOLTAGE

3.3V

12V

15V

18V

24V

MIN.

LOAD

MAX.

LOAD

4.0A

2.1A

1.67A

1.4A

1.05A

RIPPLE &

NOISE

50mV

VOLTAGE

ACCURACY

±2%

LINE

REGULATION

±1%

LOAD

REGULATION

±6%

±5%

±3%

±2%

% EFF.

(Typ.)

64%

70%

78%

80%

81%

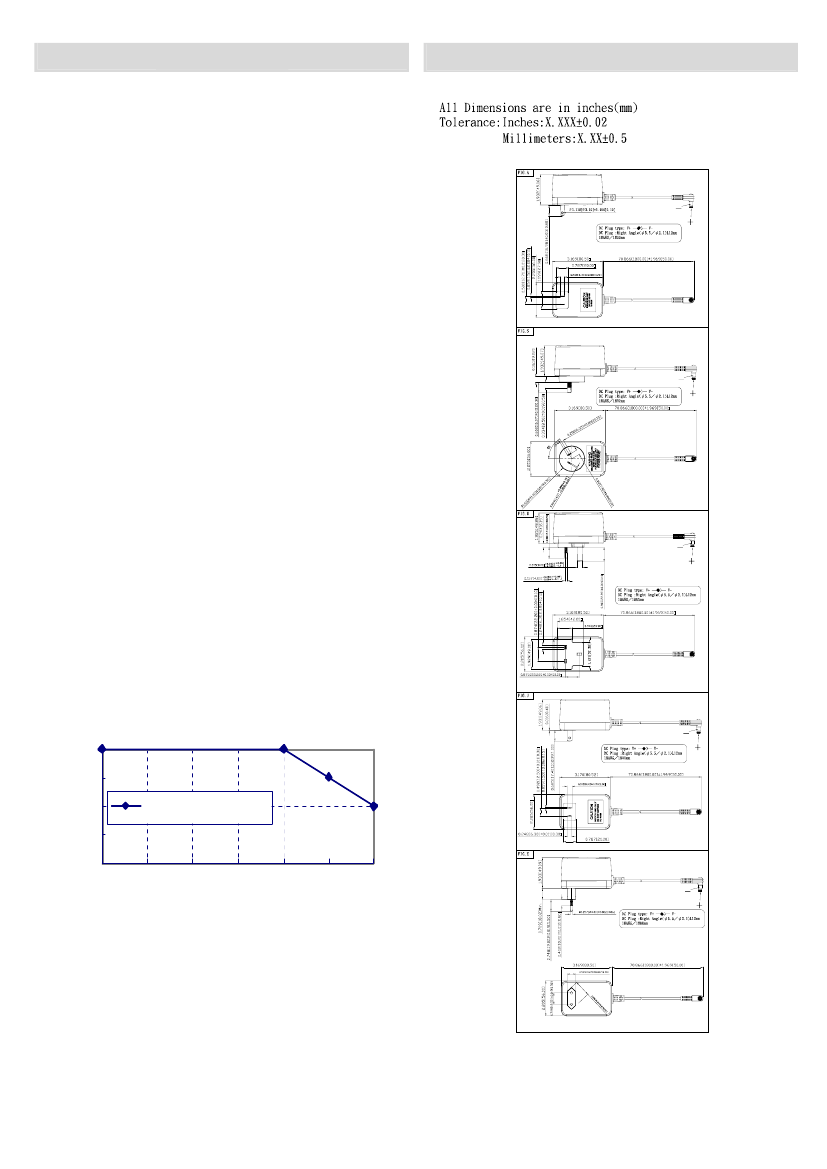

83%
