RAC10-3.3SB-E datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> RAC10-3.3SB-E

Preview

RAC10-3.3SB-E: DescriptionAC/DC power module 10W AC/DC 3kV REG 90-264Vin 3.3Vout; CategoryPower/power management The power supply circuit; File Size97KB，2 Pages; ManufacturerRECOM; Environmental Compliance

Download Datasheet Parametric Compare View All

RAC10-3.3SB-E Overview

AC/DC power module 10W AC/DC 3kV REG 90-264Vin 3.3Vout

RAC10-3.3SB-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	RECOM
package instruction	MODULE-4
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	264 V
Minimum input voltage	90 V
Nominal input voltage	115 V
JESD-30 code	R-XDMA-P4
length	52.4 mm
Number of functions	1
Output times	1
Number of terminals	4
Maximum operating temperature	50 °C
Minimum operating temperature	-40 °C
Maximum output voltage	3.366 V
Minimum output voltage	3.234 V
Nominal output voltage	3.3 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	MODULE,4LEAD,1.8
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	23.75 mm
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	10 W
Fine-tuning/adjustable output	NO
width	26.8 mm

Preview

Download Datasheet

View All

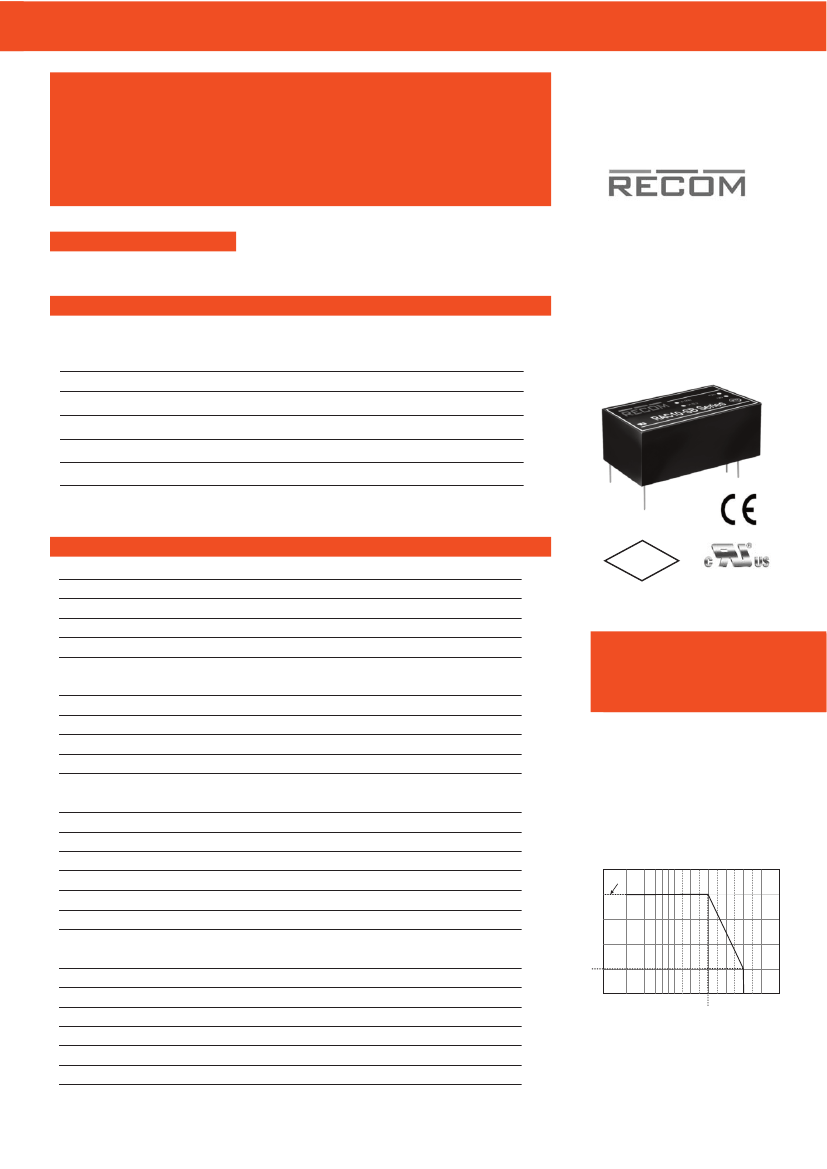

Features

Regulated

Converters

●

Compact AC-DC Power Supply

10 Watt PCB Mount Package

Universal Input Voltage Range

3000VAC Isolation

Low Output Ripple and Noise

Short Circuit Protected

UL Certified, CE Marked

POWERLINE

AC/DC-Converter

with 3 year Warranty

Description

Compact UL certified switching AC/DC power module for PCB, screw-

terminal connection or DIN-rail mounting. Pin compatible with RAC5-xxSB

models.

Selection Guide

Part

Number

RAC10-3.3SB

RAC10-05SB

RAC10-12SB

RAC10-15SB

RAC10-24SB

Input

Range

(VAC)

90-264

Output

Voltage

(VDC)

3.3

5

Output

Current

(mA)

2500

2000

833

667

417

Efficiency

typ.

(%)

72

75

Max.

Capacitive

Load

75000µF

40000µF

8500µF

3500µF

1200µF

10 Watt

Single

Output

*add suffix “-E” for extended temperature range, e.g. RAC10-05SB-E

*add suffix "-ST” for screw terminal module e.g. RAC10-05SB-ST, RAC10-05SB-E-ST

NOT RECOMMENDED

FOR

NEW DESIGNS

12

15

24

77

Specifications

(typical at 25°C and after warm up time unless otherwise specified )

Input Voltage Range

Rated Power

Input Frequency Range (for AC Input)

Input Current (full load)

No Load Power Consumption

Inrush Current (<2ms)

Leakage Current

Output Voltage Accuracy (Full load)

Line Voltage Regulation (low line, high line at full load)

Load Voltage Regulation ( 5% to 100% full load )

Output Ripple and Noise (20MHz limited)

Operating Frequency

Efficiency at Full Load

RMS Isolation Voltage (input to output)

Temperature Coefficient

Isolation Resistance

Short Circuit Protection

Operating Temperature Range

(free air convection, with derating)

Storage Temperature Range

Humidity

Case Material

Package Weight

Packing Quantity

EMC

MTBF (+25°C)

using MIL-HDBK-217F

Standard

Suffix -E

Noise

Ripple

115VAC/230VAC

230VAC

115VAC

230VAC

90-264VAC or 120-370VDC

10 Watts max.

47-440Hz

220mA/ 150mA max.

490mW max.

10A max. (-E = 23A max.)

20A max. (-E = 46A max.)

0.25mA max.

±2%

±0.3% typ.

±0.5% typ.

0.5% Vout + 50mVp-p max.

<0.2% Vout + 40mVp-p max.

125kHz typ.

see table

3kVAC / 1minute

±0.02%/°C typ.

100 MΩ min.

Output Power (%)

2002/95/EC

6/6

RoHS

E196683

UL-60950-1 Certified

RAC10-B

Derating-Graph

(Ambient Temperature)

125

100

75

50

25

0

-40 -25 -10 0

60 70 80 90

E-Version

Hiccup, Automatic Restart

-25°C to +70°C

-40°C to +70°C

-40°C to +85°C

20%-85% RH

Epoxy with Fibreglass (UL94V-0)

51g

8 pcs (-ST Version: 1 pc)

EN 55022 Class B / EN 55024

330 x 10

3

hours

Natural Convection

50

Ambient Temperature Range (°C)

Please Read Application Notes

www.recom-power.com

REV: 1/2014

PA-37

RAC10-3.3SB-E Related Products

	RAC10-3.3SB-E	RAC10-24SB-E	RAC10-12SB	RAC10-05SB-E	RAC10-15SB-ST
Description	AC/DC power module 10W AC/DC 3kV REG 90-264Vin 3.3Vout	AC/DC Power Modules 10W AC/DC 3kV REG 90-264Vin 24Vout	AC/DC Power Modules 10W AC/DC 3kV REG 90-264Vin 12Vout	AC/DC Power Modules 10W AC/DC 3kV REG 90-264Vin 5Vout	AC/DC Power Modules 10W AC/DC 3kV REG 90-264Vin 15Vout
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	MODULE-4	MODULE-4	MODULE-4	MODULE-4	MODULE-8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	264 V	264 V	264 V	264 V	264 V
Minimum input voltage	90 V	90 V	90 V	90 V	90 V
Nominal input voltage	115 V	115 V	115 V	115 V	115 V
JESD-30 code	R-XDMA-P4	R-XDMA-P4	R-XDMA-P4	R-XDMA-P4	R-XXMA-X8
Number of functions	1	1	1	1	1
Output times	1	1	1	1	1
Number of terminals	4	4	4	4	8
Maximum operating temperature	50 °C	50 °C	50 °C	50 °C	50 °C
Minimum operating temperature	-40 °C	-40 °C	-25 °C	-40 °C	-25 °C
Maximum output voltage	3.366 V	24.48 V	12.24 V	5.1 V	15.3 V
Minimum output voltage	3.234 V	23.52 V	11.76 V	4.9 V	14.7 V
Nominal output voltage	3.3 V	24 V	12 V	5 V	15 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
surface mount	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	UNSPECIFIED
Terminal location	DUAL	DUAL	DUAL	DUAL	UNSPECIFIED
Maximum total power output	10 W	10 W	10 W	10 W	10 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO
Maker	RECOM	RECOM	RECOM	-	RECOM
length	52.4 mm	52.4 mm	52.4 mm	52.4 mm	-
Encapsulate equivalent code	MODULE,4LEAD,1.8	MODULE,4LEAD,1.8	MODULE,4LEAD,1.8	MODULE,4LEAD,1.8	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	23.75 mm	23.75 mm	23.75 mm	23.75 mm	-
width	26.8 mm	26.8 mm	26.8 mm	26.8 mm	-
