V11
︳
Features
* Universal Input Range 90~305VAC
* Built-in active PFC function
* High efficiency up to 92%
* 4KV surge protection
* UL8750, EN61347, EN62384 approved
* Harmonic meet EN61000-3-2 Class C
* Short Circuit/Over Voltage/Over temperature
Protection
* IP67 design for indoor or outdoor installations
* Suitable for LED Street Lighting applications
* Dimming Function (Optional): 1-10Vdc and
Resistance or DALI and Touch-dim
* No Load Power Consumption<0.5W
(Note 8)
* 5 Years Warranty

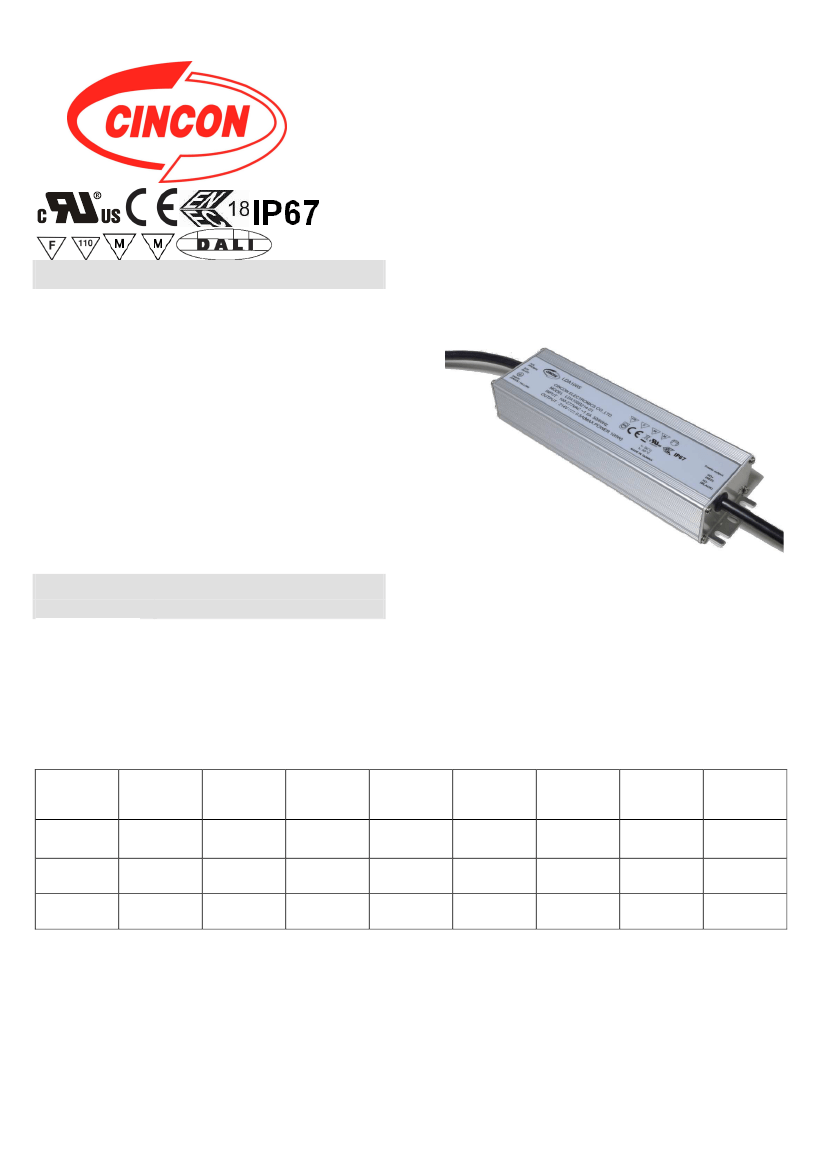

LDA100S SERIES
100W SINGLE OUTPUT
LED POWER SUPPLY
Ordering information
Model No.
LDA100SXXX
Optional type
-XX
01: Constant Current Mode (IP67)
No dimming
03: Constant Current Mode (IP67)
Dimming: 1~10Vdc and Resistance
04:
Constant Current Mode (IP67)
Dimming: DALI
Output
Voltage
(No Load)
142V
214V
214V
Output
Current
NOTE 7
MODEL
Ripple &
Noise
NOTE 1
Voltage
Accuracy
NOTE 2
Line
Regulation
NOTE 3
Load
Regulation
NOTE 4
Constant
Current
Region
71~140V
107~211V
107~211V
Effciency
(Typical.)
NOTE 5
LDA100S142
LDA100S214
LDA100S214A
0.70A
0.5A
0.35A
0.5%
0.5%
0.5%
±1%
±1%
±1%
±1%
±1%
±1%
±2%
±2%
±2%
92%
92%
90%
1
V11
Specifications
INPUT SPECIFICATIONS:
Voltage …………..….…………..…………………..……….….. 90~305VAC
Output current(%)
LDA100 Series De-rating Curve
1~10V Dimming function for output current curve:
Frequency …….…….…..…………………………....…………… 47~63Hz
Inrush Current ….......................... Cold start@25
℃
100A max. @240Vac
Leakage Current …………………….…..………………….… 0.75mA max.
Power Factor …………. .PF>0.98/115VAC, PF>0.93/230VAC @ full load
Input Current ……..……………. 1.2A typ. @115Vac/0.55A typ. @230Vac
0.5A typ. @277Vac
100
90
80
70
60
50
40
30
20
10
0
0
1
2
3
4
5
6
Typical curve
OUTPUT SPECIFICATIONS:
Holdup Time ………………………..…………………. 12ms typ. @115Vac
Short Circuit Protection ……..………………...…………..… Auto Recovery
Over Voltage Protection ………………….....… Recycle AC input to restart
Over Current Limit (note6) …………………..…….. Constant Current mode
Over Temperature Protection ………………..…...………….……… Yes
Startup time (note9) …………………..……….…………………… 0.5s max.
Temperature Coefficient ……..……………………………..…... ±0.05%/℃
7
8
9
10
DIM(V)<1V,the output will be shut down
Derating curve:
100
Rated Load(%)
75
50
25
0
-40 -30 -20 -10
0
10
20
30
40
50
60
70
20LFM(Natural Convection)
GENERAL SPECIFICATIONS:
Isolation Voltage ………………………………..… Input to output = 3750VAC
Isolation Resistance ……………………….….………………... 100MΩ min.
Operating Temperature ……………….…. -40 ~ 70
℃
(see Drating Curve)
Storage Temperature ……………………….……………………... -40~85℃
Humidity ………….………………………… 20 ~ 95% RH Non condensing
Cooling ………………………………………………….. Natural Convection
Switching Frequency …………………………….….…………… 65kHZ typ.
MTBF ……… MIL-HDBK-217F, GB, 25℃ .……………………… 60Khrs typ.
Vibration..……….15~2000Hz 4G period for 60min,each along X Y Z axes
Altitude ………………….....…..……………………………………… 2000m
Dimensions ……………….... 210x58x35mm (8.268x2.283x1.378Inches)
Weight …………………….....…..………………………………750g Typical
Ambient Temperature(
o
C)
NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output
for Ripple & Noise measuring @20MHz BW with 95% Rated current.
2. Voltage accuracy is set of 90% rated current.
3.
Line regulation is measured from high line to low Line with 90% rated current.
4. Load regulation is measured from 90% to 10% Rated current.
5. Efficiency is measured 95% rated power at Vin=230VAC.
6. Less than 50% (typ.) of the rated output voltage will enter hiccup mode.
7. Output Constant Current Accuracy ±5%.
8. No load power consumption<0.5W for LDA100SXXX-01.
No load power consumption<1.5W for LDA100SXXX--03, 04.
Stand by power consumption<0.5W for LDA100SXXX-03, 04,.
9. Startup interval must be greater than 3 seconds.
10. LDA100SXXX-03 UL only.
SAFETY AND EMC:
Emission and Immunity ……….... EN61547, EN55015, CISPR22 Class B
EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6.8,11
Harmonic Current ……………..………. EN61000-3-2 Class C(>50% load)
Surge ………………..……………..…………….…………….………….. 4KV
Safety (note10) .…………….. UL8750,EN61347-1,EN61347-2-13 EN62384
Mechanical Specification
All Dimensions In Inches[mm]
Tolerance Inches:x.xxx = ± 0.02
Millimeters:x.xx = ± 0.5
11.811(300.00)±0.787(20.00)
1.575 [40.00]±0.197[5.00]
0.472 [12.00]
0.295 [7.50]
7.378 [187.40]
11.811[300.00]±0.787[20.00]
1.575[40.00]±0.197[5.00]
Dimming wire(optional)
DIM+(Blue) 18AWG
DIM-(White) 18AWG
TC
SJTW
Vo+(Red) 18AWG
Vo-(Black) 18AWG
1.717 [43.60]
2.283 [58.00]
FG
ACL(Brown)
ACN(Blue)
(Green/Yellow)
1.236 [31.40]
SJTW 18AWG
?
0
0.524 [13.30]
7.732 [196.40]
[
?
65
.1
l
4P
]x
20
4.
1.378 [35.00]
8.323 [211.40]
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
2
Analogue and Mixed Signal
