LD01-0506KRL: DescriptionCommon mode choke/filter DIP CM MODE CHOKE Triad 1:1 50uH; CategoryPassive components Inductor, choke coil and coil Common mode choke coil/filter; File Size458KB，2 Pages; ManufacturerHALO Electronics; Environmental Compliance

Download Datasheet Parametric View All

LD01-0506KRL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LD01-0506KRL	-	-	View	Buy Now

LD01-0506KRL Overview

Common mode choke/filter DIP CM MODE CHOKE Triad 1:1 50uH

LD01-0506KRL Parametric

Parameter Name	Attribute value
Maker	HALO Electronics
Product Category	Common Mode Choke/Filter
Shipping restrictions	Mouser does not currently sell this product.
series	LD-CMR
Termination type	Radial
inductance	50 uH
Maximum DC resistance	150 mOhms
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
Package/box	DIP-16
length	20.57 mm
width	7.62 mm
high	5.33 mm
Encapsulation	Tube
product	Common Mode Filters
type	Triad CMC Filters
shield	Shielded
Installation style	Through Hole
Lead diameter	0.46 mm
Lead spacing	2.54 mm
Factory packaging quantity	25

Preview

Download Datasheet

View All

Triad CMC Filters

16 Pin DIP and SMD Packages

Conflict

FREE

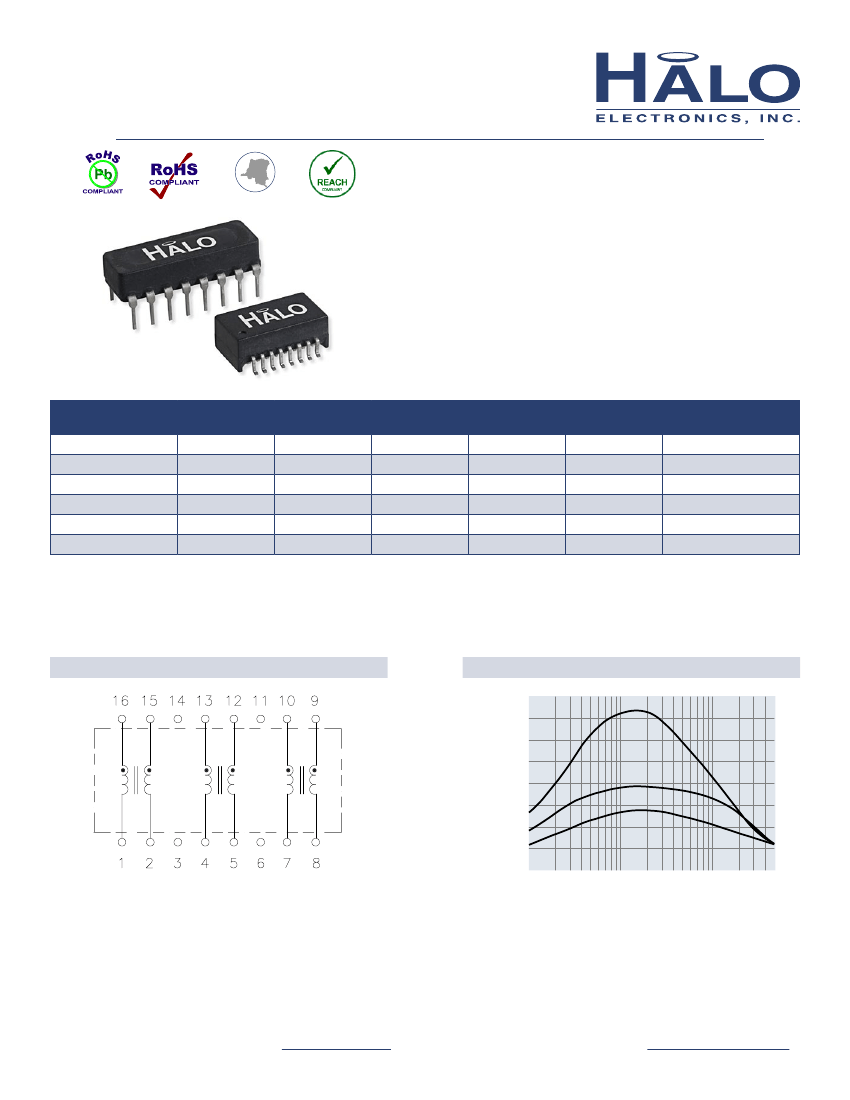

Product Features:

Standard series of 16 pin triad CMC filters for Data

Communications and Telecom applications.

Compatible with IEEE 802.3 and 802.5.

Operating Temp -40 to +85°C

Hi Pot: 500Vrms

Turns Ratio (±3%): 1:1

UL recognized materials

Part Number

LD01-0506KRL

LD01-0756KRL

LD01-1006KRL

LG01-0506NLF

LG01-0756NLF

LG01-1006NLF

Package

DIP

SMD

OCL

(µH typ.)

50

75

100

50

75

100

LL

(µH max.)

0.10

0.13

0.15

0.10

Cw/w

(pF max.)

8

10

12

8

10

DCR

(Ω max.)

0.15

0.17

0.20

0.15

0.17

0.20

Impedance/Freq.

Curve (typ.)

A

B

C

A

B

C

Notes:

1. DIP (through-hole) packages are not recommended for new designs

2. Part numbers with LF suffix are RoHS compliant and PB-Free. Part numbers with RL suffix are RoHS compliant using

exemption 7a.

Schematic

1400

IMPEDANCE (Ω)

1000

600

200

0

1

Impedance/Freq. Curve

C

B

A

FREQUENCY (MHz)

10

100

500

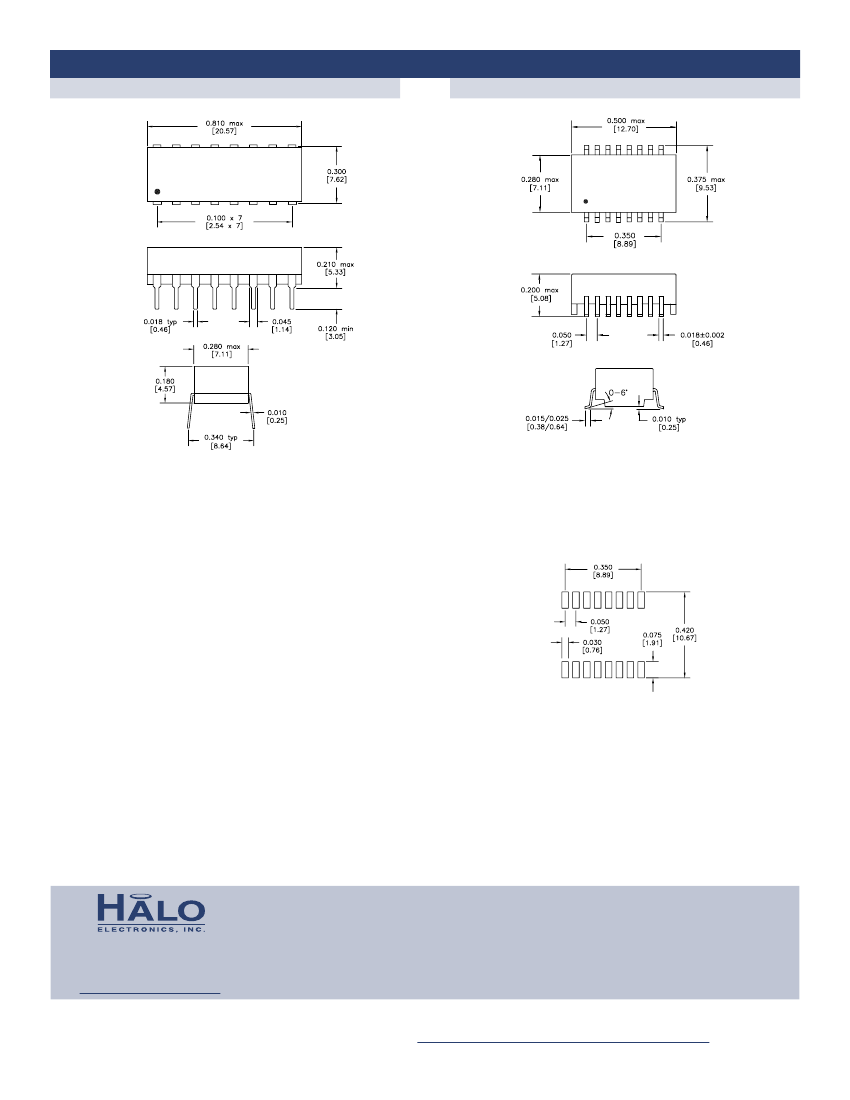

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or

info@haloelectronics.com
