LDC480 Series is a single phase, extremely compact Power Supply
with active PFC specially designed for space sensitive and demanding
applications.
Its compact size, high efficiency, excellent reliability together with easy
installation makes it ideal for various industrial applications.
LDC480 Series is Class I isolation device suitable for SELV and PELV
circuitry (up to 48 VDC models) and is designed to be mounted on DIN
rail and installed inside a protective enclosure.
High efficiency and extremely compact size
Only 56 mm width aluminum enclosure
Active PFC
Overload 150%
Constant current or hiccup mode limitation, user settable
Wide range of output voltage
Easy parallelable for power increase
Up to 60°C operating temperature with no derating
Industrial Control
Communication
Instrumentation Equipment
Renewable energy
High reliability applications
2
LDC480 Series
LDC480-24
LDC480-24P
LDC480-36
LDC480-36P
LDC480-48
LDC480-48P
LDC480-72
LDC480-72P
120 - 240 VAC (110 - 345 VDC)
120 - 240 VAC (110 - 345 VDC)
120 - 240 VAC (110 - 345 VDC)
120 - 240 VAC (110 - 345 VDC)
120 - 240 VAC (110 - 345 VDC)
120 - 240 VAC (110 - 345 VDC)
120 - 240 VAC (110 - 345 VDC)
120 - 240 VAC (110 - 345 VDC)
24 VDC
24 VDC
36 VDC
36 VDC
48 VDC
48 VDC
72 VDC
72 VDC
20 A
20 A
15 A
15 A
10 A
10 A
6.7 A
6.7 A
Includes internal ORing diode
Includes internal ORing diode
Includes internal ORing diode
Includes internal ORing diode
Technical parameters are typical, measured in laboratory environment at 25°C and 240 VAC / 50 Hz, at nominal values, after minimum
5 minutes of operation.
Rated, UL certified
Operating
Rated
120 – 240 VAC
90 - 264 VAC
110 - 345 VDC
47 - 63 Hz
Vin = 120 VAC
Vin = 230 VAC
Vin = 110 VDC
Vin = 345 VDC
Active
4.8 A
2.4 A
4.9 A
1.7 A
> 0.9
≤
35 A
≤
0.9 mA
Not user replaceable
It is strongly recommended to provide external surge
arresters (SPD) according to local regulations.
8 AT
Fuse 10 AT or MCB 10 A C curve
Input AC Voltage Range
Input DC Voltage Range
Input Frequency Range
Input AC Current
Input DC Current
Power Factor Correction
Inrush Peak Current
Touch (Leakage) Current
Internal Protection Fuse
Recommended External Protection
Output Power
Rated Voltage
(Adjustable Output Voltage Range)
LDC480-24
LDC480-36
LDC480-48
LDC480-72
LDC480-24
LDC480-36
LDC480-48
LDC480-72
LDC480-24
LDC480-36
LDC480-48
LDC480-72
LDC480-24
LDC480-36
LDC480-48
LDC480-72
Continuous Current
Overload Limit (Constant Current Mode)
Overload Limit (Hiccup mode) (max. 5 s)
480 W
24 VDC (22 - 29 VDC)
36 VDC (34 - 39 VDC)
48 VDC (45 - 55 VDC)
72 VDC (70 - 85 VDC)
20 A
15 A
10 A
6.7 A
21 A
16 A
12 A
7A
30 A
20 A
17 A
12 A
tech.support@psbel.com
LDC480 Series
Load Regulation
Ripple & Noise
1
Hold up Time
Protections
≤
1.5%
≤
0.5%
≤
150 mVpp
≤
50 mVpp
≥
25 ms
Overload, short circuit, with constant current or hiccup mode (user settable)
Thermal protection
Input undervoltage lockout
Output overvoltage
LDC480-24
≥
33 VDC
LDC480-36
≥
45 VDC
≥
68 VDC
LDC480-48
≥
100 VDC
LDC480-72
DC OK - green LED
OVERLOAD - red LED
DC OK - dry contact (NO, 24 VDC / 1 A)
Possible for power or redundancy (with external ORing module)
P (models) - include internal ORing circuit
LDC480-24 / LDC480-36
> 93%
LDC480-48 / LDC480-72
> 94%
LDC480-24 / LDC480-36
< 36.5 W
LDC480-48 / LDC480-72
< 31 W
LDC480-24 / LDC480-36
LDC480-48 / LDC480-72
LDC480-24 / LDC480-36
LDC480-48 / LDC480-72
3
Output Over Voltage Protection
Status Signals
Parallel Connection
2
Efficiency
Dissipated Power
1
2
Ripple and Noise are measured with 20 MHz bandwidth, probe terminated with a 0.1μF MKP parallel capacitor.
Pay attention, set the current limitation mode jumper on C.C. mode when connecting more units in parallel.
NOTE:
Power rating, losses, efficiency, ripple, thermal behaviour and start-up may change outside of the nominal rated input range.
Contact factory for details.
Operating Temperature
Storage Temperature
Derating
Humidity
Life Time Expectancy
Overvoltage Category
Pollution Degree
Protection Class
Isolation Voltage
UL certified up to 50°C at 120 VAC or
up to 60°C at 240 VAC (Start-up type tested: - 40°C)
3
- 40° to + 70°C
- 40° to + 80°C
- 7.6 W / °C over 50°C at 120 VAC
- 7.2 W / °C over 60°C at 240 VAC
5 - 95% RH
167953 h (19.1 years)
III (EN50178)
2 (IEC60664-1)
Class I
4.2 kVDC
2.2 kVDC
0.75 kVDC
Non condensing
At 25°C ambient, full load
Safety Standards & Approvals
Emission
EMC Standards
Immunity
Protection Degree
Vibration Sinusoidal
Shock
3
Input to Output
Input to Ground
Output to Ground
UL508 (certified)
EN60950 (reference)
EN50178 (reference)
EN55011 (CISPR11)
EN55022 (CISPR22)
EN61000-3-2
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-11
EN60529
IEC 60068-2-6
IEC 60068-2-27
Class B
Class B
Class A
Level 3
Level 3
Level 3
Level 4
Level 2
IP20
5-17.8 Hz:
±
1.6 mm;
17.8-500 Hz: 2 g 2Hours / axis (X,Y,Z)
30 g 6 ms, 20 g 11 ms; 3 bumps / direction,
18 bumps total
Possible with load derating.
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00757_AB
© 2016 Bel Power Solutions & Protection
4
LDC480 Series
Weight
Dimensions (W x H x D)
Mounting Rail
Connection Terminals
Case Material
Screw type pluggable (24 - 12 AWG)
Aluminum
1.1 kg
56 x 140 x 117 mm
IEC 60715/H15/TH35-7.5(-15)
2.5 mm²
1
2
3
4
5
6
7
AC/DC input
DC output (load)
Diagnostic Output
(dry contact, NC output OK)
Green LED: Output OK
Red LED: Overload
Output voltage adjustment
Selectable limitation mode
(Hiccup mode, C.C. mode)
INPUT CONNECTION
Single phase:
L = Line
N = Neutral
= Earth ground
DC:
L = + Positive DC
N = - Negative DC
= Earth ground
OUTPUT CONNECTION
+ = Positive DC
- = Negative DC
Signaling:
DC OK: dry contact
NO
COM

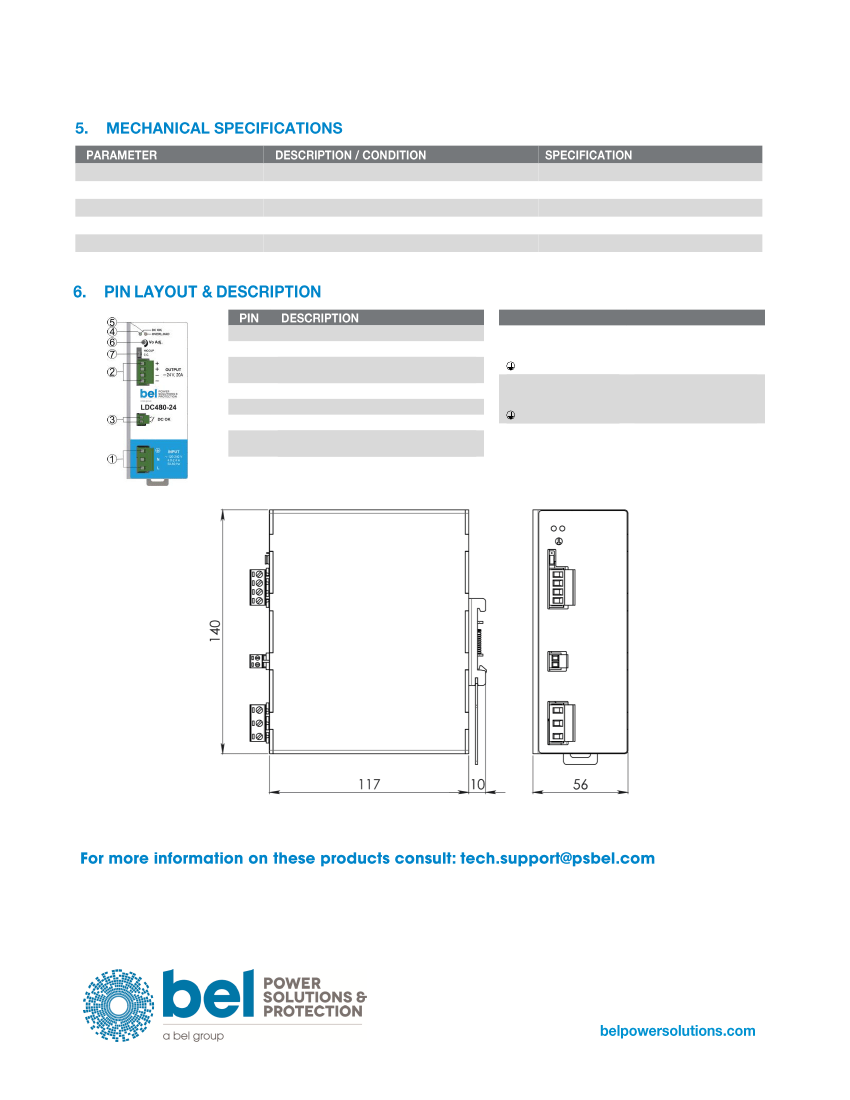

Figure 1. Mechanical Drawing
