EM-1611S-RC-DC12: Description模块配件 Embedded MicroBox for 3.5" Capa Board (Silver color) with DC12V-in 70W AT Power Supply design for SBC84620/SBC84710; CategoryEmbedded solution Module accessories; File Size221KB，2 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

EM-1611S-RC-DC12 Overview

模块配件 Embedded MicroBox for 3.5" Capa Board (Silver color) with DC12V-in 70W AT Power Supply design for SBC84620/SBC84710

EM-1611S-RC-DC12 Parametric

Parameter Name	Attribute value
Maker	Axiomtek
Product Category	Module accessories
product	Embedded MicroBoxes
used for	3.5 in Capa Board
size	225 mm x 225 mm x 51 mm
series	EM1611S
Factory packaging quantity	1

Preview

Download Datasheet

View All

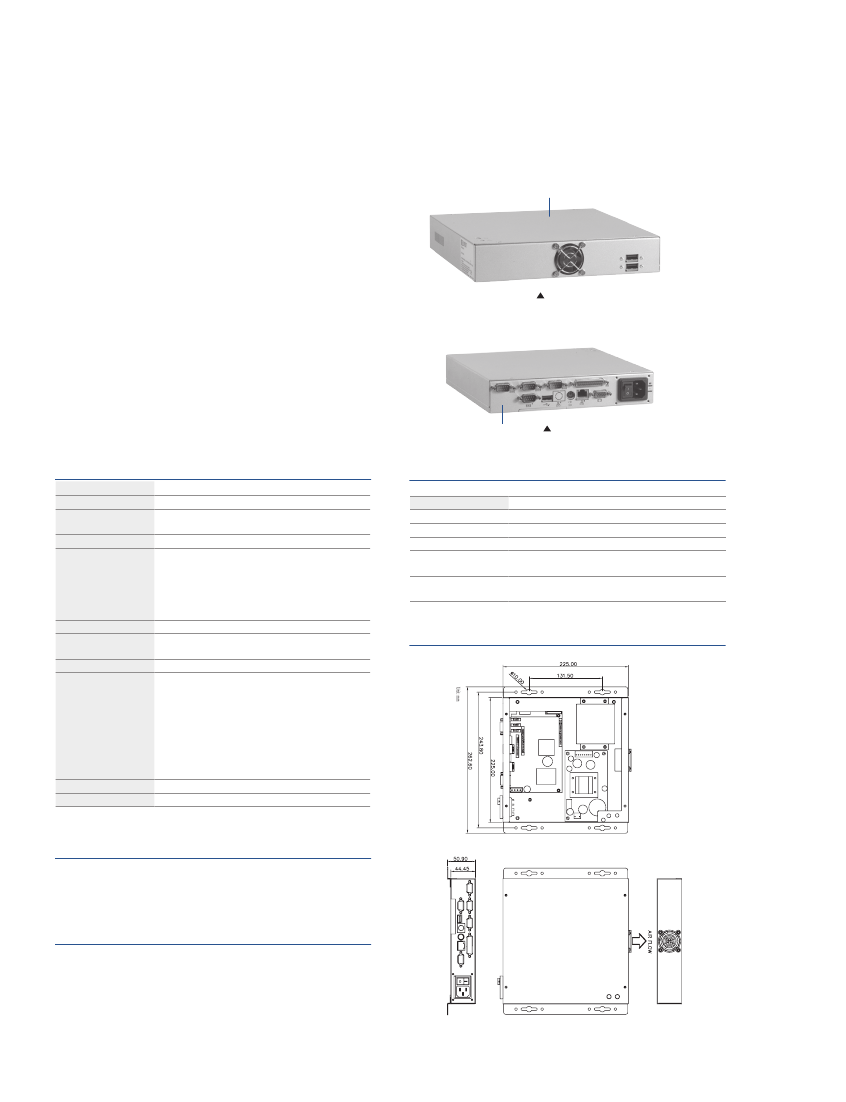

EM1611S

Embedded MicroBox for 3.5" Capa Board

Features

●

Designed for 3.5" Capa board

●

Full I/O function

●

Slim compact design with one system cooling

●

One 2.5" HDD drive bay

●

4 COM ports outlet

●

Quick customization project supported

Compact design

Front view

Rich I/O outlet

Rear view

Specifications

Standard Color

Construction

Indicator

Front Panel I/O

Rear Panel I/O

Silver

Heavy-duty cold-rolled steel

1 x green LED for system power-on

1 x orange LED for HDD active

2 x USB 2.0

1 x AT power button

4 x 9-pin D-sub connector

1 x VGA

1 x PS/2 keyboard/mouse through Y-type cable

1 x USB 2.0

1 x LPT

N/A

1 x 2.5" HDD

1 x CompactFlash™

1 x 40 x 40 x 20 mm system fan

AT 72 W

Input: AC 90 ~ 260V

Output: +5V @ 10A, +12V @ 1.5A, -12V @ 0.3A

AT 72 W

Input: DC 9 ~ 18V

Output: +5V @ 10A, +12V @ 1.5A, -12V @ 0.3A

AT 72 W

Input: DC 18 ~ 36V

Output: +5V @ 10A, +12V @ 1.5A, -12V @ 0.3A

225 mm (8.86") (W) x 225 mm (8.86") (D) x 51 mm (2.0") (H)

EMI pre-scan meets EN 55022 Class A

Ordering Information

Standard

EM1611S

Option main board

3.5" CAPA Boards

Optional

72W AC AT power supply

72W DC AT power supply

*Specifications and certifications are based on options and may vary.

Embedded MicroBox for 3.5" embedded board

Expansion Interface

Drive Capacity

Cooling

Power Supply

Dimensions

Environment

Applications

Wallmount PC controller

Embedded PC controller

Unattended controller

Compact industrial PC

Packing List

1 x AC power cord (for AC version)

1 x Wall mount bracket

415

* All specifications and photos are subject to change without notice.
