5613R2.5KL.25 datasheet, PDF - EEWORLD Datasheet

5613R2.5KL.25: DescriptionPrecision potentiometer; CategoryPassive components Potentiometer, the spinner and rheostat Precision potentiometer; File Size790KB，5 Pages; ManufacturerTT Electronics

Download Datasheet Parametric Compare View All

5613R2.5KL.25 Overview

Precision potentiometer

Parameter Name	Attribute value
Maker	TT Electronics
Product Category	Precision potentiometer
series	5610
Termination type	Solder Turret
product	Single Turn Precision Potentiometer
type	Ball Bearing Shaft Potentiometer
Installation style	Servo Mount
Linear	0.25 %
Number of revolutions	1 Turn
Number of linkages	1 Gang
resistance	2.5 kOhms
Shaft diameter	6.342 mm
Shaft length	15.9 mm
Component type	Wirewound
Shaft type	Round / Plain
Tolerance	5 %
Minimum operating temperature	- 65 C
Maximum operating temperature	+ 125 C
Power rating	3.5 W

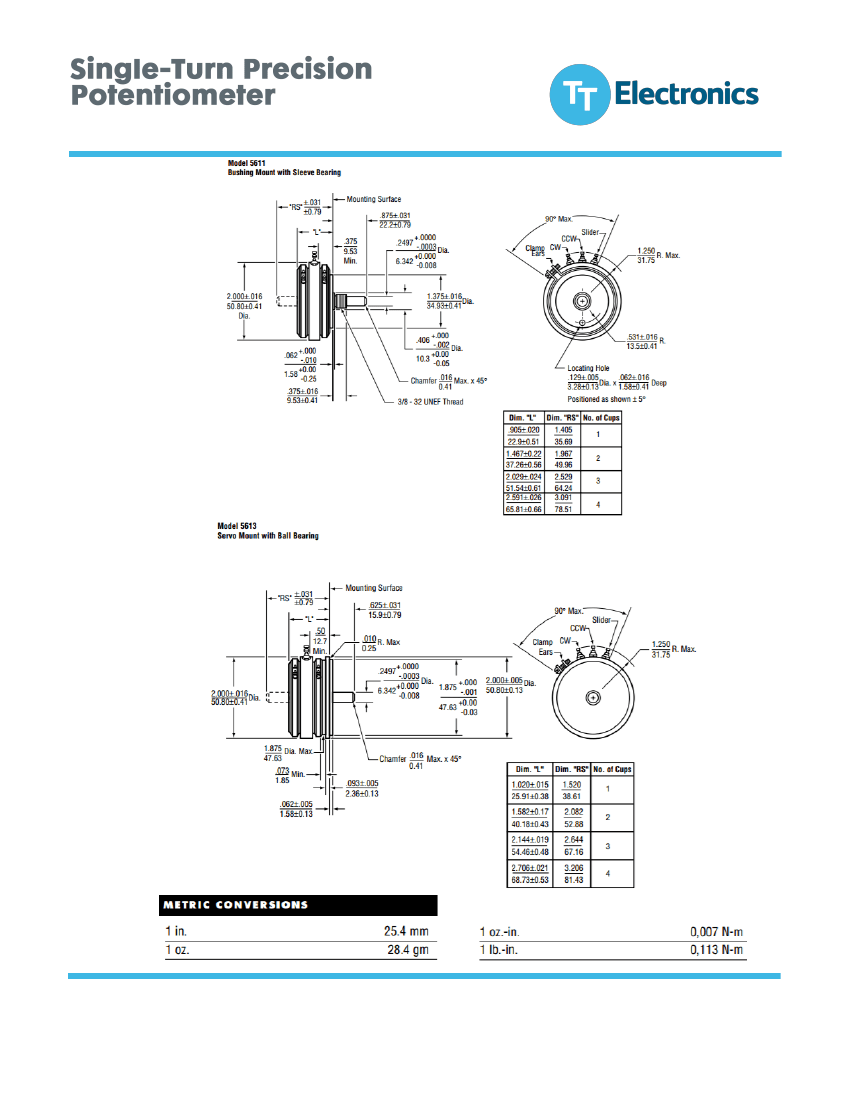

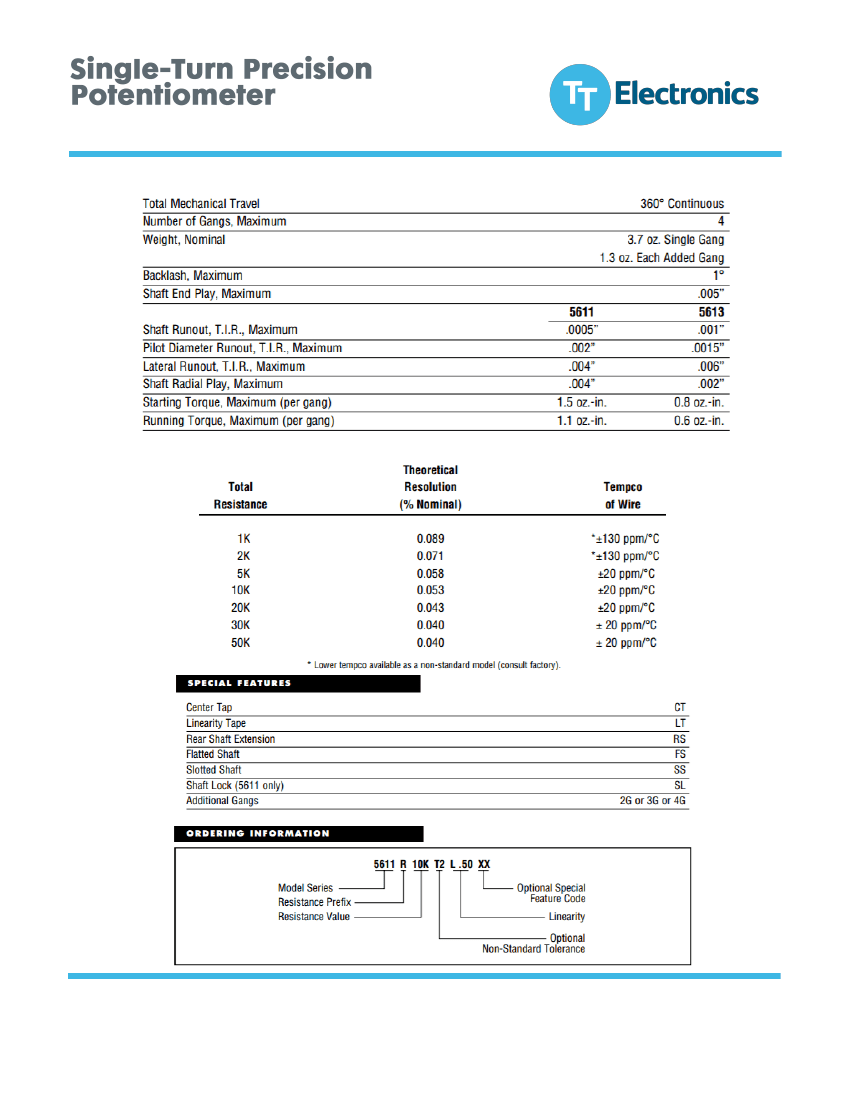

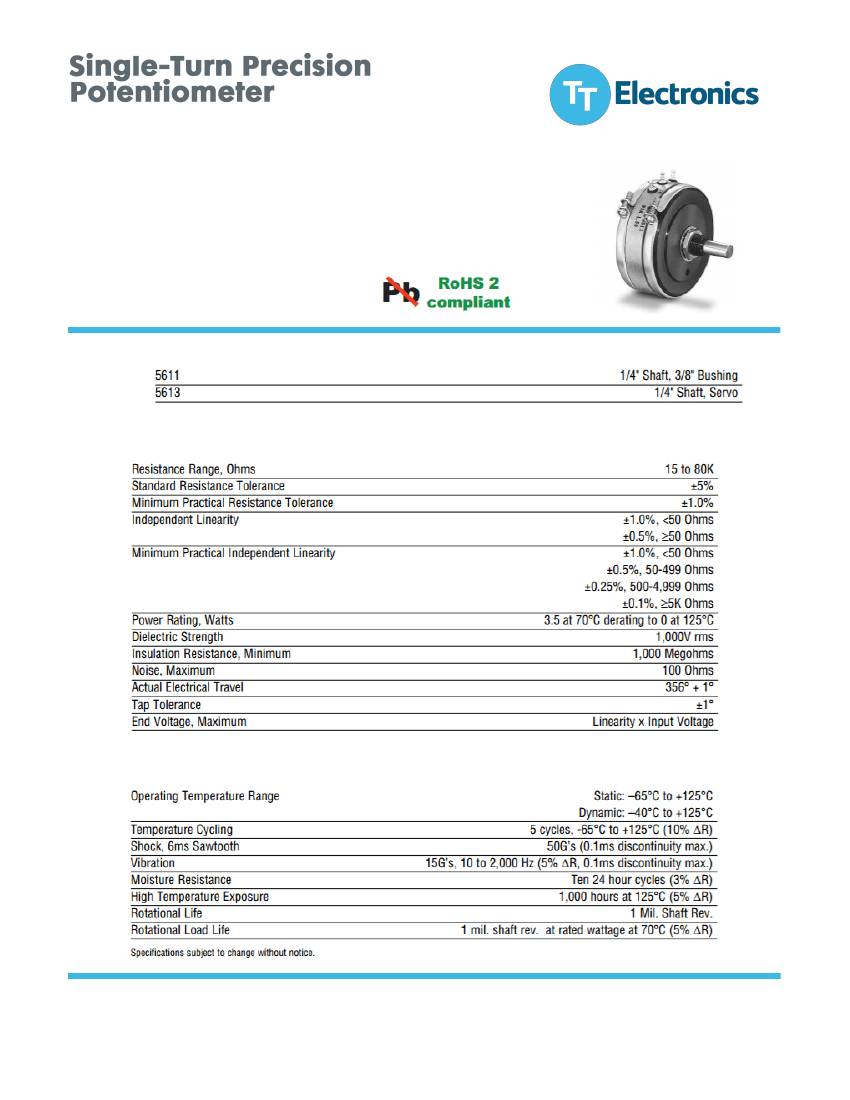

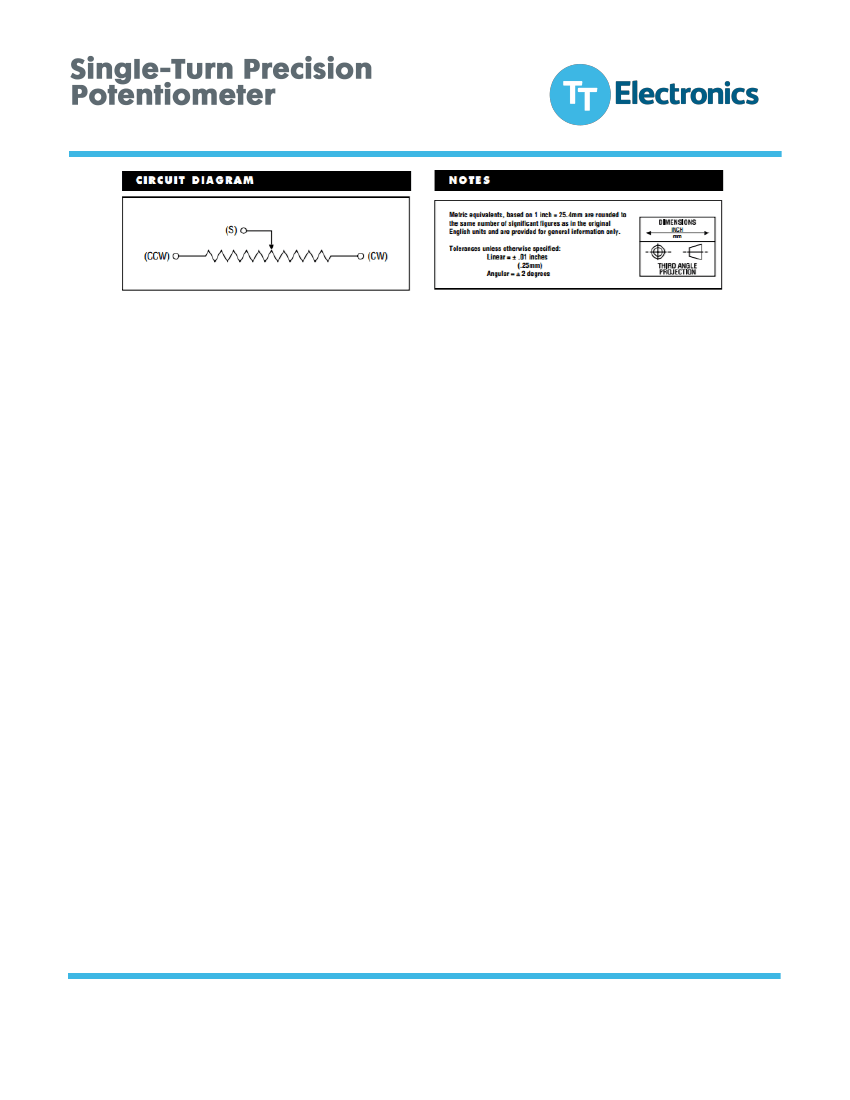

Model 5610 Series

Features:



2” diameter



Wirewound

Models

Electrical

Environmental

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

BI Technologies

4200 Bonita Place, Fullerton, CA 92835 |Ph: +1 714 447 2300

www.bitechnologies.com | www.ttelectronics.com

Issue B

02/2015

Page 1

	5613R2.5KL.25	5611R10KL.5
Description	Precision potentiometer	Precision potentiometer
Maker	TT Electronics	TT Electronics
Product Category	Precision potentiometer	Precision potentiometer
series	5610	5610
Termination type	Solder Turret	Solder Turret
product	Single Turn Precision Potentiometer	Single Turn Precision Potentiometer
type	Ball Bearing Shaft Potentiometer	Sleeve Bearing
Installation style	Servo Mount	Panel Mount
Linear	0.25 %	0.5 %
Number of revolutions	1 Turn	1 Turn
Number of linkages	1 Gang	1 Gang
resistance	2.5 kOhms	10 kOhms
Shaft diameter	6.342 mm	6.342 mm
Shaft length	15.9 mm	12.67 mm
Component type	Wirewound	Wirewound
Shaft type	Round / Plain	Round / Plain
Tolerance	5 %	5 %
Minimum operating temperature	- 65 C	- 65 C
Maximum operating temperature	+ 125 C	+ 125 C
Power rating	3.5 W	3.5 W
