UTC Series Installation Accessories
Introduction
The UTC series installation accessories blend simplicity with style. It makes optimal use of space, and its compact design saves money in shipping fees. UTC-5 Series is elegantly
designed to fit many different customer scenarios, from kiosks to reception areas. The slim and stylish unit is easy to store, easy to ship and easy to set up. Installation is simple; it
can be done in about ten minutes and the finished result makes an attractive, one-piece solution.

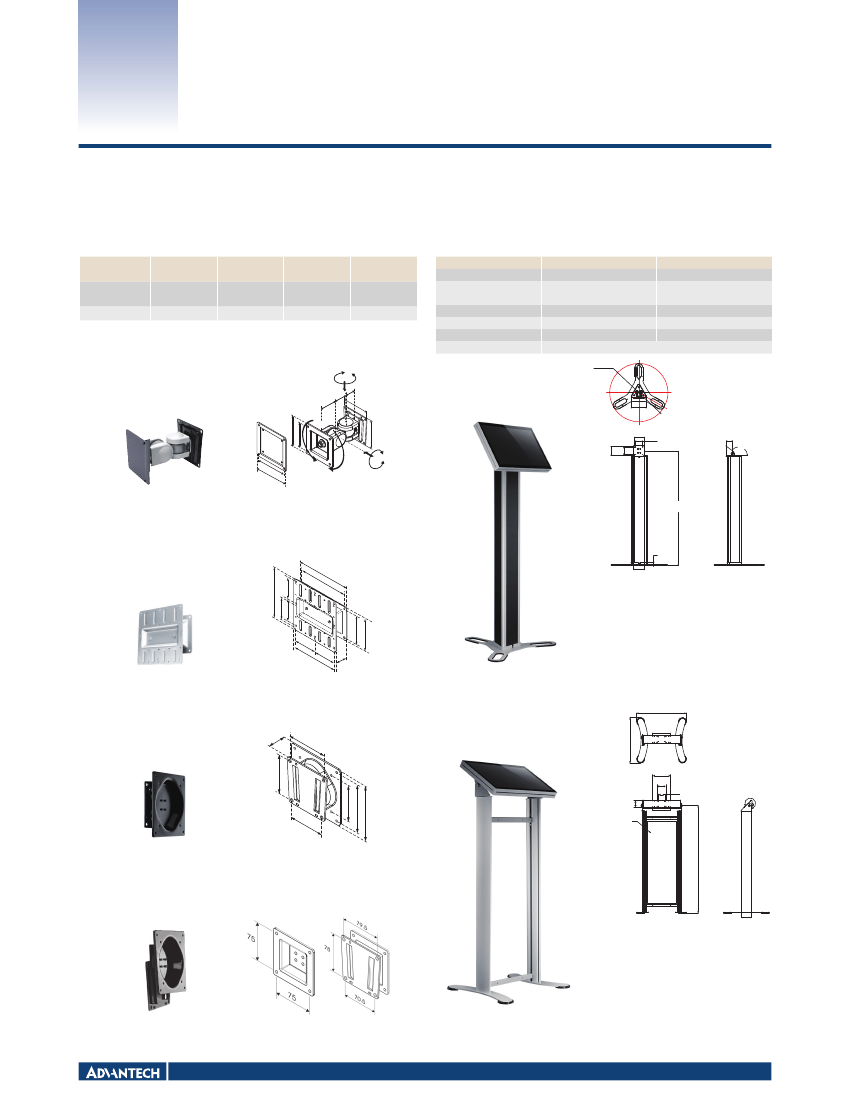

Wall Mount
PN
VESA Mounting
Patterns
Weight Capacity
UTC-WALL-
MOUNT1E
75 x 75 mm;
100 x 100 mm
14 kg
UTC-WALL-
MOUNT2E
200 x 200 mm
35 kg
UTC-WALL-
MOUNT3E
75 x 75 mm;
100 x 100 mm
20 kg
UTC-WALL-
MOUNT4E
75 x 75 mm
20 kg
Floor Stand
PN
Description
VESA Mounting Patterns
Height
Dimension
Weight
Weight Capacity
UTC-T01-STANDE
Triangle shape floor stand
75 x 75 mm; 100 x 100 mm
120 cm
Ø660 mm
10 kg
18 KG (39.6Ibs)
Ø660
UTC-H01-STANDE
H-shape floor stand
75 x 75 mm; 100 x 100 mm;
200 x 200 mm
120 cm
558 x 510 mm
10 kg
UTC-WALL-MOUNT1E
VESA 75/100 mm
90
75
UTC-T01-STANDE
92
0°
18
5
53.
270
°
90
41
36
Triangle shape floor stand
175
100 75
100 75
70
144°
1
0
1 0
15
°
180
Firmly fix to a solid wall
Weight capacity up to 14 kg
Material: Steel
Tilt: 180° up and down
Rotation: 270° for portrait or
landscape viewing
Lift: 130.5 mm
For UTC-510/515/520/307/310/315
20
250
230
1200
UTC-WALL-MOUNT2E
100
100
230
VESA 100/200 mm
114
100
100
220 100
42.
5
Organized cable management
VESA 75/100 mm
Height: 120 cm
Easily tilt for best viewing comfort
Dimension: Ø660 mm
For UTC 515/520/315/318/320
558.2
510
Flush fit without movement
Weight capacity up to 35 kg
Material: Steel
Sits: 42.5 mm from the wall
For UTC-532 only
130
150
UTC-WALL-MOUNT3E
VESA 75/100 mm
UTC-H01-STANDE
79
.5
H-shape floor stand
27
78
200
100
75
100
115
75
70
.5
MAX: 1000 x 350 x 5
(Signboard)
Firmly fix to a solid wall
Weight capacity up to 20 kg
Material: Steel
Sits: 27 mm from the wall
For UTC-515/520/307/310/315/
318/320
100
0°~135°
UTC-WALL-MOUNT4E
VESA 75 mm
1200
Handy and Convenient supporter
Firmly fix to solid wall
Material:Steel
Weight capacity up to 20 kg
For UTC-510/307/310
Organized cable management
VESA 75/100/200mm
Height: 120 cm
Easily tilt for best viewing comfort
Dimension: 558 x 510 mm
Acrylics signboard is excluded
For UTC 515/520/532/315/318/320
118
Ubiquitous Touch Computer
All product specifications are subject to change without notice.
Last updated: 15-Oct-2018
UTC Series Installation Accessories

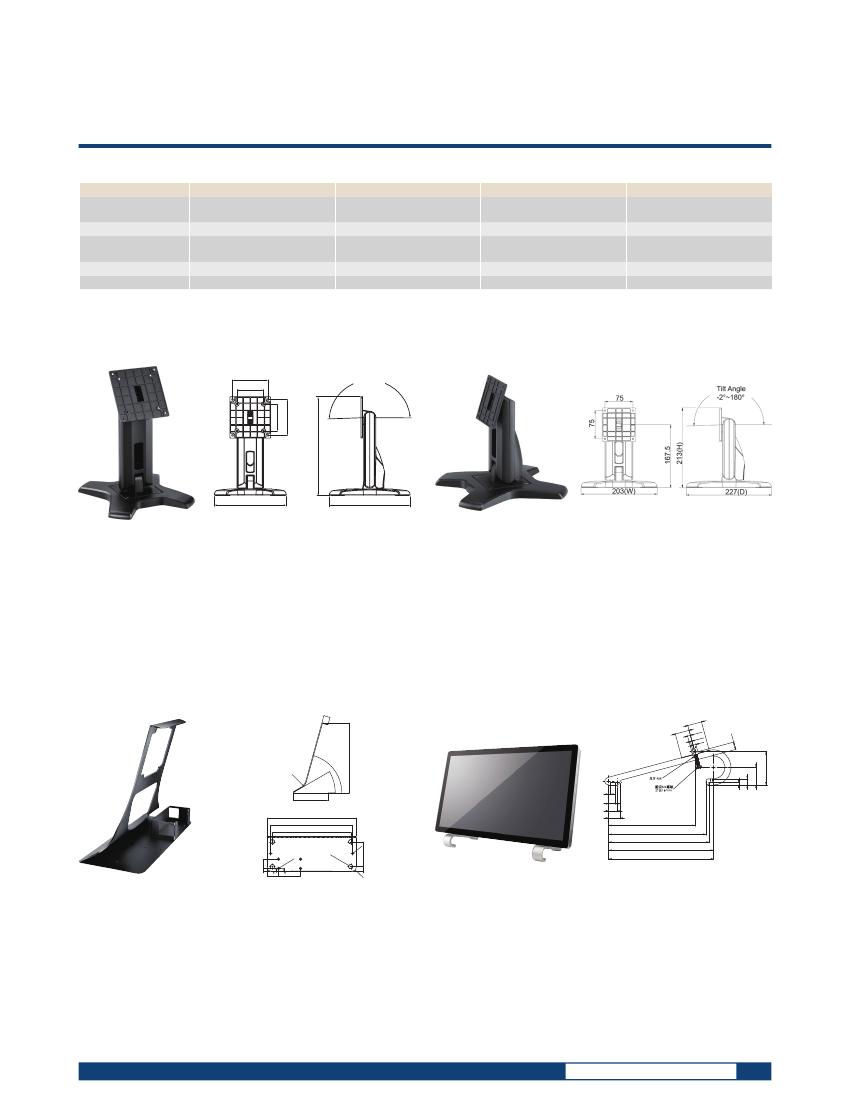

Desktop Stand
PN
Description
VESA Mounting Patterns
Dimension
Weight
Weight Capacity
UTC-S01-STAND
Tiltable Desktop Stand
75 x 75 mm; 100 x 100 mm
203 x 275 x 227 mm
(8" x 10.83" x 8.94")
1.75kg
15kg
UTC-S03-STANDE
Tiltable Desktop Stand
75 x 75 mm
203 x 213 x 227 mm
(7.99" x 8.39" x 8.94")
2kg
13kg
UTC-510-STAND0E
UTC-510 desktop stand with
adapter holder
75 x 75 mm
240L x 215W x 290H
0.85kg
2.5kg
UTC-520-STAND1E
UTC-520 desktop stand
N/A
230L x 160W x 44H
0.4kg
13kg
UTC-S01-STAND
VESA 75 x 75 mm ; 100 x 100 mm
100
75
75
100
Tilt Angle
-2°~180°
UTC-S03-STANDE
VESA 75 x 75 mm
203(W)
275(H)
227(D)
Mounting Pattern: 100 x 100 / 75 x 75 mm
Screw Type: M4
Material: Steel/Plastic/Aluminum
Dimension (W x H x D): 203 x 275 x 227 mm (8" x 10.83" x 8.94")
Weight (Net): 1.75 Kg (3.86lbs)
Tilt (Hinge): +180° / -2°
Support Max.Weight: 15kg (33.1lbs)
Support UTC-515/520 /307/310/315/318/320
Mounting Pattern: 75 x 75 mm
Screw Type: M4
Material: Steel/Plastic/Zinc
Dimension (W x H x D): 203 x 213 x 227 mm (7.99" x 8.39" x 8.94")
Weight (Net): 1.60 Kg (3.53lbs)
Tilt (Hinge): +180° / -2°
Support Max.Weight: 13kg (28.7lbs)
Support UTC Models: UTC-510/307/310
UTC-510-STAND0E
18
UTC-520-STAND1E
19
19
3.90
2.10
3.90
10.10
198.40
R3
0
96.80
250
230
220
2.80
9
12
15
Ø1
7 26
Ø3
.50
1.5
0
32 62
R1
0
Material: Steel
Dimension: 240L x 215W x 290H
Weight (Net): 0.85kg
Support Flat Panel Size: 10"
Support Max Weight: 2.5kg
For UTC-510
12 70
Ø5
115.14
130
134
140
140.20
Material: Steel
Dimension: 230L x 160W x 44H
Weight (Net): 0.4kg
Support Max.Weight: 13kg (28.7lbs)
Support UTC Models: UTC-515 and 520 series
Online Download
www.advantech.com/products
3
8
23.43
44.65
74
°
.62
30°
