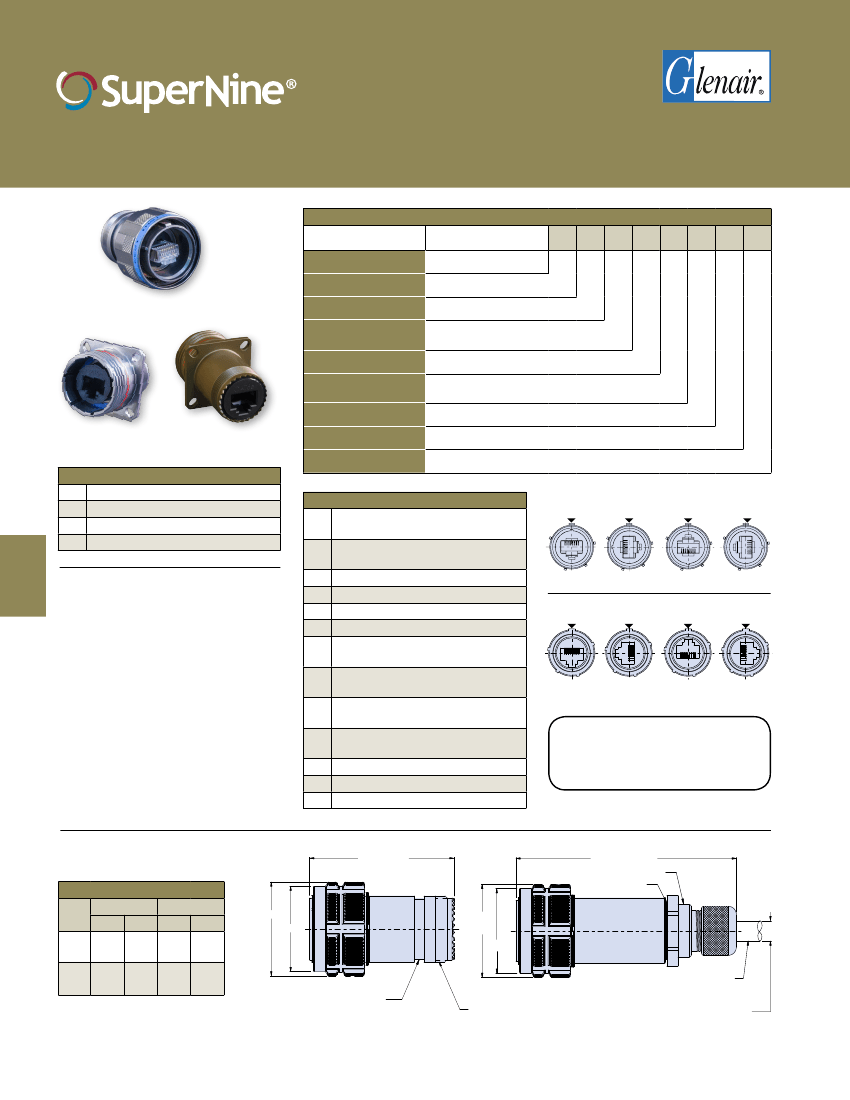

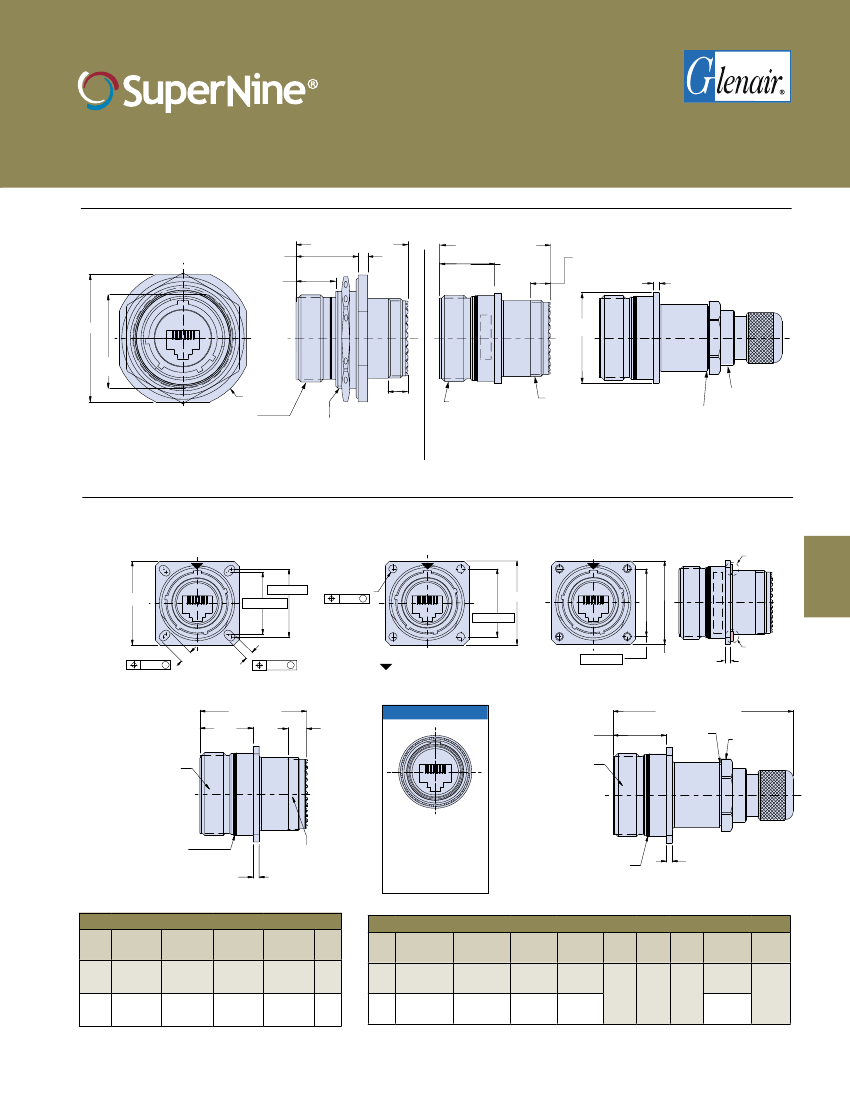

SERIES 23
233-300 Coupler with accessory threads
MIL-DTL-38999 Series III Type
Sample Part Number
Basic Number
Finish
RJ45 CAT 5e/6A connectors
Part Number Development
233-300
233-300
NF
00
G
17
5H
N
1
T
See Material and Finish table
See Connector Style table
–
= Inline shielded RJ45 insert
G
= Shielded and grounded to shell
2
17
or
19
5H
= CAT 5e
6A
= CAT 6A (CAT
6A receptacle only, for plug see 233-312)
Plug
Front View
Connector Style
1
Insert-to-Shell
Grounding
Shell Size
RJ45 Category
Alternate Key Position
1
Per MIL-DTL-38999
A, B, C, D, E, N
=
Normal
Receptacle
Front View
Receptacle
Rear View
RJ45 Orientation
Shrink Boot
1, 2, 3,
or
4
T
= Part No. 770-028; see accessory section. (Omit for None)
Material and Finish
1
NF
Aluminum/Cadmium, Olive Drab
ME
Aluminum/Electroless Nickel
MT
Aluminum/Nickel PTFE
ZR
Aluminum/Black Zinc-Nickel
00
01
05
E
NOTES
1. See Section A for alternate key/
keyway positions and panel cutout
dimensions
2. G option is inline shielded and
grounded to shell, available for
receptacle only
3. Front panel mount only
4. Meets IP67 in unmated condition, IP68
mated
5. For shrink boot see part number
770-028
6. Receptacle has RJ45 jack. Plug has RJ45
plug to jack
Connector Style
1
Wall mount receptacle with
slotted holes
3
Wall mount receptacle with slotted holes
and metal cable gland
Inline Receptacle
RJ45 Orientation Options (Plug Face)
Master Key
07
rear panel mount, jam nut receptacle
08
In-line receptacle with metal cable gland
D0
Wall mount receptacle with round holes
D1
CM
CG
CS
G6
G7
G9
Wall mount receptacle with round holes
and metal gland
Wall mount receptacle with metric
clinch nuts
Wall mount receptacle with metric clinch
nuts and metal gland
Wall Mount Receptacle with standard
clinch nuts
plug
Plug with metal cable gland
5
Plug with metal cable gland
5
Code 1
Master Keyway
Code 2
Code 3
Code 4
RJ45 Orientation Options (Receptacle Face)
Code 1
Code2
Code 3
Code 4
All external dimensions, features,
etc. compliant with D38999/20, /24,
&/26. Consult factory for additional
information.
G6 - PLUG WITH INTEGRAL SHRINK BOOT
G7 - PLUG WITH METAL GLAND
G6 and G7 - plug Dimensions
Shell
Size
17
19
A Dia Max
in
mm
1.406
1.516
35.71
38.51
B Dia
in
mm
1.276 32.41
1.268 32.21
1.382 35.10
1.374 34.90
Ø A Max
ØB
2.150 (54.61)
Max
3.500 (88.9) Max
Metal Gland
O-ring
ØA
Max
ØB
Cable Shown
For Reference
Only
Accommodates cable (outside)
diameter of .275 (7.0) nominal
Integral Shrink
Boot Groove
C Thread
Shell Size 17:
M25 x 1.0-6g 0.100R
Shell Size 17:
M28 x 1.0-6g 0.100R
E-10
© 2018 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperNine Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 23
233-300 Coupler with accessory threads
MIL-DTL-38999 Series III Type
RJ45 CAT 5e/6A connectors
07 - REAR PANEL MOUNT JAM NUT AND 05 OR 08 - INLINE RECEPTACLES
.890 (22.61)
Max
.579
(14.71)
.555
(14.10)
2X M
N
FLAT
øL
A Thread
Shell Size 17:
1.1875-.1P-.3L-TS-2A
Shell Size 19:
1.2500-.1P-.3L-TS-2A
.280
(7.11)
Min. Full
Thd
A Thread
Shell Size 17:
1.1875-.1P-.3L-TS-2A
Shell Size 19:
1.2500-.1P-.3L-TS-2A
R Thread
Shell Size 17:
M25 X 1.0-6g 0.100R
Shell Size 19:
M28 X 1.0-6g 0.100R
Metal Gland
O-Ring
1.600 (40.64) Max
S
1.600 (40.64) Max
.823(20.90)
.768(19.51)
.280 (7.11)
Min. Full Thd
G
ØT
P Thread
Shell Size 17:
M32 X 1.0-6g 0.100R
Shell Size 19:
M35 X 1.0-6g 0.100R
07 Jam Nut Receptacle (mating face and side view)
05 Inline with Acceesory Threads and
08 Inline with Metal Gland (side view only)
00, 01, DO, D1, CM AND CG - WALL MOUNT RECEPTACLES WITH ACCESSSORY THREADS OR METAL GLAND
00, 01 - Wall Mount Receptacle
with Slotted Holes (Mating Face)
D0, D1 - Wall Mount Receptacle
with Round Holes (Mating Face)
CM Metric and CS Standard - Wall Mount Receptacles
(Mating Face and Side View)
CM Only
B Sq.
2x C Bsc 4x ØJ Holes
.005
M
2x D Bsc
3
B Sq.
2x C Bsc
E
4x F
.005
M
4x E
.005
M
= Master Keyway
2x C Bsc
B Sq. (CM)
B1 Sq. (CS)
CS Only
G (CM only)
G1 (CS only)
Note:
See CM & CS style
for side view and style
speci c dimensions.
00, D0, CM - Wall Mount Receptacle
1.600 Max
.823
.768
01, D1, CG - Wall Mount Receptacle with Metal Gland
3.100 (78.74) Max
.823 (20.90)
.768 (19.51)
A Thread
Shell Size 17
1.1875-.1P-.3L-TS-2A
Shell Size 19
1.2500-.1P-.3L-TS-2A
O-ring
Metal Gland
Rear View
.280 Min.
Full Thd
A Thread
Shell Size 17
1.1875-.1P-.3L-TS-2A
Shell Size 19
1.2500-.1P-.3L-TS-2A
Color Band: Red
(Fully Mated Indicator)
G
R Thread
Shell Size 17
M25 x 1.0-6g 0.100R
Shell Size 19
28x 1.0-6g 0.100R
For all 233-300
plug and receptacle
styles. Position
rotates relative
to Code
(Code 1 shown)
Color Band: Red
(Fully Mated Indicator)
G
Jam Nut and Inline Receptacle Dimensions
Shell
Size
17
19
ØL
M
N
S
ØT
Max
Shell
Size
17
19
B Sq
1.323 (33.60)
1.299 (32.99)
1.449 (36.80)
1.425 (36.20)
B1 Sq
Wall Mount Receptacle Dimensions
C Bsc
D Bsc
3
E
F
.202
(5.13)
.186
(4.72)
G
.098
(2.49)
.083
(2.11)
G1
.122 (3.10)
.083 (.58)
.153 (3.89)
.144 (3.66)
ØJ
Holes
.136
(3.45)
.120
(3.05)
E-11
1.764 (44.81) 1.642 (41.71) 1.191 (30.25)
1.740 (44.20) 1.610 (40.89) 1.181 (30.00)
1.949 (49.50) 1.827 (46.41) 1.316 (33.43)
1.925 (48.90) 1.795 (45.59) 1.306 (33.17)
.122 (3.09) 1.275
.083 (2.11) (32.39)
.153 (3.89) 1.337
.114 (2.90) (33.96)
1.437 (34.50)
.136
1.062 (26.97) .969(24.61)
1.397 (35.48)
(3.45)
.120
1.531 (38.89)
1.156 (29.36) 1.062 (26.97) (3.05)
1.491 (37.87)
