Technical Data Sheet - Draft
Adaptor
NEX10 jack – 7/16 jack
60K189-K00N1
Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG
All dimensions are in mm; tolerances according to ISO 2768 m-H

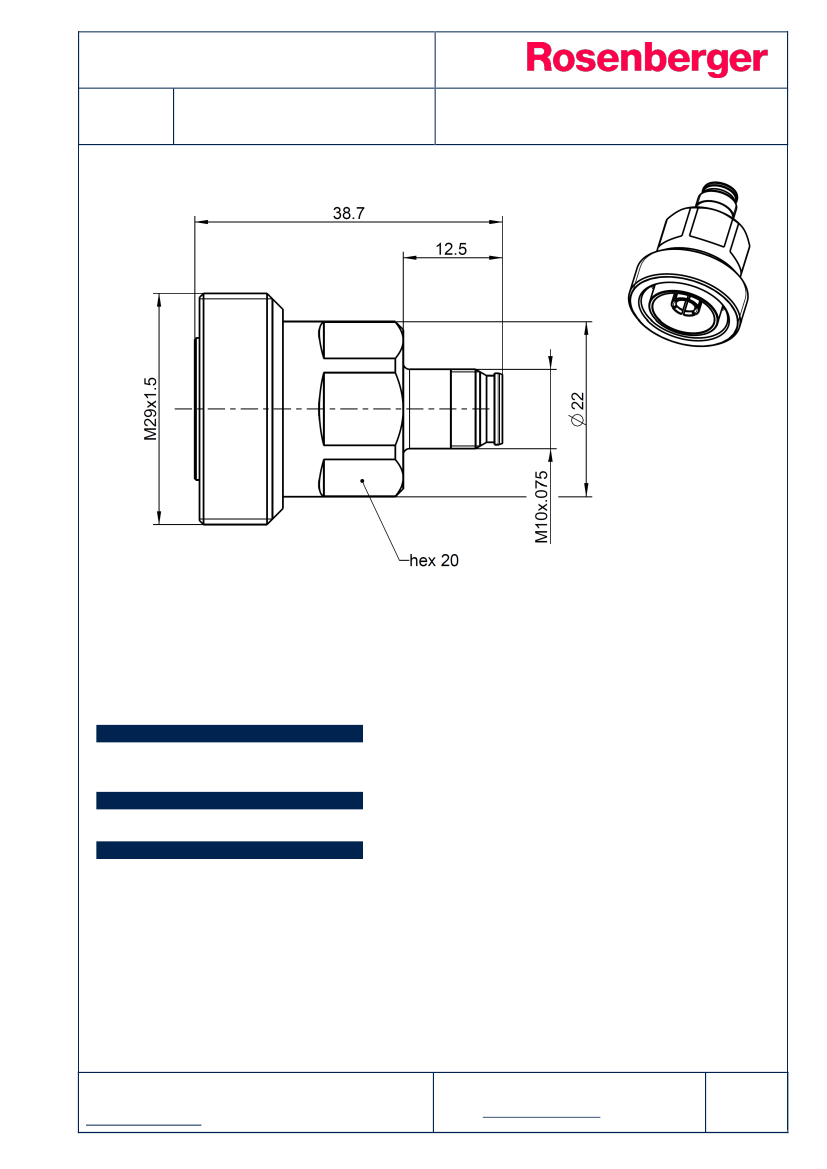

Interface
According to
NEX10 side:
7/16 side:
NEX10™
IEC 60169-4, VG 95250, EN 122190, DIN 47223
Documents
Assembly instruction
N/A
Material and plating
Connector parts
Center contact
Center contact
Outer contact
Outer contact
Body
Dielectric
NEX10 side:
7/16 side:
NEX10 side:
7/16 side:
Material
CuBe
CuBe
Brass
Brass
Brass
PTFE
Plating
Silver, 3-6 µm
Silver, 3-6 µm
White bronze(e.g. Optalloy®)
White bronze(e.g. Optalloy®)
White bronze(e.g. Optalloy®)
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet - Draft
Adaptor
NEX10 jack – 7/16 jack
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG
60K189-K00N1
50
DC to 8.3 GHz
30 dB @ DC to 4 GHz
0.03 x
f [GHz]
dB
5 G
2.0 m, NEX10 side
0.4 m, 7/16 side
1.0 m, NEX10 side
1.5 m, 7/16 side
500 V rms
≥ 110 dB @ DC to 6 GHz for tool tightened plugs
≥ 90 dB @ DC to 3 GHz for tool-less plugs
≥ 70 dB @ 3 to 6 GHz for tool-less plugs
100 W @ 2.0 GHz and 85°C ambient temperature
166 dBc (2 x 43 dBm) @ 0.4 – 4.0 GHz
Insulation resistance
Center contact resistance
Outer contact resistance
Working voltage
RF-leakage
Power handling
Intermodulation
(3
rd
order)
Mechanical data
Mating cycles
Recommended torque
NEX10 side
100
1.5 Nm
7/16 side
min. 500
25 to 30 Nm
Environmental data
Temperature range
Thermal shock
Vibration
Shock
Degree of protection (mated pair)
RoHS
-55 °C to +125 °C operating temperature
IEC 61169-1 9.4.4
IEC 61169-1 9.3.3 and IEC 60068-2-64
IEC 61169-1 9.3.14
IEC 60529, IP68 24h / 1m
compliant
Tooling
N/A
Suitable cables
N/A
Weight
Weight
66.85 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
F. Fraunhofer
Date
03.04.17
Approved
F. Fraunhofer
Date
17.08.18
Rev.
300
Engineering change number
18-m244
Name
J_Krautenb.
Date
17.08.18
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
2/2
