RP600C-15-4.7-S-F

Description
Power line filter FILTER DC HI-PERF 15A 4.7NF
CategoryThe power supply    Power regulation    The power line filter
File Size2MB,4 Pages
ManufacturerAstrodyne TDI
Environmental Compliance
Download Datasheet Parametric View All

RP600C-15-4.7-S-F Overview

Power line filter FILTER DC HI-PERF 15A 4.7NF

RP600C-15-4.7-S-F Parametric

Parameter NameAttribute value
MakerAstrodyne TDI
Product CategoryPower line filter
filter typeDC Filter with Circuit Breaker
Voltage rating100 V
Current rating15 A
Installation styleFlange
Termination typeStud
CertificationEN60939, UR
seriesRP600C
capacitance4700 pF
high38 mm
length154 mm
width129 mm
Maximum operating temperature+ 55 C
Minimum operating temperature- 25 C
RP
RP600C Series
RP600C
HIGH PERFORMANCE TO 125A
DC FILTER WITH CIRCUIT BREAKER
ROHS COMPLIANT
RADIUS POWER
Your Power Partner
High Performance, W/ Circuit Breaker DC Power Line Filter
SPECIFICATIONS
Max. Operating Voltage
Ambient Temperature
Climatic Category
Hipot Rating (L-G)
Terminals (-T)
Safety Approvals
:
:
:
:
:
:
100VDC
-25 to 55C
25/100/21
2700VDC
S: 15/30/60A (M5)
80/100/125A (M6)
UR, EN60939

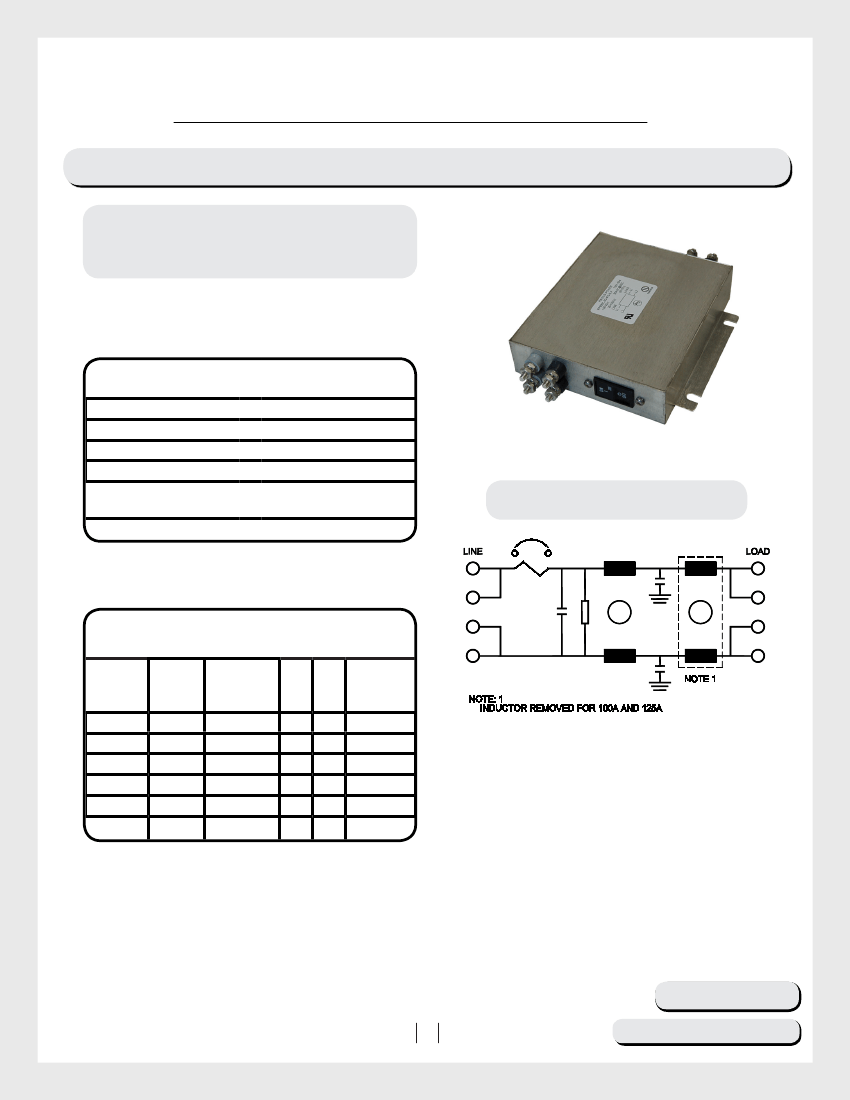

SCHEMATIC
PART NUMBER/ ORDERING
-X
-Y
RP600C
(Amps) (Ycap, nF)
15
30
60
80
100
125
10
22
100
-T
S
-Z
B
F
Weight
LBS (KG)
Typ.
2.5 (1.1)
3.0 (1.4)
4.0 (1.8)
4.2 (1.9)
5.5 (2.5)
5.5 (2.5)

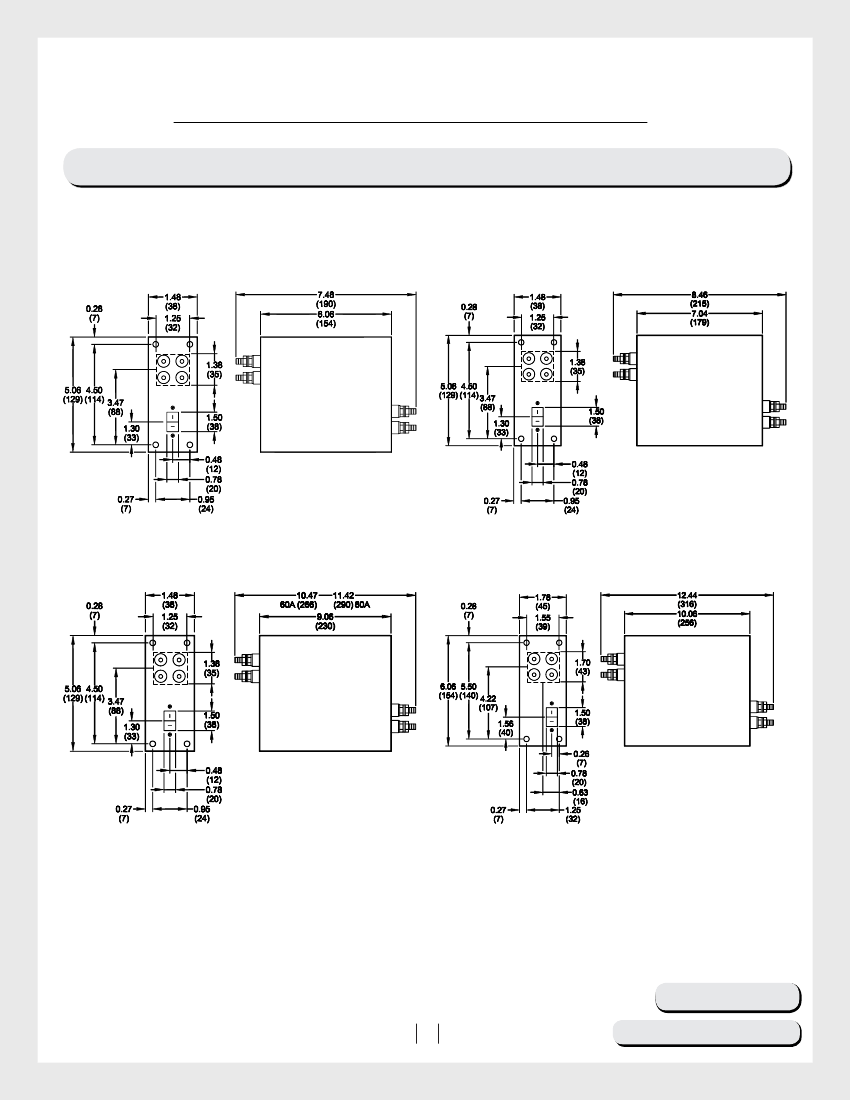

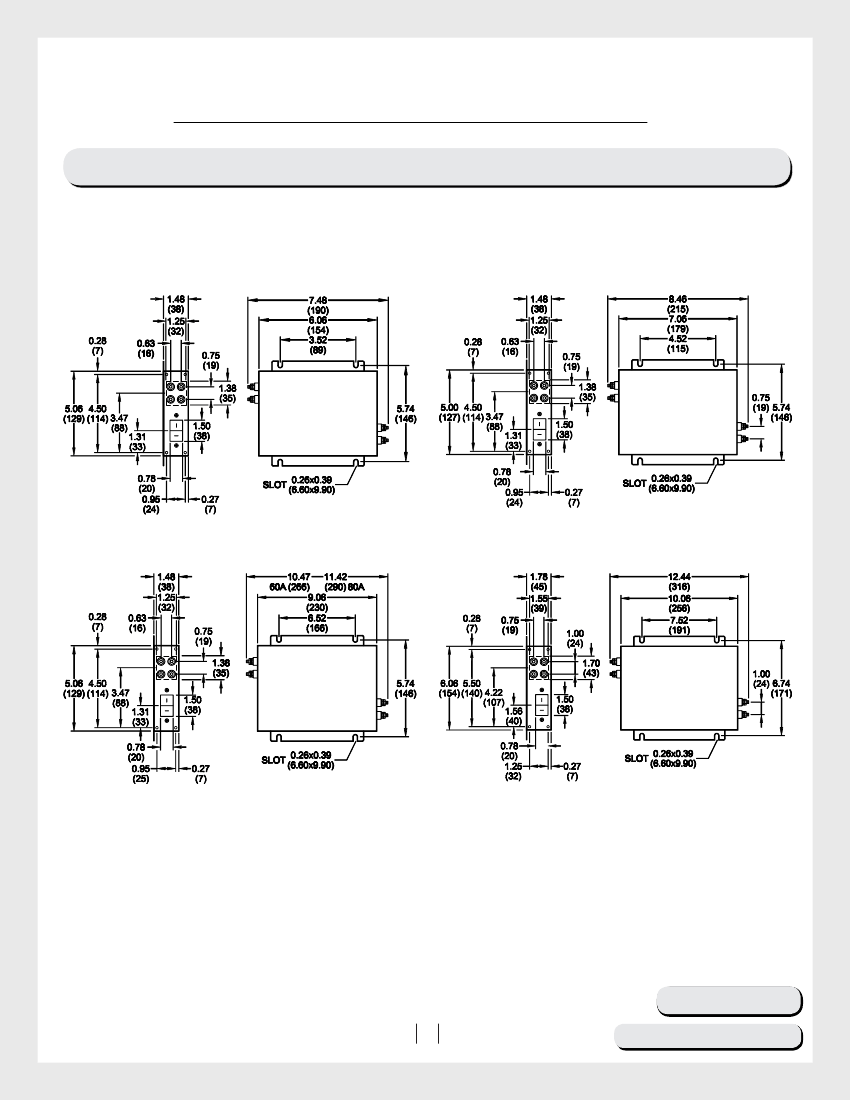

Note:
-Z = Mounting
B = Bulkhead Mounting
F = Flange Mounting
Use any combination of -Y(YCap) with any -X (Amps) rating:
e.g. RP600C-30-10-S-F (30 Amps with 10nF Ycap, Flange)
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
www.radiuspower.com
www.astrodyne.com
