APAX-5342-AE: DescriptionAC/DC power module 48V Power Converter for APAX-5580 series; CategoryPower/power management AC/DC power supply module; File Size317KB，1 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

APAX-5342-AE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	APAX-5342-AE	-	-	View	Buy Now

APAX-5342-AE Overview

AC/DC power module 48V Power Converter for APAX-5580 series

APAX-5342-AE Parametric

Parameter Name	Attribute value
Maker	Advantech
Product Category	AC/DC power module
Output Power	96 W
Input voltage	48 VDC
Number of outputs	1 Output
Output voltage—channel 1	24 VDC
Output current—channel 1	2.2 A
length	115 mm
width	75 mm
high	151 mm
Certification	UL 508, FCC Class A, CE
size	115 mm x 75 mm x 151 mm
open frame/closed	Enclosed
product	AC-DC Converters
Installation style	Panel
Maximum operating temperature	+ 60 C
Minimum operating temperature	- 10 C

Preview

Download Datasheet

View All

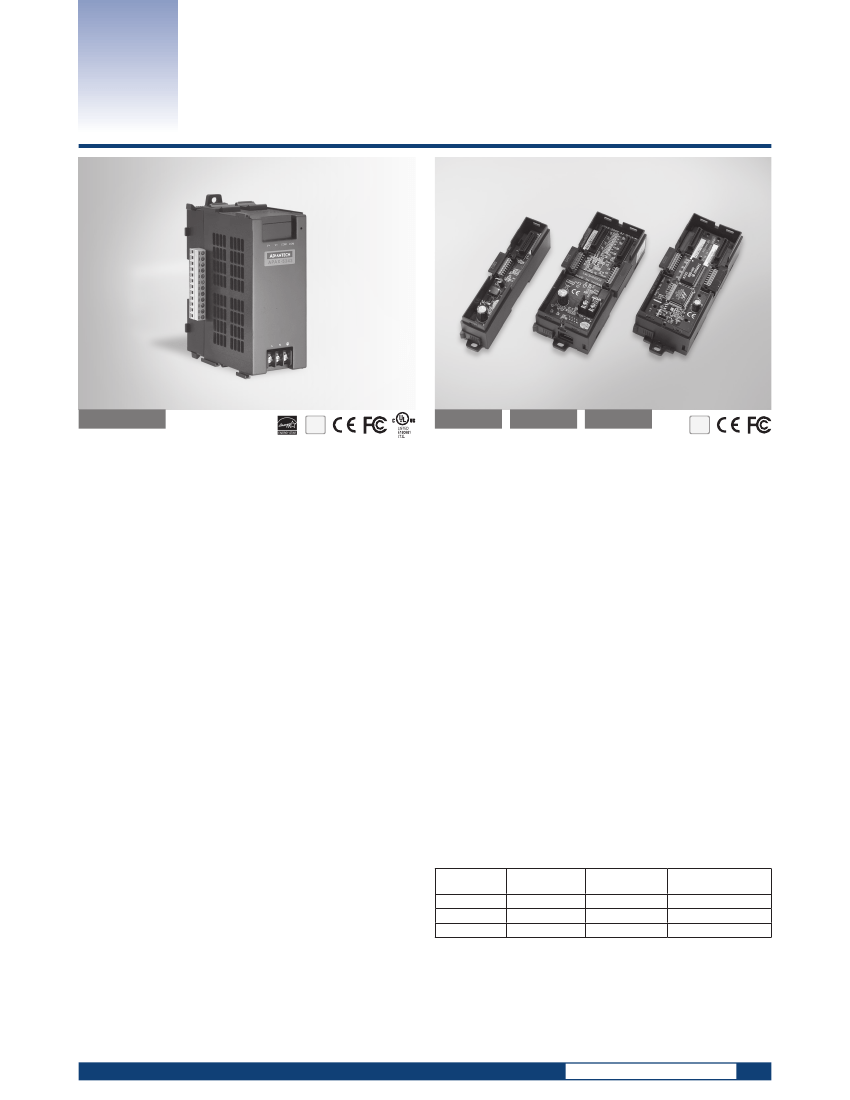

APAX-5342

APAX-5001/5002/5002L

Power Converter for APAX-5580

1/2/2-slot Backplane Modules

APAX-5342

RoHS

2002/95/EC

COMPLIANT

APAX-5001

APAX-5002

APAX-5002L

RoHS

2002/95/EC

COMPLIANT

Specifications

General

Certification

Dimensions (W x H x D)

Enclosure

Operating Temperature

Storage Temperature

Relative Humidity

Mounting

CE, FCC class A, UL 508, Energy Star

75 x 151 x 115 mm

PC

-10 ~ 60°C (mounted vertically)

-20 ~ 75°C

5 ~ 95% (non-condensing)

DIN-rail, wall mount (panel mount)

Specifications

General

Certification

CE, FCC class A

Dimensions (W x H x D)

28 x 151 x 38 mm (APAX-5001)

54 x 151 x 38 mm (APAX-5002, APAX-5002L)

Enclosure

ABS+PC

Weight

70 g (APAX-5001)

120 g (APAX-5002, APAX-5002L)

Mounting

DIN-rail, Wall mount (panel mount)

Power Consumption

0.3 W @ 24 V

DC

(APAX-5001)

1.3 W @ 24 V

DC

(APAX-5002, APAX-5002L)

Power Input

18 ~ 30 V

DC

Slot Number

1 (APAX-5001)

2 (APAX-5002, APAX-5002L)

Input

Rated Voltage

Voltage Range

Rated Input Current

48 V

DC

36 ~ 58 V

DC

2.2A (Max.) @ 48 V

DC

Output

Output Power

Efficiency

Rated Voltage

Rated Output Current

Output Current Limit

Reverse Voltage Protection (RVP)

96 W

> 88% (at rated load)

24 V

DC

4A

4.8 A

Yes

Environment

Operating Temperature

APAX-5001*/APAX-5002*: 0 ~ 60°C

APAX-5002L*: -20 ~ 70°C

Storage Temperature

-25 ~ 75°C

Relative Humidity

5 ~ 95% (non-condensing)

*when mounted vertically

Input Protection

Over Voltage Protection (OVP)

Under Voltage Protection (UVP)

Over Current Protection (OCP)

58 V

DC

36 V

DC

3.33 A

Ordering Information

APAX-5001

APAX-5002

APAX-5002L

1-slot Backplane Module

2-slot Backplane Module with RJ-45 Port and 24V

DC

input

2-slot Backplane Module

Slot Number

Expansion Port

(RJ-45)

Power Input Terminal

Output Protection

Over Current Protection (OCP)

Shout Current Protection

4.8A

Yes

APAX-5001

APAX-5002

APAX-5002L

Ordering Information

APAX-5342

Power Converter for APAX-5580

1

2

N/A

Yes

N/A

Yes

N/A

Online Download

www.advantech.com/products

All product specifications are subject to change without notice

Last updated : 20-Sep-2016
