P6101ON-AC-US-EU datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Embedded solution> Display module> P6101ON-AC-US-EU

Preview

P6101ON-AC-US-EU: DescriptionDisplay module 10.4" XGA 350nits TFT LCD Monitor *Accessories optional (Input: VGA DVI & HDMI / Open Frame ); CategoryEmbedded solution Display module; File Size280KB，3 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

P6101ON-AC-US-EU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P6101ON-AC-US-EU	-	-	View	Buy Now

P6101ON-AC-US-EU Overview

Display module 10.4" XGA 350nits TFT LCD Monitor *Accessories optional (Input: VGA DVI & HDMI / Open Frame )

P6101ON-AC-US-EU Parametric

Parameter Name	Attribute value
Maker	Axiomtek
Product Category	display module
series	P6101O
product	LCD Displays
type	Resistive
Display resolution—pixels	1024 x 768
diagonal	10.4 in
Backlight type	LED
Interface Type	Serial
Minimum operating temperature	- 10 C
Maximum operating temperature	+ 55 C
size	246.3 mm x 44.9 mm x 192.3 mm
Factory packaging quantity	1

Preview

Download Datasheet

View All

P6101O

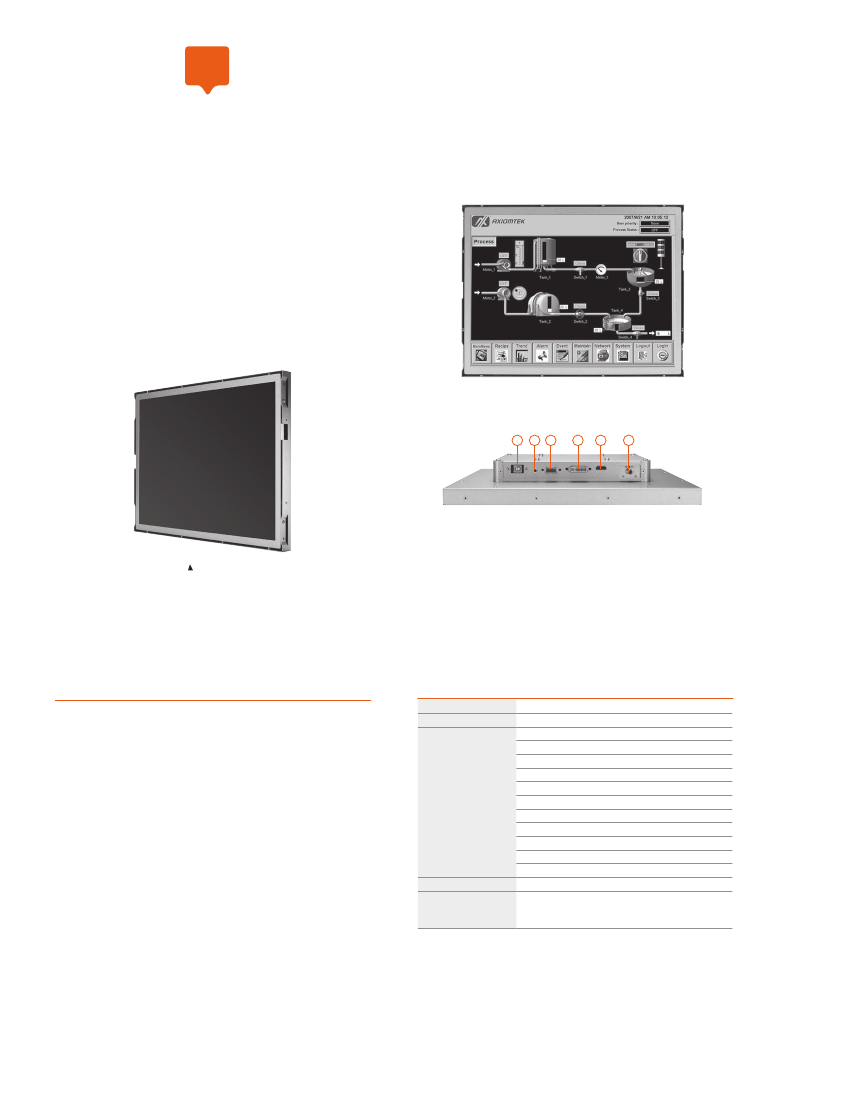

Features

NEW

10.4" XGA TFT Industrial Open Frame Monitor

●

10.4" XGA TFT LED backlight LCD

●

Supports open frame mount, wall mount and VESA arm

●

Resistive touchscreen

●

Full range screw-type (locked) AC-in or 12V/24V DC-in (option)

●

DVI-D, VGA and HDMI with multi-signal inputs

1

2

3

4

5

6

Side view

1. T/S port

2. Line-in

3. VGA

4. DVI-D

5. HDMI

6. Power

Introduction

The P6101O is an ultra slim industrial open frame monitor, which adopts 10.4-inch 350

nits XGA LED backlight LCD display and supports multi-signal interfaces including DVI,

VGA and HDMI. 12/24V DC-in means it is fit for all kinds of industrial environments.

Moreover, the P6101 supports open frame mount, wall mount, rack mount or VESA

FPMPMI mounting. With the compact mechanism design, users can enjoy free from space

constraint. It is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty

industrial fields.

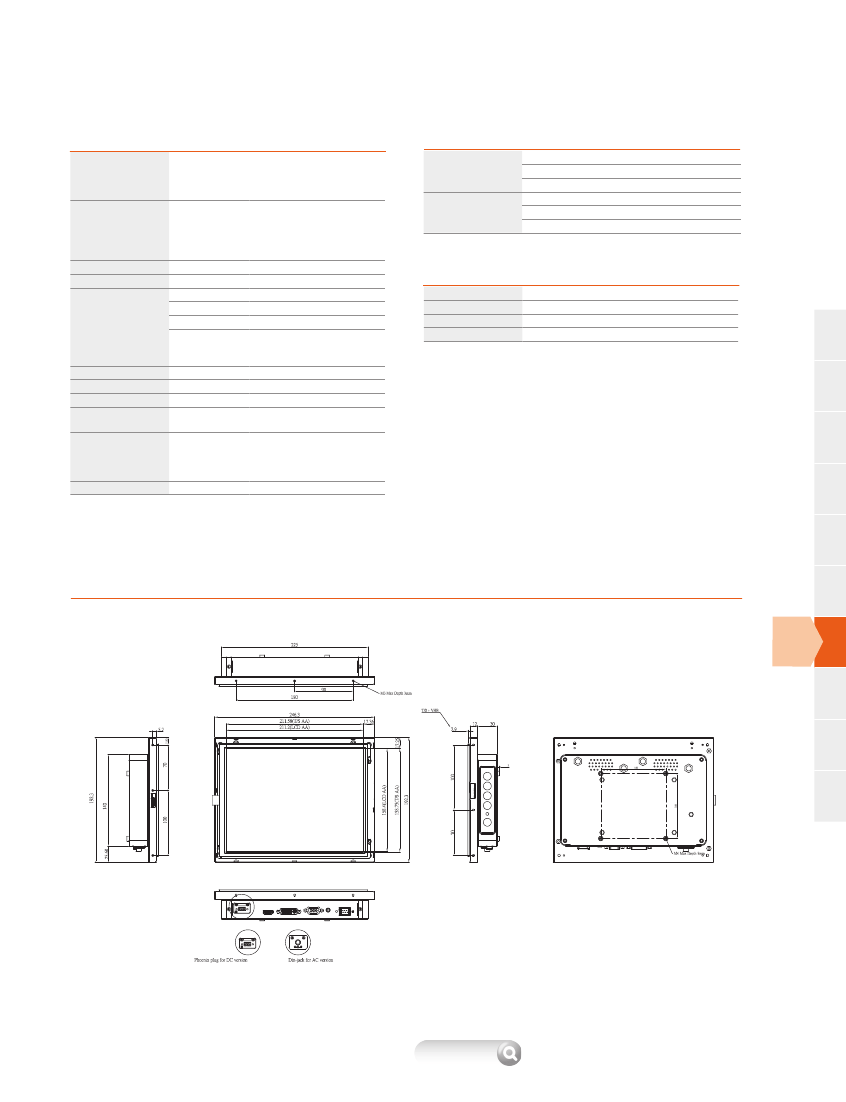

Specifications

Front Bezel

Mounting

LCD Panel

Open frame monitor

Open frame mount, wall mount and VESA arm

Display

10.4" XGA TFT LCD

Max. Resolution

1024 x 768

Max. Colors

16.7 M

Active Area (mm)

211.2 x 158.4

Pixel Pitch (mm)

0.2063 x 0.2063

Response Time

16ms

Backlight

LED backlight

Backlight MTBF

30,000 hrs

Viewing Angle (H/V) 150°/150°

Contrast Ratio

900 (TYP.)

2

350 nits

Brightness (cd/m )

OSD (on screen display)

VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),

VGA 720 x 400 (70Hz), SVGA 800 x 600 (60/72/75Hz),

XGA 1024 x 768 (60/72/75Hz)

Display Control

Display Mode

675

Updated Feb. 13, 2018.

* All specifications and photos are subject to change without notice.
