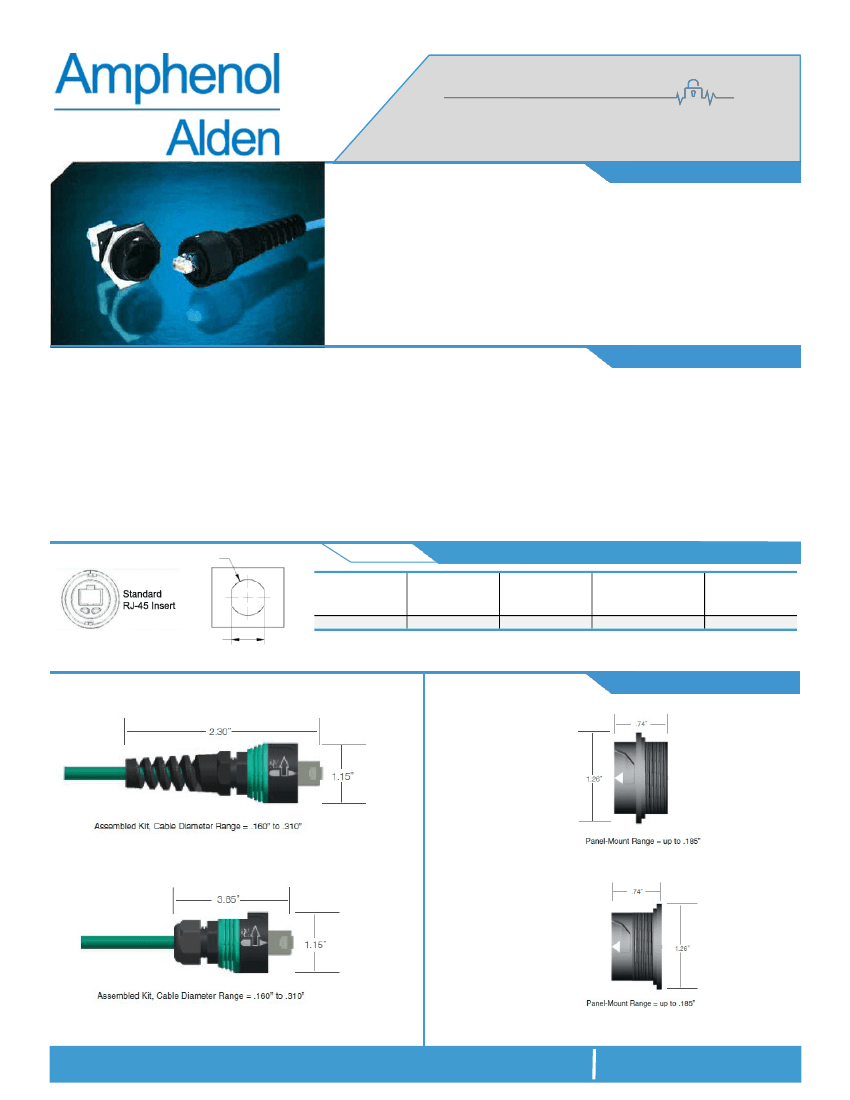

PL-1300EV-N SERIES
Industrial Ethernet
Connectors
For Industrial, Commercial, Residential, and
other Harsh Environment Applications
PULSE-NET
®
FEATURES
Specifically designed for Industrial, Commercial, Residential, and applications that
could endure harsh environmental conditions.
Pulse-Lok®
auto-latch / quick release mechanism
14 standard color combinations
Proprietary keying protects your single-use from
devices for coding or limiting catheter usage
confirms continuity in critical surgical applications
Packaging (intuitive, compact, configurable)
Custom configurations including passive and active
being copied, or mated with the wrong connector
Performance (for harsh environments)
Water proof (IP-67 rated)
Sterilizable
Chemical resistant housing
Up to 5,000 mating cycles (with std.Contacts)
Factory terminated, overmolded cable
assemblies for enhanced flex and stain relief
SPECIFICATIONS
Electrical (see below)
Connection Category: RJ-45
TIA/EIA Catergories: 3,5, 5e, & 6
Shielding: EMI/RFI optional
Material
Connector Housing: PBT
Strain Reliefs: Valox (PBT)
Coupler: Valox (PBT)
Housing Colors: Black, Gray, Red, Yellow,
Green, Blue & White
Mechanical
Mating Cycles: 20K cycles max
Retention Force:
Mated Connectors: 50 lbs. Minimum
Cable to Connector: 50 lbs. Typical
Backshell to Connector: 50 lbs. Minimum
Environmental
Operating Temp:
-20C
to +105C**
Moisture Resistance: to IP-67 (encapsulated)
Sterilizable: gamma, EtO & Autoclave
Chem. Resistance: common OR cleaning solvents
* post conditioning
**Dependent on overmold material
1.133φ
TABLE A:
Number of
Poles
8
STANDARD CONTACT CONFIGURATIONS & SPECFICATIONS
Max Wire
Gauge
24/26
Dielectric
Operating
Operating Current
Withstanding
Voltage Max
Max (A)
Voltage
150VAC
1.010
Panel Cut-Out
1.5A @ 25C
1,000VAC
Insulation Resistance: 500 milliohms
Surge Test with Pulse of 10/1000 microsecond & 1000V-Peak
STANDARD HOUSING OPTIONS
Plug Housing (Flex Nut Strain Relief)
Receptacle Housing (Front Panel-Mount)
Plug Housing (Dome Nut Strain Relief)
Receptacle Housing (Rear Panel-Mount)
Connector housings are illustrated in turquoise and black.
www.amphenolalden.com/configurator
Standard color is black on black. See our online configurator for color options at :
*All dimensions shown in inches except where indicated
For additional information about this, or any other Amphenol Alden product, please contact
an Amphenol Alden specialist today.
Phone: 508-427-7000
Fax: 508-583-0164
www.amphenolalden.com
1
PL-1300EV-N SERIES
Industrial Ethernet
Connector

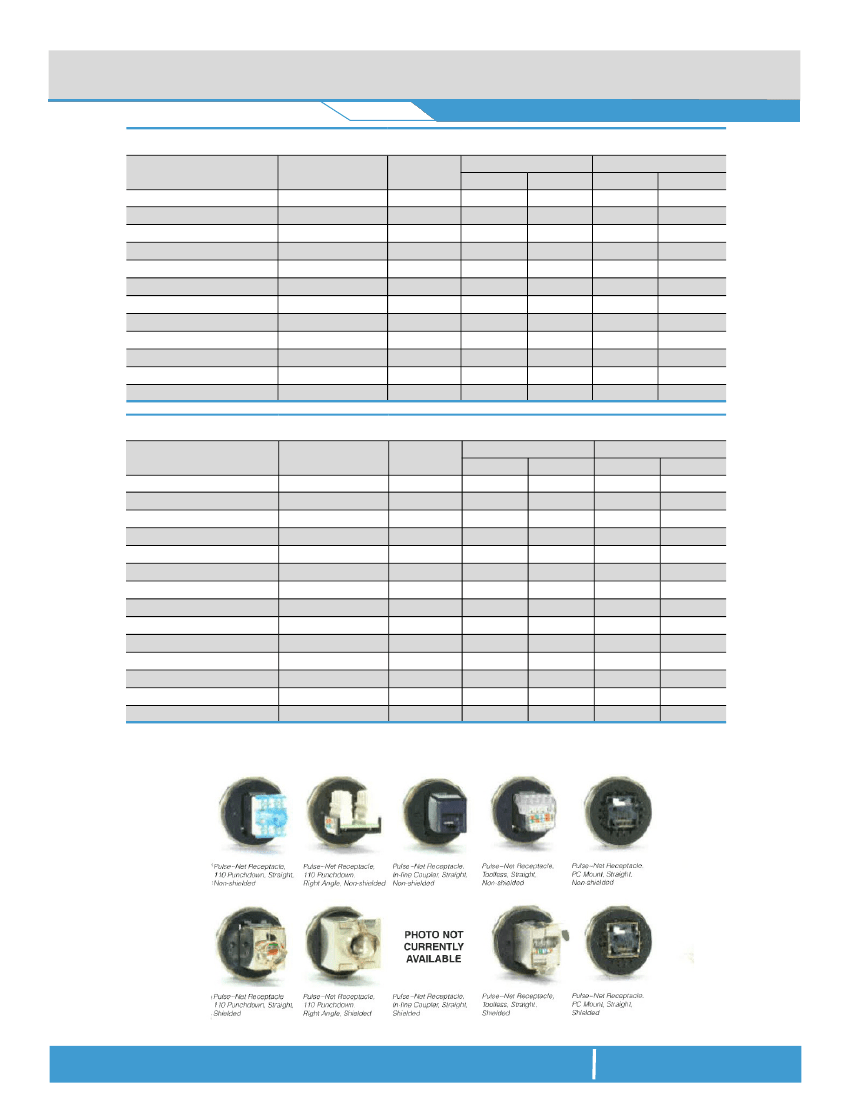

TABLE B:
STANDARD PART NUMBERS
PULSE-NET
®
PLUG ASSEMBLIES
Wire Type
Stranded
Stranded
Stranded
Stranded
Stranded
Solid
Solid
Solid
Solid
Solid
Customer Supplied
Customer Supplied
Strain Relief Type
Customer Supplied
Dome
Flex
Dome
Flex
Customer Supplied
Dome
Flex
Dome
Flex
Dome
Flex
TIA Category
Cat 5e
Cat 5e
Cat 5e
Cat 6
Cat 6
Cat 5e
Cat 5e
Cat 5e
Cat 6
Cat 6
N/A
N/A
RJ45 Non-Shield
Individual
361025
361001
361005
361033
361037
361026
361002
361006
361034
361038
361009
361011
RJ45 Shielded
Individual
361029
361013
361017
Bulk
361027
361003
361007
361035
361039
361028
361004
361008
361036
361040
361010
361012
Bulk
361031
361015
361019
361030
361014
361018
361032
361016
361020
361021
361023
361022
361024
PULSE-NET
®
PANEL-MOUNT RECEPTACLES
With Hex Nut
Termination Style
110 Punchdown Right Angle
110 Punchdown Right Angle
110 Punchdown Straight
110 Punchdown Straight
110 Punchdown Straight
110 Punchdown Straight
In-Line Coupler Right Angle
In-Line Coupler Straight
In-Line Coupler Straight
Customer Supplied
PCB Mount Straight
PCB Mount Straight
Toolless Straight
Toolless Straight
Strain Relief Type
Non-Shielded
Shielded
Non-Shielded
Shielded
Non-Shielded
Shielded
Non-Shielded
Non-Shielded
Shielded
N/A
Non-Shielded
Shielded
Non-Shielded
Shielded
TIA Category
Cat 5e
Cat 5e
Cat 5e
Cat 5e
Cat 6
Cat 6
Cat 3
Cat 5e
Cat 5e
N/A
Cat 5
Cat 5
Cat 5e
Cat 5e
Rear Panel-Mount
Individual
360001
360003
360005
360007
360089
360091
360009
360011
360013
360015
360017
360019
360021
360023
Front Panel-Mount
Individual
360025
360027
360029
360031
360093
360095
360033
360035
360037
360039
Bulk
360002
360004
360006
360008
360090
360092
360010
360012
360014
360016
360018
360020
360022
360024
Bulk
360026
360028
360030
360032
360094
360096
360034
360036
360038
360040
360041
360043
360042
360044
Note: Part numbers cover black housings in Key 1 configuration. For other color and housing options utilize the Amphenol Alden connector configurator located at
www.amphenolalden.com/configurator
*Indicates RJ45 will be shipped assembled in the Pulse-Net receptacle housing. All other styles will not be assembled in housing for ease of termination at application.
For additional information about this, or any other Amphenol Alden product, please contact
an Amphenol Alden specialist today.
Phone: 508-427-7000
Fax: 508-583-0164
www.amphenolalden.com
2
PL-1300EV-N SERIES
Industrial Ethernet
Connector
Panel-Mount Receptacle
Sealing Cap with Tether

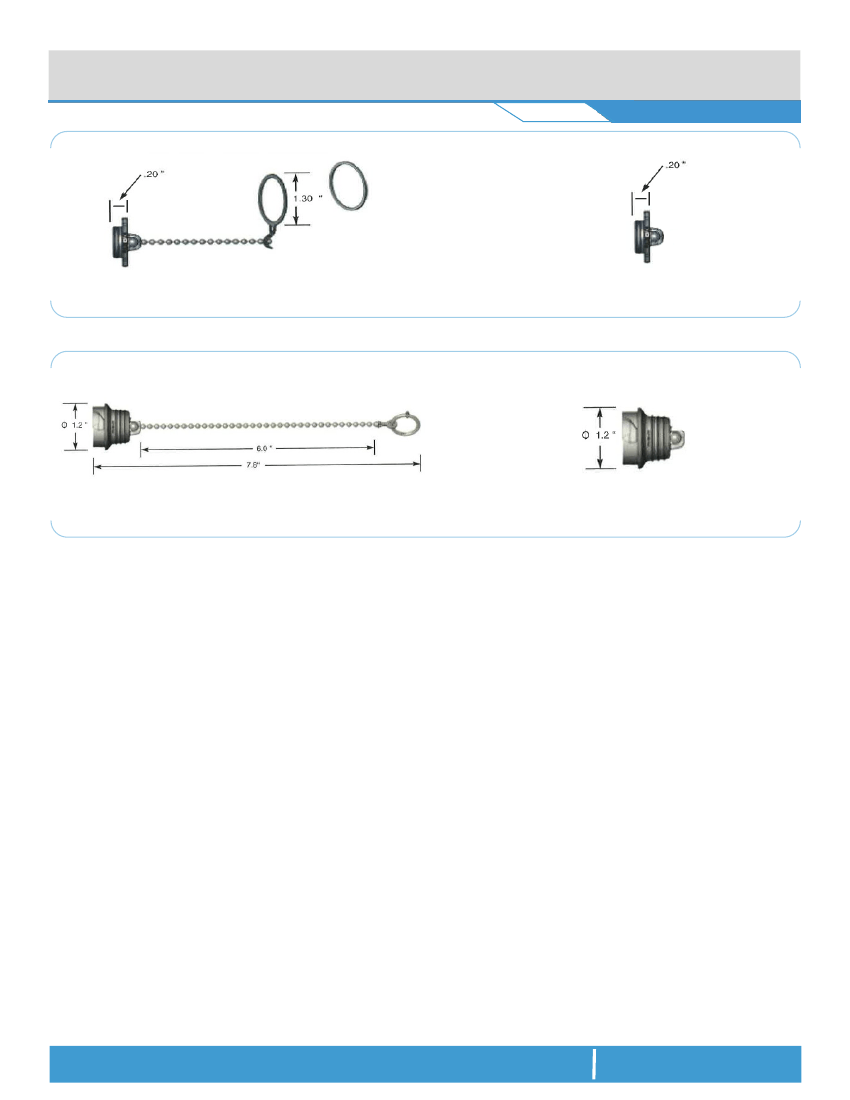

TABLE C:
Front Panel-Mount Receptacle
To install, slide last bead on chain
through slot of mounting ring. Install
first gasket onto housing, then the
mounting ring, then the second
gasket. Insert housing through panel
and tighten nut.
Rear Panel-Mount Receptacle
To install, slide last bead on chain
through slot of mounting ring. Place
mounting ring between the panel and
panel nut and tighten nut.
ACCESSORIES
Sealing Cap
P/N
107832-01
P/N
107448-01
In-Line Plug
Sealing Cap with Tether
Sealing Cap
P/N
107304-01
Plug Sealing Cap
To install onto a cable assembly; open wire clip, place cable
between the halves and close clip.
P/N
107288-01
For additional information about this, or any other Amphenol Alden product, please contact
an Amphenol Alden specialist today.
Phone: 508-427-7000
Fax: 508-583-0164
www.amphenolalden.com
3
