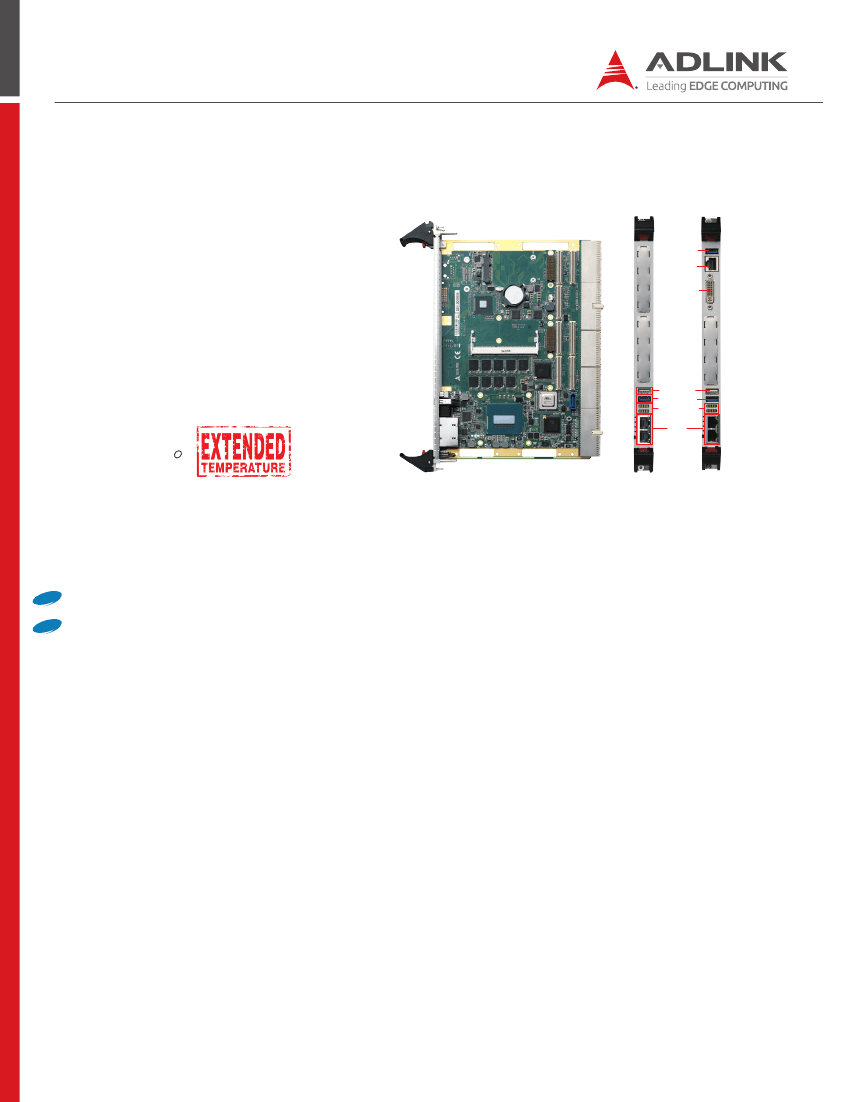

Single board computer 6U cPCI Core i7-4700EQ and 4GB DDR3L-1600 ECC soldered memory and 4GB SODIMM module with 2x GbE, 1x USB 2.0, 2x USB 3.0, 1x RJ-45 COM and single PMC/XMC sites, conformal coating
Single board computer 6U cPCI Core i7-4700EQ and 4GB DDR3L-1600 ECC soldered memory and 4GB SODIMM module with 2x GbE, 1x USB 2.0, 2x USB 3.0, 1x RJ-45 COM and single PMC/XMC sites, conformal coating
Dual channel DDR3L ECC memory, soldered and SO-CDIMM,
up to 32GB
Versatile storage: SSD, CFAST, mSATA
Dual PMC/XMC sites
Remote management and TPM support
MIL-STD-810G compliant
USB 3.0
COM
DVI-I
●
●
●
●
●
USB 2.0
USB 3.0
User LED
LAN
CompactPCI
R
cPCI-6530(BL) cPCI-6530(BL)V
Specifications
●
Processor & System
CPU
New
●
Connectivity
PMC/XMC
Up to Two PMC/XMC sites
PMC1 or XMC1: 64b/33,66,133M or PCIe x8 Gen2 (space shared with I/Os &
onboard drive)
PMC2 or XMC2: 64b/33,66,133M or PCIe x8 Gen2 with rear I/O
New
uFC-BGA quad-core Intel
®
Core™ i7-5850EQ processor, 2.7/3.4GHz, 6MB
SmartCache, 47/37W TDP, Intel
®
Iris Pro Graphics 6200
μFC-BGA quad-core Intel
®
Core™ i7-5700EQ processor, 2.6/3.4GHz, 6MB
SmartCache, 47/37W TDP
μFC-BGA quad-core Intel
®
Core™ i7-4700EQ processor, 2.4/3.4GHz, 6MB
SmartCache, 47/37W TDP
uFC-BGA dual-Core Intel
®
Core™ i5-4402E processor, 1.6/2.7GHz, 3MB
SmartCache, 25W TDP
Ethernet
Three Intel
®
I210 Gigabit Ethernet controllers and one Intel
®
I217 PHY
controller
Two 10/100/1000BASE-T ports on front panel with iAMT support on one port
Two 10/100/1000BASE-T ports to J3 for PICMG 2.16
Two additional 10/100/1000BASE-T ports from Intel® Ethernet controller on
RTM (cPCI-R6100 series)
Chipset
Intel
®
QM87 Express Chipset
Memory
Dual channel DDR3L-1600 SDRAM with ECC, up to 32GB*
* With onboard 16GB memory, the overall DDR frequency will be 1067MHz
One channel in SO-CDIMM socket up to 16GB; one channel soldered onboard
up to 16GB (dependent on availability of memory devices and modules)
Graphics
Integrated in Intel
®
processor with up to DX 11.2 and OGL4.3
One DVI-I port on front panel
One VGA, eDP and DVI routed to rear
All graphics interfaces are independent channels
Supports three independent displays
Additional graphics MXM with AMD GPU or nVidia supporting two DVI ports
on RTM (cPCI-R6500 series)
BIOS
AMI
®
EFI BIOS, 8MB SPI flash memory
CompactPCI Bus
PCI 64-bit, 66MHz, 3.3V or 5V universal V(I/O)
Supports operation in system slot and in peripheral slot with CompactPCI®
bus communication (Universal mode)
USB
Up to two USB 3.0 and one USB 2.0 ports on front panel
Six USB 2.0 ports routed to rear
Standard
PICMG 2.0 CompactPCI R3.0
PICMG 2.1 Hot Swap R2.0
PICMG 2.9 System Management R1.0
PICMG 2.16 Packet Switch Backplane R1.0
PS/2
PS/2 keyboard/mouse port to rear
Serial Port
Up to three 16C550 compatible serial ports
One RJ-45 RS-232 port on front panel
Two serial ports routed to rear
Audio
High Definition Audio signals routed to rear
Specifications
●
Storage
SBC
One SATA 6Gb/s direct connector for 2.5” removable drive
One mSATA socket
Optional CFAST socket by replacing 2.5” SATA drive direct connector
●
Mechanical & Environmental
Form Factor: 6U 4HP (single slot) CompactPCI
233.33mm x 160mm (LxW)
Equipped with J1, J2, J3, J4, J5 connectors
Operating Temperature
-20°C to +70°C extended temperature
-40°C to +85°C extreme extended temperature for Core™ i7 4700EQ, 5700EQ,
5850EQ CPU adjusted to 37W by cTDP
-50°C to +100°C
RTM
Up to three SATA ports
CF (x1) and SD (x1) sockets when mating with cPCI-R6100 series
*Available interfaces dependent on RTM model selected
Storage Temperature
RH Humidity
●
Operating System
OS
Microsoft Windows 7/8 32, 64-bit
Red Hat Enterprise Linux 6.4
Wind River VxWorks 6.9
(Please contact ADLINK for other OS support)
95% non-condensing
Shock
15G peak-to-peak, 11ms duration, non-operating
Vibration
2 Grms random vibration, 5-500Hz, each axis, operating
●
Miscellaneous
LED
Power, WDT, Hard Disk, Hot Swap and Port 80 user LED
MIL-STD-810G Compliance (cPCI-6530V/4700E)
Temperature: MIL-STD-810G, Method 501.5 & Method 502.5 (-40°C to 85°C)
Vibration: MIL-STD-810G, Method 514.6, Procedure I, Category Table 514.
6C-II, Figure 514.6C-1 Common carrier (US highway truck vibration exposure).
Battery
Coin cell lithium battery onboard for RTC CMOS RAM
TPM
Version 1.2
Atmel AT97SC3204 (optional support upon request)
Power Consumption
Weight
2.73A @3.3V, 11.65A @5V, total 67.26W
500.2g (cPCI-6530 with heatsink assembled)
Watchdog Timer
System Reset and NMI, with programmable interval, 1-65535 seconds or
minutes
●
Safety & EMI
Certification: CE/ FCC Class A
Hardware Monitor
Monitors CPU temperature, system temperature, Vcore and DC voltages
I/O Table
GbE USB 2.0
cPCI-6530(BL)
Faceplate
Onboard
Faceplate
cPCI-6530(BL)V
Onboard
Faceplate

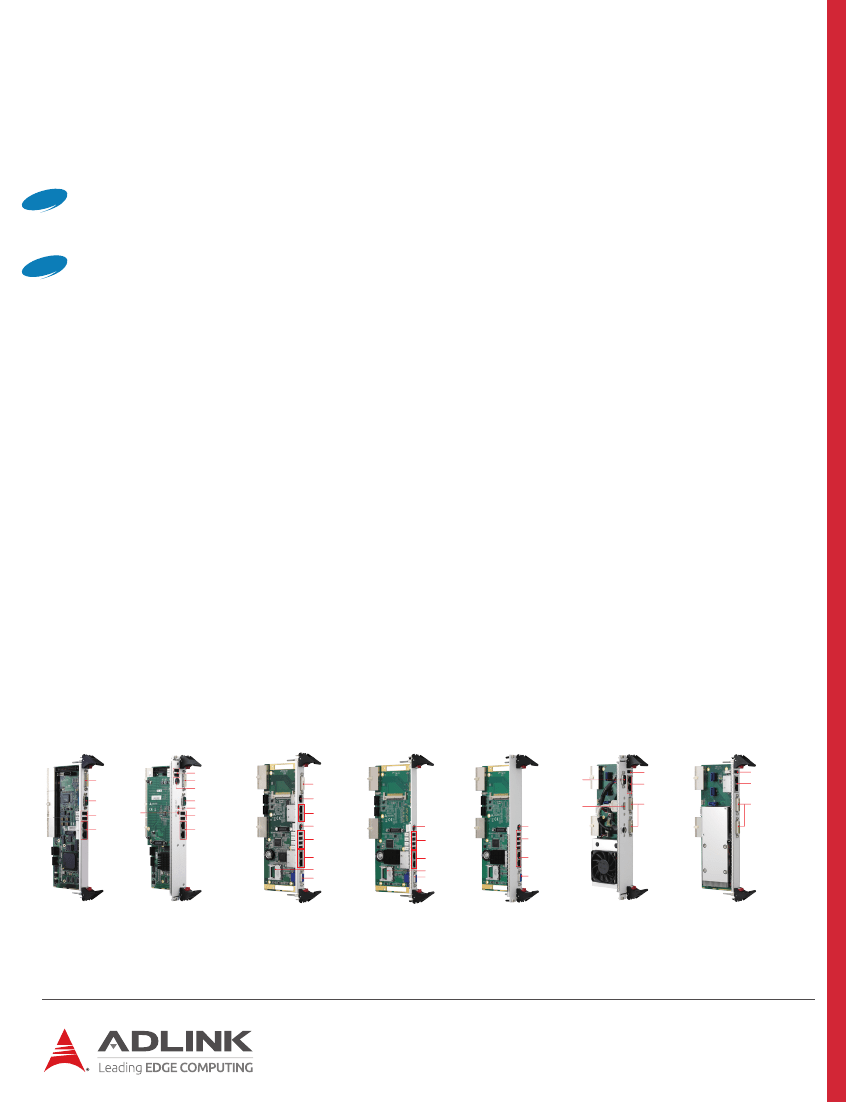

cPCI-R6002
Onboard
Faceplate
cPCI-R6002D
Onboard
cPCI-R6100
cPCI-R6110
cPCI-R6120
Faceplate
Onboard
Faceplate
Onboard
Faceplate
Onboard
Faceplate
Onboard
Faceplate
Onboard
Faceplate
cPCI-R6500D
Onboard
Faceplate
Onboard
2
2
1
1
(10-pin
header)
2
1 (Full, 10-pin
header)
1(TX/RX, 10-pin
header)
1
1 (TX/RX, 10-pin
header)
2
1
2
2
1
1 (Tx/Rx,
10-pin header)
2 (DVI-I,
DVI-D)
DVI-I
DVI-D
DVI-I
DVI-D
2
2
4
4
1
1
(VGA only)
2
2
2
2
4
1
1
2
4
4
USB
3.0
1
2
COM
DVI
VGA
PMC/
XMC
2
1
SATA
1 (7-pin)
2
2 (7-pin)
3 (2x 7-pin+1x
2.5” sapce)
(2)
2
(7-pin)
3
(2)
2 (2.5” SATA
drive onboard)
1
3 (7-pin)
1 (10-pin) 1 (10-pin)
1
1
1
1
(1)
CFast
CF
mSATA
1
1
1
1
1
1
1
Mic-in Line-out
PS/2
KB/MS
SD
SAS
1 (RJ-45)
1
1
1 (RJ-45)
DVI-I
1 (VGA signal only)
1 (VGA signal only)
1
1
cPCI-R65N0
cPCI-R6500
3(7-pin)
3 (2x
7-pin+1x 2.5”
space)
DVI-I
DVI-D
3 (7-pin)
1
(10-pin header)
1
(10-pin
header)
1
cPCI-R6501D
(1) Removable adapter design. SATA adapter by default, can be replaced with CFast adapter
(2) Two 7-pin signal connectors onboard for external HDDs and one direct connector for onboard 2.5” SATA drive. SATA direct connector can be replaced with
CompactFlash adapter (DB-6920CF)
Ordering Information
Processor Blades
●
New
cPCI-6530BLV/5850E/M8-0
4HP cPCI-6530BLV with Intel
®
Core™ i7-5850EQ and 8GB
DDR3L-1600 ECC soldered memory with 2x GbE, 1x USB 2.0,
2x USB 3.0, 1x RJ-45 COM and single PMC/XMC site
cPCI-6530BLV/5700E/M8-0
4HP cPCI-6530BLV with Intel
®
Core™ i7-5700EQ and 8GB
DDR3L-1600 ECC soldered memory with 2x GbE, 1x USB 2.0,
2x USB 3.0, 1x RJ-45 COM and single PMC/XMC site
cPCI-6530V/4700E/M8-8
4HP cPCI-6530V with Intel
®
Core™ i7-4700EQ and 8GB
DDR3L-1600 ECC soldered memory and 8GB SODIMM module
with 2x GbE, 1x USB2.0, 2x USB 3.0, 1x RJ-45 COM and single
PMC/XMC site, MIL-STD-810G compliant
cPCI-6530V/4700E/M4-4
4HP cPCI-6530V with Intel
®
Core™ i7-4700EQ and 4GB
DDR3L-1600 ECC soldered memory and 4GB SODIMM module
with 2x GbE, 1x USB 2.0, 2x USB 3.0, 1x RJ-45 COM and single
PMC/XMC site, MIL-STD-810G compliant
cPCI-6530V/4402E/M4-0
4HP cPCI-6530V with Intel
®
Core™ i5-4402E and 4GB
DDR3L-1600 ECC soldered memory with 2x GbE, 1x USB 2.0,
2x USB 3.0, 1x RJ-45 COM and single PMC/XMC site
Contact us for different CPU, memory options.
●
cPCI-R6100
4HP Rear I/O module with GbE x4, COM, USB x4, SATA x2, DVI,
VGA, PS/2, CF, SD socket
cPCI-R6110
4HP Rear I/O module with GbE x2, COM, USB x4, SATA x3, DVI,
