QPQ1286
®
TDD B40 BAW Band Pass Filter (50MHz)
General Description
The QPQ1286 is a high-performance Bulk Acoustic Wave
(BAW) filter designed to meet the strict LTE rejection
requirements for use in B40, Sub-Band 2320-2370 MHz
QPQ1286 is specifically designed to meet the high-
performance expectations of insertion loss and rejection for
LTE TDD systems under all operating conditions.
The QPQ1286 uses common module packaging
techniques to achieve the industry standard 2.0 x 1.6 x 0.73
mm footprint.
3 Pin 2 x 1.6 mm leadless SMT Package
Product Features
•
Highly selective BAW filter achieving low insertion loss
over full bandwidth and operating conditions
•
Performance -40
°C
to +90
°C
•
Excellent Wi-Fi rejection
•
Single-ended operation
•
No Matching required for operation at 50 Ω
•
High Power Handling Compatible for Small Cells
•
Small Size
•
RoHS
compliant (2011/65/EU),
Pb-free
P
Functional Block Diagram
b
Applications
•
For Band 40 TD-LTE applications
•
2320 – 2370 MHz Sub-Band
•
For Small Cells Base Stations
RF In
1
3
Top View
2
RF Out
TOPxRAY PINS
VIEW
Pin Configuration
Pin No.
1
2
3
Ordering Information
Part No.
TQQ6421
QPQ1286TR7
TOPxRAY
TOPxRAY PINS
Label
RF in
RF out
Ground
1:1
Description
2,500 pieces on a 7” reel (standard)
Evaluation Board
01 UNIT, 01.60mm X 02.00mm, 7 LAYER, 0.40mm MOLD CAP,
A3H
QPQ1286EVB
Datasheet, November 5, 2018 | Subject to change without notice
-
1 of 8
-
www.qorvo.com
QPQ1286
®
TDD B40 BAW Band Pass Filter (50MHz)
Life Test
Rating
Conditions
+29 dBm, LTE SIGNAL
PAR = 8dB, 5MHz, 16 QAM
+ 90 °C
Absolute Maximum Ratings
Parameter
Storage Temperature
(1)
Rating
>175,300 hrs.
(1)
−40 °C to +125 °C
−40 °C to +105 °C
Operating Temperature
(2)
Operation of this device outside the parameter ranges given
may cause permanent damage.
(2)
Device will function but it is not guaranteed to meet electrical
specifications.
Power rating is valid when Power is injected into Pin 1
Electrical Specifications
(1)
Test conditions unless otherwise specified. Temperature Range: -40 °C to +90 °C
Parameter
Maximum Insertion Loss
Input / Output VSWR
Input / Output Return Loss
Amplitude Variation
(2)
Group Delay Ripple
(3)
Phase Ripple
(4)
Attenuation in WIFI Band
(5)
Conditions
2320 – 2370 MHz
2320 – 2370 MHz
2320 – 2370 MHz
2320 – 2370 MHz
2320 – 2370 MHz
2320 – 2370 MHz
2405 – 2440 MHz (Channel 1 - 7)
2440 – 2480 MHz (Channel 8 - 14)
10–960 MHz
961–1709 MHz
1710–1880 MHz
1920–2170 MHz
2171–2295 MHz
2395–2405 MHz
2480–2500 MHz
2500–3660 MHz
3750–4600 MHz
4600–4800 MHz
4901–6000 MHz
6001–8000 MHz
Pin = +29 dBm (2320 - 2370 MHz)
Single-ended
Min
-
-
9.0
-
-
-
42
38
41
31
30
30
10
10
36
32
34
43
25
30
-
-
Typ
1.9
1.6:1
14
0.9
7
11
47
40
45
33
32
32
23
17
38
34
37
49
29
34
- 86
50
Max
2.8
2.1:1
-
1.6
25
35
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- 65
-
Units
dB
-
dB
dB
ns p-p
° p-p
dB
Attenuation
(6)
dB
2
nd
Harmonic
Source/Load Impedance
(7)
dBc
Ω
Notes:
1. All specifications are based on the QORVO schematic for the main reference design shown on page 4
2. Amplitude Variation is defined as the difference between the lowest loss and the highest loss within defined frequency points
3. This is defined as the worst difference between a peak and adjacent valley within defined frequency points
4. Typical values are and average of 20 pieces measured at a temperature of +25 °C
5. Attenuation is referenced to ZERO dB
6. Attenuation is referenced to ZERO dB
7. This is the optimum impedance in order to achieve the performance shown
Datasheet, November 5, 2018 | Subject to change without notice
-
2 of 8
-
www.qorvo.com
QPQ1286
®
TDD B40 BAW Band Pass Filter (50MHz)
Performance Plots
Test conditions unless otherwise noted: Temp.= +25 °C
Frequency Response
Passband Response
0
-10
-20
0
-1
-2
d
B
-30
-40
-50
-60
2095
d
B
-3
-4
-5
-6
2295
2220
2345
2470
2595
2595
2320
2345
2370
2395
Frequency (MHz)
0
-10
-20
Frequency (MHz)
Wideband Response
d
B
-30
-40
-50
-60
10
2007.5
4005
6002.5
8000
Frequency (MHz)
Input Smith Chart
1
Output Smith Chart
1
0.8
0.8
0.6
0.6
0.4
0.4
0.2
0.2
0
-1
-0 .5
0
0.5
1
-1
-0 .5
0
0
0.5
1
-0 .2
-0 .2
-0 .4
-0 .4
-0 .6
-0 .6
-0 .8
-0 .8
-1
-1
Datasheet, November 5, 2018 | Subject to change without notice
-
3 of 8
-
www.qorvo.com
QPQ1286
®
TDD B40 BAW Band Pass Filter (50MHz)
Evaluation Board
EVB Top View
EVB Circuit
Bill of Material
Reference Des.
U1
PCB
SMA
Value
N/A
N/A
N/A
Description
Band 40 BAW Filter
4-layer EVB PCB
SMA connector
Manuf.
Qorvo
Multiple
Radiall
Part Number
QPQ1286
1132983
9602-1111-018
PCB Mounting Pattern
All dimensions are in millimeters
Datasheet, November 5, 2018 | Subject to change without notice
-
4 of 8
-
www.qorvo.com
QPQ1286
®
TDD B40 BAW Band Pass Filter (50MHz)

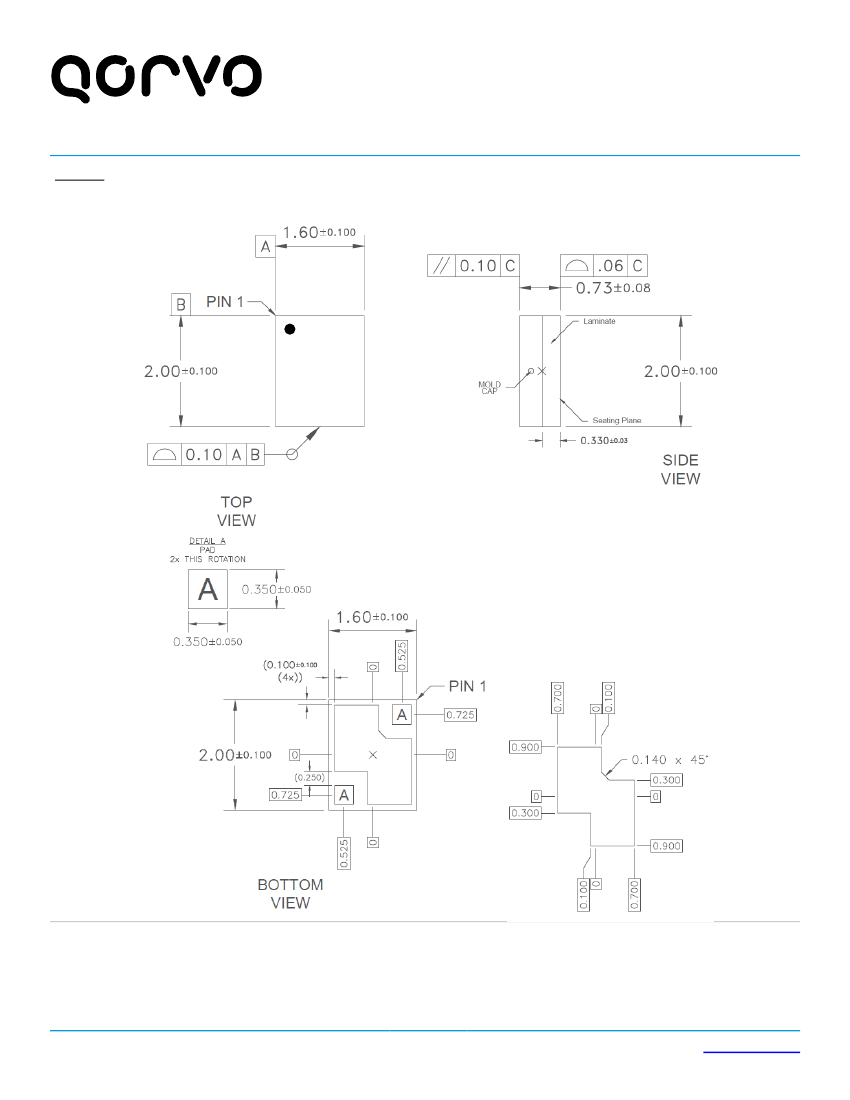

Package Marking and Dimensions
Marking
4-digit Part Number: 1286
4-digit Trace Code: XXXX
Body: Al
2
O
3
Ceramic
Lid: Kovar, Au over Ni plating
1286
XXXX
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. Dimension and tolerance formats conform to ASME Y14.4M-1994.
3.
The terminal #1 identifier and terminal numbering conform to JESD 95-1 SPP-012.
Datasheet, November 5, 2018 | Subject to change without notice
-
5 of 8
-
www.qorvo.com
