CBR2-D020S SERIES
SURFACE MOUNT SILICON
2.0 AMP
BRIDGE RECTIFIERS
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CBR2-D020S series
devices are silicon full wave bridge rectifiers mounted
in a durable epoxy surface mount molded case, utilizing
glass passivated chips.
MARKING: FULL PART NUMBER

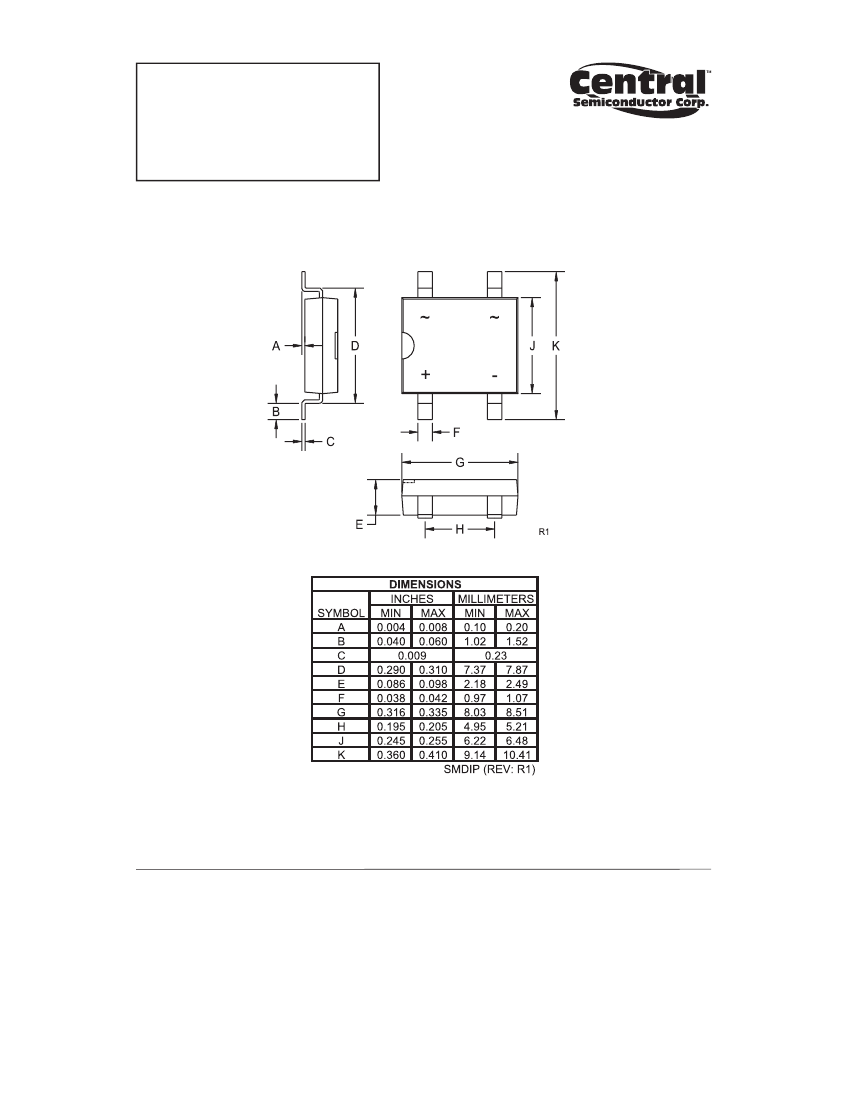

SMDIP CASE
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
CBR2
SYMBOL
-D020S
Peak Repetitive Reverse Voltage
VRRM
200
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current (TA=40°C)
Peak Forward Surge Current (t=8.3ms)
Peak Forward Surge Current (t=1.0ms)
Rating for Fusing (t=8.3ms)
Operating and Storage
Junction Temperature
Typical Thermal Resistance (Note 1)
Typical Thermal Resistance
VR
VR(RMS)
IO
IFSM
IFSM
I
2
t
TJ, Tstg
JA
JL
200
140
CBR2
-D040S
400
400
280
CBR2
-D060S
600
600
420
2.0
60
65
10
-65 to +150
40
15
CBR2
-D080S
800
800
560
CBR2
-D100S
1000
1000
700
UNITS
V
V
V
A
A
A
A
2
s
°C
°C/W
°C/W
Note 1: Device mounted on PCB with 13mm x 13mm copper pads.
ELECTRICAL CHARACTERISTICS PER DIODE:
(TA=25°C unless otherwise noted)
TEST CONDITIONS
TYP
MAX
UNITS
SYMBOL
IR
VR=Rated VRRM
5.0
µA
IR
VF
CJ
VR=Rated VRRM, TA=125°C
IF=2.0A
VR=4.0V, f=1.0MHz
25
0.5
1.1
mA
V
pF
R2 (11-May 2018)
