EF2-D30-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> connection terminal > DIN rail type terminal> EF2-D30-1

EF2-D30-1: DescriptionDIN rail terminal block 1 POS 40A AC 600V DC 600V; CategoryThe connector connection terminal DIN rail type terminal; File Size356KB，5 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

EF2-D30-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EF2-D30-1	-	-	View	Buy Now

EF2-D30-1 Overview

DIN rail terminal block 1 POS 40A AC 600V DC 600V

EF2-D30-1 Parametric

Parameter Name	Attribute value
Maker	Hirose
Product Category	DIN rail terminal block
type	Basic Terminal Block
Number of locations	1 Position
Current rating	40 A
Voltage rating	600 V
connection method	Ring Cable Lug
series	EF2
Maximum operating temperature	+ 105 C
Minimum operating temperature	- 25 C

Preview

Download Datasheet

View All

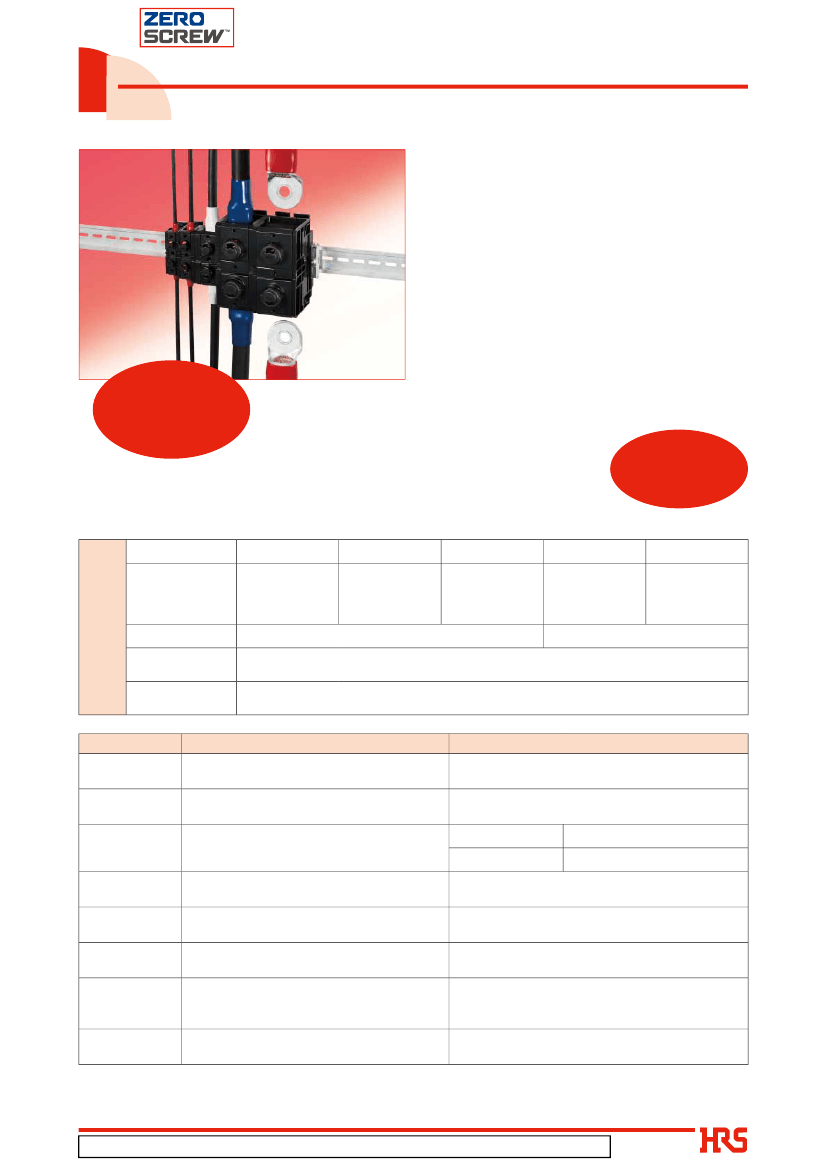

Up to 400A ZERO SCREW Terminal Block

EF2 Series

■Features

1. Quick and secure single action positive

lock structure

2. Easy operation simplifies maintenance

especially in narrow and dimly lit places

3. Easy connection with standard ring

terminals

4. Highly reliable connection with unique

contact spring structure

5. Wide variety of cable sizes and currents

supported

Applicable : 1.25mm

to 200mm

Rated current : 16A to 400A

To the tightened

world without

screws!

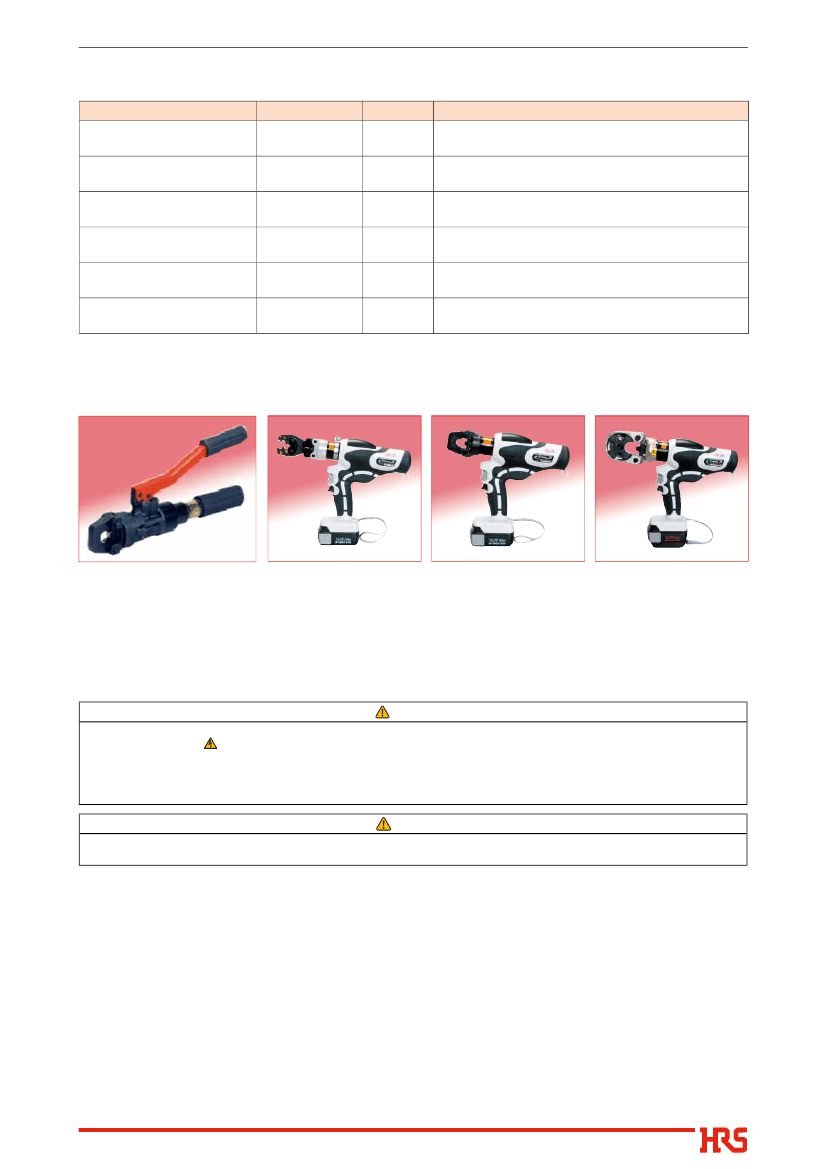

6. Easy crimping termination with

commercially available JIS crimp tools

7. UL and TÜV certification pending

JIS C8201-7-1

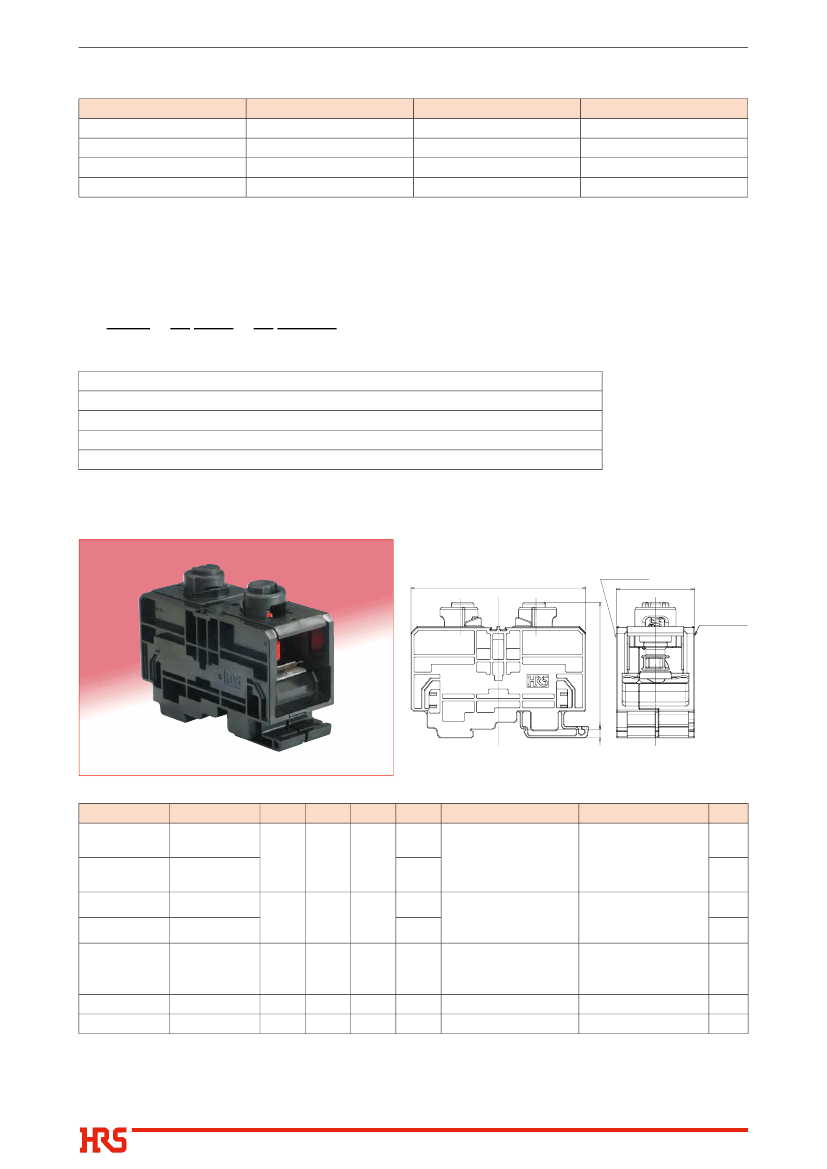

■Product

Speciﬁcations

Product

D30

1.25mm²=16A

2mm²=21A

3.5mm²=30A

5.5mm²=40A

D60

5.5mm²=40A

8mm²=50A

14mm²=70A

AC / DC 600V

D150

22mm²=94A

38mm²=132A

60mm²=175A

D250

D400

Rated current

Ratings

150mm²=310A

200mm²=400A

Rated voltage

Operating

temperature range

Storage

temperature range

AC 1000V, DC 1500V

−25℃

＋105℃（Includes

temperature rise due to current flow）

−10℃

＋60℃

Item

1. Contact

resistance

2. Insulation

resistance

3. Withstanding

voltage

4. Vibration

resistance

5. Shock

resistance

6. Humidity

resistance

7. Heat and Cold

resistance

8. Durability

Specifications

D30, D60 : 1mΩ or less (DC 1A)

D150, D250, D400 : 0.1mΩ or less (DC 1A)

1000MΩ or more

Measured at DC 1A

Conditions

Measured at DC 500V

D30, D60, D150

Apply AC 2500V for 1 minute.

Apply AC 5000V for 1 minute.

No flashover or breakdown

D250, D400

No electrical discontinuity of 10μs or more

Insulation resistance : Minimum of 20MΩ

10 to 500Hz/cycle, half amplitude 0.75mm

3 hours in 3 axial directions

Acceleration : 500m/s², duration : 11ms,

6 directions, 5 cycles for each

Left at a temperature of

−40±2℃

and in humidity of

90 to 95% for 96 hours.

Subjected to

−25±3℃

for 2 hours.

Returned to room temperature for 1 hour.

Subjected to 70±3℃ for 2hours.

50 mating cycles

Insulation resistance : Minimum of 20MΩ

D30, D60 : 1.5mΩ or less

D150, D250, D400 : 0.15mΩ or less

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.

2018.5②

EF2-D30-1 Related Products

	EF2-D30-1	EF2-D60-1	EF2-D400-1
Description	DIN rail terminal block 1 POS 40A AC 600V DC 600V	DIN rail terminal block 1 POS 70A AC 600V DC 600V	DIN rail terminal block
Maker	Hirose	Hirose	Hirose
Product Category	DIN rail terminal block	DIN rail terminal block	-
type	Basic Terminal Block	Basic Terminal Block	-
Number of locations	1 Position	1 Position	-
Current rating	40 A	70 A	-
Voltage rating	600 V	600 V	-
connection method	Ring Cable Lug	Ring Cable Lug	-
series	EF2	EF2	-
Maximum operating temperature	+ 105 C	+ 105 C	-
Minimum operating temperature	- 25 C	- 25 C	-
