HFJV1-S101 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Modular connectors/Ethernet connector> HFJV1-S101

Preview

HFJV1-S101: DescriptionModular Connector/Ethernet Connector 10Base-t 1X1 Vert RJ45 w/mag No LED; CategoryThe connector Modular connectors/Ethernet connector; File Size346KB，3 Pages; ManufacturerHALO Electronics; Environmental Compliance

Download Datasheet Parametric View All

HFJV1-S101 Overview

Modular Connector/Ethernet Connector 10Base-t 1X1 Vert RJ45 w/mag No LED

HFJV1-S101 Parametric

Parameter Name	Attribute value
Maker	HALO Electronics
Product Category	Modular Connector/Ethernet Connector
series	HFJV1
Factory packaging quantity	1

Preview

Download Datasheet

View All

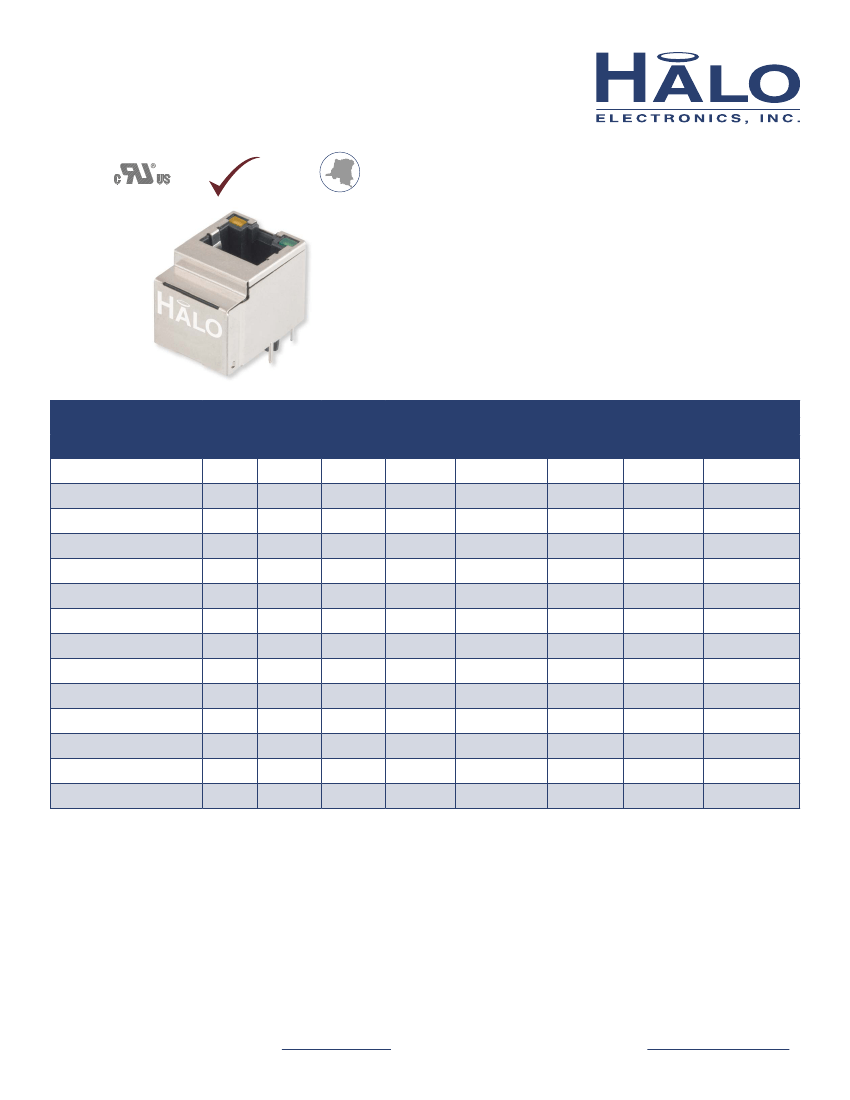

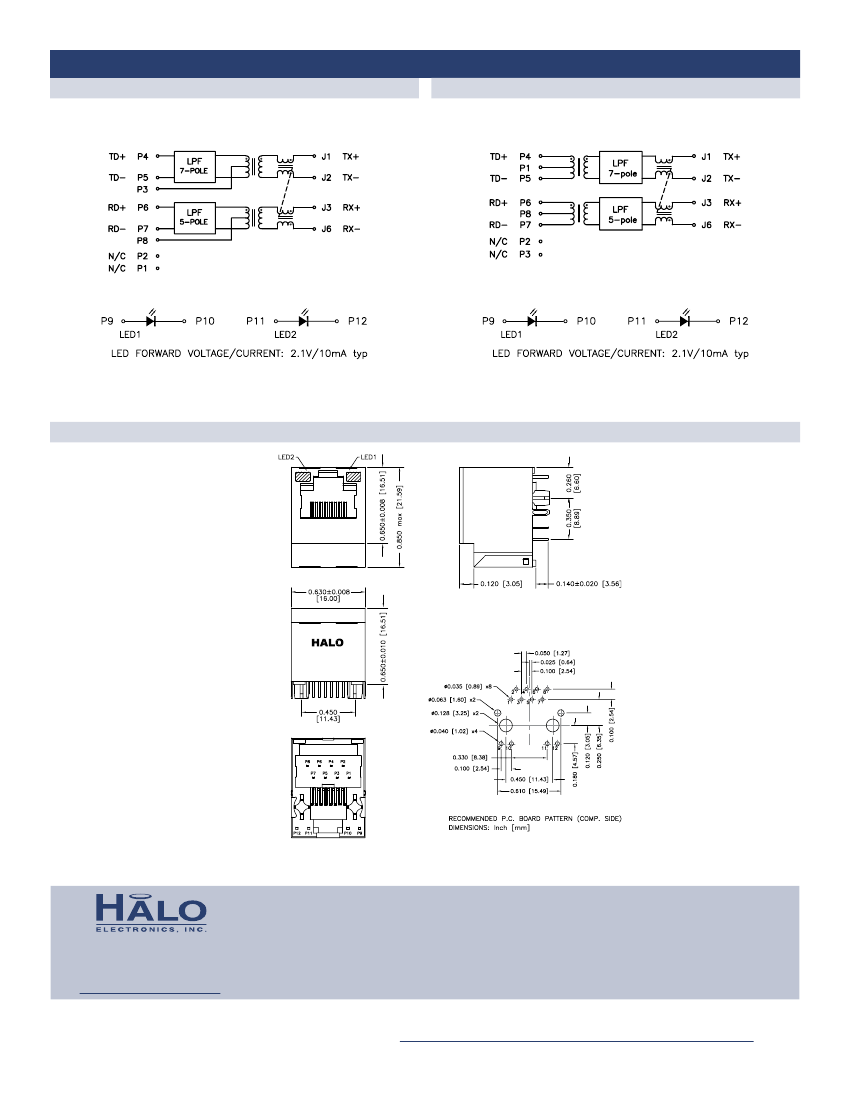

FastJack

™

1x1 10BASE-T Filter Vertical RJ45

RoHS

Compliant

Conflict

FREE

Product Features:

10BASE-T Ethernet RJ45

IEEE802.3i Compliant

100% Electrical Testing

1500Vrms Hi-Pot

Robust Contact Design

Integrated Butterworth Filter

30µ” Gold Plating (min) on Contacts

Part Number

(0 to 70°C)

HFJV1-S101RL

HFJV1-S101-L11RL

HFJV1-S101-L12RL

HFJV1-S101-L17RL

HFJV1-S101-L21RL

HFJV1-S101-L51RL

HFJV1-S114RL

HFJV1-S101-L72RL

HFJV1-S114-L11RL

HFJV1-S114-L12RL

O

N

W

E

N

R OL

O E

F

T

Circuit

A

LED’s

(L/R)

None

G/G

G/Y

Turns Ratio (± 3%)

TX

RX

1CT:1

Return Loss

5-10MHz

-15dB

Attenuation (@30MHz)

TX

RX

-30dB

-18dB

D

S

E

N

IG

Cutoff

Frequency

17MHz

A

-15dB

A

G/G(O)

Y/G

G(Y)/G

None

G/G

G/Y

1CT:1

-15dB

A

B

-15dB

A

G(O)/Y

1CT:1

1CT:1.41

1CT:1

-15dB

HFJV1-S114-L17RL

HFJV1-S114-L21RL

HFJV1-S114-L51RL

HFJV1-S114-L72RL

G/G(O)

Y/G

G(Y)/G

G(O)/Y

Notes:

1. LED Key : G = Green, Y = Yellow, O = Orange, ( ) = Bi-Color

2. Other LED colors, bi-colors, polarities, and current limiting versions available

3. Unshielded and without ground shield tabs available

4. Part specific datasheets available

5. Extended temperature available

6. Additional turns ratios available

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or

info@haloelectronics.com
