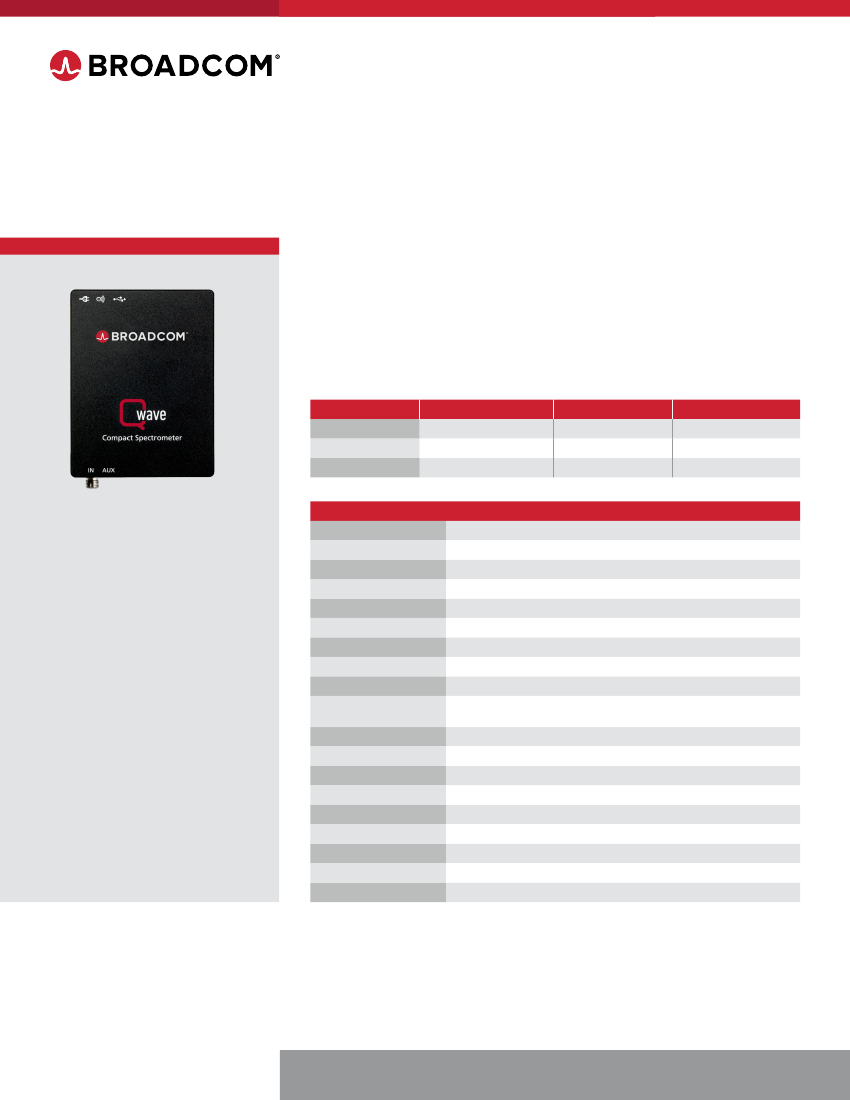

Data Sheet
Qwave AFBR-S20W1XX
Compact USB Spectrometer Combining
Excellent Technical Specifications with
Outstanding Spectroscopy Software
Overview
With its focal length of 75 mm, the Qwave offers technical specifications
that you would normally expect to find in much larger spectrometers.
Combined with our unique spectroscopy software, Waves, it is the ideal
spectroscopic instrument for applications that require a resolution of 0.2 to
0.5 nm and a numerical aperture of up to 0.10.
Part Number
AFBR-S20W1UV
AFBR-S20W1VI
AFBR-S20W1NI
Product Configuration
Qwave UV
Qwave VIS
Qwave NIR
Wavelength Range
220 nm to 400 nm
350 nm to 880 nm
700 nm to 1040 nm
Spectral Resolution
0.2 nm
0.5 nm
0.4 nm
Key Features
• Spectral resolution from 0.2 nm
• High sensitivity
• Exceptional thermal stability
• Includes sophisticated spectroscopy
software
Specifications
Focal length
Grating
Entrance slit
Dynamic range
Numerical aperture
Stray light
Exposure time range
Detector
A/D converter
Calibration
Transfer speed to PC
Optical interface
Digital Interfaces
Dimensions
Weight
Operating temperature
Storage temperature
Power consumption
PC operating system
75 mm
600 lines/mm
20 μm (default)
1500:1
0.10
<0.1 %
100 μs to 600s
3648-pixel linear CCD detector
16-bit 15 MHz
Wavelength, sensitivity, nonlinearity, and multiple dark spectra
stored within device
40 ms per spectrum
SMA connector
USB 2.0
89.5 mm × 68.0 mm × 19.5 mm
155g
−15°C to 60°C (non-condensing)
−25°C to 70°C
5V DC, 200 mA (supplied via USB)
Windows 10, 8, 7, Vista, XP
Applications
• Light analysis
• Chemical research
• Raman spectroscopy
• Forensic analysis
• System integration
• Process control and monitoring
• Biomedical applications
• Quality control
• Environmental measurements
Broadcom Spectroscopy
Data Sheet
Application Software
Every Qwave spectrometer includes
Waves user software developed
for general-purpose spectroscopy
applications. Waves includes
sophisticated algorithms for data
acquisition and evaluation, which
provides the following features
through a clear and straightforward
user interface.
• Take and display series of spectra
• Automatic exposure control with
dark spectrum interpolation
• Import most ASCII-based file
formats
• Export as ASCII table to almost
any numerical analysis software
• Comprehensive tools for
displaying and analyzing spectra
• Strip charts for comparing
characteristic values between
multiple spectra including peak
follower in real time
• Graph printing and export to PDF
• Dynamic peak finder (no need to
set a threshold level)
• Dark spectrum interpolation
• Transmission, absorption, and
reflection measurements
• Colorimetry
Waves is very easy to use and
very intuitive. Various spectrum
evaluation options are available
with minimal effort and only a
few mouse clicks. For example, to
zoom in, adjust the zoom slider. To
move around, adjust the scrollbar.
To change the x-axis unit, select
the corresponding button. Values
such as peaks or colorimetry are
instantly calculated as soon as
a spectrum is taken. Waves is
available as a free download from
our website.
Qwave Schematic Drawing
19.5
Software Library
A software development kit (SDK)
is also included to control the
spectrometer and take spectra
from your own software. It consists
of a Windows DLL library for the
.NET framework, documentation,
and sample code. The SDK can
be used with any programming
language that can use .NET DLLs,
including C#, Visual Basic .NET,
C++/CLI, Delphi, LabVIEW, Matlab,
and Mathematica.
I/O Port and Trigger
The Qwave includes four I/O
channels that can be configured
as trigger input, shutter and light
source control, or general purpose
I/O pins.
The Qwave supports three trigger
modes: software trigger, interval
trigger, and external trigger. It can
be set to trigger on the start or the
end of the exposure period. For
synchronizing the Qwave precisely
to external events, a special low-
jitter mode is available.
Communication Protocol
The spectrometer can also
be directly controlled from an
embedded microcontroller or
other operating systems using the
device communication protocol.
Just like our application software,
the protocol is designed to be
both powerful and easy to use for
software developers.
8.95
4.45
10
18.2
68
11.5
89.5
3
3
8.95
13.1
For more product information:
broadcom.com
Copyright © 2018 Broadcom. All Rights Reserved. Broadcom, the pulse logo, and Connecting everything are among the
trademarks of Broadcom. The term “Broadcom” refers to Broadcom Inc. and/or its subsidiaries.
AFBR-S20W1XX-DS100 July 27, 2018
11.5
