Shenzhen Leadtek Technology Co.,Ltd
■
Preliminary Specification
□
Approval Specification
SPECIFICATION
FOR
LCD MODULE
Customer
:
LTK080A60A004T
Product Model:
Sample code:
Designed by
Checked by
Approved by
]
Final Approval by Customer
Approved by
Comment
※The
specification of “TBD” should
refer to the measured value of sample .
If there is difference
between the design specification and measured value, we naturally shall negotiate and agree to
solution with customer.
1. Features
This module is a color active matrix TFT-LCD (Thin Film Transistor Liquid Crystal
Display) module that uses amorphous silicon TFT as a switching device. This module is
composed of LCD panel, driver IC, and LED backlight.
2. General Specifications
No.
1
2
3
4
5
6
7
8
9
10
11
12
Item
LCD size
Resolution
Display mode
Pixel pitch
Active area
Module size
Pixel arrangement
Interface
Backlight power consumption
Panel power consumption
Weight
Luminance for LCM
（不带
TP）
Specification
8.0 inch
1200 (RGB)X1920
Normally black
0. 0897 (W) X 0. 0897 (H) mm
107.64(W)X172.22(H) mm
132.6(W)X193.6(H)X3.6(D)mm
RGB Vertical stripe
MIPI(4lane)
1.4W (typ.)
TBD (typ.)
73g (typ.)
400cd/m² (typ.)
All
Rights Reserved
4/25
REV. A0
REV 版本
A00
DESCRIPTION 描述
First issue
Issuer 发行人
查小龙
DATE 日期
2017-05-03
Pin No.
绑定½双面粘
屏½膜
钢片补强
sus(T=0.2MM)
接地。
导电双面粘
T=0.055
MM
REV. A0
A
3*8=24LEDs
K
NOTES:
1. DISPLAY TYPE: 8.0", TFT LCD IPS
2. DISPLAY MODE: transmissive mode positive
3. VIEWING DIRECTION: 80\80\80\80(MIN)
4. Operating TEMP: -0°C TO 50°C
Storage TEMP: -10°C TO 60°C
5. DRIVER IC:来料COG(NT51021*2 ) CTP IC：
GT9271
6. LCM(White):
Brightness(centre point): 320cd/m
2
(MIN),400cd/m2 (TYP)
不含TP的亮度
Chromaticity
(centre point)
:x=0.3044±0.06,y=0.3181±0.06
Uniformity
( 9 AVG 1/6)
:70%(MIN),75%(TYP)
7. BACK LIGHT: 24 chip white LEDs If=
20mA/LED,Vf=22.4V~24V
8. * Critical Parameter,( ) ref Parameter,
cpk Parameter
Unspecified Tolerances:±0.3mm
Modification mark:
n
9. SUGGESTION:TP window size unilateral increase 0.3~0.5mm than LCM A.A
10. REQUIREMENTS ENVIRONMENTAL PROTECTION: RoHS ,
REACH , HF
(IF=60mA,22.4V~24V)
TPM模组图
K A
All
Rights Reserved
NAME
钢片补强
C0.15*0.15
All around
导电双面粘
GND
NC
NC(SDA)
NC(SCL)
NC(MTP)
ATOM-A01135
）
元件区
丝印½油对½线
PI
补强
屏½膜
NC
NC
NC
NC
麦拉片

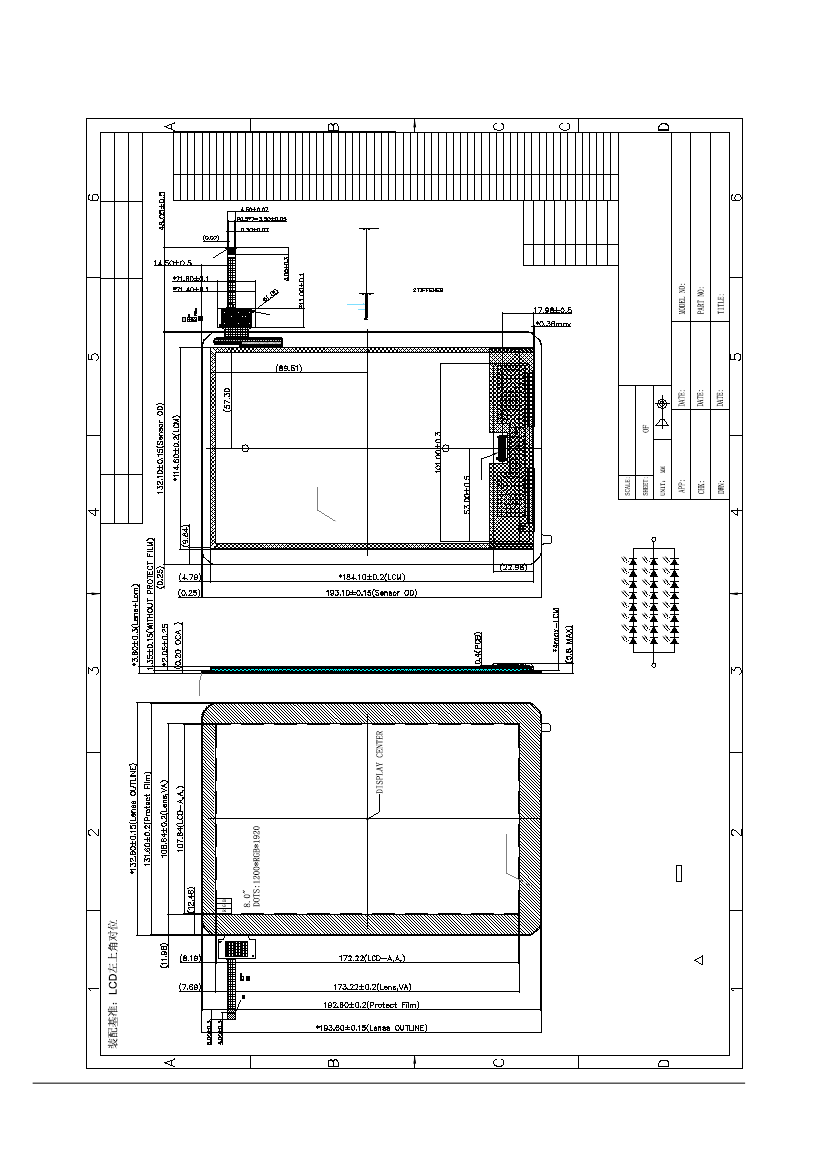

3.Outline Dimension
定½孔通孔
NC
NC
NC
NC
AL5052(t=0.2)
VCC（3.0½3.6V）
VCC（3.0½3.6V）
VCC（3.0½3.6V）
NC
GND
NC
LEDA3
NC
LEDA2
NC
LEDA1
NC
LEDK3
NC
LEDK2
NC
LEDK1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Pin No.
NAME
NC
GND
NC
NC
NC
NC
NC
1.2MAX（IC+FPC +
+导电双面粘)
0.3±0.03(FPC +STIFFENER)
5/25
AXT560124
AVDD(9.6½10V)
HAVDD(4.7½4.9V)
VGH(17½19V)
VGL(-6.6½-5.4V)
NC
NC
GND
GND
丝印黑色
PIN
1
2
3
4
5
6
7
8
SYMBOL
VIO(1.8V)
VDD(2.85V)
RESET(1.8V)
INT(1.8V)
SDA(1.8V)
SCL(1.8V)
GND
GND
MIPI_DATA3_N
MIPI_DATA3_P
GND
MIPI_DATA2_N
MIPI_DATA2_P
GND
MIPI_CLK_N
MIPI_CLK_P
GND
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
MIPI_DATA1_N
MIPI_DATA1_P
GND
MIPI_DATA0_N
MIPI_DATA0_P
GND
FIT
1
1
Shenzhen Leadtek Technology Co.,Ltd
LTK080A60A004T
