Standard LED-SMD SMD 1206 GREEN

599-0281-007F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Optoelectronic device types	SINGLE COLOR LED
Base Number Matches	1

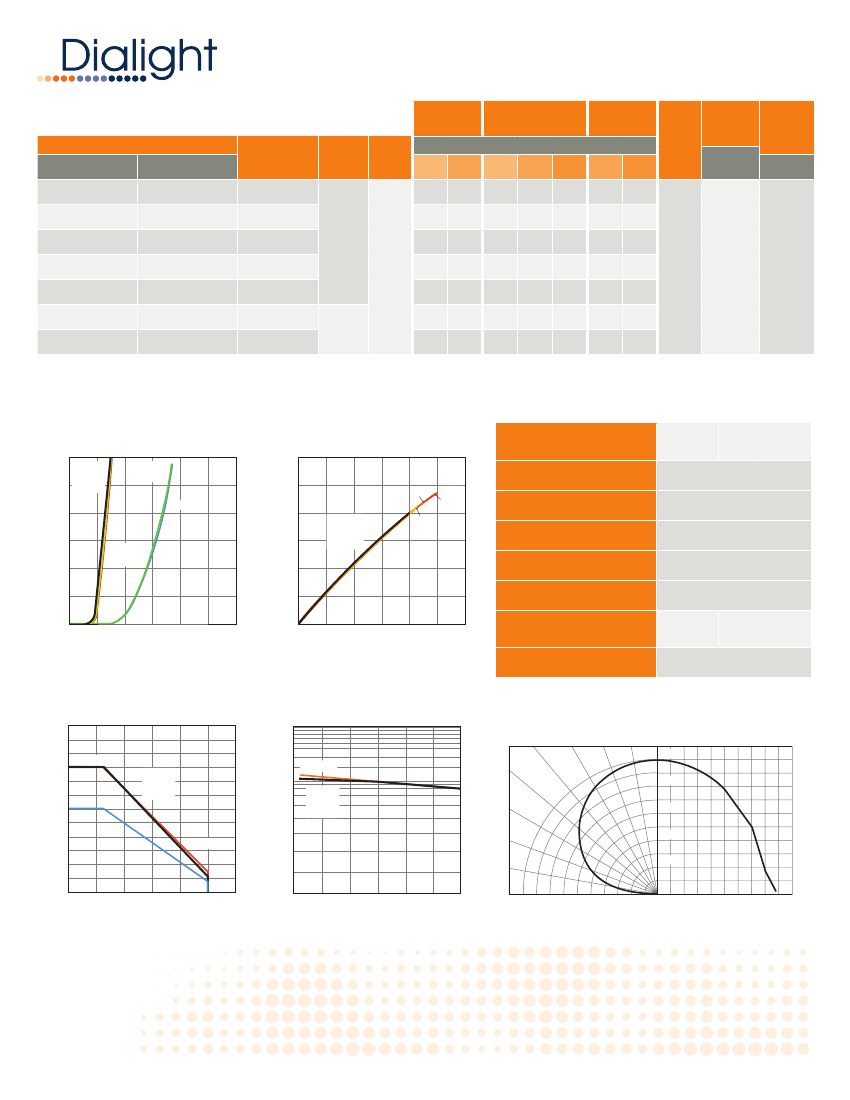

Preview

Download Datasheet

View All

MicroLED

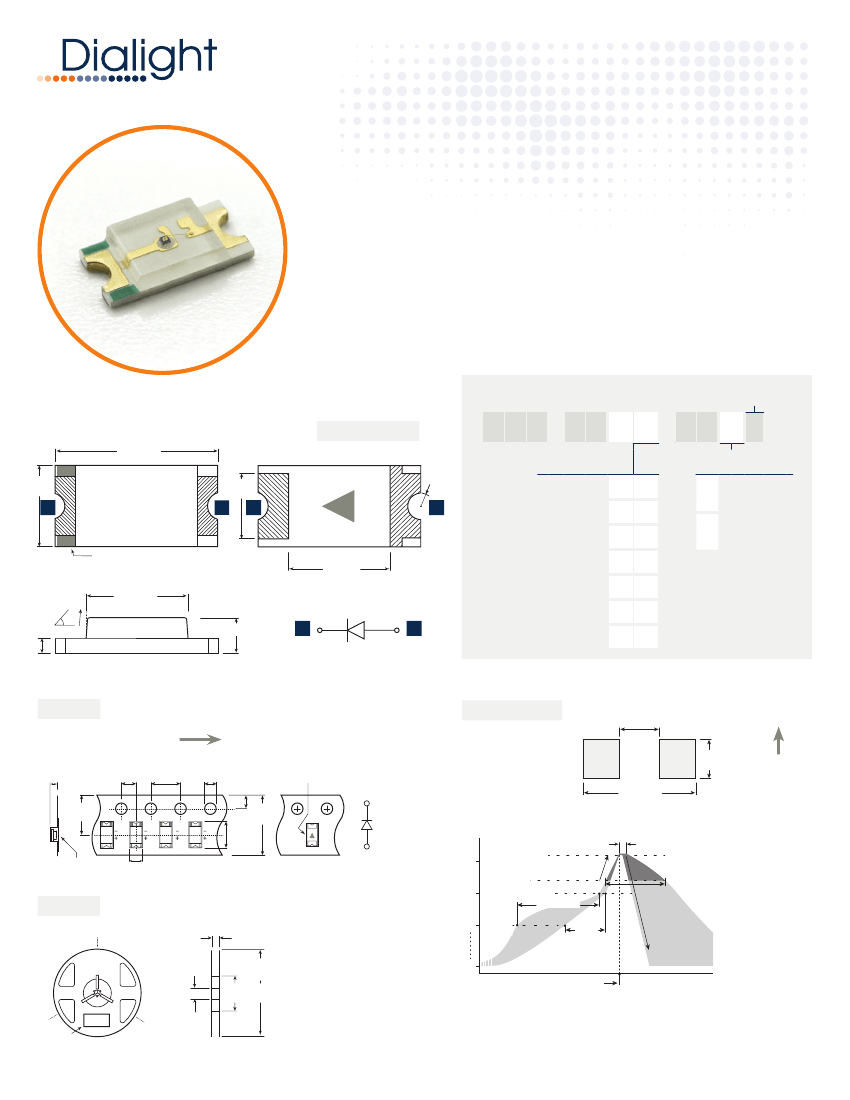

SMD LED, Single Color 1206 Package

3.2 mm x 1.6 mm x 0.7 mm

Certifications & Ratings

• RoHS compliant

599 Series

Features & Benefits

• Compatible with automatic placement equipment

• Packaged in 8 mm tape, 7" reel (4000 pcs/reel)

and 20 per strip

• Meets EIA-481-1 pkg. std.

Part Number Guide

RoHS Compliant

Dimensions

inches [mm]

.126 [3.2]

.063

[1.6]

.055

[1.4]

Tolerance

±0.2

mm unless otherwise noted

Package

R 0.008

[R 0.20]

5 9 9 - 0 2

Color



Red



Red-Orange



Orange



Yellow



Yellow-Green



Green

X - 0 0 X F

Packaging Option

20 piece tape

7" reel

4000 pcs/reel

Polarity Mark

.079 [2.0]

3°

.028 [0.7]

.012 [0.3]

–



Blue

Tape

Tolerance

±0.1

mm unless otherwise noted

Soldering

.063

[1.6]

598 Series, pkg 1206

package illustrations scaled at

.059

1mm : 28.125 mm

Feed Direction

.037

[0.94]

.079

[2.0]

.207

[5.25]

.137

[3.47]

Top

of Tape

.069 [1.79]

.157

[4.0]

.061

[1.55]

.069

[1.75]

.315

[8.0]

Polarity Mark

RF-BNS150TS-CE E1 RF-0069NP

2017-10-19.pdf

[1.5]

Direction of

Light Emission

Reflow Profile

Temp °C

250

.173 [4.4]

Hand Soldering

Temperature: 300° C max.

Soldering time: 3 sec max.

(one time only)

time at peak 10 sec (max)

ramp up

3°C/sec (max)

time above 217 °C

60–150 sec

Tpeak = 260 °C

Reel

TL = 217 °C

200

Tsmax = 200 °C

Tolerance

±0.1

mm unless otherwise noted

150

.315 [8.0]

7.01

[178±1.0]

2.362

[60±1.0]

Tsmin=

150 °C

120 sec (max)

Pre-heat: ∆T: 150–200 °C

60 sec

(min)

6 °C/sec (max)

598 Series, pkg 1206

package illustrations scaled at

1mm : 28.125 mm

ramp down

.512

[13±0.5]

Total Time to Peak temp < 8 min.

∆T: 25–260 °C

RF-BNS150TS-CE E1 RF-0069NP

2017-10-19.pdf

Time

Label

www.dialightsignalsandcomponents.com

60 sec
