CY7C1481BV33
72-Mbit (2M × 36) Flow-Through SRAM
72-Mbit (2M × 36) Flow-Through SRAM
Features
■
■
■
■
■
Functional Description
The CY7C1481BV33 is a 3.3 V, 2M × 36 synchronous flow
through SRAM designed to interface with high speed
microprocessors with minimum glue logic. Maximum access
delay from clock rise is 6.5 ns (133 MHz version). A 2-bit on-chip
counter captures the first address in a burst and increments the
address automatically for the rest of the burst access. All
synchronous inputs are gated by registers controlled by a
positive edge triggered Clock Input (CLK). The synchronous
inputs include all addresses, all data inputs, address pipelining
Chip Enable (CE
1
), depth expansion Chip Enables (CE
2
and
CE
3
), Burst Control inputs (ADSC, ADSP, and ADV), Write
Enables (BW
x
and BWE), and Global Write (GW). Asynchronous
inputs include the Output Enable (OE) and the ZZ pin.
The CY7C1481BV33 enables either interleaved or linear burst
sequences, selected by the MODE input pin. A HIGH selects an
interleaved burst sequence, while a LOW selects a linear burst
sequence. Burst accesses are initiated with the Processor
Address Strobe (ADSP) or the cache Controller Address Strobe
(ADSC) inputs. Address advancement is controlled by the
Address Advancement (ADV) input.
Addresses and chip enables are registered at rising edge of
clock when either Address Strobe Processor (ADSP) or Address
Strobe Controller (ADSC) are active. Subsequent burst
addresses can be internally generated as controlled by the
Advance pin (ADV).
The CY7C1481BV33 operates from a +3.3 V core power supply
while all outputs may operate with either a +2.5 or +3.3 V supply.
All inputs and outputs are JEDEC standard JESD8-5 compatible.
For a complete list of related documentation, click
here.
Supports 133 MHz bus operations
2M × 36 common I/O
3.3 V core power supply (V
DD
)
2.5 V or 3.3 V I/O supply (V
DDQ
)
Fast clock to output time
❐
6.5 ns (133 MHz version)
Provide high performance 2-1-1-1 access rate
User selectable burst counter supporting Intel
®
Pentium
®
interleaved or linear burst sequences
Separate processor and controller address strobes
Synchronous self timed write
Asynchronous output enable
CY7C1481BV33 available in JEDEC standard Pb-free 100-pin
TQFP and 119-ball Pb-free BGA package.
IEEE 1149.1 JTAG compatible boundary scan
ZZ sleep mode option
■
■
■
■
■
■
■
■
Selection Guide
Description
Maximum Access Time
Maximum Operating Current
Maximum CMOS Standby Current
133 MHz
6.5
335
150
Unit
ns
mA
mA
Cypress Semiconductor Corporation
Document Number: 001-74857 Rev. *J
•
198 Champion Court
•
San Jose
,
CA 95134-1709
•
408-943-2600
Revised August 7, 2018
CY7C1481BV33

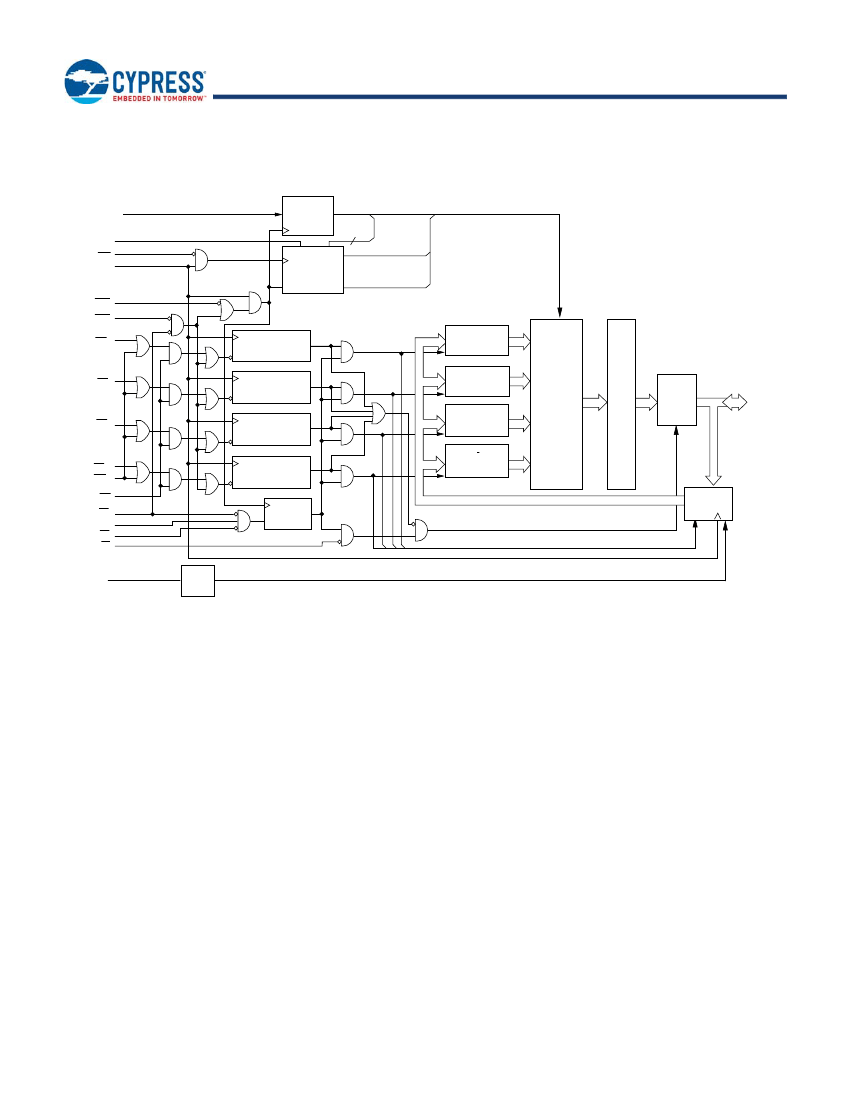

Logic Block Diagram – CY7C1481BV33
ADDRESS
REGISTER
A
[1:0]
MODE
ADV
CLK
A 0, A1, A
BURST Q1
COUNTER
AND LOGIC
Q0
CLR
ADSC
ADSP
DQ
D
,
DQP
D
BW
D
BYTE
WRITE REGISTER
DQ
C
,
DQP
C
BYTE
WRITE REGISTER
DQ
B
,
DQP
B
BYTE
WRITE REGISTER
DQ
A
,
DQP
A
BW
A
BWE
GW
CE1
CE2
CE3
OE
DQ
A
,
DQP
A
BYTE
WRITE REGISTER
BYTE
WRITE REGISTER
DQ
D
,
DQP
D
BYTE
WRITE REGISTER
DQ
C
,
DQP
C
BYTE
WRITE REGISTER
DQ
B
,
DQP
B
BW
B
BYTE
WRITE REGISTER
BW
C
MEMORY
ARRAY
SENSE
AMPS
OUTPUT
BUFFERS
DQ s
DQP
A
DQP
B
DQP
C
DQP
D
ENABLE
REGISTER
INPUT
REGISTERS
ZZ
SLEEP
CONTROL
Document Number: 001-74857 Rev. *J
Page 2 of 30
CY7C1481BV33
Contents
Pin Configurations ........................................................... 4
Pin Definitions .................................................................. 5
Functional Overview ........................................................ 7
Single Read Accesses ................................................ 7
Single Write Accesses Initiated by ADSP ................... 7
Single Write Accesses Initiated by ADSC ................... 7
Burst Sequences ......................................................... 7
Sleep Mode ................................................................. 7
Interleaved Burst Address Table ................................. 7
Linear Burst Address Table ......................................... 7
ZZ Mode Electrical Characteristics .............................. 8
Truth Table ........................................................................ 8
Truth Table for Read/Write .............................................. 9
IEEE 1149.1 Serial Boundary Scan (JTAG) .................. 10
Disabling the JTAG Feature ...................................... 10
Test Access Port (TAP) ............................................. 10
PERFORMING A TAP RESET .................................. 10
TAP REGISTERS ...................................................... 10
TAP Instruction Set ................................................... 11
TAP Controller State Diagram ....................................... 12
TAP Controller Block Diagram ...................................... 13
TAP Timing ...................................................................... 14
TAP AC Switching Characteristics ............................... 14
3.3 V TAP AC Test Conditions ....................................... 15
3.3 V TAP AC Output Load Equivalent ......................... 15
2.5 V TAP AC Test Conditions ....................................... 15
2.5 V TAP AC Output Load Equivalent ......................... 15
TAP DC Electrical Characteristics
and Operating Conditions ............................................. 15
Identification Register Definitions ................................ 16
Scan Register Sizes ....................................................... 16
Identification Codes ....................................................... 16
Boundary Scan Exit Order ............................................. 17
Maximum Ratings ........................................................... 18
Operating Range ............................................................. 18
Electrical Characteristics ............................................... 18
Capacitance .................................................................... 19
Thermal Resistance ........................................................ 19
AC Test Loads and Waveforms ..................................... 19
Switching Characteristics .............................................. 20
Timing Diagrams ............................................................ 21
Ordering Information ...................................................... 25
Ordering Code Definitions ......................................... 25
Package Diagrams .......................................................... 26
Acronyms ........................................................................ 28
Document Conventions ................................................. 28
Units of Measure ....................................................... 28
Document History Page ................................................. 29
Sales, Solutions, and Legal Information ...................... 30
Worldwide Sales and Design Support ....................... 30
Products .................................................................... 30
PSoC® Solutions ...................................................... 30
Cypress Developer Community ................................. 30
Technical Support ..................................................... 30
Document Number: 001-74857 Rev. *J
Page 3 of 30
CY7C1481BV33
Pin Configurations
Figure 1. 100-pin TQFP (14 × 20 × 1.4 mm) pinout
A
A
CE
1
CE
2
BW
D
BW
C
BW
B
BW
A
CE
3
V
DD
V
SS
CLK
GW
BWE
OE
ADSC
ADSP
ADV
A
A
DQP
C
DQ
C
DQ
C
V
DDQ
V
SSQ
DQ
C
DQ
C
DQ
C
DQ
C
V
SSQ
V
DDQ
DQ
C
DQ
C
NC
V
DD
NC
V
SS
DQ
D
DQ
D
V
DDQ
V
SSQ
DQ
D
DQ
D
DQ
D
DQ
D
V
SSQ
V
DDQ
DQ
D
DQ
D
DQP
D
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
CY7C1481BV33
(2M × 36)
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
DQP
B
DQ
B
DQ
B
V
DDQ
V
SSQ
DQ
B
DQ
B
DQ
B
DQ
B
V
SSQ
V
DDQ
DQ
B
DQ
B
V
SS
NC
V
DD
ZZ
DQ
A
DQ
A
V
DDQ
V
SSQ
DQ
A
DQ
A
DQ
A
DQ
A
V
SSQ
V
DDQ
DQ
A
DQ
A
DQP
A
1
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
DDQ
NC/288M
NC/144M
DQ
C
DQ
C
V
DDQ
DQ
C
DQ
C
V
DDQ
DQ
D
DQ
D
V
DDQ
DQ
D
DQ
D
NC
NC
V
DDQ
MODE
A
A
A
A
A
1
A
0
A
A
V
SS
V
DD
A
A
A
A
A
A
A
A
A
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Figure 2. 119-ball BGA pinout
2
A
CE
2
A
DQP
C
DQ
C
DQ
C
DQ
C
DQ
C
V
DD
DQ
D
DQ
D
DQ
D
DQ
D
DQP
D
A
A
TMS
CY7C1481BV33 (2M X36)
3
4
5
A
A
ADSP
A
A
V
SS
V
SS
V
SS
BW
C
V
SS
NC
V
SS
BW
D
V
SS
V
SS
V
SS
MODE
A
TDI
ADSC
V
DD
NC
CE
1
OE
ADV
GW
V
DD
CLK
NC
BWE
A1
A0
V
DD
A
TCK
A
A
V
SS
V
SS
V
SS
BW
B
V
SS
NC
V
SS
BW
A
V
SS
V
SS
V
SS
NC
A
TDO
6
A
A
A
DQP
B
DQ
B
DQ
B
DQ
B
DQ
B
V
DD
DQ
A
DQ
A
DQ
A
DQ
A
DQP
A
A
A
NC
7
V
DDQ
NC/512M
NC/1G
DQ
B
DQ
B
V
DDQ
DQ
B
DQ
B
V
DDQ
DQ
A
DQ
A
V
DDQ
DQ
A
DQ
A
NC
ZZ
V
DDQ
Page 4 of 30
Document Number: 001-74857 Rev. *J
CY7C1481BV33
Pin Definitions
Pin Name
A
0
, A
1
, A
I/O
Description
Input-
Address Inputs Used to Select One of the Address Locations.
Sampled at the rising edge of the CLK
Synchronous if ADSP or ADSC is active LOW, and CE
1
, CE
2
, and CE
3
are sampled active. A
[1:0]
feed the 2-bit counter.
Input-
Byte Write Select Inputs, Active LOW.
Qualified with BWE to conduct byte writes to the SRAM.
BW
A
, BW
B
,
BW
C
, BW
D
Synchronous Sampled on the rising edge of CLK.
GW
CLK
CE
1
Input-
Global Write Enable Input, Active LOW.
When asserted LOW on the rising edge of CLK, a global write
Synchronous is conducted (ALL bytes are written, regardless of the values on BW
X
and BWE).
Input-
Clock
Clock Input.
Captures all synchronous inputs to the device. Also used to increment the burst counter
when ADV is asserted LOW during a burst operation.
Input-
Chip Enable 1 Input, Active LOW.
Sampled on the rising edge of CLK. Used in conjunction with CE
2
Synchronous and CE
3
to select or deselect the device. ADSP is ignored if CE
1
is HIGH. CE
1
is sampled only when a
new external address is loaded.
Input-
Chip Enable 2 Input, Active HIGH.
Sampled on the rising edge of CLK. Used in conjunction with CE
1
Synchronous and CE
3
to select or deselect the device. CE
2
is sampled only when a new external address is loaded.
Input-
Chip Enable 3 Input, Active LOW.
Sampled on the rising edge of CLK. Used in conjunction with CE
1
Synchronous and CE
2
to select or deselect the device. CE
3
is sampled only when a new external address is loaded.
Input-
Output Enable, Asynchronous Input, Active LOW.
Controls the direction of the I/O pins. When LOW,
Asynchronous the I/O pins behave as outputs. When deasserted HIGH, I/O pins are tri-stated, and act as input data
pins. OE is masked during the first clock of a read cycle when emerging from a deselected state.
Input-
Advance Input Signal, Sampled on the Rising Edge of CLK.
When asserted, it automatically
Synchronous increments the address in a burst cycle.
Input-
Address Strobe from Processor, Sampled on the Rising Edge of CLK, Active LOW.
When asserted
Synchronous LOW, addresses presented to the device are captured in the address registers. A
[1:0]
are also loaded
into the burst counter. When ADSP and ADSC are both asserted, only ADSP is recognized. ASDP is
ignored when CE
1
is deasserted HIGH.
Input-
Address Strobe from Controller, Sampled on the Rising Edge of CLK, Active LOW.
When asserted
Synchronous LOW, addresses presented to the device are captured in the address registers. A
[1:0]
are also loaded
into the burst counter. When ADSP and ADSC are both asserted, only ADSP is recognized.
Input-
Byte Write Enable Input, Active LOW.
Sampled on the rising edge of CLK. This signal must be asserted
Synchronous LOW to conduct a byte write.
Input-
ZZ “Sleep” Input, Active HIGH.
When asserted HIGH, places the device in a non time-critical “sleep”
Asynchronous condition with data integrity preserved. For normal operation, this pin must be LOW or left floating. ZZ
pin has an internal pull down.
I/O-
Bidirectional Data I/O Lines.
As inputs, they feed into an on-chip data register that is triggered by the
Synchronous rising edge of CLK. As outputs, they deliver the data contained in the memory location specified by the
addresses presented during the previous clock rise of the read cycle. The direction of the pins is controlled
by OE. When OE is asserted LOW, the pins behave as outputs. When HIGH, DQ
s
and DQP
X
are placed
in a tri-state condition.The outputs are automatically tri-stated during the data portion of a write sequence,
the first clock when emerging from a deselected state, and when the device is deselected, regardless of
the state of OE.
I/O-
Bidirectional Data Parity I/O Lines.
Functionally, these signals are identical to DQ
s
. During write
Synchronous sequences, DQP
x
is controlled by BW
X
correspondingly.
Input-Static
Selects Burst Order.
When tied to GND, selects linear burst sequence. When tied to V
DD
or left floating,
selects interleaved burst sequence. This is a strap pin and must remain static during device operation.
Mode Pin has an internal pull up.
CE
2
CE
3
OE
ADV
ADSP
ADSC
BWE
ZZ
DQ
s
DQP
X
MODE
Document Number: 001-74857 Rev. *J
Page 5 of 30
京公网安备 11010802033920号
EEWORLD
