BMI085 Shuttle Board Overview

Multifunctional sensor development tool BMI085 Shuttle Board

Parameter Name	Attribute value
Maker	Bosch
Product Category	Multifunctional sensor development tools
product	Evaluation Boards
type	Accelerometer, Gyroscope
Tools for assessment	BMI085
Working power voltage	2.4 V to 3.6 V
Encapsulation	Bulk
Description/Function	BMI085 shuttle board
size	43.52 mm x 20.3 mm x 10.25 mm
series	BMI085
Factory packaging quantity	1

Bosch Sensortec

BMI085

Shuttle Board

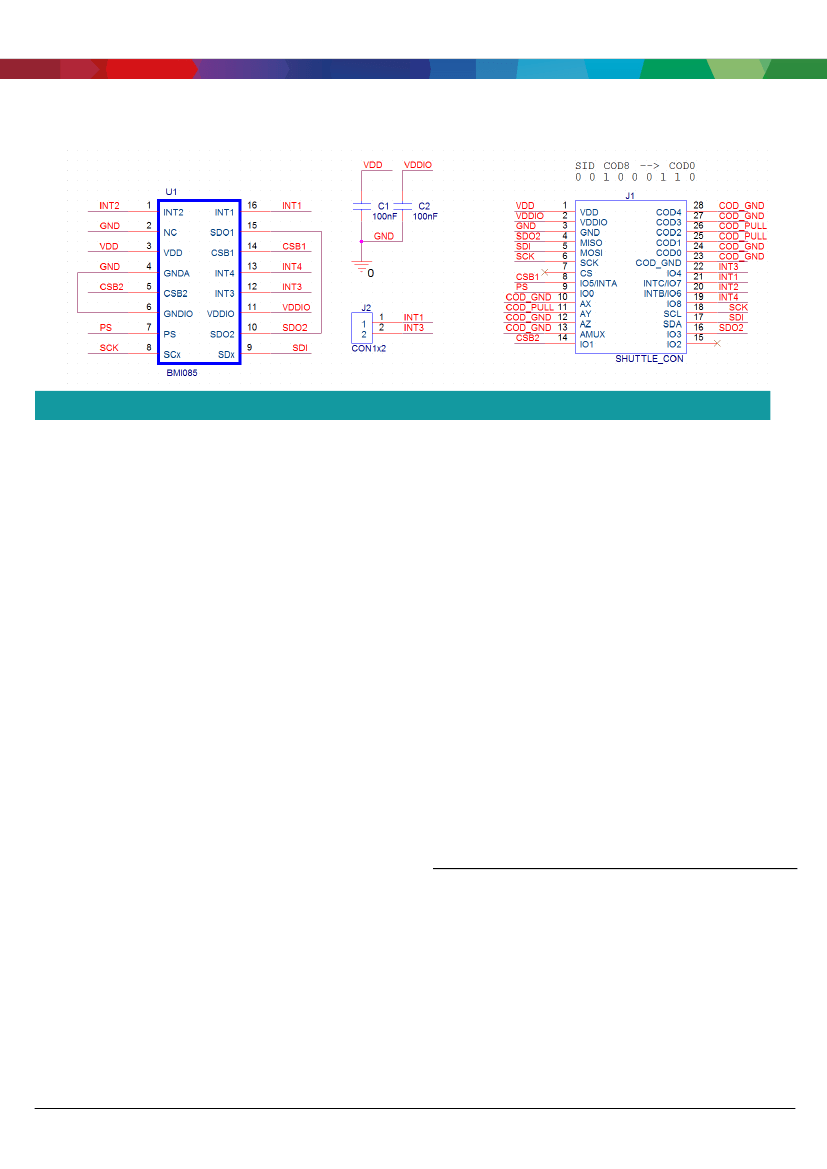

GENERAL DESCRIPTION

The Bosch Sensortec BMI085 shuttle board is a PCB with the

BMI085 Inertial Measurement Unit (IMU) mounted on it.

It allows easy access to the sensor’s pins via a simple socket.

As all Bosch Sensortec sensor shuttle boards have identical

footprint, they can be plugged into Bosch Sensortec’s advanced

development tools (e.g. the Development Board or Application

Board).

Note: Product photo may differ from real product’s appearance.

Pin 1

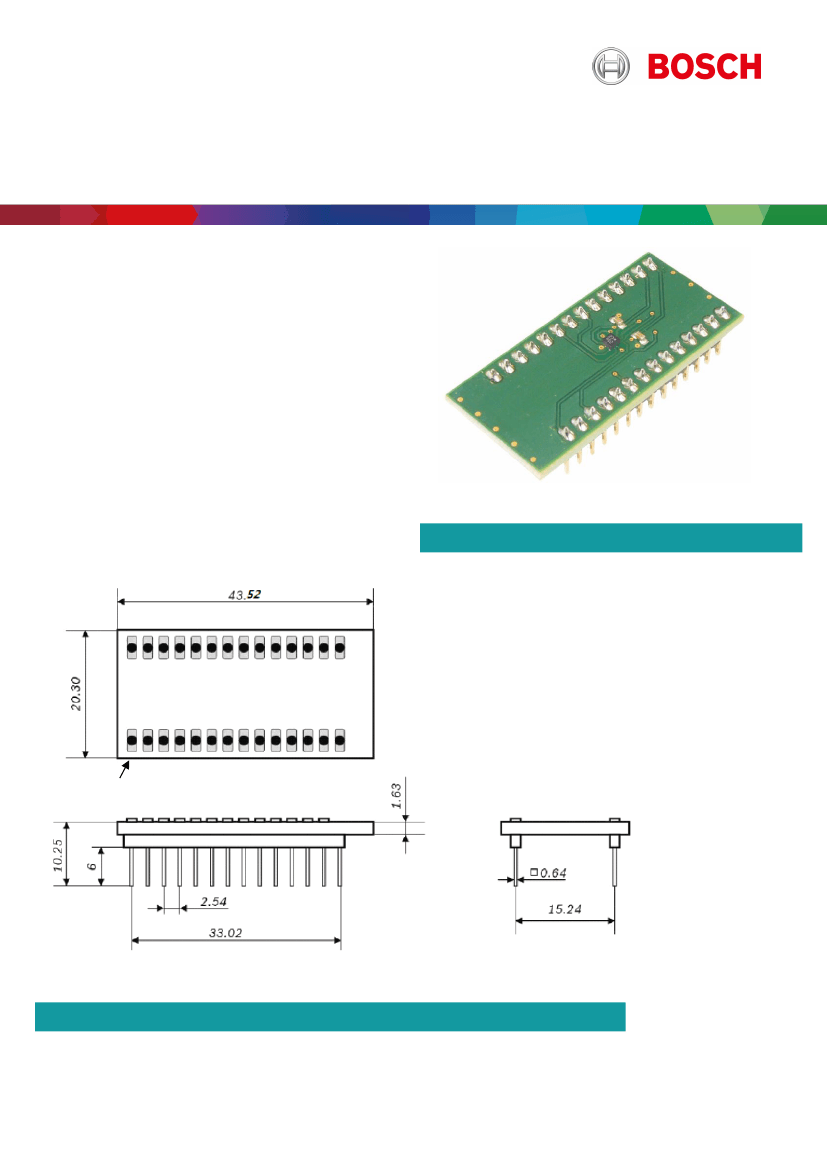

Shuttle board outline dimensions (all dimensions in mm)
