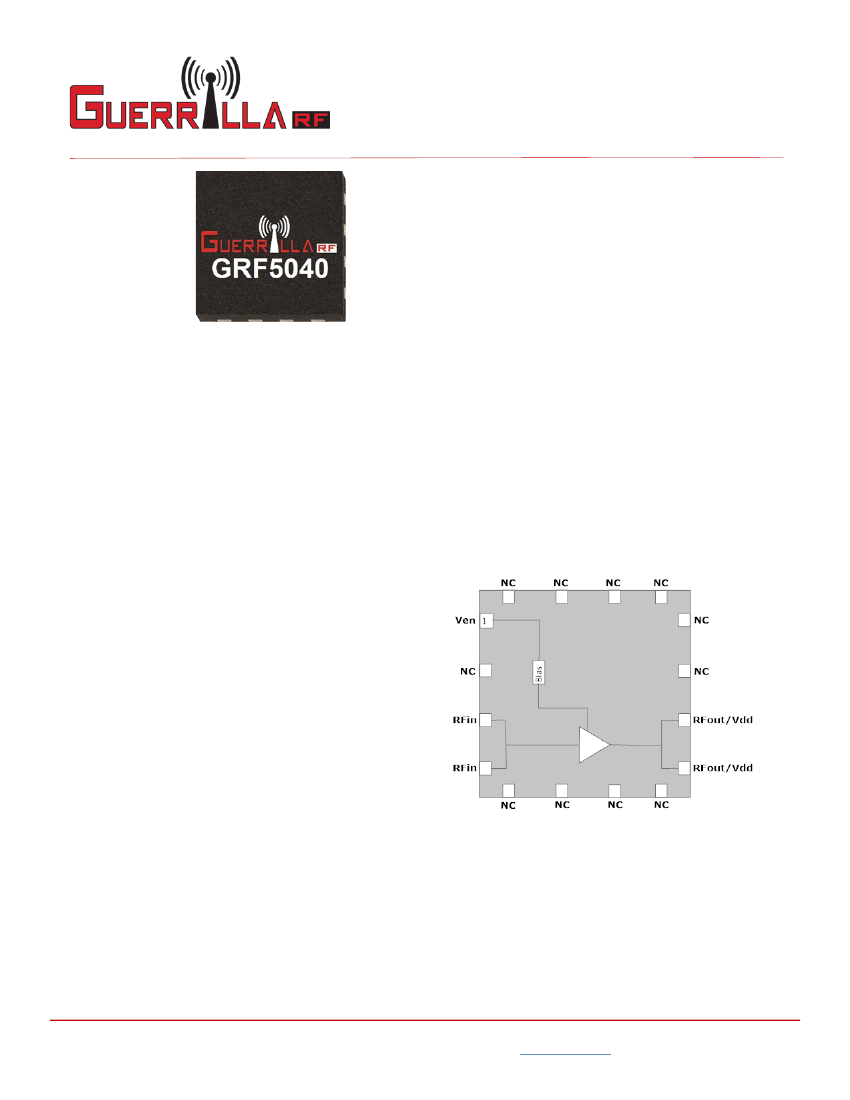

Released
GRF5040
31.0 dBm Power-LNA™
Tuning Range: 0.1
–
3.8 GHz
Product Description
GRF5040 is a high linearity PA with ultra-low noise fig-
ure (NF). The primary tune for this device covers 1.7 to
2.7 GHz and it achieves outstanding P1dB, IP3 and NF
over the band. The device can be tuned to deliver out-
standing performance over 0.1 GHz. to 3.8 GHz with
fractional bandwidths >30%. With a 10.0 Volt supply,
the device can deliver broadband OP1dB values of 31.0
dBm.
In addition to use as a PA or linear driver, GRF5040 is
well suited to demanding first, second or third stage
LNA applications requiring high linearity, ruggedness
and low NF.
Consult with the GRF applications engineering team for
custom tuning/evaluation board data and device s-
parameters.
Features
Reference: 10V/170mA/2.5GHz
•
•
•
•
Gain: 15.0 dB
NF: 0.85 dB
OP1dB: 31.0 dBm
OIP3: 47.0 dBm
Reference: 8V/130mA/2.5GHz
•
•
•
•
•
•
Gain: 15.0 dB
NF: 0.85 dB
OP1dB: 29.8 dBm
OIP3: 46.3 dBm
Flexible Bias Voltage and Current
Process: GaAs pHEMT
Applications
•
•
•
•
Multi-stage LNA
Linear Driver Amplifier for High PAR
Waveforms
Distributed Antenna Systems
Microwave Backhaul
3.0 x 3.0 mm QFN-16
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/26/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
1
Released
GRF5040
31.0 dBm Power-LNA™
Tuning Range: 0.1
–
3.8 GHz
Absolute Ratings:
Parameter
Drain Voltage
Transient Average RF Input Power CW: (Load VSWR < 2:1;
Duration: <1 hour)
Average RF Output Power: (Load VSWR < 2:1;
V
D
: > 8.0 volts; Duration: Continuous)
Average RF Output Power: (Load VSWR < 2:1;
V
D
: <= 8.0 volts; Duration: Continuous)
Operating Temperature (Package Heat Sink)
Maximum Channel Temperature (MTTF > 10^6 Hours)
Maximum Dissipated Power
Electrostatic Discharge:
Charged Device Model: (TBD)
Human Body Model:
Storage:
Storage Temperature
Moisture Sensitivity Level
T
STG
MSL
-65
150
1
°C
--
CDM
HBM
1500
250
V
V
Symbol
V
DD
P
IN MAX
P
OUT MAX
P
OUT MAX
T
AMB
T
MAX
P
DISS MAX
Min.
Max.
12.0
22.0
26.0
NA
Unit
V
dBm
dBm
dBm
°C
°C
W
-40
105
170
2.2
Caution!
ESD Sensitive Device
Exceeding Absolute Maximum Rating conditions may cause permanent damage to the device.
Note: For package dimensions and manufacturing information, see the Guerrilla-RF.com website
for the following document located on the GRF5040 landing page: Manufacturing Note—MN-
001 Product Tape and Reel, Solderability and Package Outline Specification.
Link to manufacturing note
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/26/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
2
Released
GRF5040
31.0 dBm Power-LNA™
Tuning Range: 0.1
–
3.8 GHz
Pin Out (Top View)
Pin Assignments:
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PKG BASE
Name
Description
Enable Voltage Input
No Connect or Ground
RF Input
RF Input
No Connect or Ground
No Connect or Ground
No Connect or Ground
No Connect or Ground
PA Output/Bias
PA Output/Bias
No Connect or Ground
No Connect or Ground
No Connect or Ground
No Connect or Ground
No Connect or Ground
No Connect or Ground
Ground
Note
V
ENABLE
and series resistor set I
DDQ
. V
ENABLE
< =0.2 volts disables device.
On-die pull-down resistor will turn the part off if this node is allowed to
float.
No internal connection to die
Pins 3-4 tied together on system board
Pins 3-4 tied together on system board
No internal connection to die
No internal connection to die
No internal connection to die
No internal connection to die
Pins 9-10 tied together on system board. Supply Vdd here.
Pins 9-10 tied together on system board. Supply Vdd here.
No internal connection to die
No internal connection to die
No internal connection to die
No internal connection to die
No internal connection to die
No internal connection to die
Provides DC and RF ground for LNA, as well as thermal heat sink. Rec-
ommend multiple 8 mil vias beneath the package for optimal RF and
thermal performance. Refer to evaluation board top layer graphic on
schematic page.
V
ENABLE
NC
RF_In
RF_In
NC
NC
NC
NC
RF_Out/V
DD
RF_Out/V
DD
NC
NC
NC
NC
NC
NC
GND
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/26/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
3
Released
GRF5040
31.0 dBm Power-LNA™
Tuning Range: 0.1
–
3.8 GHz
Nominal Operating Parameters:
Parameter
Target Performance
(1.7-3.8 GHz Tune)
Test Frequency
Gain
Noise Figure (Evaluation Board)
Output 1dB Compression Point
Output Third Order Intercept Point
Switching Rise Time
Switching Fall Time
F
TEST
S(2,1)
NF
OP1dB
OIP3
T
RISE
T
FALL
28.3
14.0
2.5
15.0
0.85
29.8
46.3
200
200
1.05
GHz
dB
dB
dBm
dBm
ns
ns
Tones: 2499 and 2501 MHz at
+8.0 dBm per tone
Symbol
Specification
Min.
Typ.
Max.
Unit
Condition
Bias: 8.0V and 130mA unless
otherwise noted. (+25C)
Quiescent Supply Current
Disabled Mode
Supply Current (Leakage)
Thermal Data
Thermal Resistance: (IR Scan Method)
Channel Temperature @ +85C Refer-
ence (package heat sink)
I
DDQ
I
DD
130
370
35
122
mA
V
DD:
8.0 volts; V
ENABLE:
0.0 volts
uA
ᵒC/W
ᵒC
V
DD:
8.0 volts; I
DDQ
: 130 mA
P
DISS
:
1.04W; No RF
jc
T
CHANNEL
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/26/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
4
Released
GRF5040
31.0 dBm Power-LNA™
Tuning Range: 0.1
–
3.8 GHz

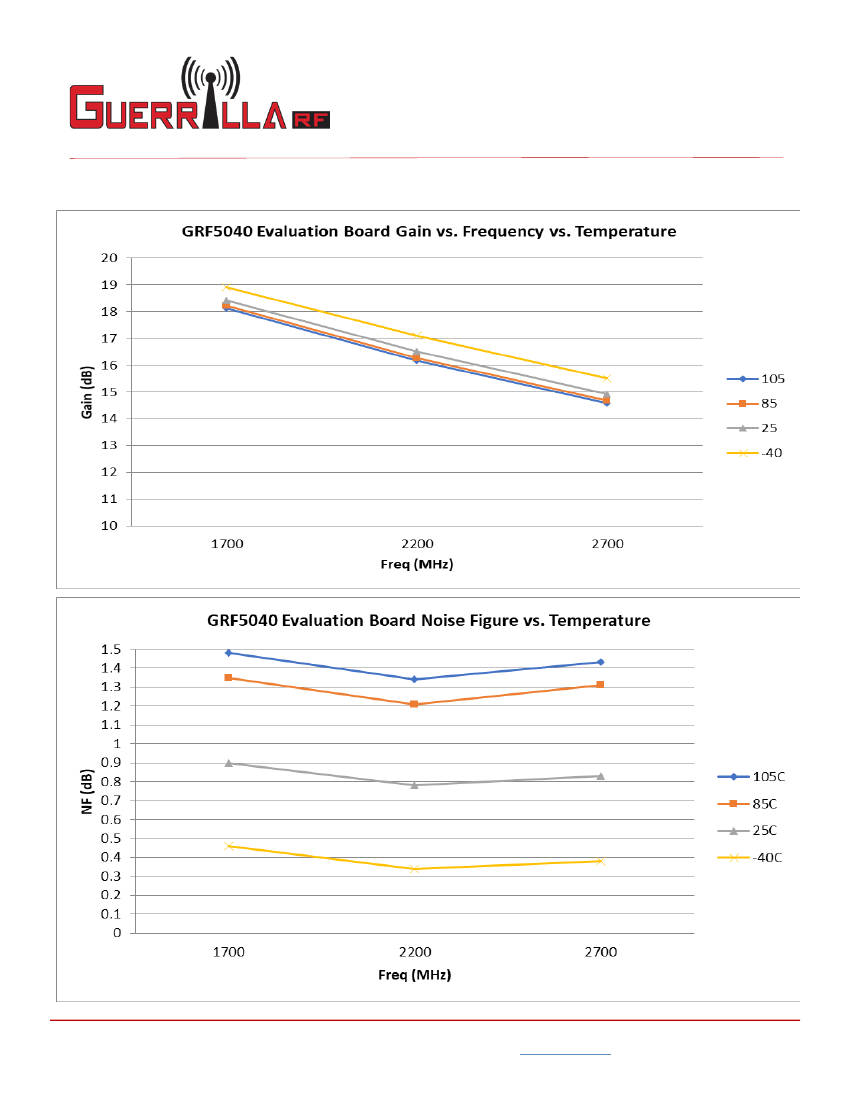

GRF5040 Evaluation Board Data; Bias: 8.0V/130 mA; (1.7 to 2.7GHz Tune)
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/26/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
5
