SC Series
■
Product Outline
RP-SMSCxxDA1
microSD/SDHC Memory Card, Industrial SLC Model
SC series are microSD/SDHC memory cards adopting built-in industrial type SLC NAND flash
memory and is suitable for industrial applications where frequent writes are required. They are
adequate for the applications, where large data load are written, such as measurement
equipment (hand held terminals, seismic sensors, factory automation, data loggers and
meters). They are formatted complying with SD card specification.
■

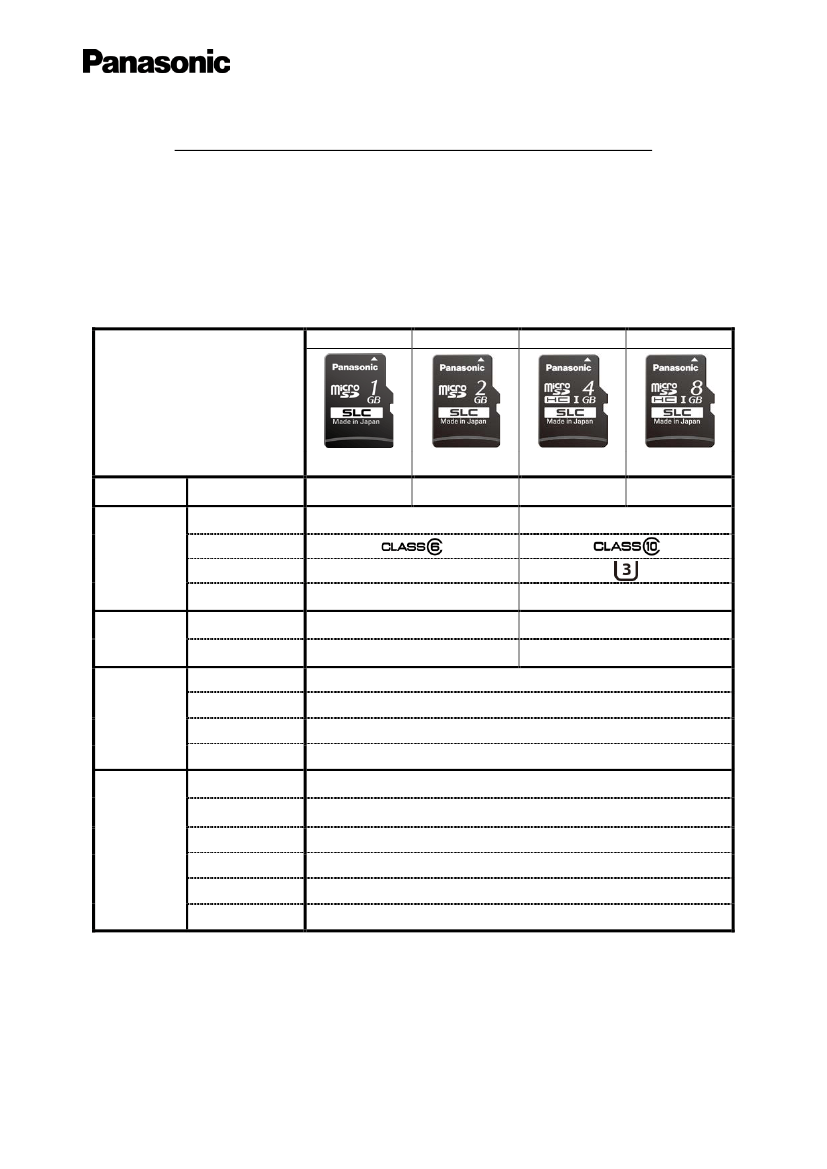

Product Specification
(Specifications and appearances may be changed without notice.)
1GB
2GB
4GB
8GB
Appearance
Part Number
Capacity
Available user data
area capacity *1)
SD Physical
Specification
SD Speed Class
UHS Speed Grade
Speed mode
Read/Write
Performance
(up to)
Read
Write
Supply Voltage
Absolute
Maximum
Ratings
Input Voltage
Output Voltage
Output Current
Operating
Temperature
Storage
Temperature
Environmental
Specification
Humidity
Vibration
Shock
Mating Cycles
RP-SMSC01DA1
972,750,848
byte
RP-SMSC02DA1
1,981,480,960
byte
RP-SMSC04DA1
3,971,973,120
byte
RP-SMSC08DA1
7,960,756,224
byte
Ver. 3.01
Ver. 4.20
Compliant
Specification
---
Default Speed
High Speed
22MB/s
(High Speed)
20MB/s
(High Speed)
Default Speed, High Speed, SDR12,
SDR25, SDR50, DDR50, SDR104 *2)
90MB/s
(SDR104) *2)
40MB/s
(SDR104) *2)
Min : -0.3 V ; Max : +4.6 V
Min : -0.3 V ; Max : VDD +0.3 V
Min : -0.3 V ; Max : VDD +0.3 V
Min : -24 mA ; Max : +24 mA
-40 degree C to +85 degree C
-40 degree C to +85 degree C
5 % RH to 95 % RH
15 Gp-p
1,000 G
10,000 cycles
*1) Free area capacity after formatted.
*2) SDR104 mode is not supported when using microSD adapter.
•
Absolute Maximum Ratings are the values of limitation, which do not damage the card. Those
values do not define the operational range.
•
Products comply with EU RoHS directives.
Page 1 of 2
(2018.06.14)
RP-SMSCxxDA1
■
Marking Specification ( example : 4GB )
“4GB”
Card Capacity
“Made in Japan” Country of origin
“00YM0000000”
Y
M
Serial Number
Last digit of Manufacture year
Manufacture month (Jan->A, Feb->B, ...)
00YM0000000
■ System Reliability
a. Powerful error detect and corrective function
b. Static wear leveling
c. Data recovery at power failure in writing
d. Automatic refresh function to prevent uncorrectable error
e. Bad block management
■ Notice and Caution
If you think about the usage for which special quality or reliability of the products is needed and
failure or malfunction of the products may directly threaten life or injury for the special usage
(aeronautic or cosmic usage, military usage, combustion machine, life support applications or
safety applications), please counsel with our contacts in advance.
Write frequency and storage temperature will affect data retention time. Please make a
backup for important data.
■ Warranty
If the product cannot be used because of failure which is determined as defect in design or in
production of the product, it is replaced by same product or equivalent one within 12 months
from the delivery date of product.
Page 2 of 2
(2018.06.14)
