ICO120-83D-N3350-CAN-DC datasheet, PDF

Datasheet> All Categories > Embedded solution> To calculate> Embedded box type computer> ICO120-83D-N3350-CAN-DC

ICO120-83D-N3350-CAN-DC: DescriptionEmbedded box computer Robust DIN-rail Fanless Embedded System with Intel Atom Processor N3350 (1.1GHz) 1 CANbus 2.0A/B 2 GbE 1 DIO; CategoryEmbedded solution To calculate Embedded box type computer; File Size297KB，3 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ICO120-83D-N3350-CAN-DC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ICO120-83D-N3350-CAN-DC	-	-	View	Buy Now

ICO120-83D-N3350-CAN-DC Overview

Embedded box computer Robust DIN-rail Fanless Embedded System with Intel Atom Processor N3350 (1.1GHz) 1 CANbus 2.0A/B 2 GbE 1 DIO

ICO120-83D-N3350-CAN-DC Parametric

Parameter Name	Attribute value
Maker	Axiomtek
Product Category	Embedded box computer
Processor brand	Intel
Processor type	Intel Celeron
frequency	1.1 GHz
storage	8 GB
Working power voltage	12 V to 24 V
Interface Type	Ethernet, PCI-e, Serial, USB
Minimum operating temperature	- 20 C
Maximum operating temperature	+ 70 C
size	31 mm x 100 mm x 125 mm
storage type	DDR3L-1866
series	ICO120-83D
Processor series	N3350
Factory packaging quantity	1

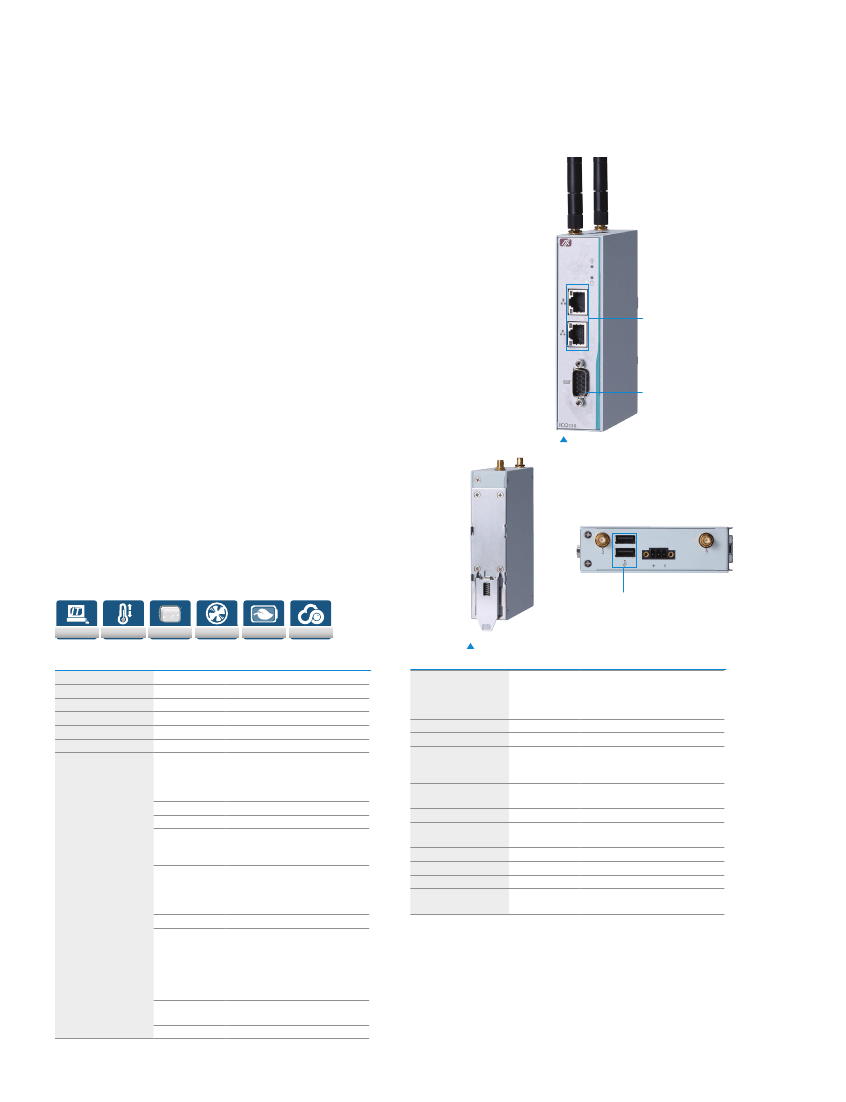

Preview

Download Datasheet

View All

ICO120-83D

Robust DIN-rail Fanless Embedded System with Intel® Celeron® Processor N3350,

COM or CAN, 2 LAN, 2 USB and DIO

Features

●

Extreme cost-effective with fanless and cableless design

●

Intel® Celeron® processor N3350

●

1 COM or CAN, 2 USB, 2 GbE LAN

●

8-bit programmable DIO for IoT gateway applications

●

Wide operating temperature range from -40°C to +70°C

●

12 to 24 VDC wide range power input

●

OVP, UVP, OCP, RPP power protection design

●

AXView 2.0 intelligent remote monitoring software for IIoT

LAN

COM port or CANbus

Front view

2 x USB

EN60950

Ext. Temp

IP40

Fanless

Low Power

AXView

Specifications

Standard Color

Construction

CPU

System Board

System Memory

BIOS

System I/O Outlet

Sliver

Extruded aluminum and heavy-duty steel, IP40

Intel® Celeron® processor N3350 (1.1 GHz, Dual Core)

SBC8783D

1 x DDR3L-1866 SO-DIMM, up to 8GB

AMI UEFI BIOS

Serial

1 x RS-232/422/485

Interface select by BIOS

Supports Auto Flow Control in RS-485

mode

RTC

Battery onboard

2 x USB 3.0, 2 x USB 2.0

USB

Storage

Half-size mSATA shared with half-

size mPCIe slot (option eMMC flash

onboard)

LAN

2 x 10/100/1000 Mbps Ethernet

(Intel® i211-AT for ICO120)

(Intel® i210-IT for ICO120-WT)

Magnetic isolation protection 1.5KV

Display

1 x VGA (DB15 connector)

DIO

1 x DI/DO (8-bit programmable, DB9

female connector)

Voltage is 5V TTL-level

Programming:

I/O sink current is 10mA (max.)

Input/output can be programming

CAN

1 x CAN 2.0 A/B (DB9 connector)

(ICO120-CAN)

Power Input

1 x DC power input with terminal block

Rear view

Extension Interface

1 x Full-size PCI Express Mini Card slot with SIM slot

(for wireless module )

1 x Half-size PCI Express Mini Card slot with mSATA (for

wireless module or half size mSATA)

255 levels, 1 to 255 sec.

Power, active

Power input range: 12 to 24 VDC, 1.39 to 0.72A (16.68

to17.28W)

Protection: OVP (±20%), reverse protection

-20°C to +70°C (-4°F to +158°F)

-40°C to +70°C (-40°F to +158°F) (ICO120-WT)

10% to 95%

2 Gms (5 to 500Hz, amplitude 0.35 mm; operation/storage/

transport)

0.3 kg (0.67 lb)/0.46 kg (1 lb)

CE, FCC Class A

31 mm (1.22") (W) x 100 mm (3.93") (D) x 125 mm (4.92") (H)

Windows® 10 IoT, AXView 2.0

Linux support package (by request)

Watchdog Timer

System Indicator

Power Supply

Operating Temperature

Humidity

Vibration Endurance

Weight (net/gross)

Certifications

Dimensions

EOS Support

159

* All specifications and photos are subject to change without notice.

w w w. a xi o m te k .c o m
