EM60320I ATX250W datasheet, PDF

Datasheet> All Categories > Embedded solution> Module accessories> EM60320I ATX250W

EM60320I ATX250W: Description模块配件 MicroBox 2U Chassis for Mini ITX Board (All SBC) with ATX250W Power Supply no CF support no Riser Card cost included; CategoryEmbedded solution Module accessories; File Size173KB，2 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

EM60320I ATX250W Overview

模块配件 MicroBox 2U Chassis for Mini ITX Board (All SBC) with ATX250W Power Supply no CF support no Riser Card cost included

EM60320I ATX250W Parametric

Parameter Name	Attribute value
Maker	Axiomtek
Product Category	Module accessories
product	Embedded MicroBoxes
used for	Mini-ITX SBC
size	335 mm x 250 mm x 88 mm
series	EM60320I
Working power voltage	115 VAC to 230 VAC
Factory packaging quantity	1

Preview

Download Datasheet

View All

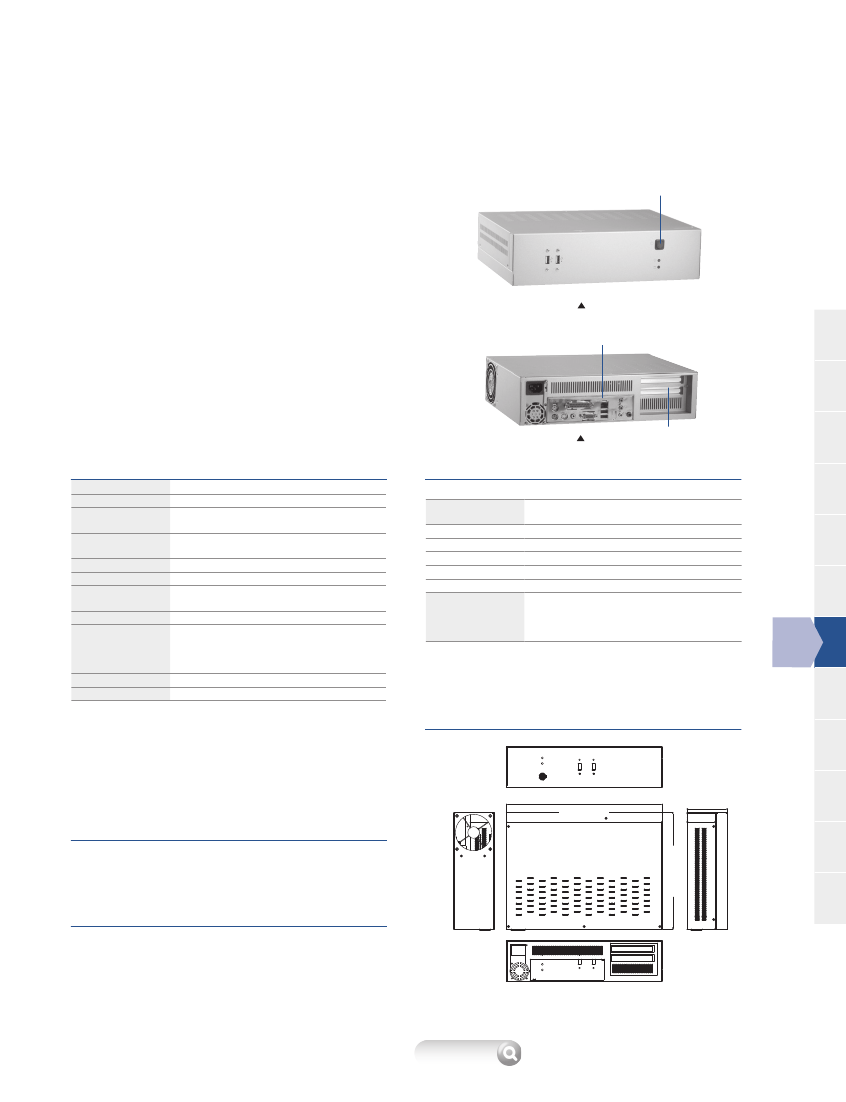

EM60320I

Embedded MicroBox for Mini-ITX SBC

Features

●

Designed for Mini-ITX SBC

●

Flexible I/O bracket for high performance embedded system

via industrial P4 Mini-ITX board

●

One 3.5" HDD drive bay

●

2 PCI slots and 2 add-on card brackets for rich I/O expansion

●

1 system fan

●

Supports optional CompactFlash™ opening

●

Quick customization project supported

ATX power button

Front view

Standard I/O opening for Mini-ITX SBC

Embedded

MicroBoxes

Rear view

2 PCI slots

Specifications

Standard Color

Construction

Indicator

Front Panel I/O

Rear Panel I/O

Expansion Interface

Drive Capacity

Cooling

Power Supply

Silver

Heavy-duty cold-rolled steel

1 x green LED for system power-on

1 x orange LED for HDD active

1 x ATX power button

2 x USB 2.0

1 x Standard Mini-ITX I/O bracket space

2 x PCI slot

1 x 3.5" HDD

1 x CompactFlash™ (optional SBC support)

1 x 80 x 80 mm system fan

ATX 250 W

Input: AC 115 ~ 230 V

Output: +3.3V @ 4A, +5V @ 6A, +12V @ 16.5A, -12V @ 0.4A,

+5Vsb @ 1A

335 mm (13.2") (W) x 250 mm (9.8") (D) x 88 mm (3.5") (H)

EMI pre-scan meets EN55022 Class A

Ordering Information

Standard

EM60320I

EM60320I-CF

Embedded MicroBox for Mini-ITX SBC

Standard

MANO861/MANO871/MANO842

Optional

AX96125 (2 PCI)

AX96140 (2 PCI)

AX96145 (2 PCIe)

AX96147 (2 PCIe)

*Specifications and certifications are based on options and may vary.

Dimensions

Environment

Dimensions

Applications

Wallmount PC controller

Embedded PC controller

Unattended controller

Compact industrial PC

335.00

88.00

Packing List

1 x System unit with riser card

1 x Power cord (optional)

250.00

* All specifications and photos are subject to change without notice.

ax io m tek .c om

416
