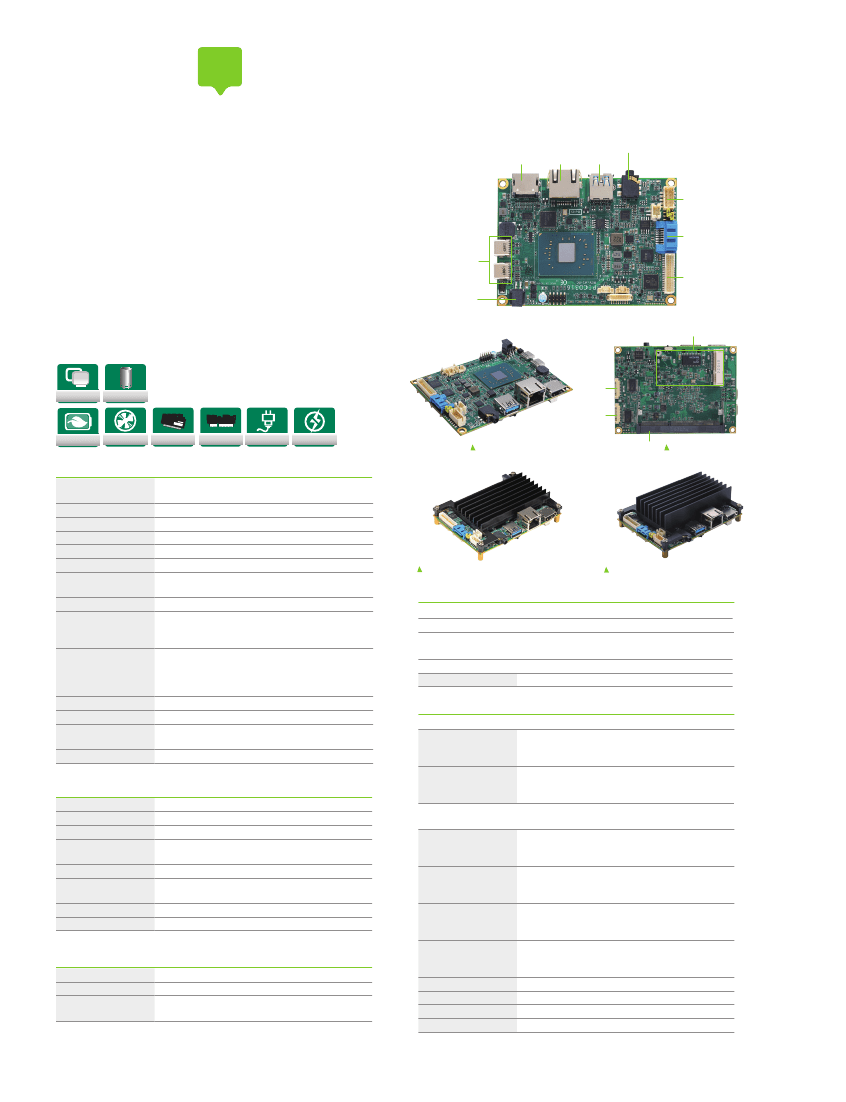

PICO316
Features
NEW
Pico-ITX SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350,
HDMI/LVDS, GbE LAN and Audio
HDMI
LAN
USB 3.0 1
Audio
●
Intel® Pentium® processor N4200 & Celeron® processor
N3350
●
1 DDR3L SO-DIMM, up to 8GB
●
2 USB 2.0 and 3 USB 3.0
●
PCI Express Mini Card slot with mSATA supported
USB 2.0 1/2
SATA-3
USB 3.0 2/3
in Type C
+5V power input
Full-size PCI Express Mini Card
slot with mSATA supported
LVDS
DualView
Full Solid
Cap Design
COM 1
DDR3L
PCIe
Mini
COM 2
+5V
AiRD
Low Power
Fanless
DDR3L
PCIe Mini
Side view
DDR3L SO-DIMM
Rear view
Core System
CPU
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
Battery Lithium
Power Input
Intel® Pentium® processor N4200 & Celeron® processor
N3350 onboard
1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
SoC integrated
AMI
N/A
65536 levels, 1 ~ 65535 sec.
1 x full-size PCI Express Mini Card slot with mSATA
supported
Lithium 3V/220mAH
2 x 2-pin connector
+5V DC-in only
AT Auto Power On function supported
Intel® Pentium® N4200 @ 1.1 GHz 8GB DDR3L
Max RMS: +5V @ 3.3A
Intel® Celeron® N3350 @ 1.1 GHz 8GB DDR3L
Max RMS: +5V @ 2.3A
100 x 72 mm
1.6 mm
Standard: -20°C ~ +60°C (-4°F ~ +140°F)
Optional: -20°C ~ +70°C (-4°F ~ +158°F)
10% ~ 95% relative humidity, non-condensing
Assembly view for 60°C thermal solution
Assembly view for 70°C thermal solution
Packing List
Standard
Quick installation guide, user’s manual/utility CD and accessories
Accessories
Part Number
594H3160400E
Power Requirements
Description
Power Cable L=100 mm
Size
Board Thickness
Temperature
Relative Humidity
Ordering Information
Standard
PICO316HGA-N4200
(P/N: E38H316101)
PICO316HGA-N3350
(P/N: E38H316100)
Pico-ITX SBC with Intel® Pentium® processor N4200
(1.1 ~ 2.5 GHz, 2 MB Cache, 6W), HDMI/LVDS, 1 GbE LAN,
3 USB 3.0 and 2 USB 2.0
Pico-ITX SBC with Intel® Celeron® processor N3350
(1.1 ~ 2.4 GHz, 2 MB Cache, 6W), HDMI/LVDS, 1 GbE LAN,
3 USB 3.0 and 2 USB 2.0
I/O
MIO
SATA
Hardware Monitoring
Ethernet
Audio
USB
SMBus/I
2
C
Digital I/O
2 x RS-232
1 x SATA-600
Detect CPU/system temperature and voltage
1 port 10/100/1000 Mbps, supports Wake-on-LAN,
PXE Boot ROM with Intel® i211AT
HD Codec audio as Line-out with Realtek ALC662
2 x USB 2.0
3 x USB 3.0
Yes, for advanced monitor/control
N/A
Display
Chipset
Memory Size
Display Interface
Intel® integrated Gfx graphic engine
Share system memory
1 x LVDS; 18/24-bit single/dual channel
1 x HDMI
Optional
PICO316HGA-N3350 60°C Pico-ITX SBC with Intel® Celeron® processor N3350
(P/N: E38H316102)
(1.1 ~ 2.4 GHz, 2MB Cache, 6W), HDMI/LVDS, 1 GbE LAN,
3 USB 3.0, 2 USB 2.0 and low profile heatsink
PICO316HGA-N4200 60°C Pico-ITX SBC with Intel® Pentium® processor N4200
(P/N: E38H316103)
(1.1 ~ 2.5 GHz, 2MB Cache, 6W), HDMI/LVDS, 1 GbE LAN,
3 USB 3.0, 2 USB 2.0 and low profile heatsink
PICO316HGA-N3350 70°C Pico-ITX SBC with Intel® Celeron® processor N3350
(P/N: E38H316104)
(1.1 ~ 2.4 GHz, 2MB Cache,6W), HDMI/LVDS, 1 GbE LAN,
3 USB 3.0, 2 USB 2.0 and high profile heatsink
PICO316HGA-N4200 70°C Pico-ITX SBC with Intel® Pentium® processor N4200
(P/N: E38H316105)
(1.1 ~ 2.5 GHz, 2MB Cache,6W), HDMI/LVDS, 1 GbE LAN,
3 USB 3.0, 2 USB 2.0 and high profile heatsink
5090BE26000E
5V/8A 40W adapter, 4-pin plug w/ lock
594H3160410E
Power cable for adapter L=100 mm
7128H316000E
Heatspreader
59380880250E
COM Port Cable DB9--9 x 1P L250 mm P=1.25
* All specifications and photos are subject to change without notice.
