STGIPQ3HD60-HL,
STGIPQ3HD60-HZ
SLLIMM™ nano - 2
nd
series
IPM, 3 A, 600 V, 3-phase IGBT inverter bridge
Datasheet - production data
Applications
3-phase inverters for motor drives
Dish washers, refrigerator compressors,
heating systems, air-conditioning fans,
draining and recirculation pumps

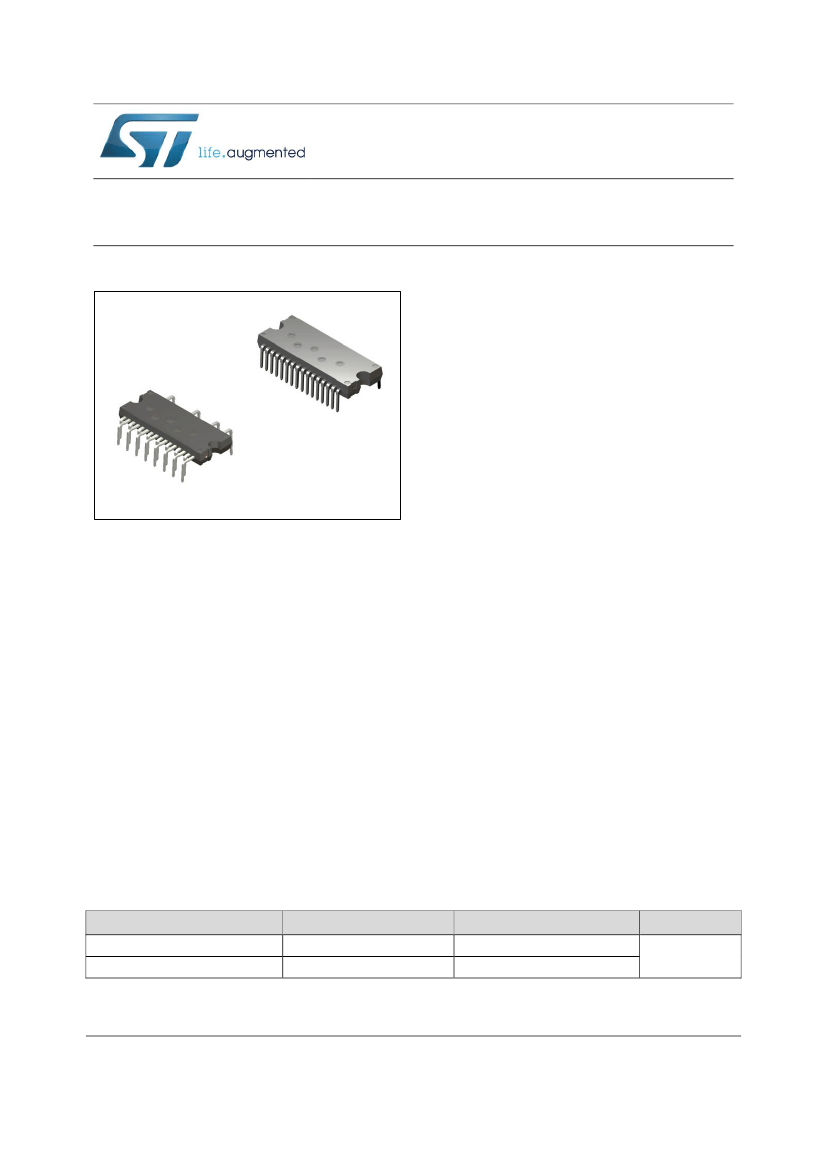

N2DIP-26L type L
Description
This second series of SLLIMM (small low-loss
intelligent molded module) nano provides a
compact, high performance AC motor drive in a
simple, rugged design. It is composed of six
improved IGBTs with freewheeling diodes and
three half-bridge HVICs for gate driving, providing
low electromagnetic interference (EMI)
characteristics with optimized switching speed.
The package is designed to allow a better and
more easily screwed-on heatsink and is
optimized for thermal performance and
compactness in built-in motor applications or
other low power applications where assembly
space is limited. This IPM includes a completely
uncommitted operational amplifier and a
comparator that can be used to design a fast and
efficient protection circuit. SLLIMM™ is a
trademark of STMicroelectronics.
N2DIP-26L type Z
Features
IPM 3 A, 600 V, 3-phase IGBT inverter
bridge including control ICs for gate driving
and freewheeling diodes
Optimized for low electromagnetic
interference
V
CE(sat)
negative temperature coefficient
3.3 V, 5 V, 15 V CMOS/TTL input
comparators with hysteresis and pull-
down/pull-up resistors
Blanking time t
dead
≥ 1 µs
Undervoltage lockout
Internal bootstrap diode
Interlocking function
Smart shutdown function
Comparator for fault protection against
overtemperature and overcurrent
Op-amp for advanced current sensing
Optimized pinout for easy board layout
Isolation ratings of 1500 Vrms/min.
UL recognition: UL 1557 file E81734
Order code
STGIPQ3HD60-HL
STGIPQ3HD60-HZ
Marking
GIPQ3HD60-HL
GIPQ3HD60-HZ
Table 1: Device summary
Package
N2DIP-26L type L
N2DIP-26L type Z
Packing
Tube
June 2017
DocID030077 Rev 2
1/24
www.st.com
This is information on a product in full production.
Contents
STGIPQ3HD60-HL, STGIPQ3HD60-HZ
Contents
1
2
Internal schematic diagram and pin configuration ....................... 3
Electrical ratings ............................................................................. 5
2.1
2.2
Absolute maximum ratings ................................................................ 5
Thermal data ..................................................................................... 6
Inverter part ....................................................................................... 7
Control part ....................................................................................... 9
Waveform definitions....................................................................... 12
3
Electrical characteristics ................................................................ 7
3.1
3.2
3.3
4
5
6
Smart shutdown function ............................................................. 13
Application circuit example .......................................................... 15
5.1
6.1
6.2
6.3
Guidelines ....................................................................................... 16
N2DIP-26L type L package information .......................................... 18
N2DIP-26L type Z package information .......................................... 20
N2DIP-26L packing information ...................................................... 22
Package information ..................................................................... 18
7
Revision history ............................................................................ 23
2/24
DocID030077 Rev 2
STGIPQ3HD60-HL, STGIPQ3HD60-HZ
Internal schematic
diagram and pin configuration
1
Internal schematic diagram and pin configuration

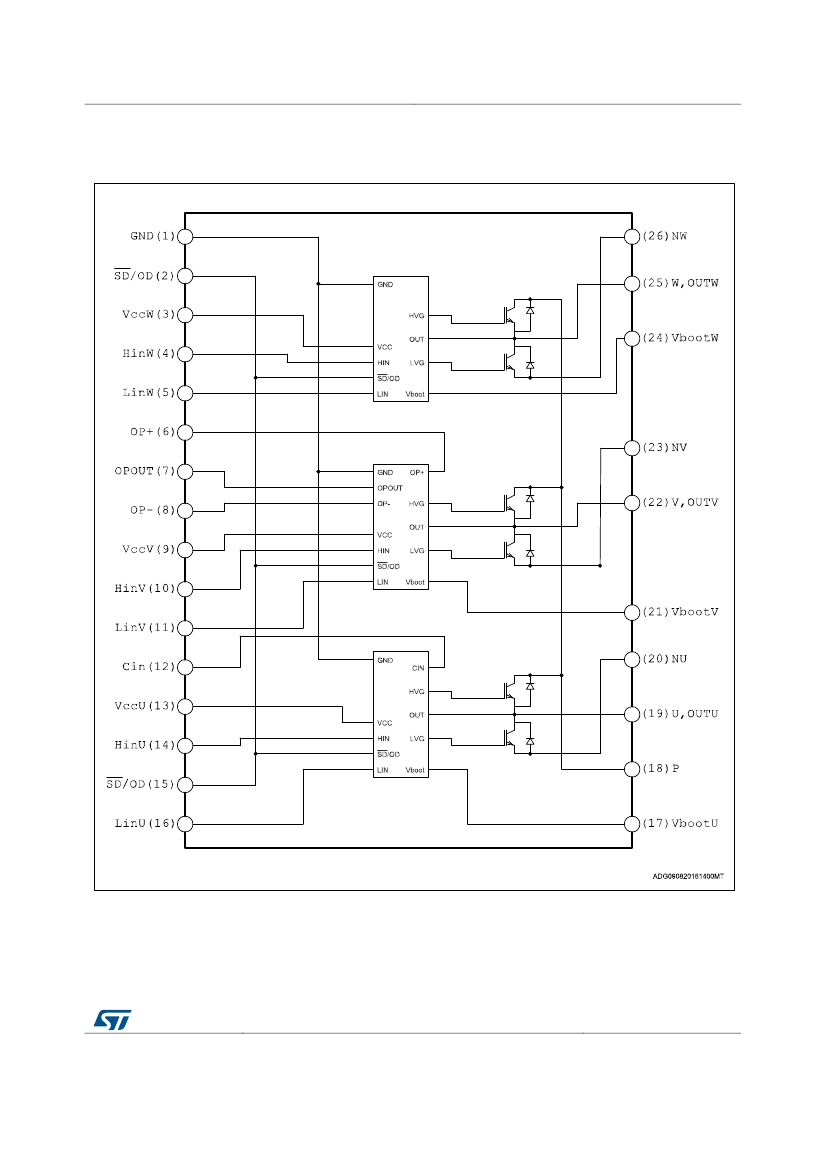

Figure 1: Internal schematic diagram
DocID030077 Rev 2
3/24
Internal schematic
diagram and pin configuration
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Symbol
GND
̅̅̅̅
/ OD
SD
V
CC
W
HIN W
LIN W
OP+
OP
OUT
OP-
V
CC
V
HIN V
LIN V
CIN
V
CC
U
HIN U
̅̅̅̅
/ OD
SD
LIN U
V
BOOT
U
P
U, OUT
U
N
U
V
BOOT
V
V, OUT
V
N
V
V
BOOT
W
W, OUT
W
N
W
Ground
STGIPQ3HD60-HL, STGIPQ3HD60-HZ
Description
Table 2: Pin description
Shutdown logic input (active low) / open-drain (comparator output)
Low voltage power supply W phase
High-side logic input for W phase
Low-side logic input for W phase
Op-amp non inverting input
Op-amp output
Op-amp inverting input
Low voltage power supply V phase
High-side logic input for V phase
Low-side logic input for V phase
Comparator input
Low voltage power supply for U phase
High-side logic input for U phase
Shutdown logic input (active low) / open-drain (comparator output)
Low-side logic input for U phase
Bootstrap voltage for U phase
Positive DC input
U phase output
Negative DC input for U phase
Bootstrap voltage for V phase
V phase output
Negative DC input for V phase
Bootstrap voltage for W phase
W phase output
Negative DC input for W phase
4/24
DocID030077 Rev 2
STGIPQ3HD60-HL, STGIPQ3HD60-HZ
Electrical ratings
2
2.1
Electrical ratings
Absolute maximum ratings
Table 3: Inverter part
Symbol
V
CES
± I
C
(2)
± I
CP
(3)
P
TOT
Notes:
(1)
Applied
Parameter
Each IGBT collector emitter voltage (V
IN
(1)
= 0)
Each IGBT continuous collector current at T
C
= 25 °C
Each IGBT pulsed collector current
Each IGBT total dissipation at T
C
= 25 °C
Value
600
3
18
8
Unit
V
A
A
W
among HIN
x
, LIN
x and
G
ND
for x = U, V, W.
according to the iterative formula:
(2)
Calculated
(3)
Pulse
width limited by max. junction temperature.
Table 4: Control part
Symbol
V
OUT
V
CC
V
CIN
V
op+
V
op-
V
boot
V
IN
V
SD⁄OD
∆V
OUT/dT
Parameter
Output voltage applied among OUT
U
, OUT
V
, OUT
W
- GND
Low voltage power supply
Comparator input voltage
Op-amp non-inverting input
Op-amp inverting input
Bootstrap voltage
Logic input voltage applied among HIN, LIN and GND
Open-drain voltage
Allowed output slew rate
Table 5: Total system
Symbol
V
ISO
T
j
T
C
Parameter
Isolation withstand voltage applied between each pin and
heatsink plate (AC voltage, t = 60 s)
Power chip operating junction temperature
Module case operation temperature
Value
1500
-40 to 150
-40 to 125
Unit
V
°C
°C
Min.
V
boot
- 21
- 0.3
- 0.3
- 0.3
- 0.3
- 0.3
- 0.3
- 0.3
Max.
V
boot
+ 0.3
21
V
CC
+ 0.3
V
CC
+ 0.3
V
CC
+ 0.3
620
15
15
50
Unit
V
V
V
V
V
V
V
V
V/ns
DocID030077 Rev 2
5/24
