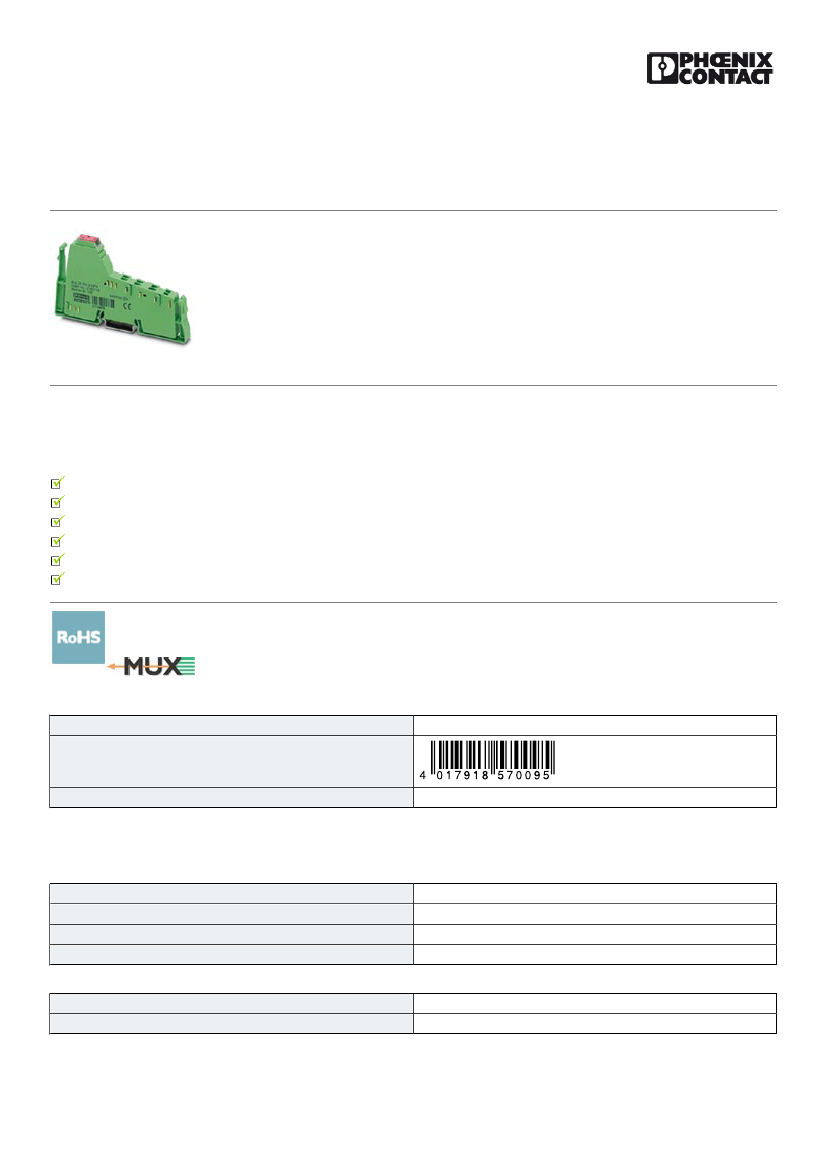

Inline terminal - IB IL 24 DO 2-NPN - 2740119
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Inline digital output terminal block, without accessories, 2 outputs, 24 V DC, n-p-n-wired, 2, 3, and 4-wire
connection method
Product Description
The terminal is designed for use within an Inline station.
It is used to output digital signals.
Your advantages
2 digital outputs, npn-wired
Connection of actuators in 2, 3, and 4-wire technology
Nominal current per output: 500 mA
Total current of the terminal: 1 A
Short-circuit-proof and overload-protected outputs
Diagnostic and status indicators
Key Commercial Data
Packing unit
GTIN
GTIN
4017918570095
1 pc
Technical data
Dimensions
Width
Height
Depth
Note on dimensions
12.2 mm
119.8 mm
71.5 mm
Housing dimensions
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-25 °C ... 55 °C
-25 °C ... 85 °C
07/21/2019 Page 1 / 3
https://www.phoenixcontact.com/pi/products/2740119
Inline terminal - IB IL 24 DO 2-NPN - 2740119
Technical data
Ambient conditions
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Degree of protection
10 % ... 95 % (according to DIN EN 61131-2)
10 % ... 95 % (according to DIN EN 61131-2)
70 kPa ... 106 kPa (up to 3000 m above sea level)
70 kPa ... 106 kPa (up to 3000 m above sea level)
IP20
Interfaces
Designation
Connection method
Transmission speed
Inline local bus
Inline data jumper
500 kbps
Standards and Regulations
Connection in acc. with standard
Protection class
CUL
III, IEC 61140, EN 61140, VDE 0140-1
Digital outputs
Output name
Output description
Connection method
Connection technology
Number of outputs
Type of protection
Output voltage
Nominal output voltage
Maximum output current per channel
Maximum output current per module
Nominal load, inductive
Nominal load, lamp
Nominal load, ohmic
Digital outputs
With negative logic
Spring-cage connection
2, 3, 4-wire
2
Short-circuit and overload protection
24 V DC (U
S
- 1 V)
24 V DC (voltage difference at I
nom
≤ 1 V)
500 mA
1A
12 W
12 W
12 VA
General
Mounting type
Net weight
Note on weight specifications
Diagnostics messages
DIN rail
47.09 g
without plug
Short-circuit / overload of the digital outputs Error message in the
diagnostic code (bus) and display (2 Hz) via the LED (D) on the module
Inline potentials
Designation
Supply voltage
Current consumption
Designation
Supply voltage
Supply voltage range
Communications power (U
L
)
7.5 V DC (via voltage jumper)
max. 32 mA
Segment circuit supply (U
S
)
24 V DC (via voltage jumper)
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
07/21/2019 Page 2 / 3
https://www.phoenixcontact.com/pi/products/2740119
Inline terminal - IB IL 24 DO 2-NPN - 2740119
Technical data
Inline potentials
Current consumption
max. 1 A
