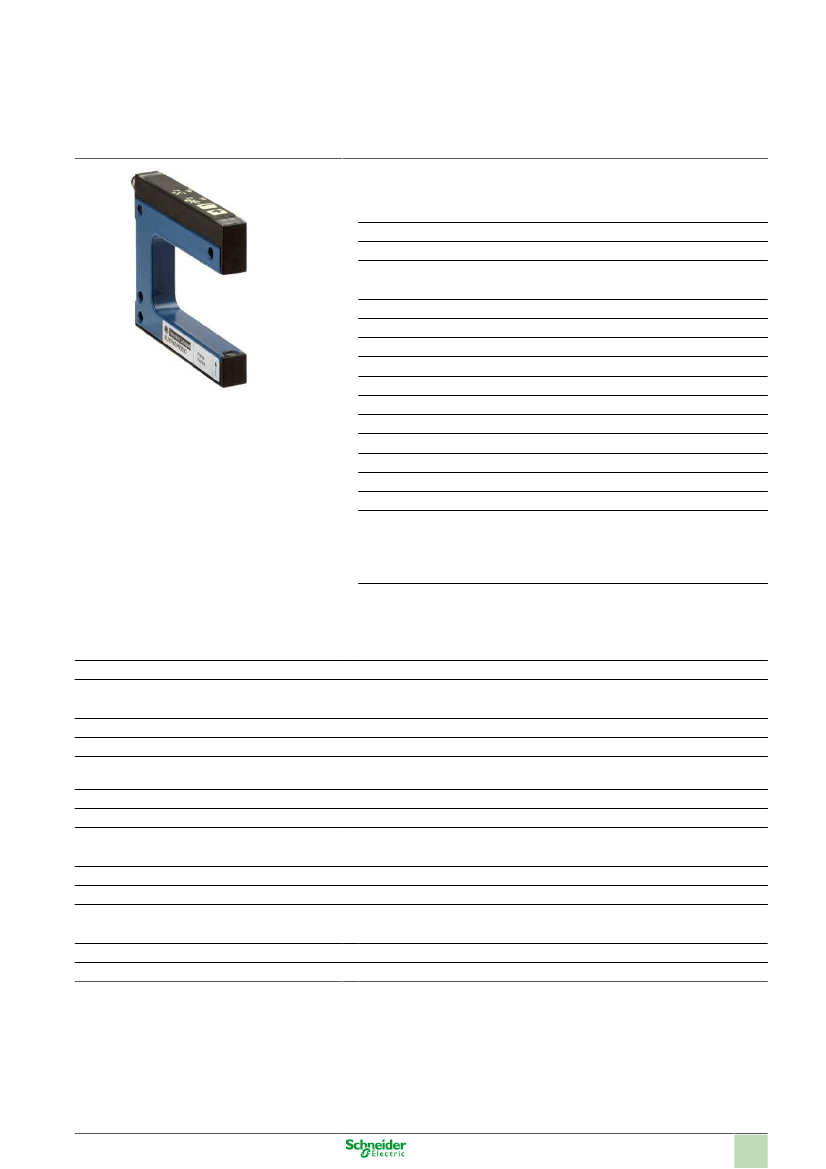

Product data sheet
Characteristics
XUYFNEP100050
photo-electric sensor - XUY - fork - pot +/- -
50X95mm - 12..24VDC - M8
Product availability: Non-Stock - Not normally stocked in distribution facility
Main
Commercial Status
Range of product
Series name
Electronic sensor type
Sensor name
Sensor design
Detection system
Emission
Passage width
Passage depth
Material
Supply circuit type
Wiring technique
Discrete output type
Discrete output function
Electrical connection
Product specific
application
Commercialised
OsiSense XU
Application
Photo-electric sensor
XUY
Fork
Thru beam
Infrared LED, modulated
1.97 in (50 mm)
3.74 in (95 mm)
DC
4-wire
PNP and NPN
1 NO or 1 NC programmable
1 male connector M8, 4 pins
Detection of double sheet
Detection of labels
Detection of reference marks
Detection on vibrating rail
Detection on small conveyor
1.97 in (50 mm)
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Metal/Plastic
[Sn] nominal sensing
distance
Complementary
Enclosure material
Keypad type
Minimum object diameter for detection
Type of output signal
Output type
Status LED
[Us] rated supply voltage
Supply voltage limits
Switching capacity in mA
Switching frequency
Voltage drop
Current consumption
Load capacitance
Delay response
Setting-up
Product weight
Painted aluminium and polyamide/glass
Green
0.01 in (0.2 mm)
Discrete
Solid state
1 LED (yellow) for output state
1 LED (red) for adjustment mode and keypad locking
12...24 V DC with reverse polarity protection
10...30 V DC
100 mA (overload and short-circuit protection)
10 kHz
< 2 V (closed state)
40 mA (no-load)
330 nF
-20...20 µs
Sensitivity by numeric potentiometer
0.12...0.28 lb(US) (0.055...0.128 kg)
Mar 1, 2016
1
Environment
Product certifications
Ambient air temperature for operation
Ambient air temperature for storage
Immunity to ambient light
Vibration resistance
Shock resistance
IP degree of protection
CE
CULus
-4...140 °F (-20...60 °C)
-22...176 °F (-30...80 °C)
5000 lux with incandescent bulb
10000 lux with natural light
7 gn, amplitude = +/- 0.75 mm (f = 10...55 Hz) conforming to IEC 60068-2-6
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP65 conforming to IEC 60529
Ordering and shipping details
Category
Discount Schedule
GTIN
Nbr. of units in pkg.
Package weight(Lbs)
Product availability
Returnability
Country of origin
22481 - SENSORS, PHOTOELECTRIC
DS2
003389119006378
1
0.20
Non-Stock - Not normally stocked in distribution facility
N
FR
Contractual warranty
Period
18 months
2
