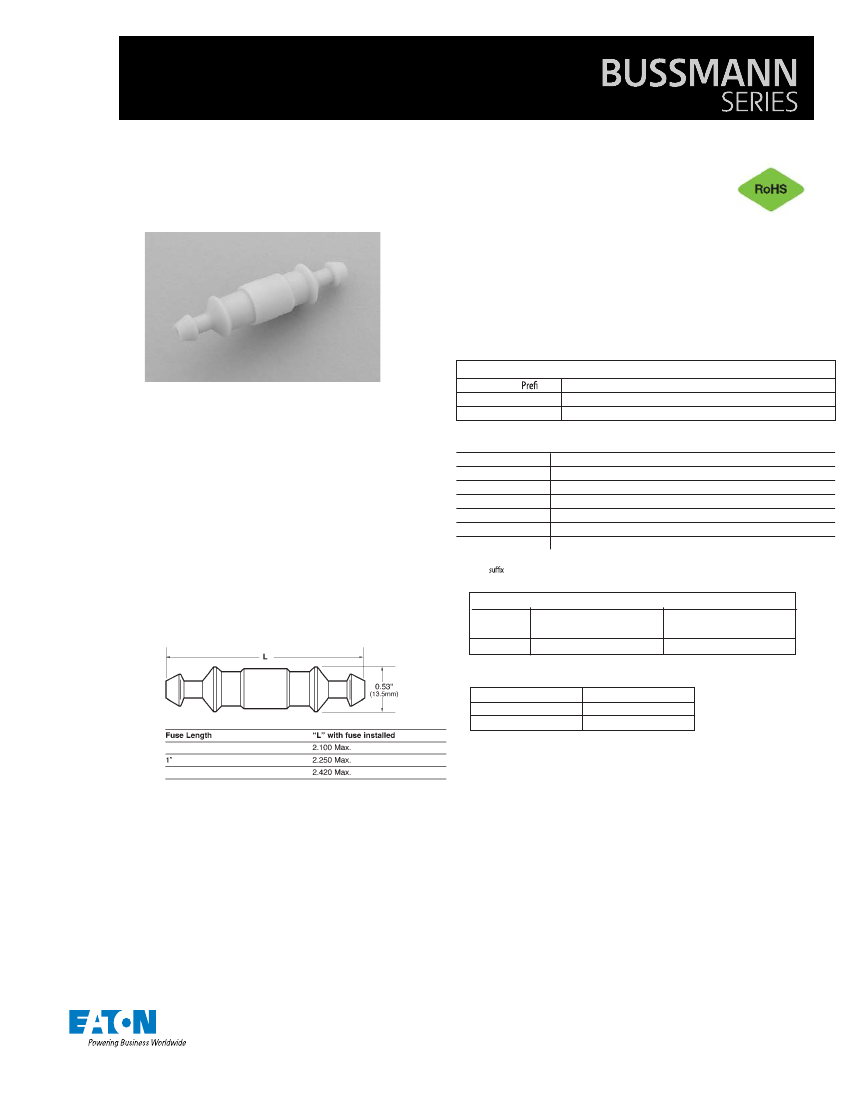

Technical Data
2103
Effective
March
2018
Supersedes
June
2017
HHB
1/4” x
7/8” to 1/4" x 1 1/4"
In-line
fuse holder
Ordering
•
Specify packaging code
•
Insert packaging code prefix before part number
E.g. BK/HHB-R
•
Specify option codes if desired
•
Drop “-R” suffix when ordering. E.g. BK/HHB-Y408
Product features
•
•
•
•
•
•
For 1⁄4" x 7⁄8" to 1⁄4" x 1 1⁄4" fuses
Accepts #16 to #12 AWG copper wire
Simple crimp assembly
“Snap-Lock” feature provides strong positive
union
High visibility yellow color
Recommended crimp tools:
o
Thomas & Betts –
ERG4002
o
Channellock No. 909
o
Thomas & Betts WT-112M
UL flammability rating 94 V2
Packaging Code
Blank
BK
x
Description
10 fuse holders packed into a carton
1,000 fuse holders packed into a cardboard shelf package
Packaging Code
Option Code
Y408**
†
R408
†
B408**
†
Y419**
†
R419**
†
B419**
†
Description
#14 AWG insulated wire with 8 inch yellow leads
#14 AWG insulated wire with 8 inch red leads
#14 AWG insulated wire with 8 inch black leads
#14 AWG insulated wire with 19 inch yellow leads
#14 AWG insulated wire with 19 inch red leads
#14 AWG insulated wire with 19 inch black leads
Option Code
•
**Not available in RoHS compliant construction.
† Drop “-R”
when ordering these options.
Specifications
Dimensions - in (mm)
Drawing Not to Scale
Part
Number
HHB-R*
Volts
32
Amps
30 max
*RoHS compliant construction.
Component
Body
Crimp
7 8
˝
/
Material
Nylon
Copper Tin-Plated
1
1
/
4
˝
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly used
in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/electronics
© 2018 Eaton
All Rights Reserved
Printed in USA
Publication No.
2103
BU-SB09721
March
2018
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
